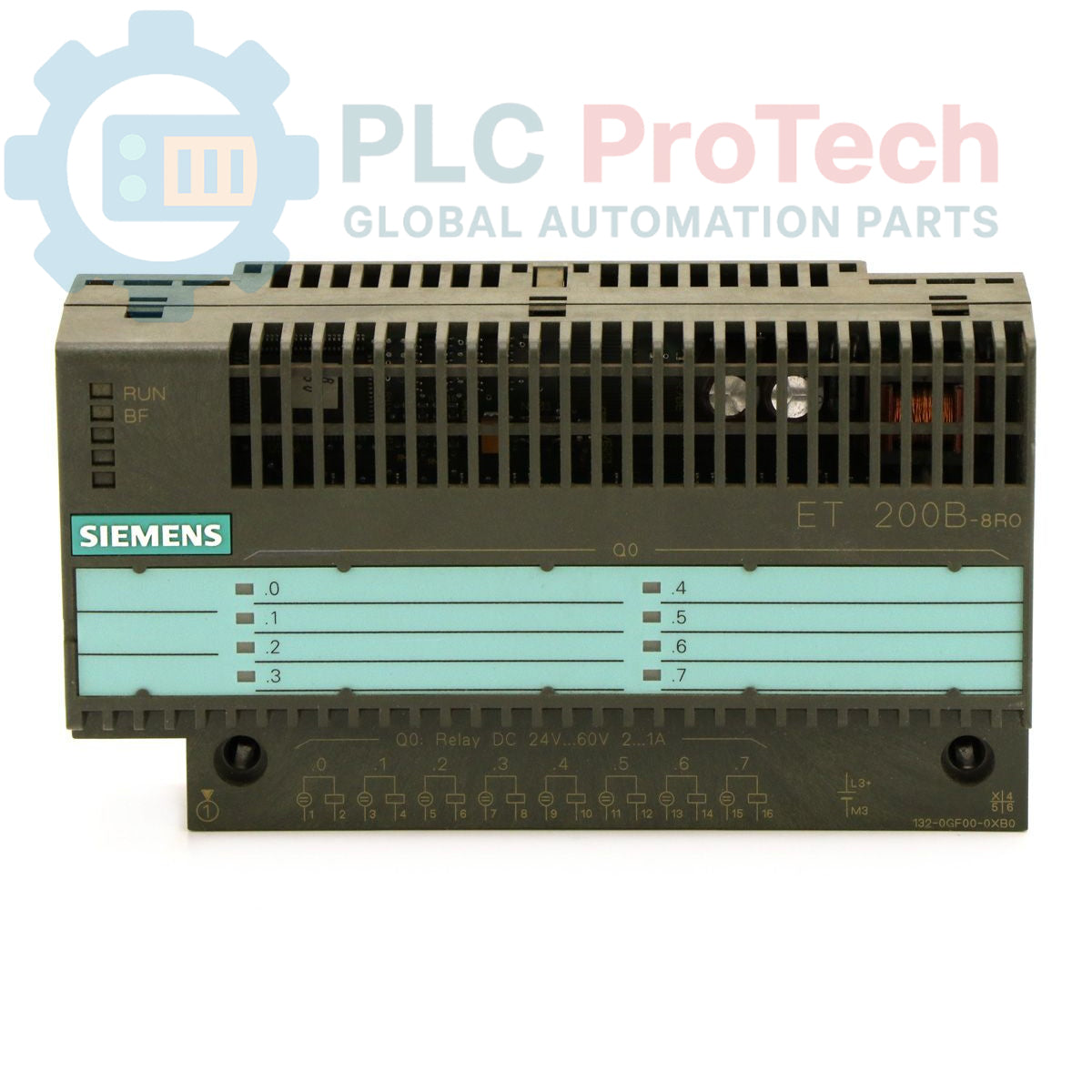

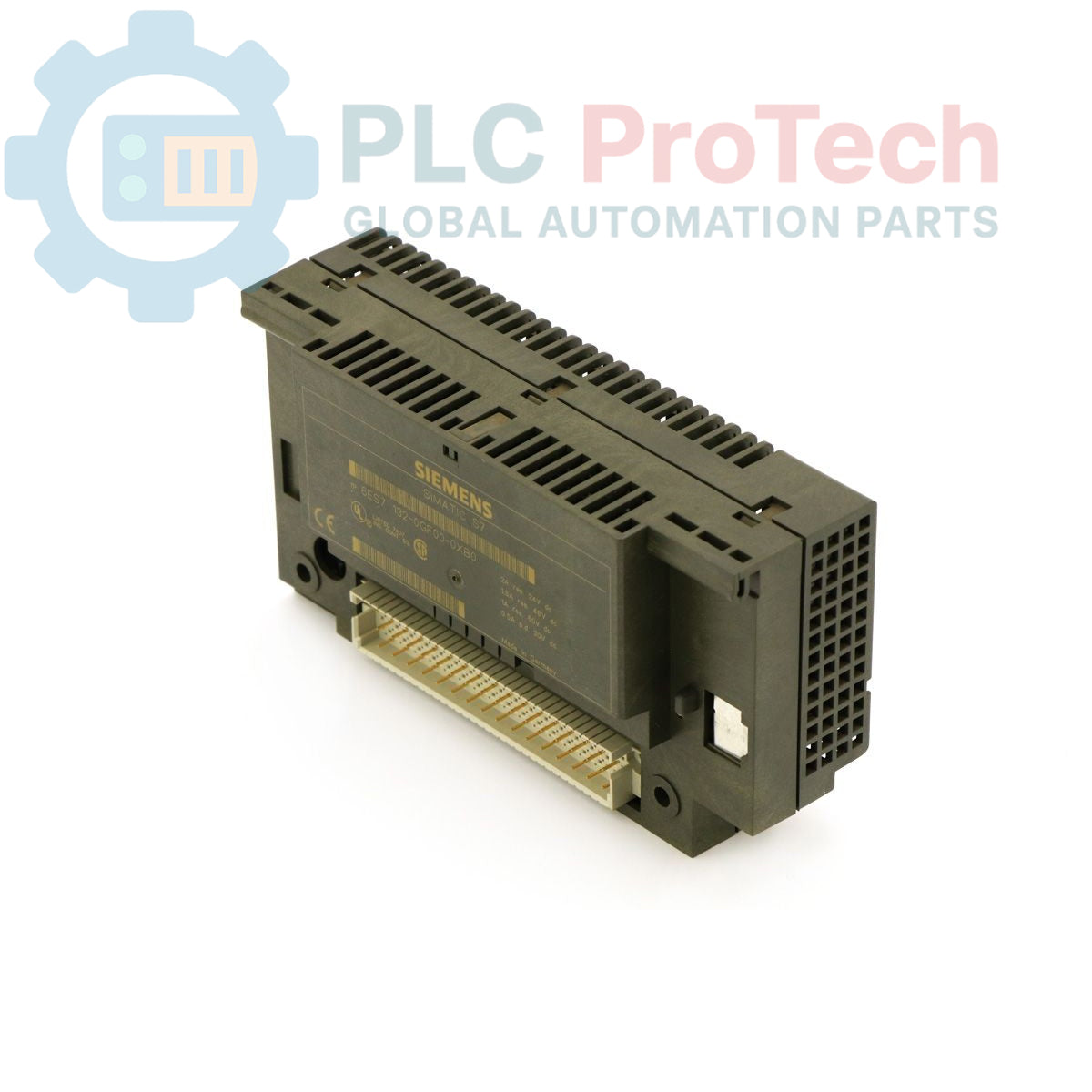

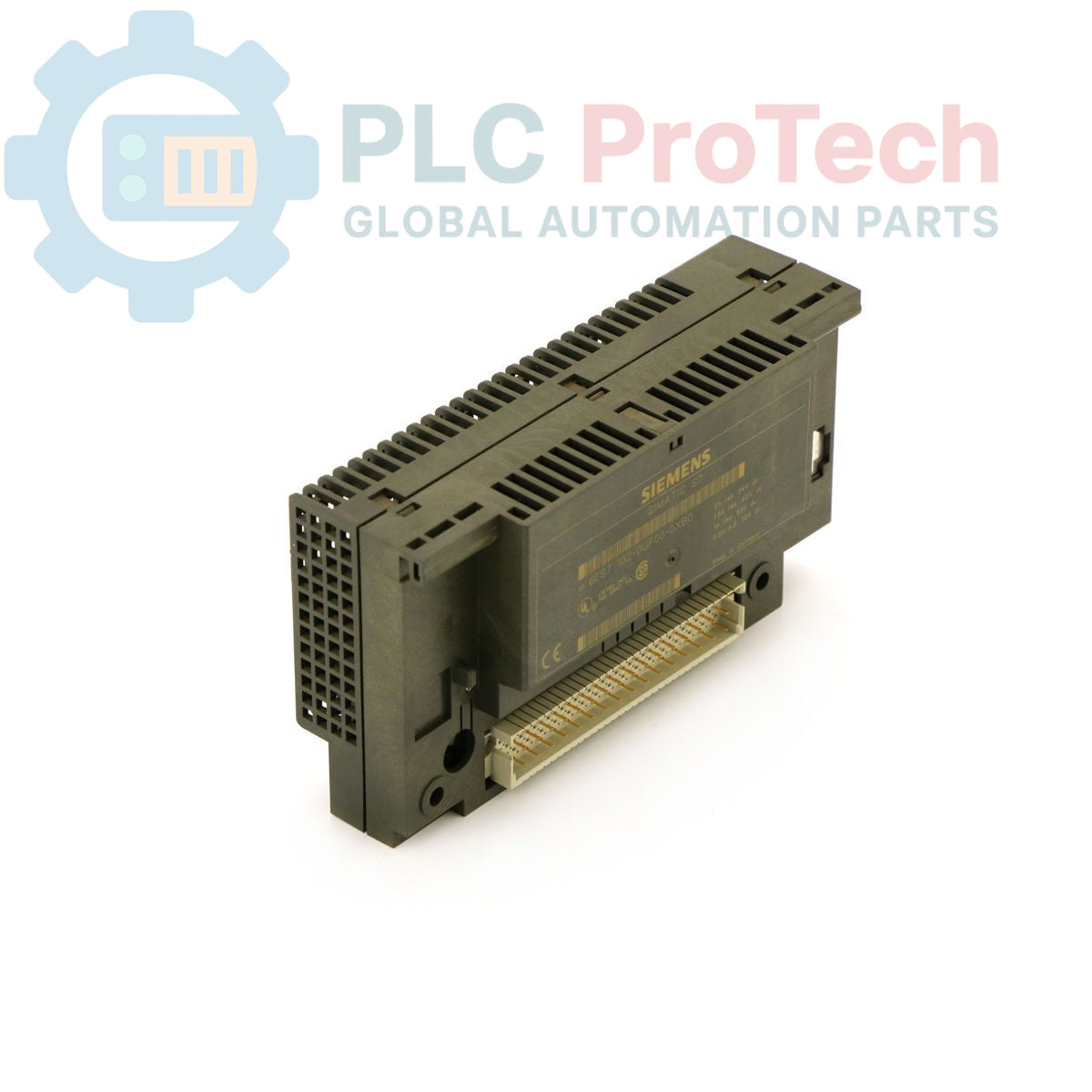

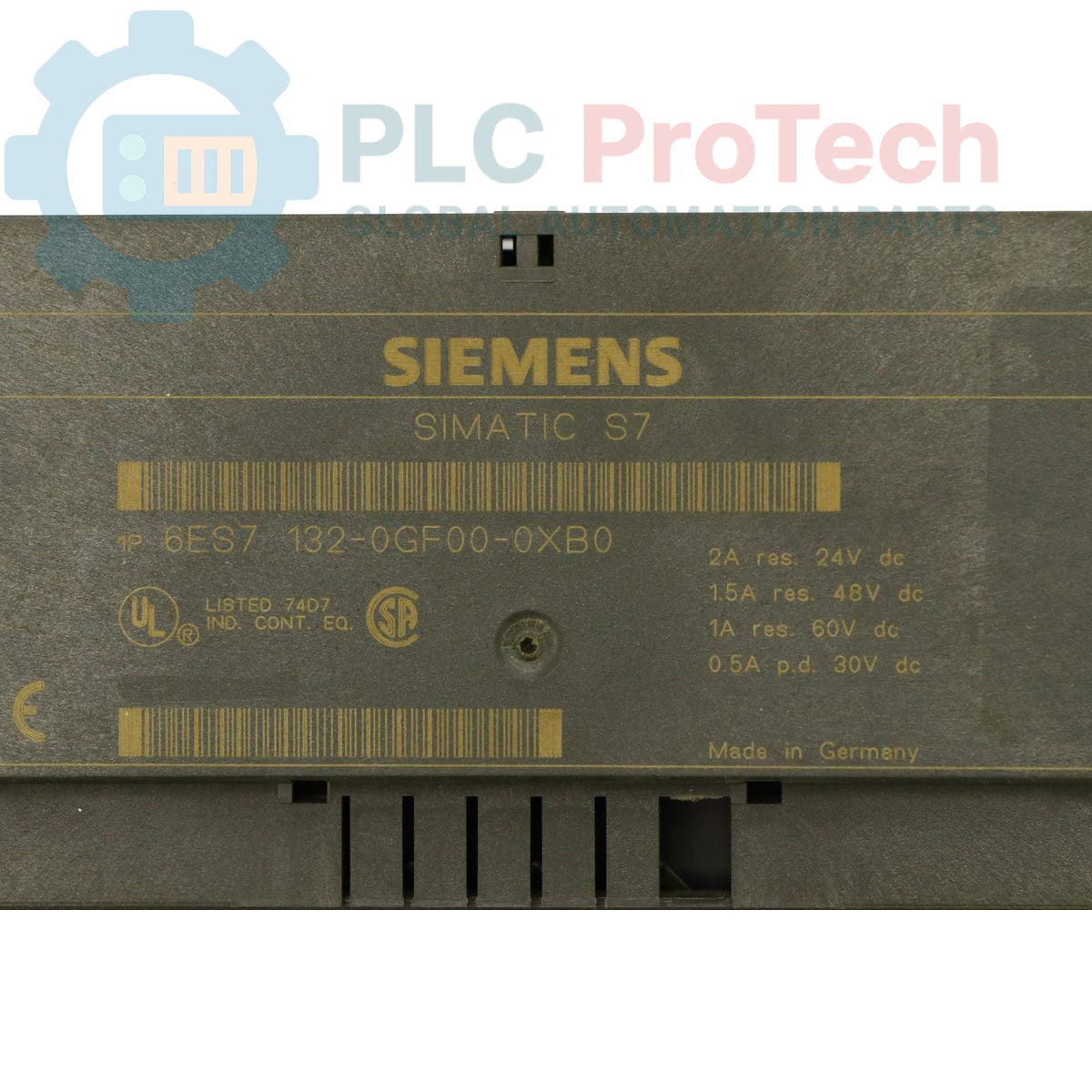

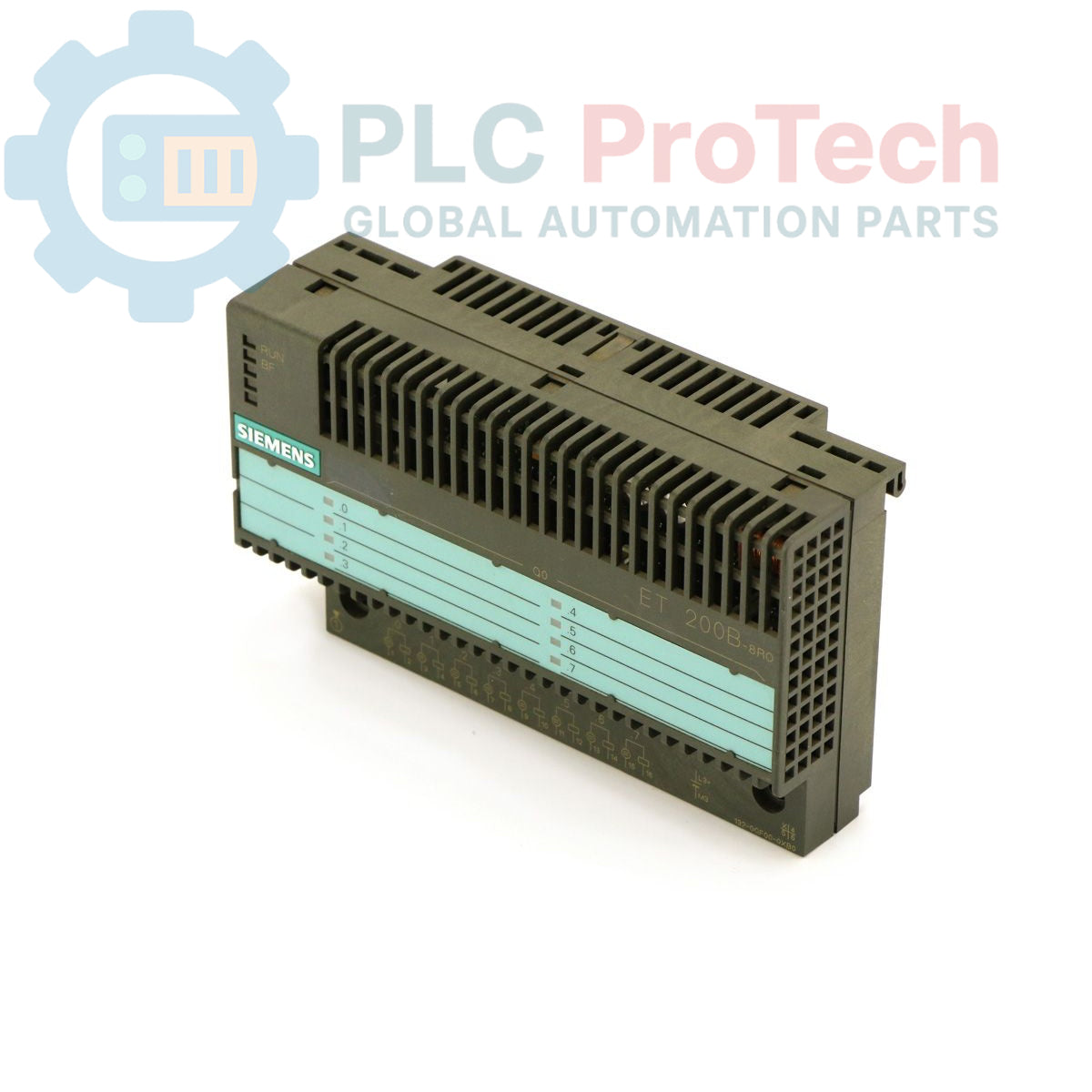

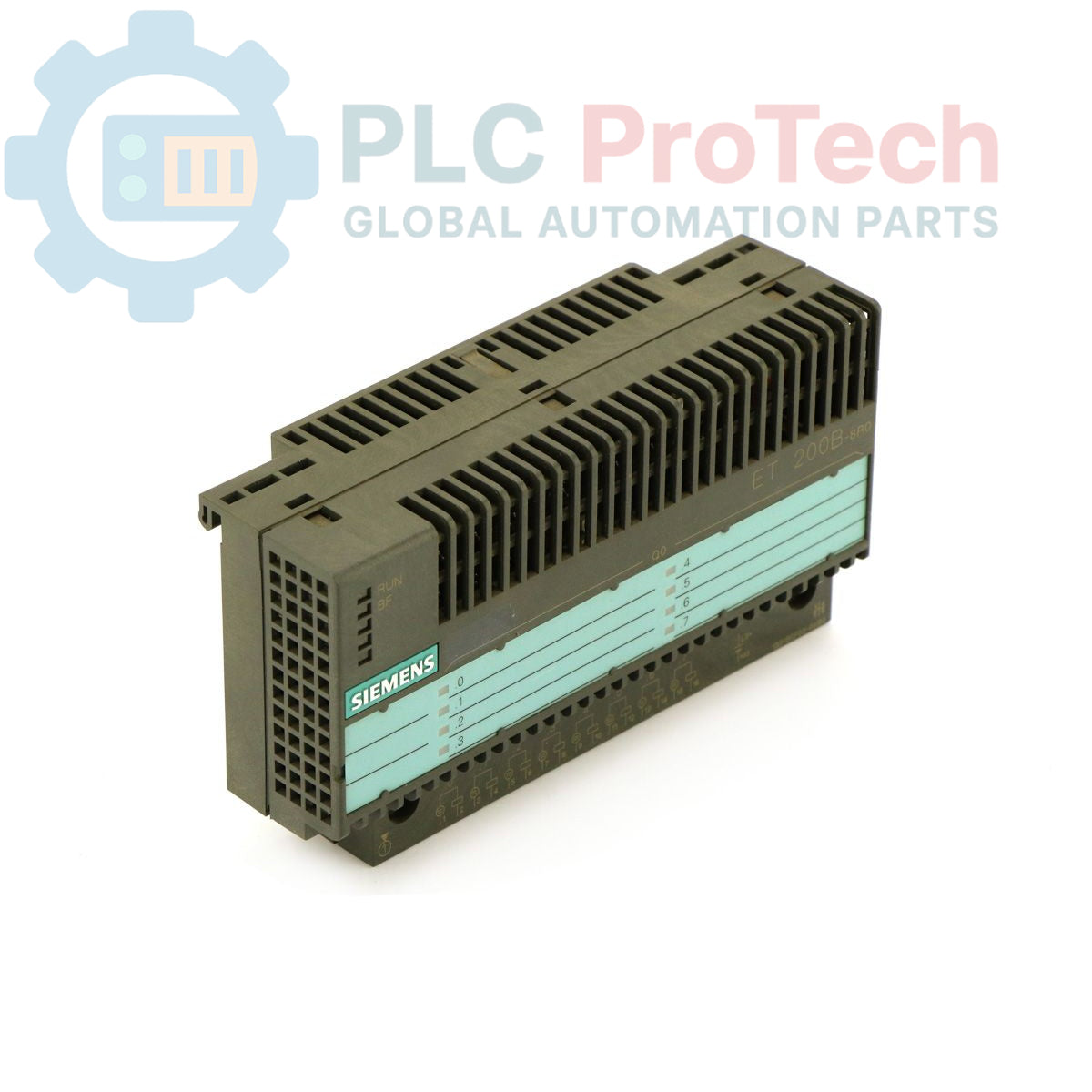

Siemens 6ES7132-0GF00-0XB0 SIMATIC ET 200B Digital Electronic Module

SKU 6ES7132-0GF00-0XB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7132-0GF00-0XB0
  • Origin Germany
  • Product Type: Digital Electronic Module
  • Barcode: 85389091
  • Payment: T/T, Western Union
  • Weight: 0.28 kg
  • Dimensions: 16.00 x 13.00 x 6.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital Electronic Module SIMATIC ET 200B
Quantità
Call sales Contact

Product Description

Description

The Siemens 6ES7132-0GF00-0XB0 is a digital electronic module designed for integration into the SIMATIC ET 200B distributed I/O system. This module features 8 relay outputs (RO) capable of switching voltages from 24V to 60V DC, making it suitable for a variety of industrial automation tasks. With a compact width of 160 mm, the 6ES7132-0GF00-0XB0 is engineered for efficient use of space within control panels. It carries an IP20 protection rating, ensuring reliable operation in controlled industrial environments. Its robust construction aligns with Siemens' quality standards, providing a dependable solution for process control applications.

Features

  • 8 Relay Outputs (RO)
  • Output Voltage Range: 24V - 60V DC
  • IP20 Protection Rating
  • Designed for SIMATIC ET 200B Distributed I/O Systems
  • Module Width: 160 mm

Applications

The Siemens 6ES7132-0GF00-0XB0 Digital Electronic Module is typically deployed in:

  • Distributed I/O systems for industrial automation
  • Process control and monitoring applications
  • Integration into existing control panels requiring digital relay outputs
  • Systems requiring reliable switching of DC loads within the specified voltage range

Technical Specifications

Manufacturer Siemens
Brand Siemens
Range SIMATIC ET 200
Subrange ET 200B
Product Type Digital Electronic Module
Output Type 8 Relay Outputs (RO)
Output Voltage 24V - 60V DC
Supply Voltage 24V DC
Degree of Protection IP20
Module Width 160 mm
Product Phase Obsolete
Package Dimensions (Calculated) 16.00 x 13.00 x 6.00 cm
Shipping Weight 0.28 kg
Commodity Code 85389091
Export Control Regulations (ECCN) N

Installation Guidelines

  1. De-energize System: Ensure all power to the SIMATIC ET 200B system and associated components is completely disconnected before commencing installation or wiring.
  2. Mounting: Securely mount the 6ES7132-0GF00-0XB0 module onto the designated DIN rail within the control panel. Ensure proper mechanical seating and latching.
  3. Wiring: Connect the 24V DC supply voltage to the module as per the ET 200B system wiring diagrams. Route output wiring for the 8 relay outputs to their respective loads, observing correct polarity and ensuring proper termination.
  4. Environmental Considerations: Install the module in an environment consistent with its IP20 rating, typically within an enclosed control cabinet that provides protection against dust and direct contact.
  5. System Configuration: After physical installation and wiring, configure the module within the SIMATIC ET 200B system using the appropriate engineering software.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What type of outputs does the 6ES7132-0GF00-0XB0 module provide?
This module provides 8 digital relay outputs (RO) capable of switching DC voltages.
What is the acceptable voltage range for the relay outputs?
The relay outputs can handle voltages ranging from 24V DC to 60V DC.
What is the protection rating of this module?
The module has an IP20 protection rating, indicating protection against solid objects larger than 12.5 mm but no protection against liquids.
Is this module compatible with other SIMATIC systems?
The 6ES7132-0GF00-0XB0 is specifically designed for use with the SIMATIC ET 200B distributed I/O system.
