Description

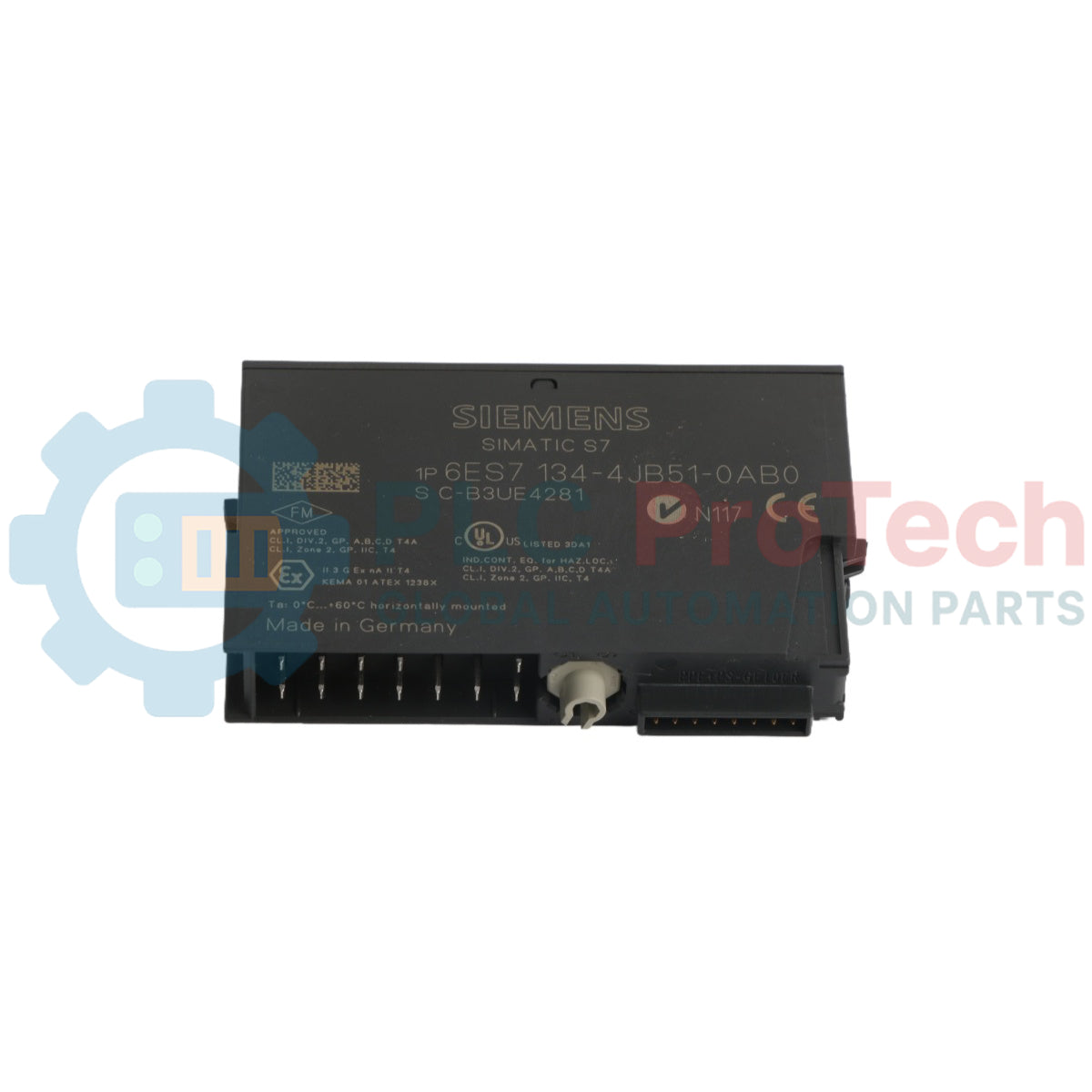

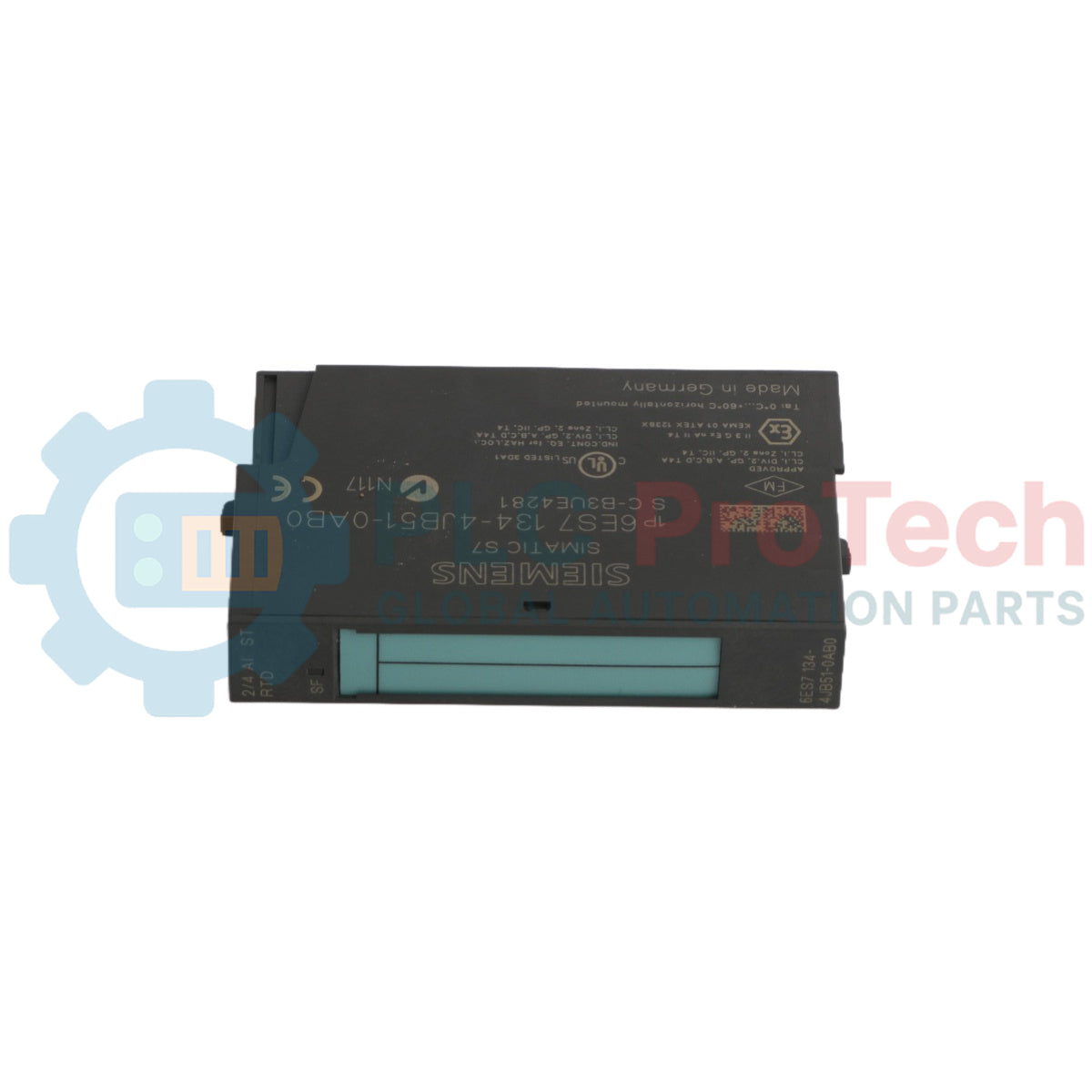

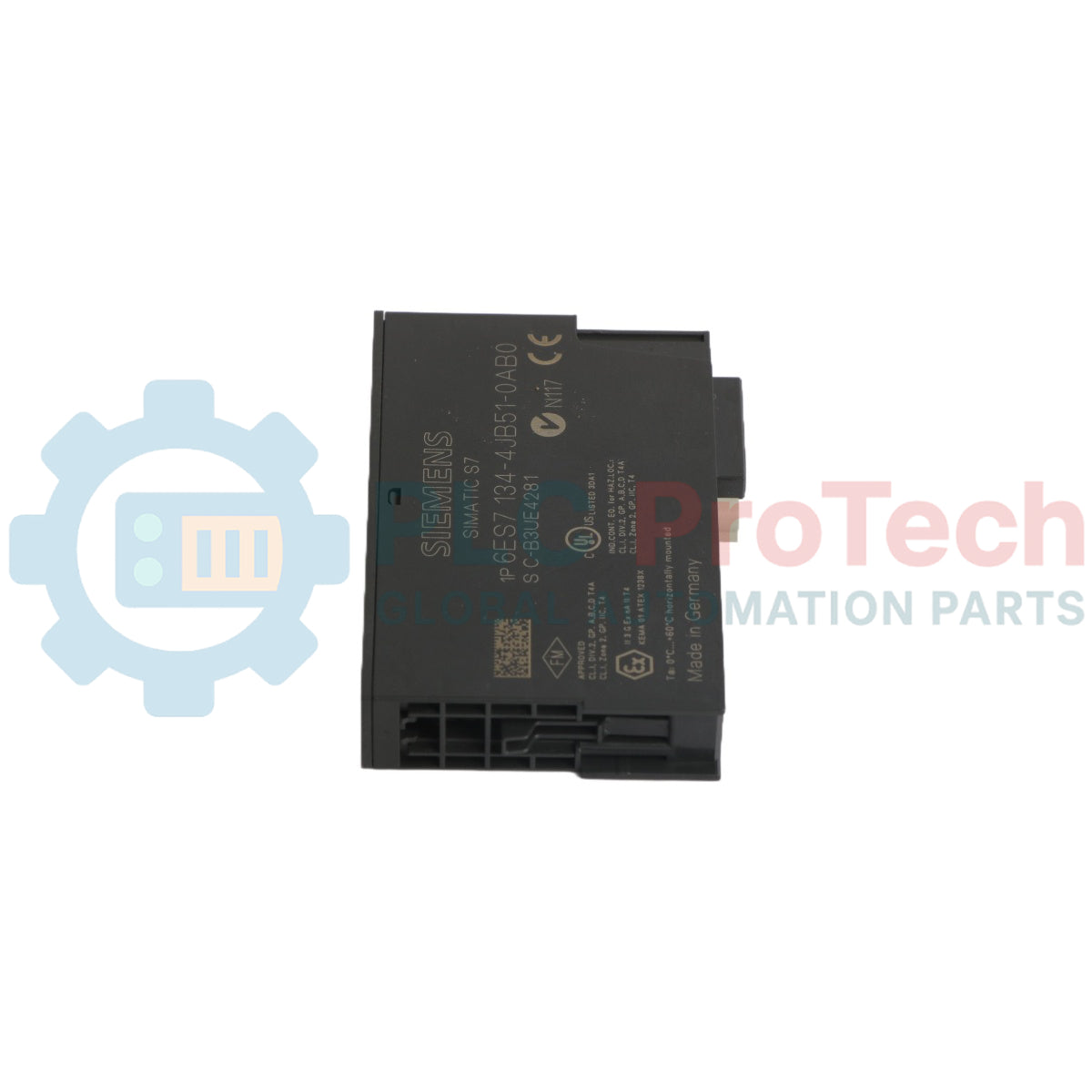

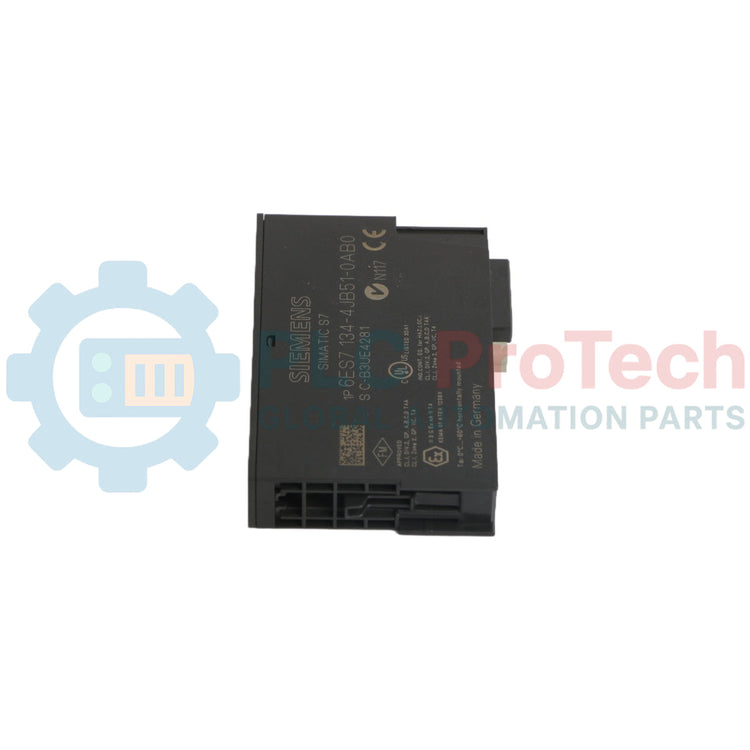

The Siemens 6ES7134-4JB00-0AB0 is a high-precision analog input electronics module for the SIMATIC ET 200S distributed I/O system. This module is specifically designed for temperature measurement, providing two thermocouple input channels in a compact 15 mm width housing. It supports nine standard thermocouple types and converts their low-level voltage signals with a resolution of 15 bits plus sign over a ±80 mV range. With integrated signal conditioning and automatic linearization, the module delivers accurate, ready-to-use temperature data directly to the control system, making it suitable for demanding process control applications.

Features

• Two independent analog input channels for thermocouple sensors.
• Supports nine thermocouple types: B, E, J, K, L, N, R, S, and T.
• High measurement resolution of 15 bits plus sign.
• Fast signal acquisition with a cycle time of 65 ms per channel.
• Integrated automatic linearization for direct temperature value processing.
• Compact 15 mm module width for high-density I/O configurations.
• Onboard SF (Group Fault) LED for immediate diagnostic feedback.
• Seamless integration into SIMATIC DP systems via PROFIBUS networks.

Applications

• Process temperature monitoring in chemical and pharmaceutical manufacturing.
• Temperature control loops in food and beverage production.
• High and low-temperature monitoring in industrial furnaces and cryogenic systems.
• Machine and equipment thermal protection.
• Quality control systems requiring precise temperature data.

Technical Specifications

Installation Guidelines

1. 1 Ensure the ET 200S backplane or terminal module is correctly installed on the DIN rail and properly grounded according to system specifications.
2. 2 Align the 6ES7134-4JB00-0AB0 electronics module with the corresponding terminal module, ensuring the coding elements match, and press firmly until it clicks securely into place.
3. 3 Connect thermocouple sensor wiring to the designated terminals. Use the correct type of thermocouple extension wire that matches the sensor type to avoid measurement inaccuracies.
4. 4 Use shielded, twisted-pair cable for all thermocouple signals. Terminate the cable shield to a clean, low-impedance ground point at the cabinet entry or terminal module to minimize electromagnetic interference.
5. 5 After all modules are installed and wired, remove LOTO devices and restore power. Verify module status via the SF LED and confirm correct temperature readings in the PLC programming software.
