Description

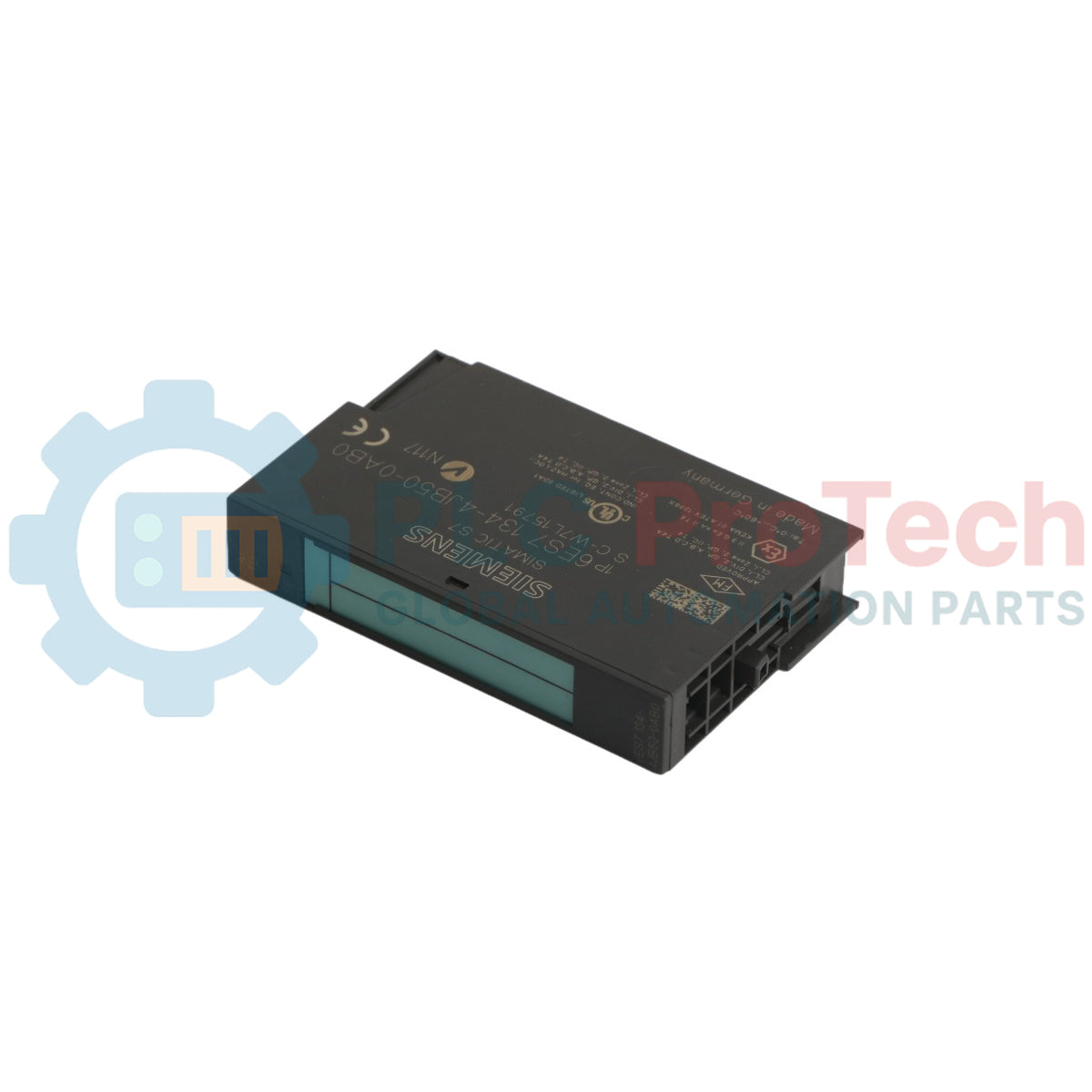

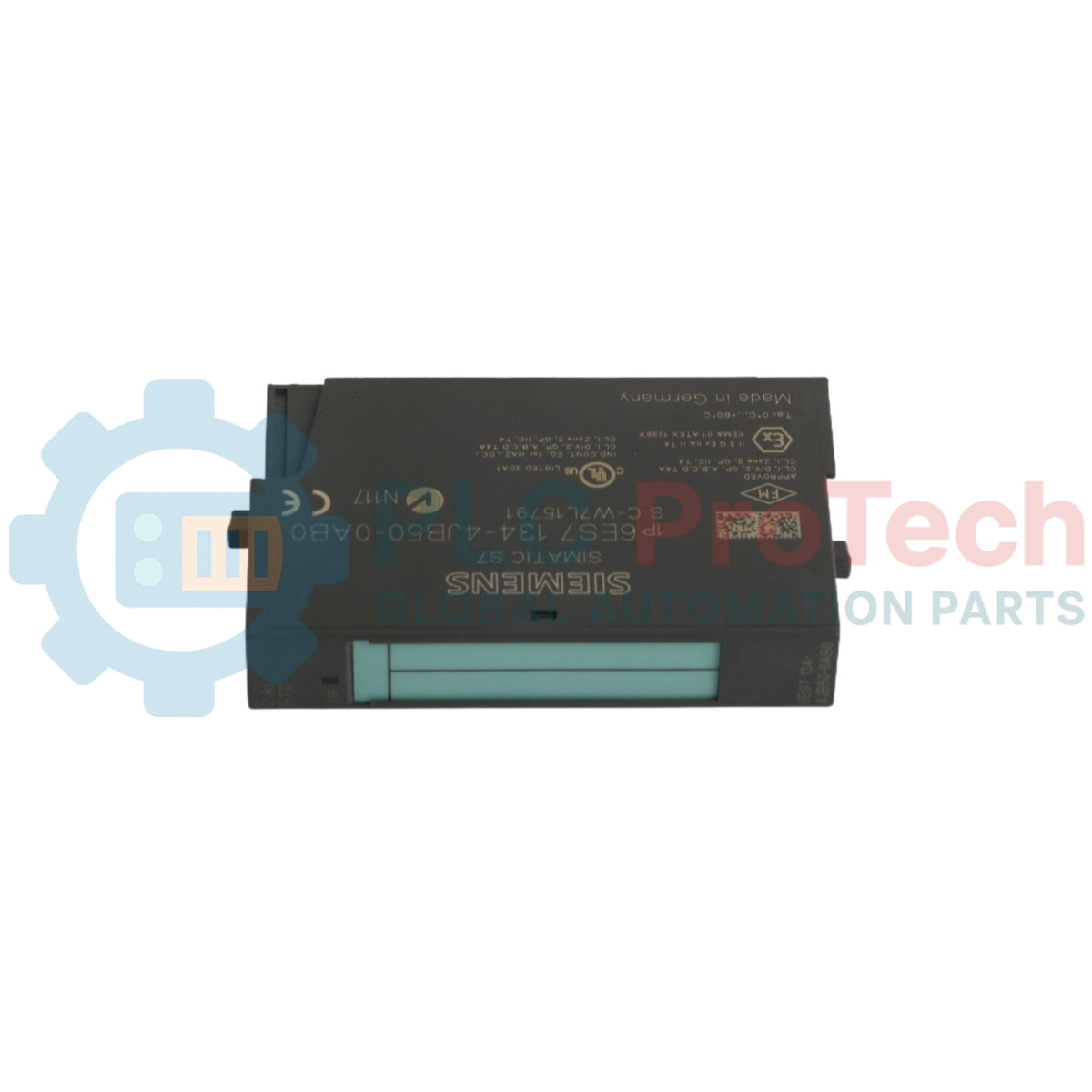

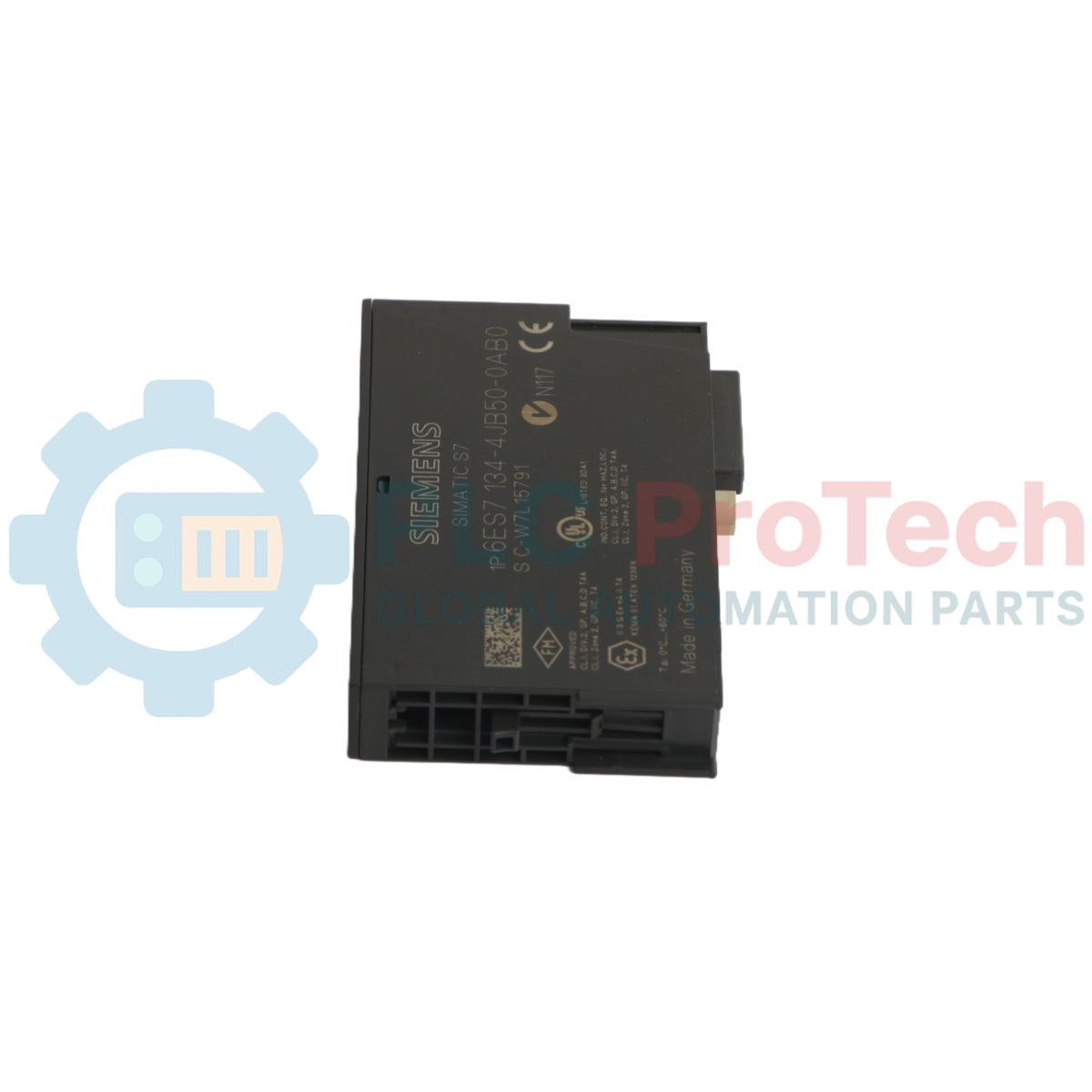

The Siemens 6ES7134-4JB50-0AB0 is a high-precision RTD (Resistance Temperature Detector) input module designed for the ET 200S distributed I/O system. This compact module, featuring a 15mm width housing, provides 2 channels for resistance temperature detection. It offers 15-bit plus sign resolution for accurate temperature measurement and supports a variety of sensor types, including Pt100, Ni100 standard and climatic versions, as well as 150Ω, 300Ω, and 600Ω resistance ranges. The 6ES7134-4JB50-0AB0 processes signals with a 110ms cycle time per channel and includes an integrated SF LED for group fault diagnostics, ensuring clear status indication. Engineered for reliability in process automation, it features electrical isolation and noise suppression for stable readings in electrically noisy industrial environments. As part of the SIMATIC DP system, it integrates seamlessly with PROFIBUS networks for distributed temperature monitoring.

Features

• 2-channel RTD input module.
• 15-bit plus sign resolution for precise measurement.
• Supports Pt100, Ni100 (standard and climatic), 150Ω, 300Ω, and 600Ω resistance sensors.
• Fast 110ms cycle time per channel.
• Integrated SF LED for group fault diagnostics.
• Electrical isolation and noise suppression for robust operation.
• Compact 15mm width housing for high-density installations.
• Seamless integration with PROFIBUS networks via the SIMATIC DP system.

Applications

The Siemens 6ES7134-4JB50-0AB0 is suitable for applications requiring precise temperature monitoring and control in various industrial sectors. Typical deployments include:

• HVAC systems for environmental control.
• Chemical processing where accurate temperature regulation is critical.
• Food production environments for process quality and safety.
• Systems requiring responsive temperature control loops.
• Installations with limited cabinet space benefiting from high-density I/O.

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure that the power to the ET 200S distributed I/O system and associated components is completely de-energized to prevent electrical hazards.
2. Mounting: Mount the 6ES7134-4JB50-0AB0 module onto the designated terminal module within the ET 200S station. Ensure it clicks securely into place.
3. Sensor Connection: Connect the RTD or resistance sensors to the module's terminals according to the wiring diagram for the specific sensor type (e.g., 2-wire, 3-wire, or 4-wire Pt100/Ni100). Observe correct polarity and terminal assignments.
4. Grounding and Shielding: Implement proper grounding and shielding for sensor cables to minimize electrical noise interference, especially in industrial environments.
5. Cable Routing: Route sensor cables away from power cables or other sources of electromagnetic interference to maintain signal integrity.
6. Power Up: After all connections are verified, re-energize the system. Observe the SF LED for any fault indications.
7. Configuration: Configure the module parameters within the PLC engineering software (e.g., SIMATIC Manager or TIA Portal) to match the connected sensor types and measurement ranges.
