Description

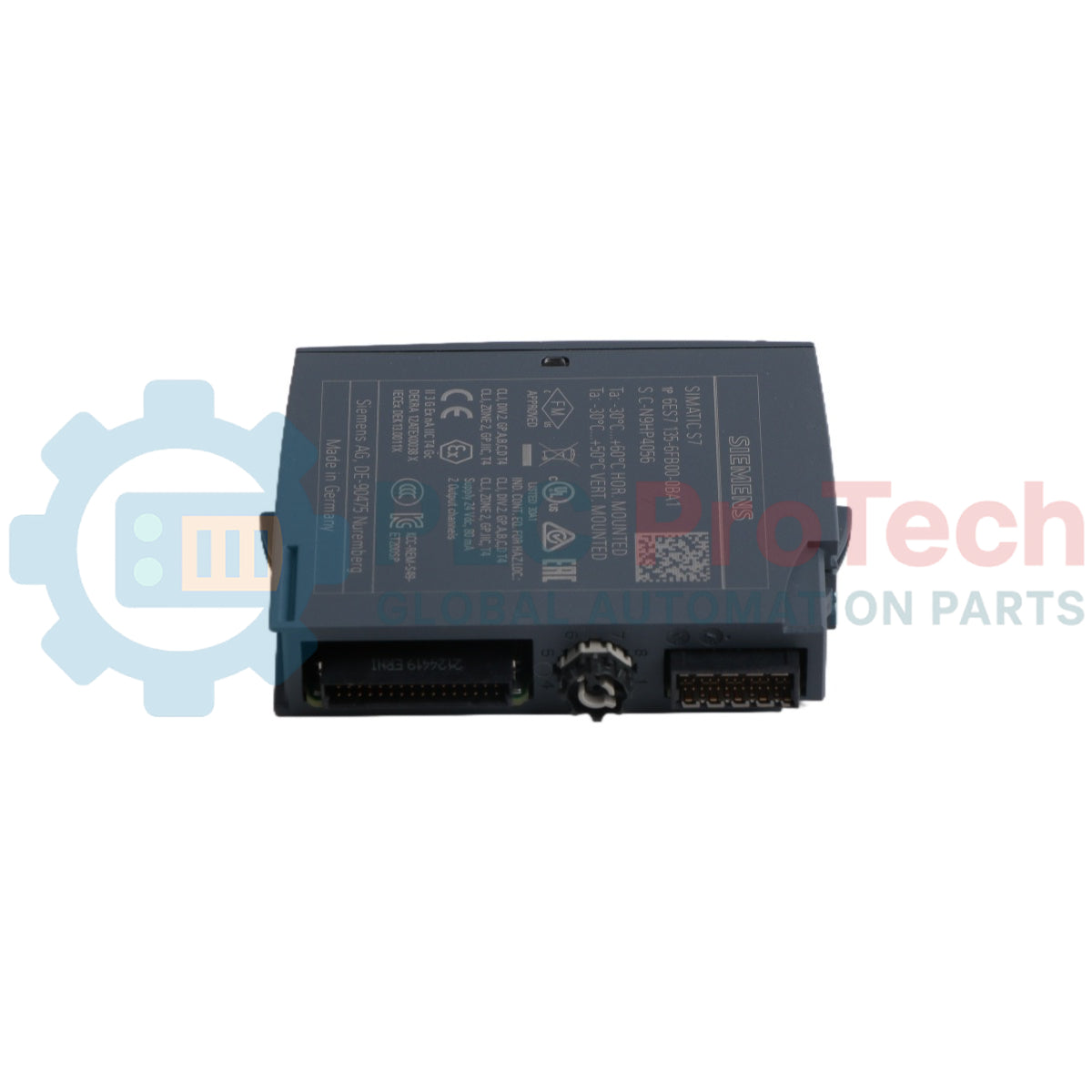

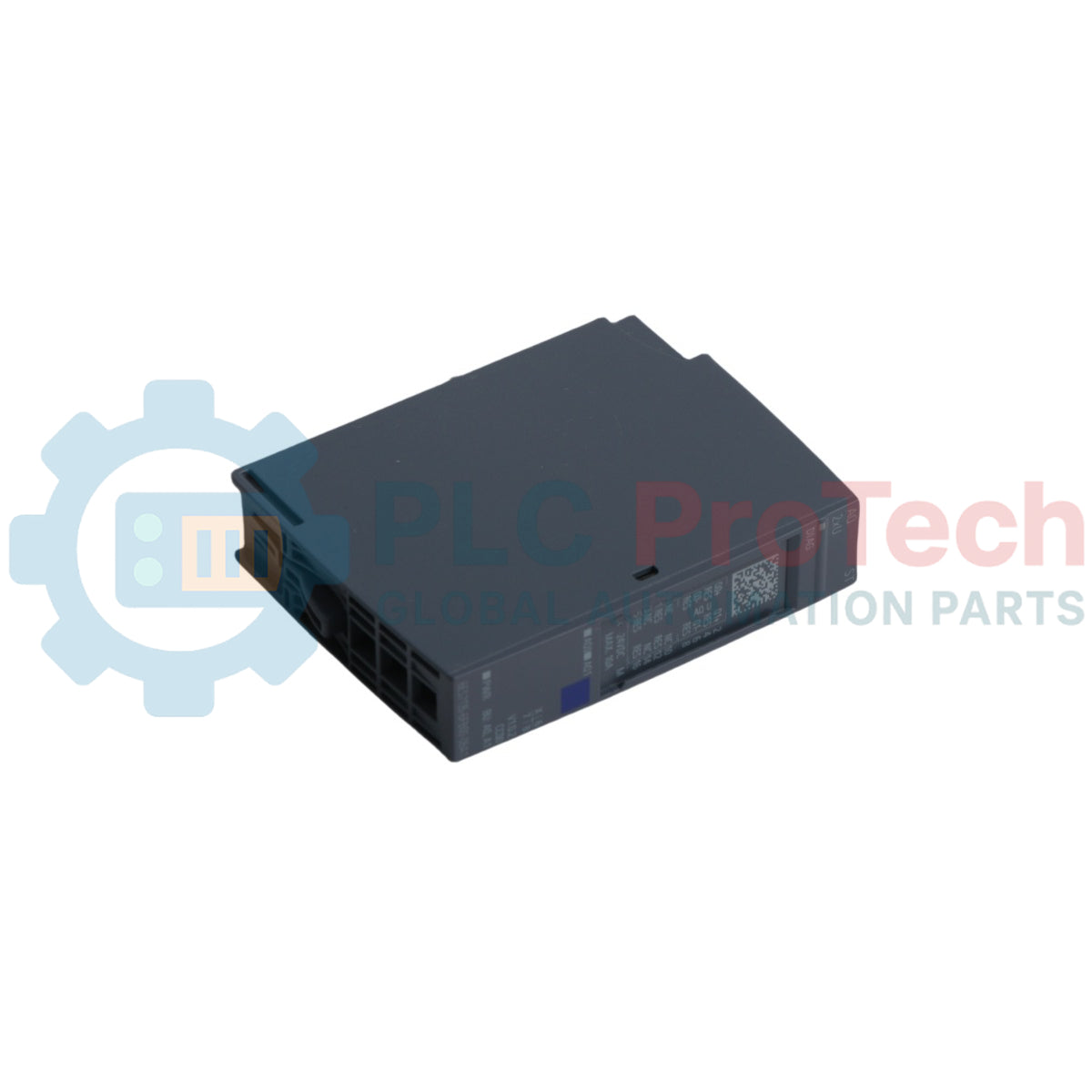

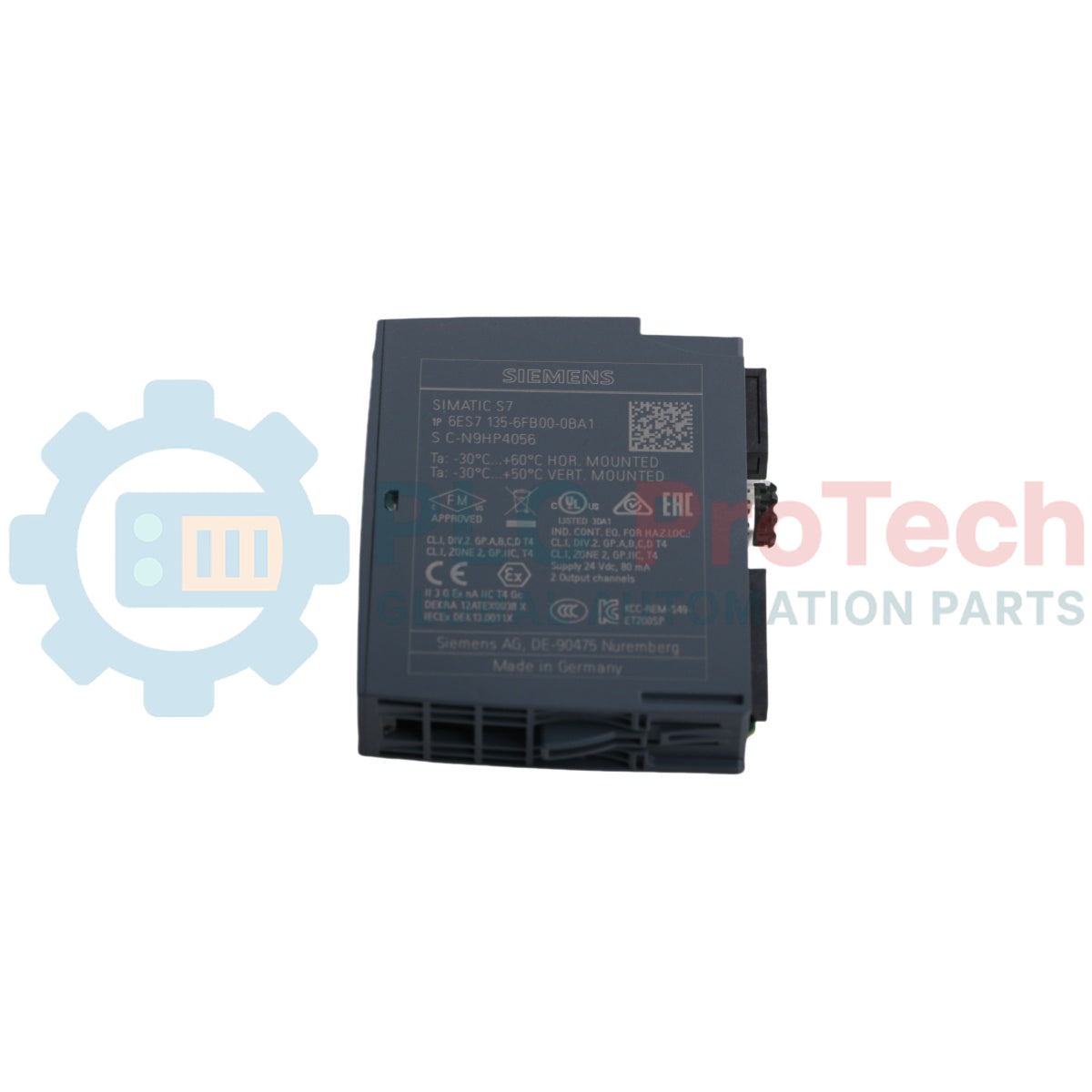

The Siemens 6ES7135-4FB00-0AB0 is a high-performance analog output module designed for integration into the SIMATIC ET 200S distributed I/O system. This module features two channels for voltage output, presented in an ultra-compact 15mm width form factor. It provides exceptional signal precision with a ±10V output range at 13-bit plus sign resolution and a 1-5V output range at 12-bit resolution, making it suitable for demanding process control applications. The 6ES7135-4FB00-0AB0 achieves a rapid response with a cycle time of less than 1ms, ensuring timely control in critical automation scenarios.

Engineered for industrial reliability, this Siemens analog output module incorporates comprehensive diagnostics, including a group fault LED (SF) for quick status monitoring. Its robust design ensures stable operation in harsh environments, featuring electrical isolation between channels and the backplane bus. The module's high-resolution outputs are particularly suited for controlling servo drives, positioning systems, and other precision analog devices that require accurate voltage signals. As a component of the SIMATIC DP system, the 6ES7135-4FB00-0AB0 integrates seamlessly with PROFIBUS networks for distributed control architectures.

Features

• Dual-channel voltage output
• Ultra-compact 15mm width form factor
• ±10V output range with 13-bit plus sign resolution
• 1-5V output range with 12-bit resolution
• Cycle time less than 1ms
• Group fault LED (SF) for diagnostics
• Electrical isolation between channels and backplane bus
• Seamless integration with PROFIBUS networks (SIMATIC DP system)

Applications

• Demanding process control systems
• Controlling servo drives and positioning systems
• Precision analog device control
• Test benches and quality inspection systems
• Dynamic motion control applications
• Process industries and manufacturing automation
• Test system applications requiring accurate voltage output and fast response

Technical Specifications

Installation Guidelines

1. De-energization: Ensure all power to the ET 200S system and associated equipment is disconnected and locked out before commencing installation.
2. Mounting: Insert the 6ES7135-4FB00-0AB0 module into an available slot on the appropriate terminal module within the ET 200S distributed I/O rack. Ensure it clicks securely into place.
3. Wiring: Connect analog output signals to the designated terminals on the terminal module, observing correct polarity and shielding practices for analog signals to minimize noise interference.
4. Grounding: Properly ground all shielding for analog cables at one end, typically at the control cabinet, to prevent ground loops and ensure signal integrity.
5. Configuration: After physical installation, configure the module within the SIMATIC engineering software (e.g., STEP 7) according to the application requirements for output ranges and diagnostic settings.
6. Power-up and Test: Re-energize the system and verify module functionality through diagnostic indicators and by testing the analog output signals.
