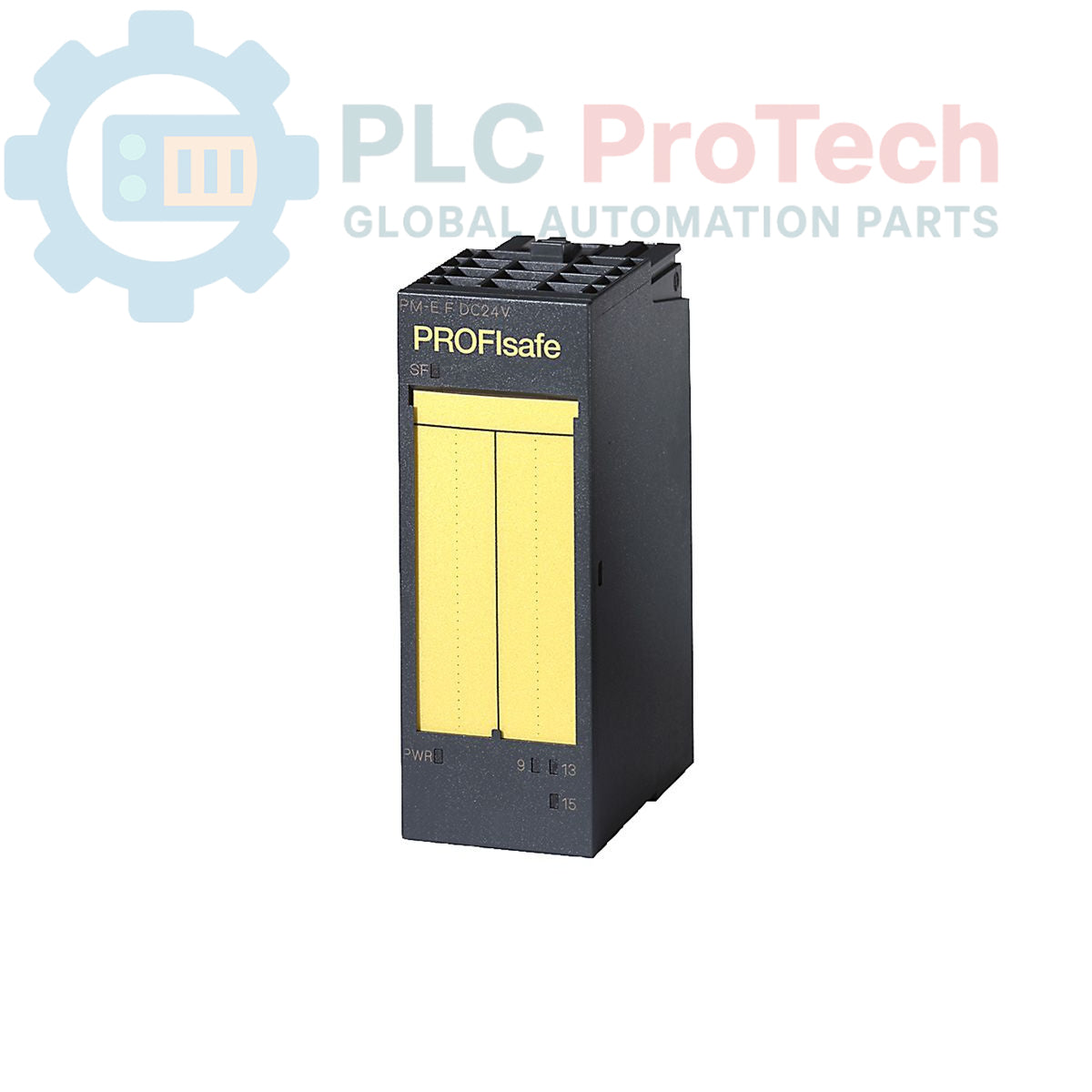

Siemens 6ES7138-4CF42-0AB0 SIMATIC ET 200S Power Module

SKU 6ES7138-4CF42-0AB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7138-4CF42-0AB0
Origin Germany
Product Type: Power Modules
Barcode: 85389091
Payment: T/T, Western Union
Weight: 0.1 kg
Dimensions: 3.00cm x 5.20cm x 8.10cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6ES7138-4CF42-0AB0 is a SIMATIC DP PM-E F PROFIsafe power module engineered for the ET 200S distributed I/O system. This module operates on a 24 V DC supply and is specifically designed for grounded setup applications. It features an integrated relay for switching voltage buses P1 and P2, providing safety-related power disconnection. The 6ES7138-4CF42-0AB0 supports safety integration up to Category 3 (EN 954-1), SIL2 (IEC 61508), and PLd (ISO 13849), making it a critical component for machine safety. It is fully compatible with PROFINET configurations when paired with an IM 151-3 HF interface module.

Features

Safety Integration: Rated for Category 3 (EN 954-1), SIL2 (IEC 61508), and PLd (ISO 13849) compliance.
PROFIsafe Support: Designed for secure, safety-oriented communication.
Bus Switching: Integrated relay for switching P1 and P2 voltage buses.
Compatibility: Designed for use with the SIMATIC ET 200S system; compatible with IM 151-3 HF for PROFINET setups.
Robust Design: Engineered for grounded industrial installations.

Applications

Distributed safety I/O systems
Emergency stop and safety interlocking circuits
Industrial machines requiring SIL2/PLd safety ratings
PROFINET-based automation networks
Power distribution monitoring in modular I/O stations

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Brand	SIMATIC ET200
Range	ET 200S
Model	6ES7138-4CF42-0AB0
Product Type	Power Module (PM-E F)
Product Phase	Phase-Out
Predecessor	6ES7138-4CF41-0AB0
Supply Voltage	20.4 - 28.8 V DC
Weight	0.10 kg
Dimensions	3.00 x 5.20 x 8.10 cm
Commodity Code	85389091
Export Control (ECCN)	N

Installation Guidelines

Mounting: Ensure the module is snapped onto the appropriate ET 200S terminal module.
Grounding: This module is specifically designed for grounded setup; ensure the reference potential is correctly established per safety standards.
Wiring: Connect the 24 V DC supply according to the terminal assignment diagram provided in the ET 200S manual.
Safety Verification: Perform all required safety configuration steps in the TIA Portal or STEP 7 software to ensure the PROFIsafe communication is correctly established.
Environment: Maintain operating conditions within the specified voltage and temperature limits to ensure the integrity of the safety relay.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What safety standards does this power module meet?

This module is safety-rated up to Category 3 (EN 954-1), SIL2 (IEC 61508), and PLd (ISO 13849).

Can this module be used with PROFINET?

Yes, it is compatible with PROFINET configurations when used in conjunction with the IM 151-3 HF interface module.

What is the supply voltage range for the 6ES7138-4CF42-0AB0?

The module operates within a supply voltage range of 20.4 V DC to 28.8 V DC.

Is this module intended for grounded or ungrounded setups?

The 6ES7138-4CF42-0AB0 is specifically designed for grounded installation setups.
