Siemens 6ES7157-0AG82-0XA0 Active Field Distributor AFD8

SKU 6ES7157-0AG82-0XA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7157-0AG82-0XA0
  • Origin Germany
  • Product Type: Fieldbus Distributors
  • Barcode: 85176200
  • Payment: T/T, Western Union
  • Weight: 3.2 kg
  • Dimensions: 36.00cm x 8.30cm x 12.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Fieldbus Distributors
Quantità
Call sales Contact

Product Description

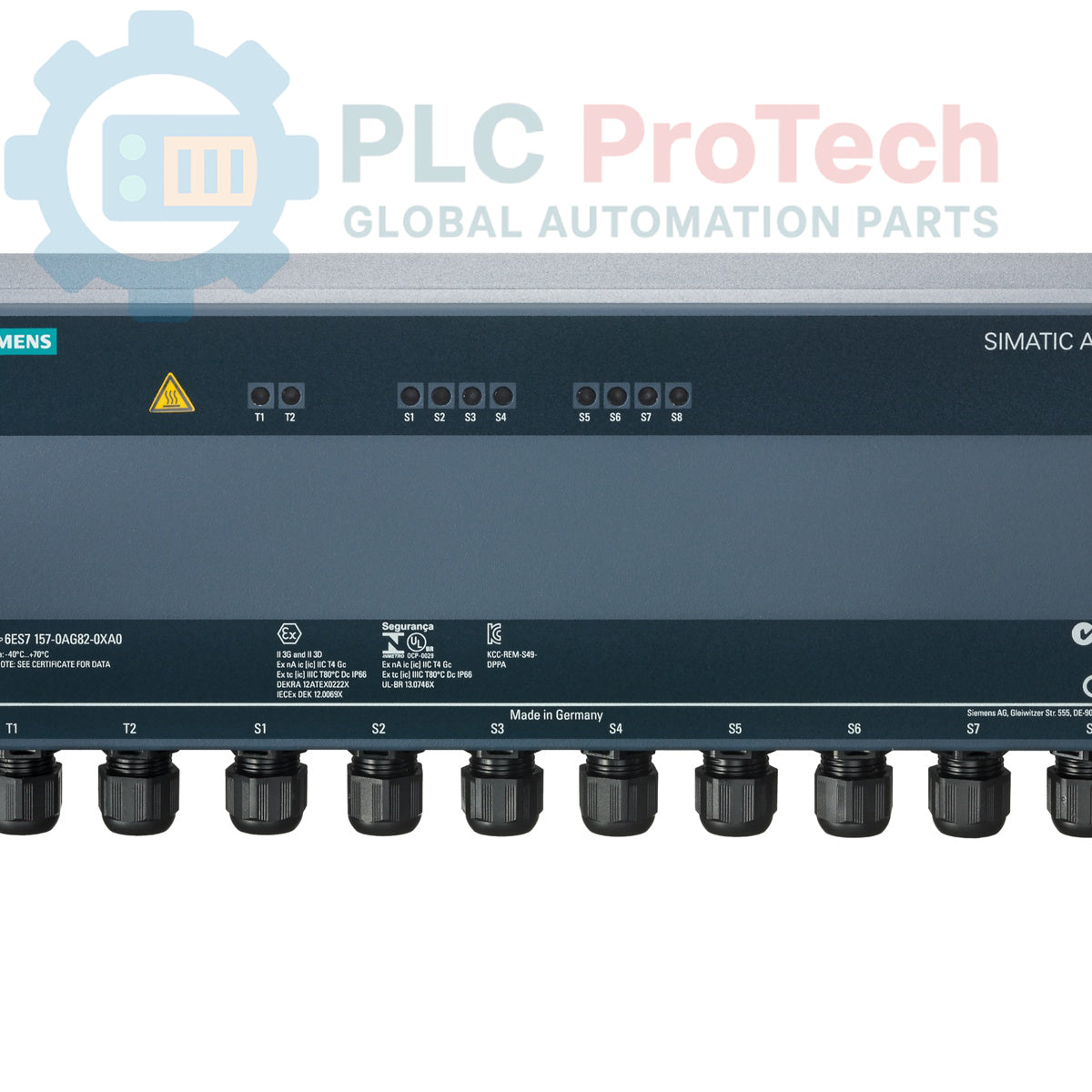

The 6ES7157-0AG82-0XA0 is an Active Field Distributor (AFD8) designed for PROFIBUS PA and Foundation Fieldbus H1 network architectures. This field device provides eight short-circuit-proof spur lines, ensuring that a fault on one branch does not compromise the entire bus segment. It features advanced bounce protection logic and supports automatic bus termination for both line and ring topologies. Engineered for high reliability in harsh industrial conditions, the device offers an extended temperature range and an IP66 degree of protection, making it suitable for demanding field-level automation.

Features

  • AFD8 Configuration: Supports 8 short-circuit-proof spur lines.
  • Network Compatibility: Designed for PROFIBUS PA and Foundation Fieldbus H1 systems.
  • Operational Reliability: Includes bounce protection logic to ensure stable data transmission.
  • Topology Flexibility: Supports automatic bus termination for both line and ring network structures.
  • Rugged Design: IP66-rated housing for high-performance operation in industrial environments with extended temperature capabilities.

Applications

  • Fieldbus segment distribution in process automation.
  • Hazardous and non-hazardous area network infrastructure.
  • Distributed I/O systems requiring high fault tolerance.
  • Industrial process plants utilizing PROFIBUS PA or Foundation Fieldbus H1 communication.

Technical Specifications

Parameter Specification
Manufacturer Siemens
Brand SIMATIC
Product Type Active Field Distributor
Model AFD8
Supply Voltage 16-32V DC
Spur Lines 8 (Short-circuit-proof)
Topology Support Line and Ring
Degree of Protection IP66
Dimensions 36.00 cm x 8.30 cm x 12.00 cm
Weight 3.20 kg
Commodity Code 85176200
ECCN EAR99

Installation Guidelines

  • Mounting: Ensure the device is mounted in a location that allows for proper cable routing and access for maintenance while adhering to the IP66 ingress protection requirements.
  • Bus Termination: Utilize the automatic bus termination feature for ring or line configurations; ensure the topology is wired according to the specific Fieldbus standards to enable this functionality.
  • Wiring: Use certified fieldbus cabling and cable glands that match the IP66 rating to prevent moisture or dust ingress.
  • Powering: Verify that the supply voltage provided to the distributor is within the 16-32V DC range to ensure stable operation of the active components.
  • Fault Management: Ensure the short-circuit protection is not bypassed, as this is critical for maintaining network integrity in the event of spur line issues.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the 6ES7157-0AG82-0XA0?
It acts as an active field distributor (AFD8) that provides 8 short-circuit-proof spur lines for PROFIBUS PA or Foundation Fieldbus H1 networks.
What network topologies does this distributor support?
It supports both line and ring topologies with automatic bus termination.
What is the ingress protection rating for this device?
The device features an IP66 degree of protection, making it suitable for harsh industrial environments.
What is the supply voltage requirement?
The operating supply voltage range is 16-32V DC.
