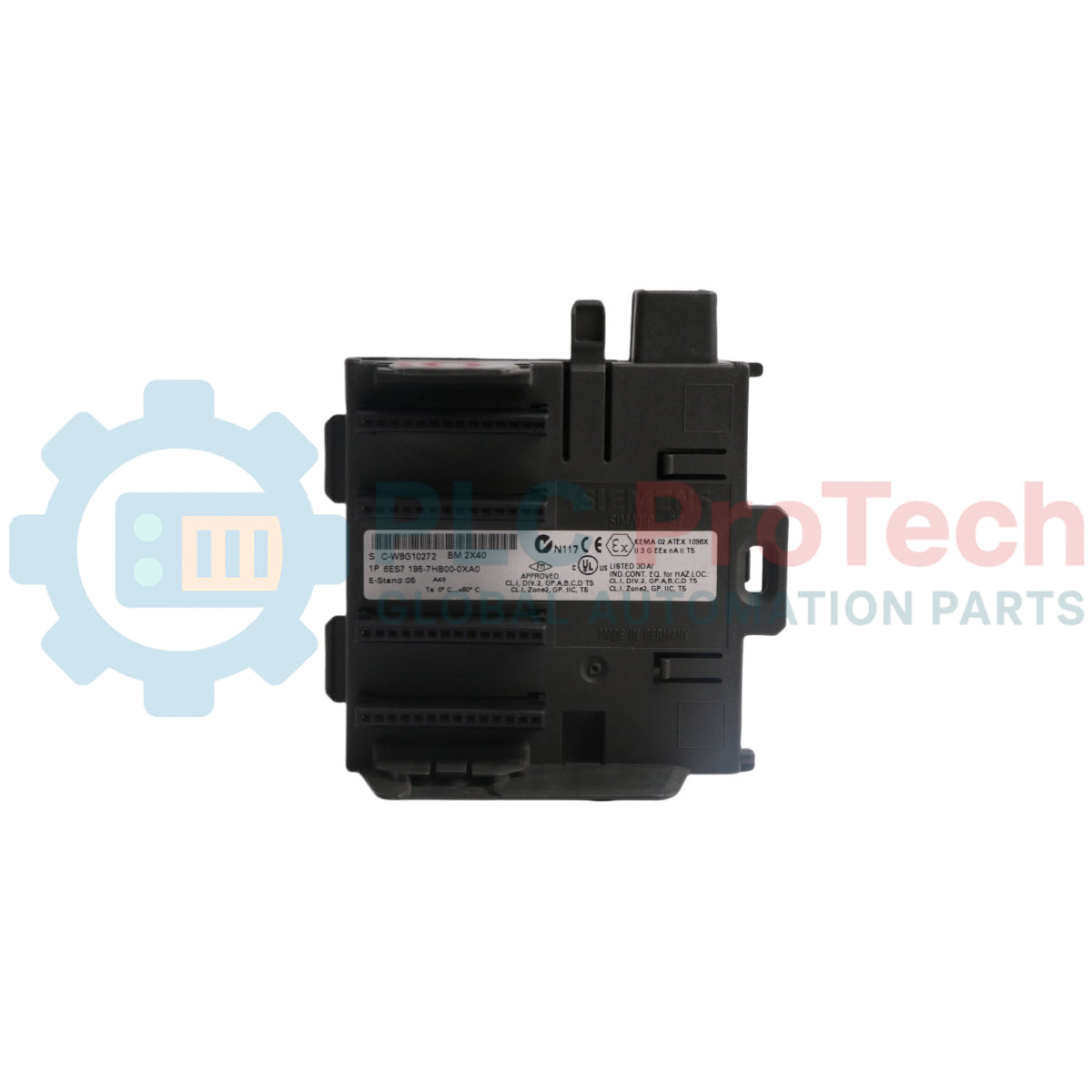

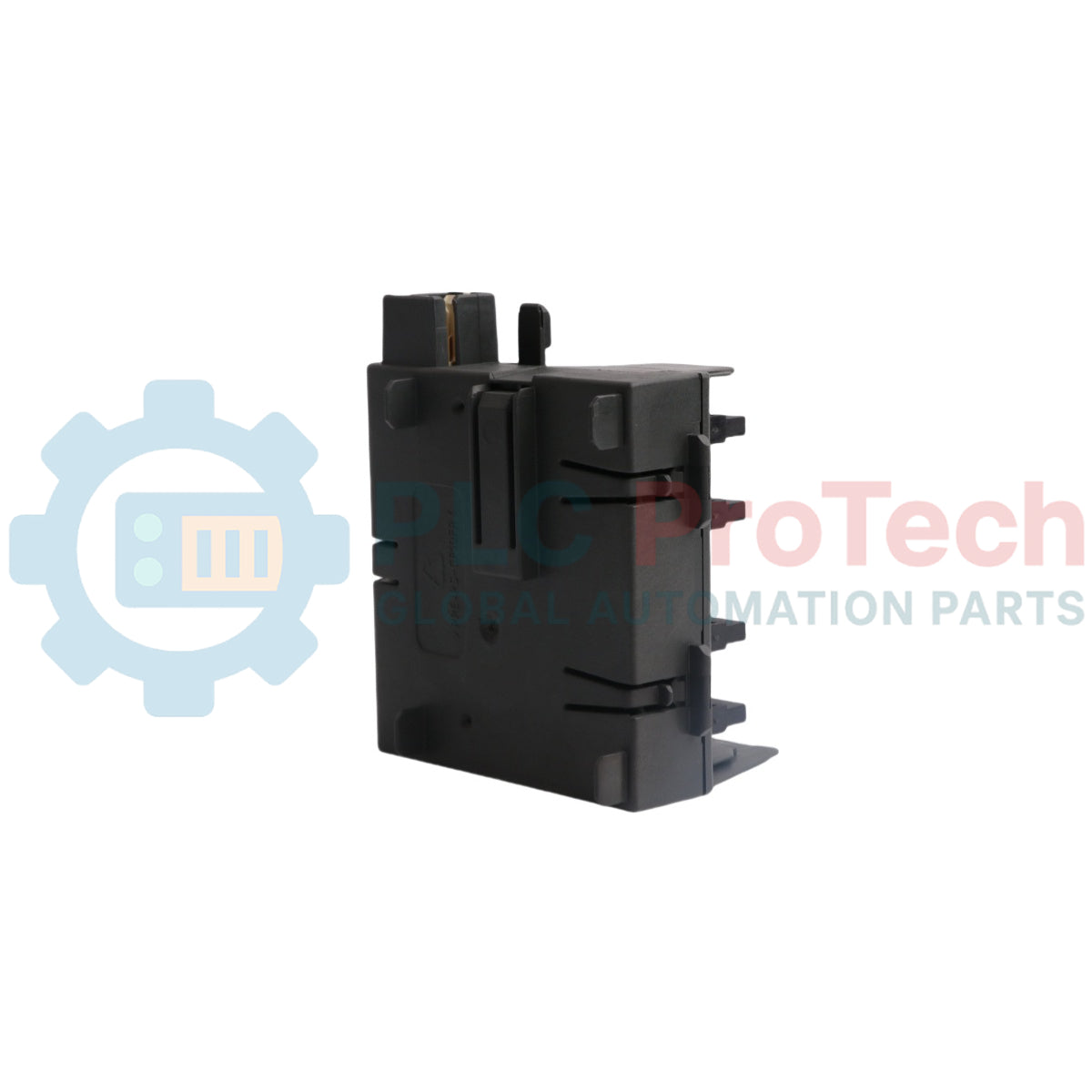

Siemens 6ES7195-7HB00-0XA0 SIMATIC ET 200M Bus Module

SKU 6ES7195-7HB00-0XA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7195-7HB00-0XA0
  • Origin Germany
  • Product Type: PLC Bus Modules
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.1 kg
  • Dimensions: 9.7 x 9.3 x 6.1 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Bus Modules SIMATIC ET 200M
Quantità
Call sales Contact

Product Description

Description

The Siemens 6ES7195-7HB00-0XA0 is a bus module designed for use within the SIMATIC ET 200M distributed I/O system. This passive component provides the mechanical and electrical connection for up to two 40 mm wide I/O modules, integrating them into the ET 200M station's backplane bus. Its design facilitates the removal and insertion of I/O modules during operation (hot-swapping) without interrupting the system, which is critical for maintaining uptime in continuous process applications.

Features

  • Accommodates two I/O modules with a width of 40 mm each.
  • Enables hot-swapping of I/O modules without system interruption.
  • Provides a secure mechanical and electrical connection to the ET 200M backplane.
  • Compact design for efficient use of cabinet space.
  • Designed for tool-free handling, simplifying installation and maintenance procedures.

Applications

  • Decentralized automation systems
  • Process control and monitoring
  • Manufacturing and assembly lines
  • Material handling and logistics
  • Building automation systems

Technical Specifications

Specification Value
Manufacturer Siemens
Part Number 6ES7195-7HB00-0XA0
Product Family SIMATIC DP
System Compatibility ET 200M Distributed I/O System
Module Type Bus Module
I/O Module Capacity 2 modules (40 mm width each)
Shipping Weight 0.1 kg
Package Dimensions (Calculated) 9.7 x 9.3 x 6.1 cm
Country of Origin Germany
HS Code 8537101190

Installation Guidelines

CRITICAL WARNING: Always de-energize the ET 200M station and follow all Lockout/Tagout (LOTO) procedures before installing or removing bus modules. Failure to disconnect power can result in electric shock, equipment damage, and unintended machine operation.
  1. 1 Verify that the ET 200M station, including the interface module and power supply, is completely de-energized and secured against accidental restart.
  2. 2 Position the bus module on the ET 200M mounting rail. Align the hooks on the rear of the module with the rail profile and press down firmly until it clicks securely into place.
  3. 3 Install adjacent bus modules as required, ensuring they are seated correctly and interlocked with each other to form a continuous backplane bus.
  4. 4 Once the bus modules are installed, insert the corresponding I/O modules into the slots. Slide them in until they are fully seated and the locking mechanism engages.
  5. 5 After all modules are installed and wired, remove LOTO devices and restore power to the station according to site procedures. Verify system communication and I/O status.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the 6ES7195-7HB00-0XA0 module?
It serves as a backplane segment for the Siemens SIMATIC ET 200M distributed I/O system, providing the mechanical and electrical connections for two I/O modules.
How many I/O modules can be installed on this bus module?
This bus module is designed to hold two I/O modules, each with a maximum width of 40 mm.
Does this module support hot-swapping of I/O modules?
Yes, the design of the ET 200M system and this bus module allows for the removal and insertion of I/O modules while the system is operational, without interrupting the backplane bus communication for other modules.
Is this a standalone device?
No, it is a passive component that requires an ET 200M mounting rail, an interface module (like a PROFIBUS or PROFINET IM), and I/O modules to function as part of a complete distributed I/O station.
What system is this bus module compatible with?
It is specifically designed for use within the Siemens SIMATIC ET 200M distributed I/O product line.
