Description

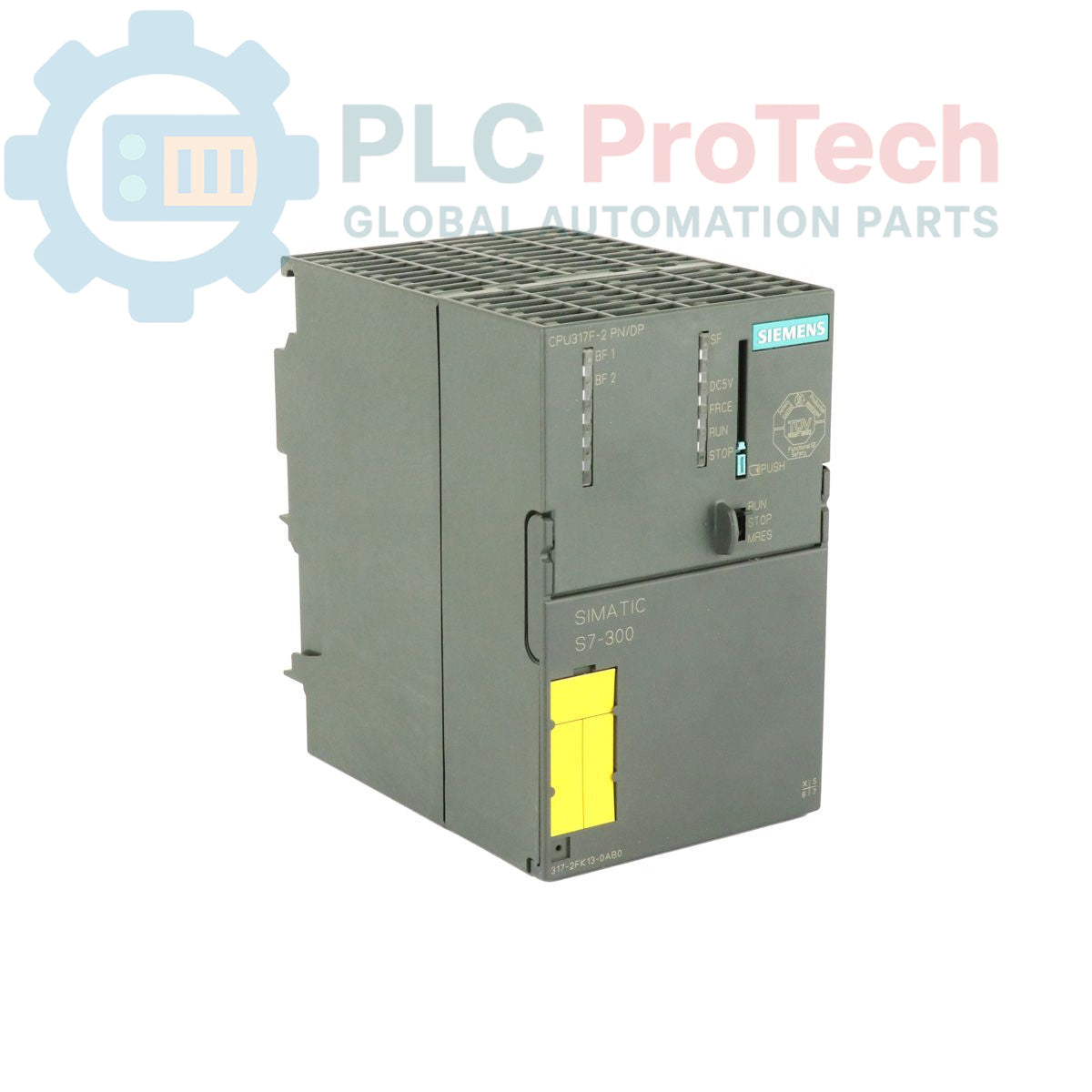

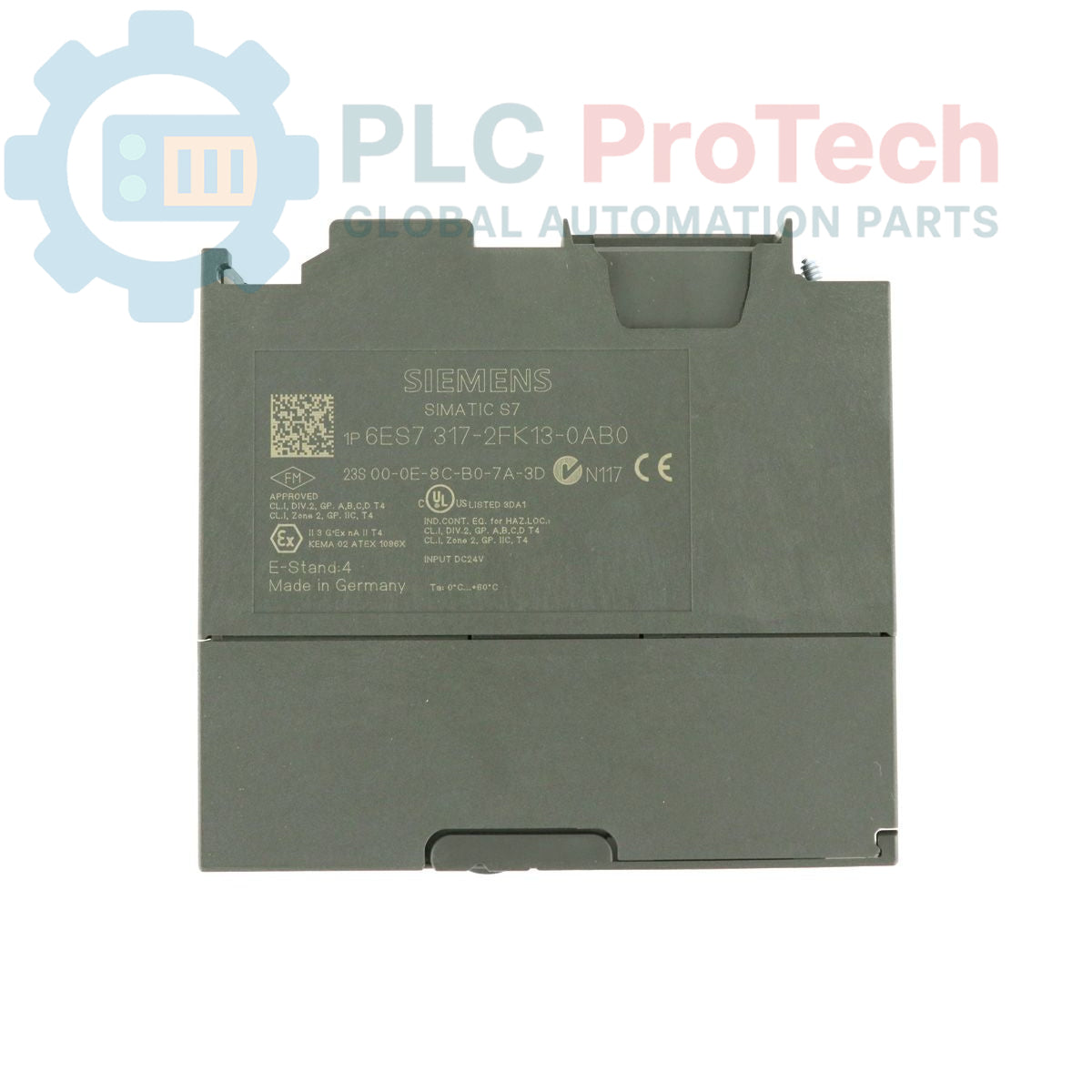

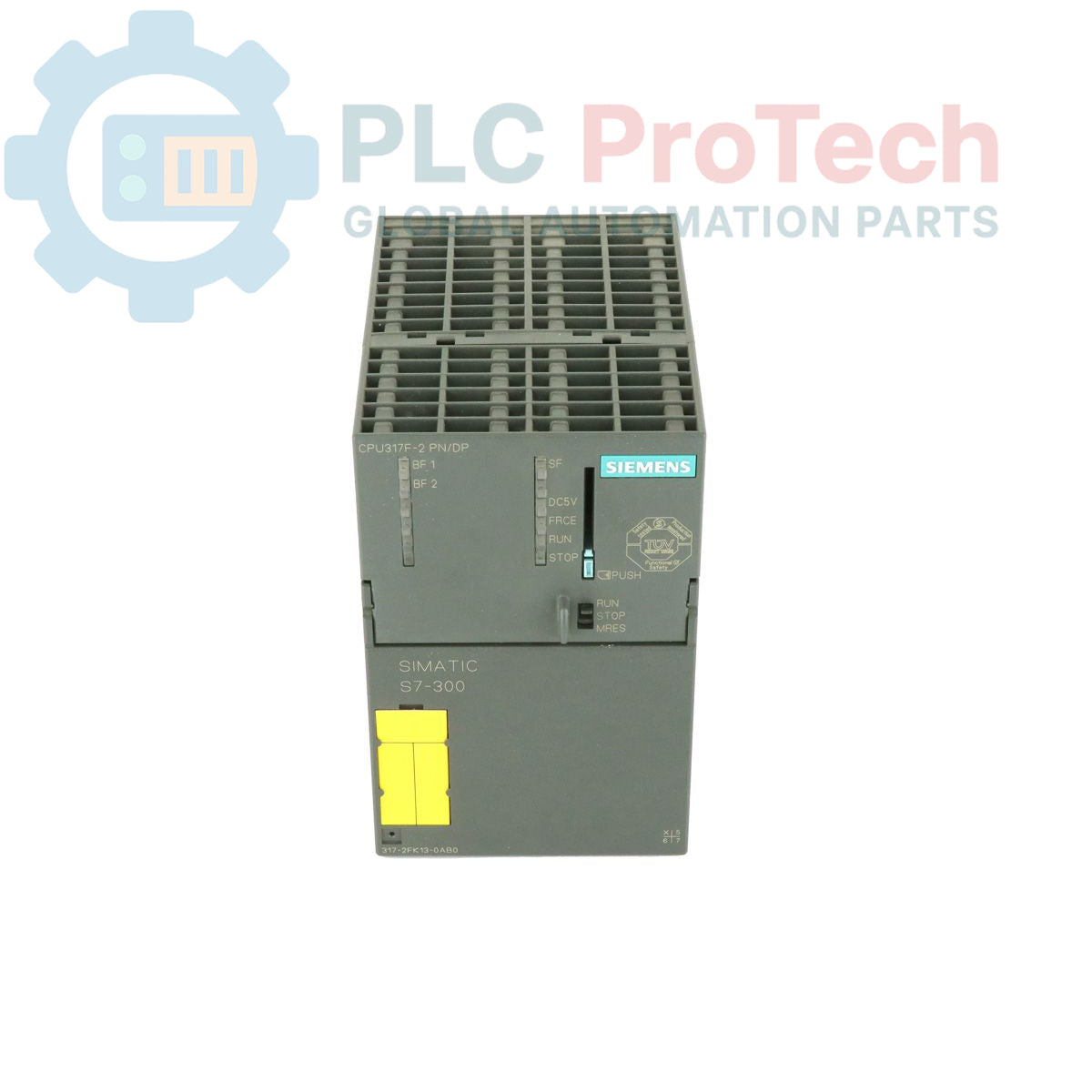

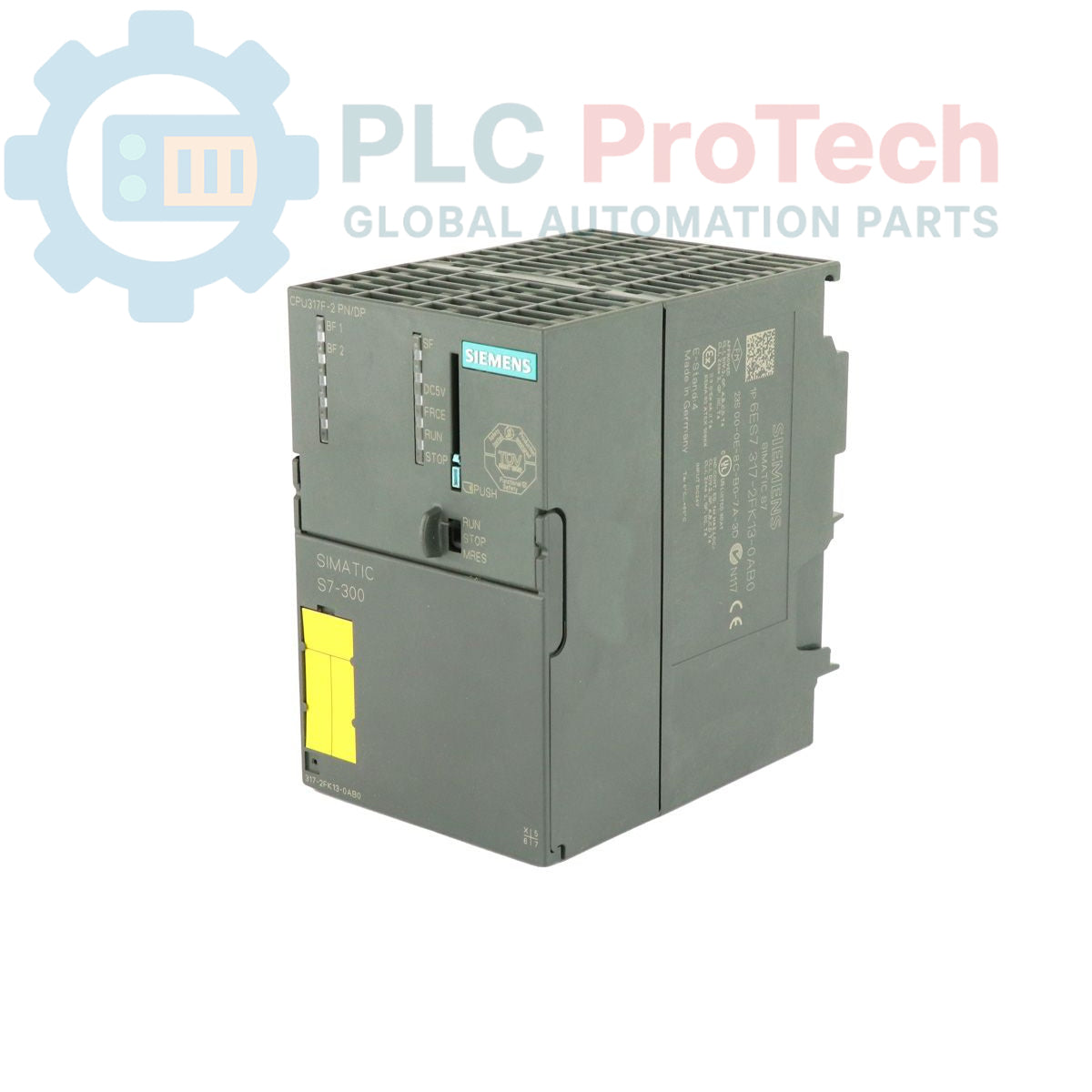

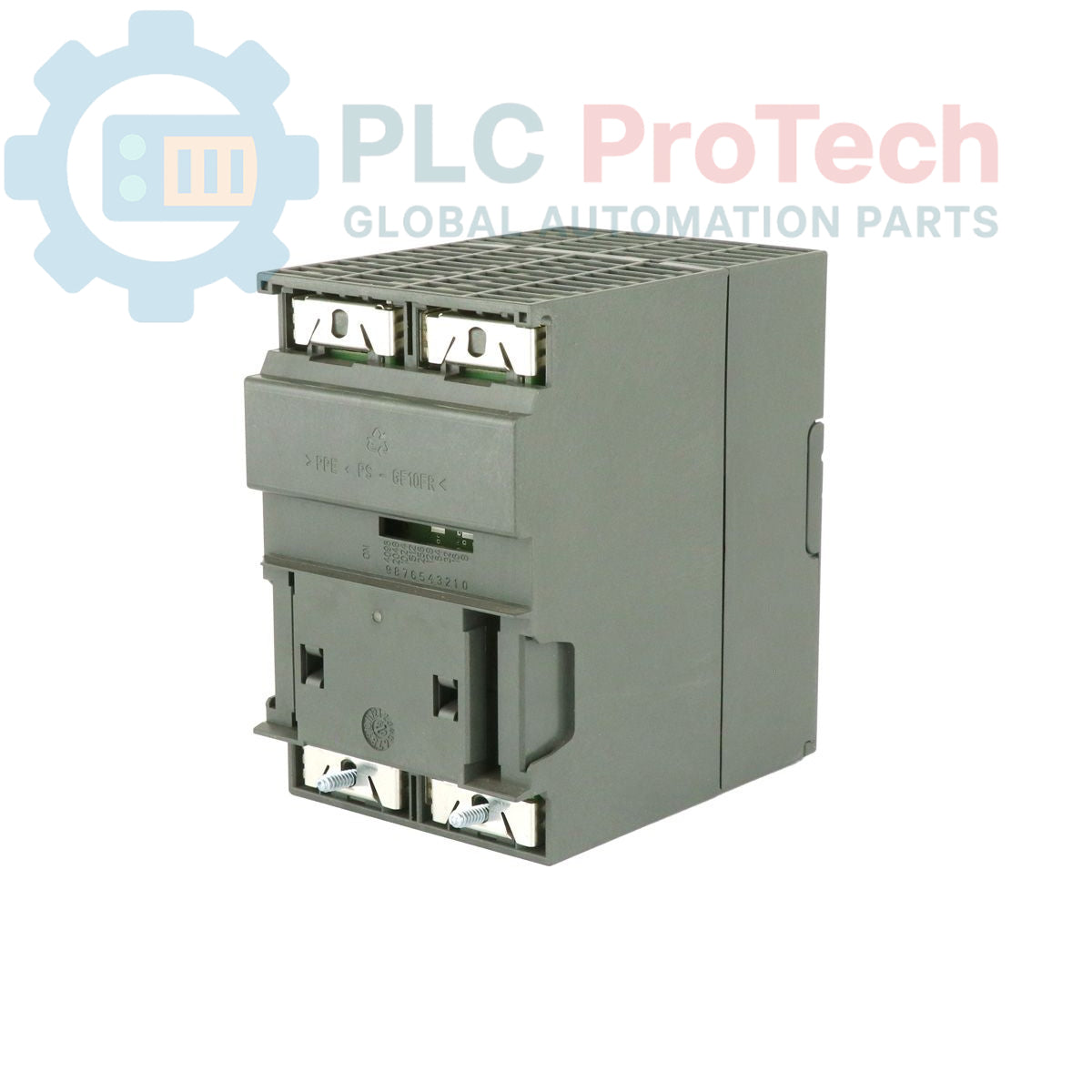

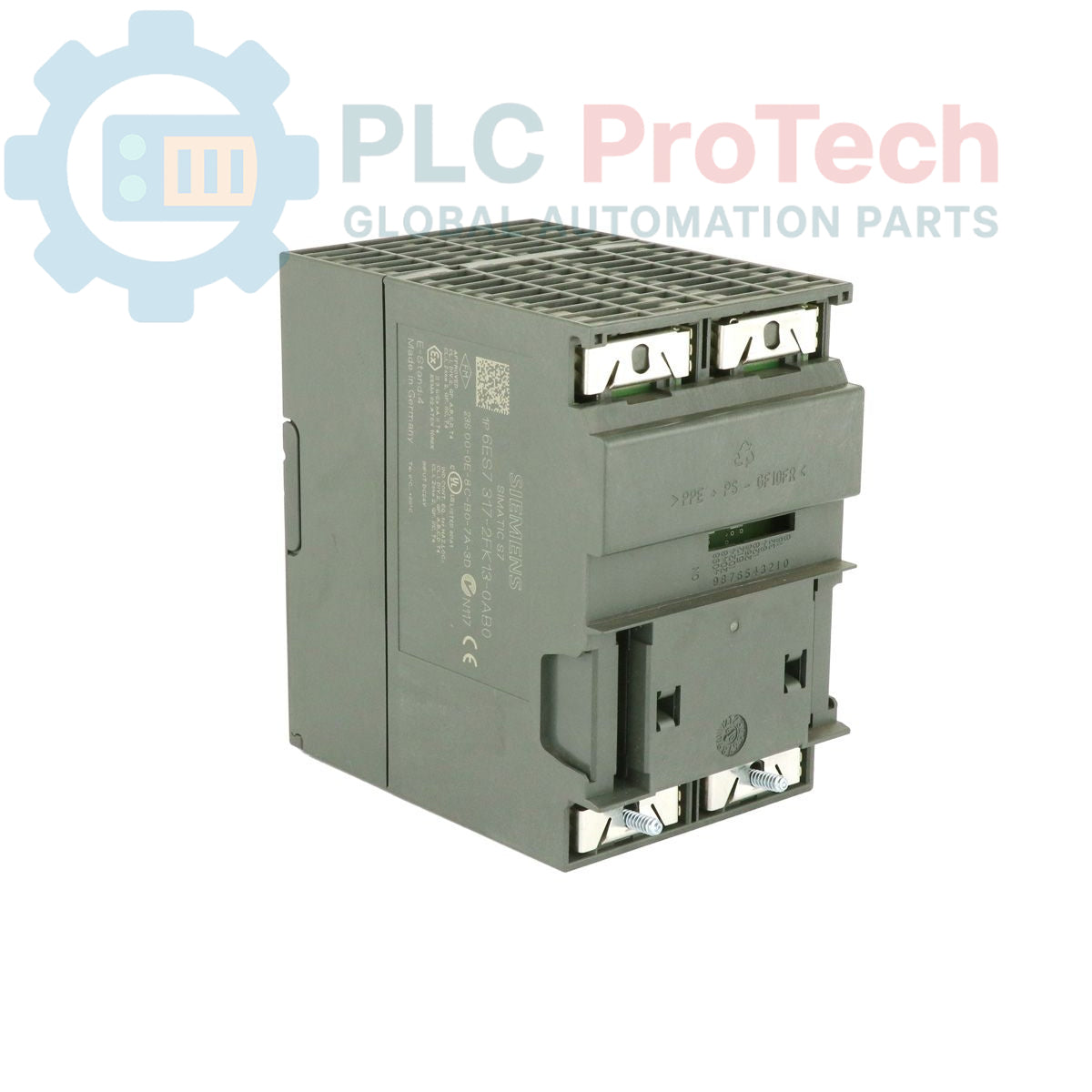

The Siemens 6ES7317-2FK13-0AB0 is a SIMATIC S7-300 CPU317F-2 PN/DP Central Processing Unit designed for advanced automation applications within industrial environments. This CPU module features a 1024 KB work memory, enabling the execution of complex control processes and extensive data handling. It is equipped with a first interface for MPI/DP connectivity at 12 Mbit/s and a second interface for Ethernet PROFINET communication, facilitating seamless integration into modern production networks. The 6ES7317-2FK13-0AB0 requires a Micro Memory Card for operation and is compatible with the S7 Distributed Safety software package from version 5.4, ensuring reliable and safe system performance. Its robust design and proven Siemens quality make it suitable for continuous operation in demanding industrial settings.

Features

• Central Processing Unit (CPU) for SIMATIC S7-300 systems
• 1024 KB integrated work memory
• First interface: MPI/DP with 12 Mbit/s data transfer rate
• Second interface: Ethernet PROFINET
• Requires a Micro Memory Card for operation
• Compatible with S7 Distributed Safety software package (from V5.4)
• Designed for robust and continuous industrial operation

Applications

• General industrial automation systems
• Complex process control and data management
• Distributed automation architectures with PROFINET and MPI/DP
• Safety-related applications when used with S7 Distributed Safety software
• Manufacturing and production lines requiring reliable CPU performance

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure that the entire automation system and associated power supplies are de-energized and locked out to prevent electrical hazards.
2. Mounting: Securely mount the CPU module onto a standard DIN rail within a suitable enclosure. Ensure proper ventilation space around the module.
3. Insert Micro Memory Card: Carefully insert the required Micro Memory Card into the designated slot on the CPU module.
4. Connect Power: Connect the system power supply to the CPU module's power terminals, observing correct polarity.

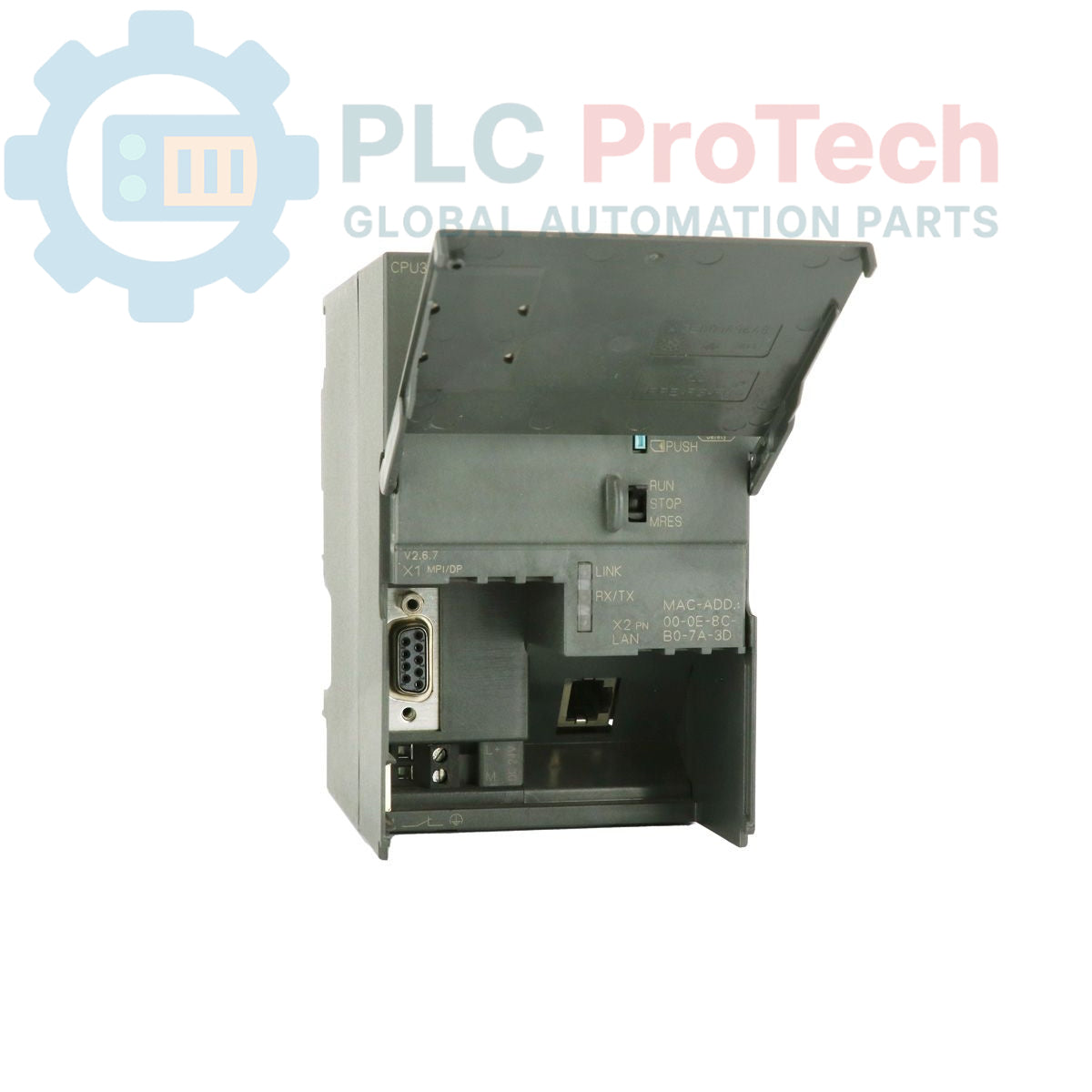

5. Connect Communication Cables: Connect the MPI/DP and Ethernet PROFINET communication cables to their respective ports. Ensure proper shielding and grounding for communication lines to minimize interference.
6. Grounding: Ensure the module and its associated rack (if applicable) are properly grounded to the system's protective earth.
7. Cable Routing: Route all cables neatly and ensure they are secured to prevent strain or accidental disconnection. Separate signal and power cables where possible.
8. Power Up and Configuration: After all connections are verified, re-energize the system. Configure the CPU module using appropriate Siemens engineering software (e.g., STEP 7) to load the application program and set up communication parameters.
