Description

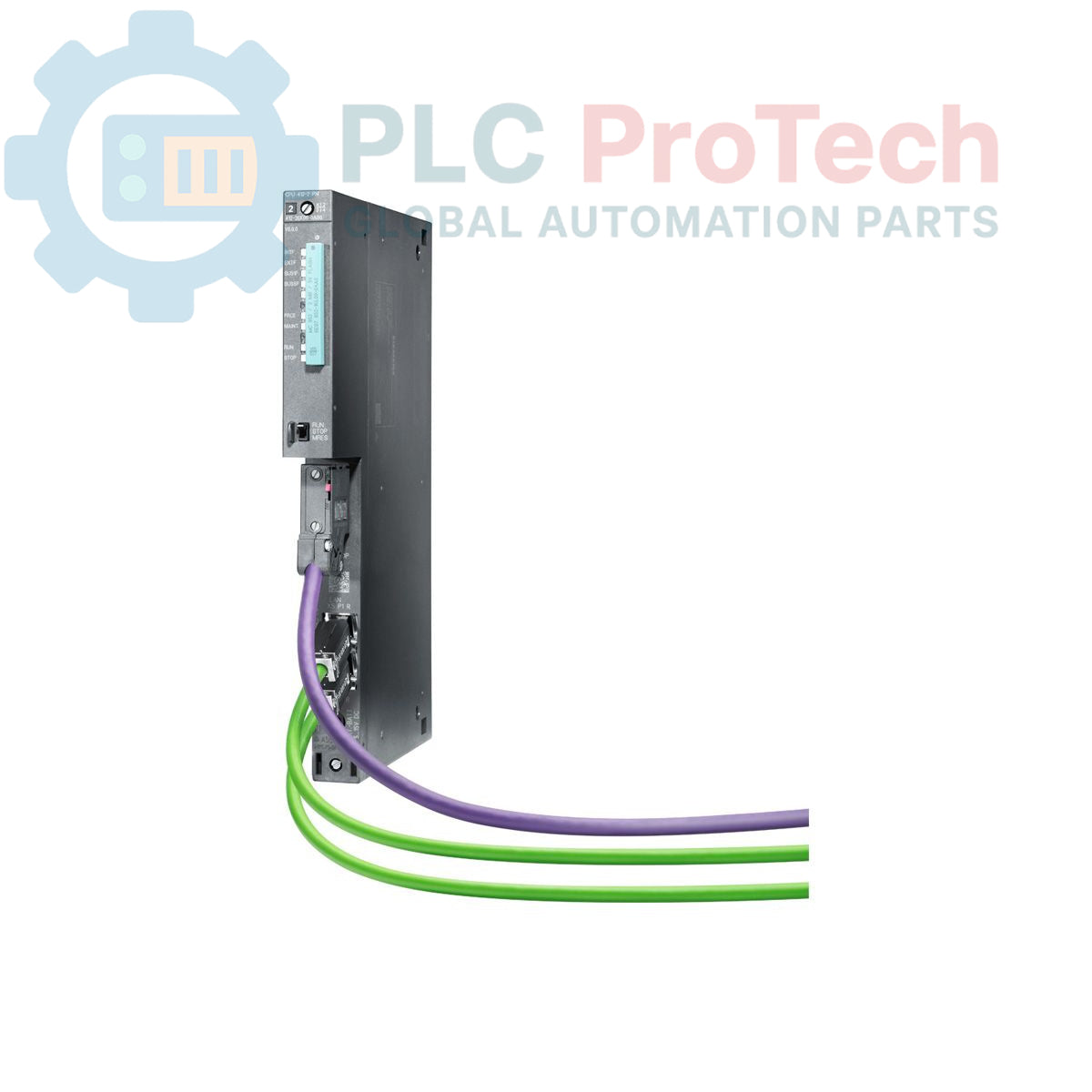

The Siemens 6ES7412-2EK06-0AB0 is a central processing unit (CPU) designed for the SIMATIC S7-400 automation system. This CPU 412-2 PN module features an integrated 1 MB work memory, precisely split into 0.5 MB for code and 0.5 MB for data, enabling it to handle demanding industrial automation tasks with efficient and reliable process control. It is equipped with two essential communication interfaces: a first interface (X1) supporting MPI/DP at 12 Mbit/s for seamless integration into existing networks, and a second interface (X5) for Ethernet/PROFINET, providing high-speed, flexible connectivity for modern production environments. The Siemens 6ES7412-2EK06-0AB0 is engineered for durability and long-term operation in industrial settings, making it a dependable choice for robust and scalable control solutions.

Features

• Integrated 1 MB Work Memory (0.5 MB Code, 0.5 MB Data)
• MPI/DP Interface (X1) with 12 Mbit/s Communication Speed
• Ethernet/PROFINET Interface (X5) for High-Speed Connectivity
• Designed for SIMATIC S7-400 Automation Systems
• Robust Construction for Industrial Environments

Applications

The Siemens 6ES7412-2EK06-0AB0 CPU is suitable for a wide range of industrial automation applications requiring reliable and scalable control. Typical deployments include:

• Complex process control systems
• Manufacturing automation
• Machine control
• Distributed I/O systems
• Integration into existing MPI/DP or PROFINET networks

Ordering Information

Technical Specifications

Connections / Interfaces

• Interface X1: MPI/DP (Multi-Point Interface / Distributed Peripherals) for communication at 12 Mbit/s.
• Interface X5: Ethernet/PROFINET for high-speed industrial Ethernet communication.

Installation Guidelines

1. De-energize System: Ensure all power to the SIMATIC S7-400 rack and associated modules is disconnected before beginning installation.
2. Module Insertion: Carefully insert the CPU module into the designated slot in the S7-400 rack. Ensure it is correctly aligned with the backplane connector.
3. Secure Module: Fasten the module securely using its integrated locking mechanisms or screws to prevent accidental dislodgement due to vibration.
4. Connect Communication Cables: Connect the MPI/DP cable to interface X1 and the Ethernet/PROFINET cable to interface X5 as per your network topology. Ensure proper termination and shielding for communication integrity.
5. Grounding: Verify that the S7-400 rack and all connected components are properly grounded to minimize electrical noise and ensure safety.
6. Power Up: After all connections are secure and verified, re-apply power to the S7-400 system. Observe status indicators for correct operation.
7. Configuration: Use appropriate Siemens engineering software (e.g., STEP 7) to configure the CPU, memory, and communication interfaces according to your application requirements.
