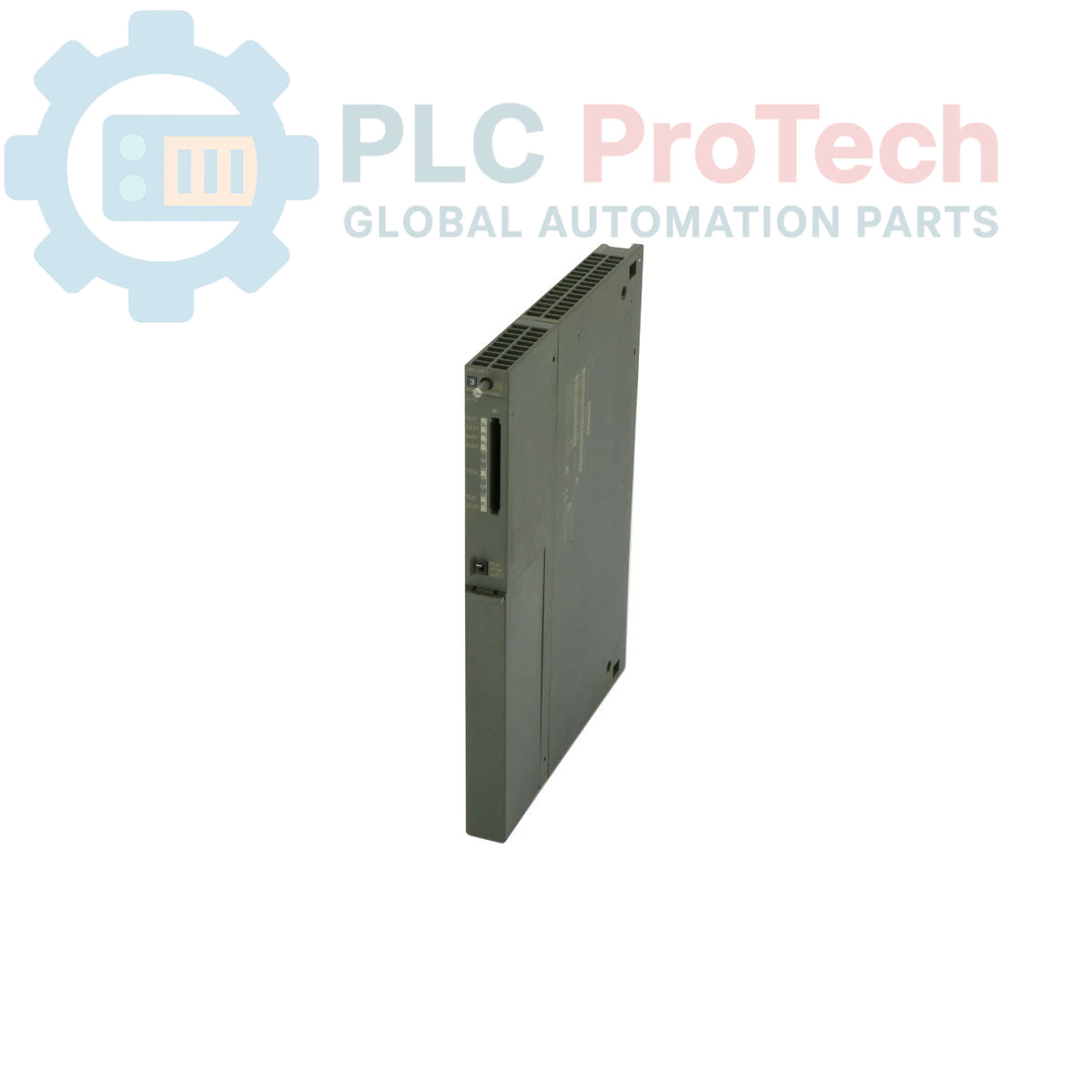

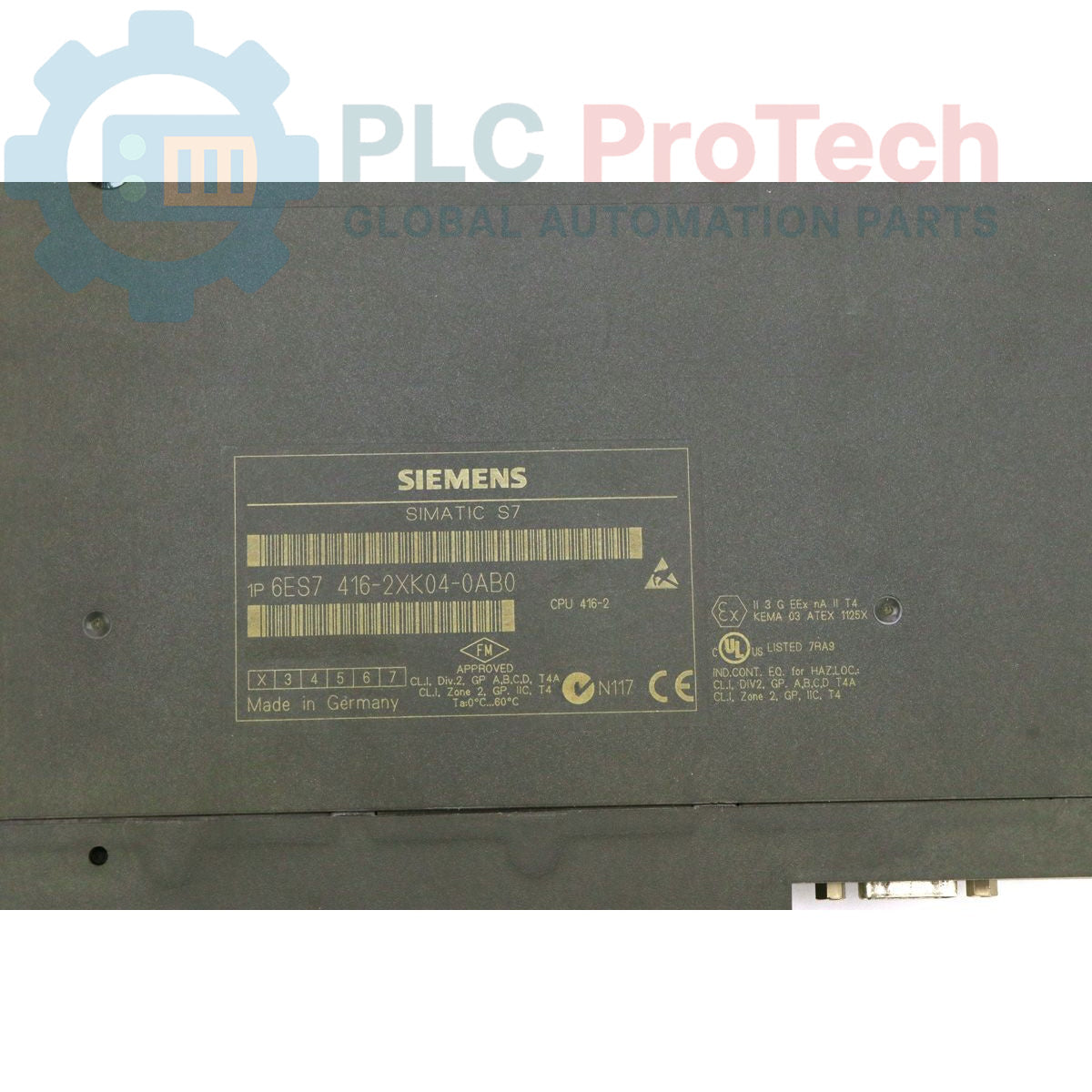

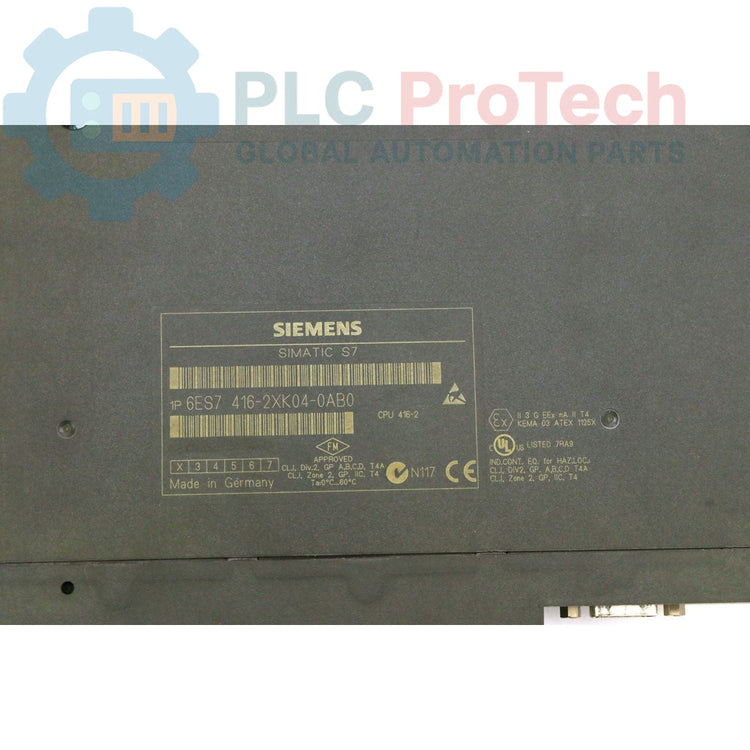

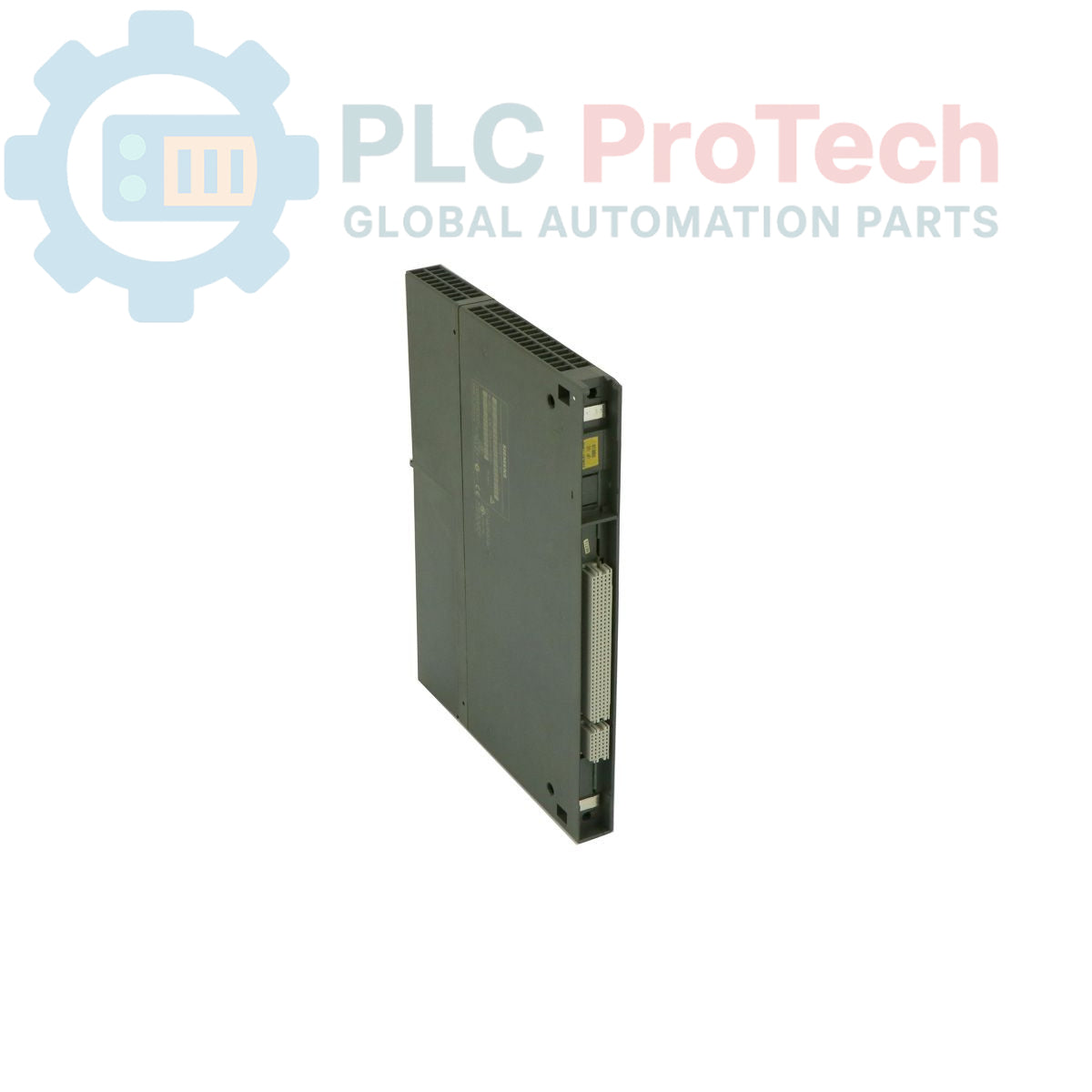

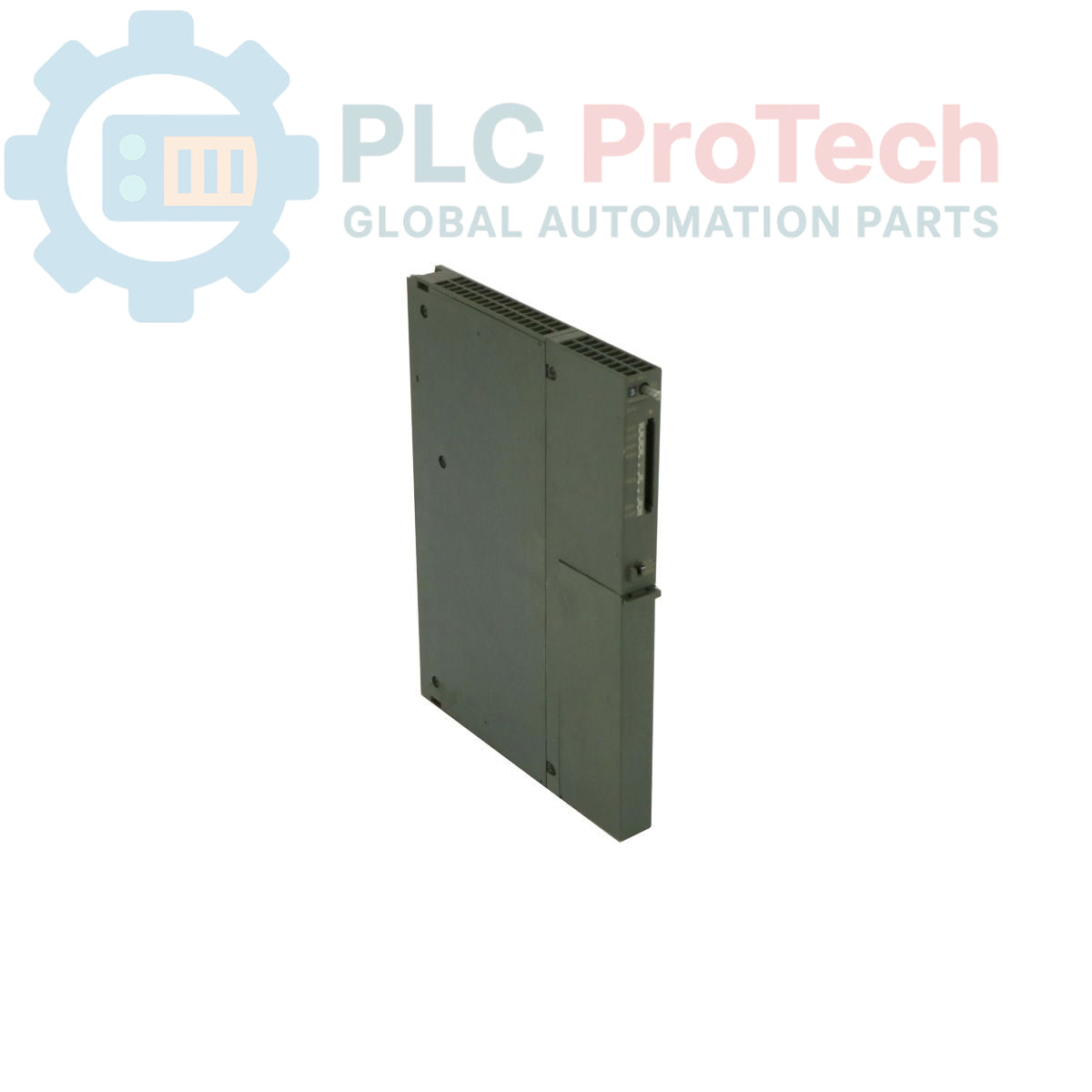

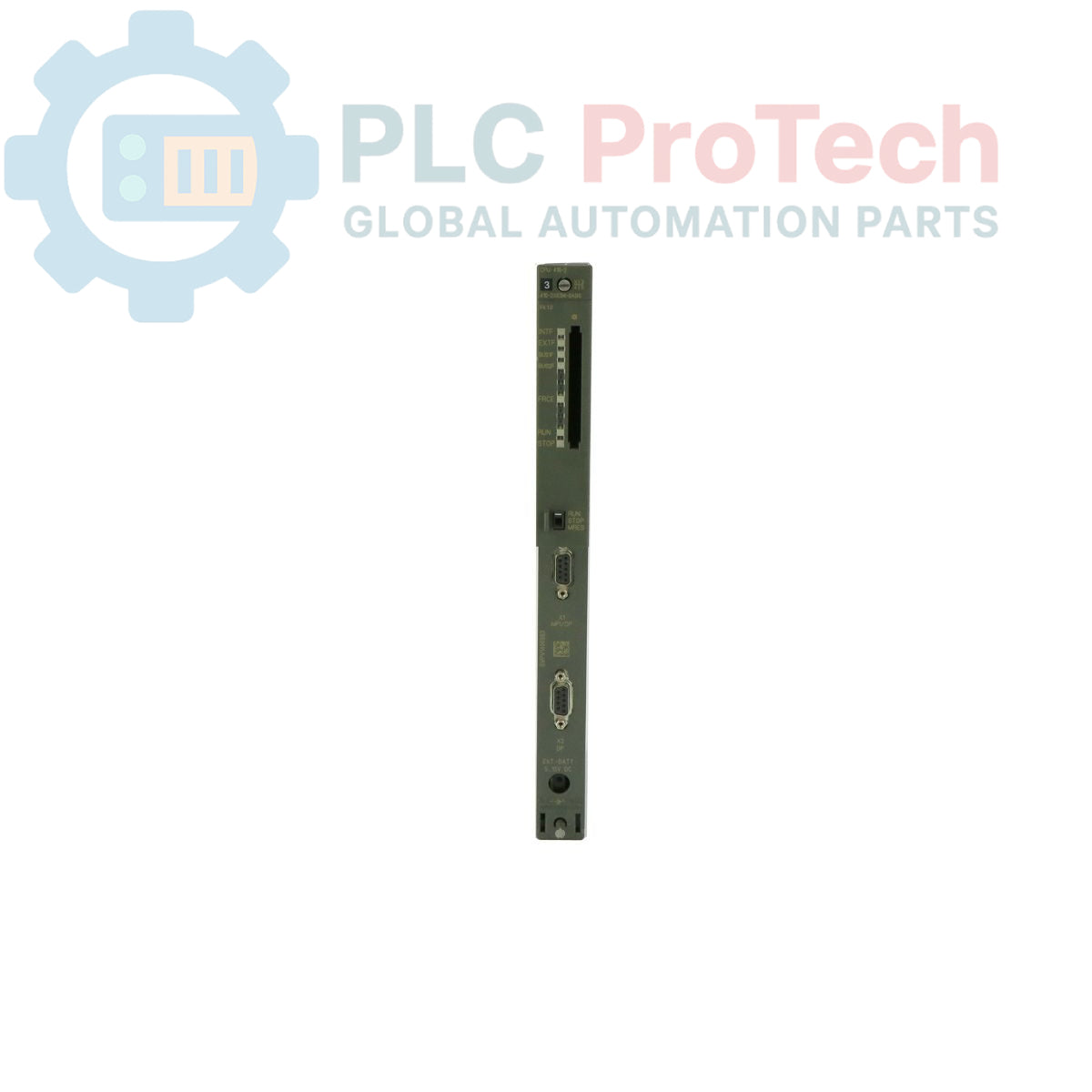

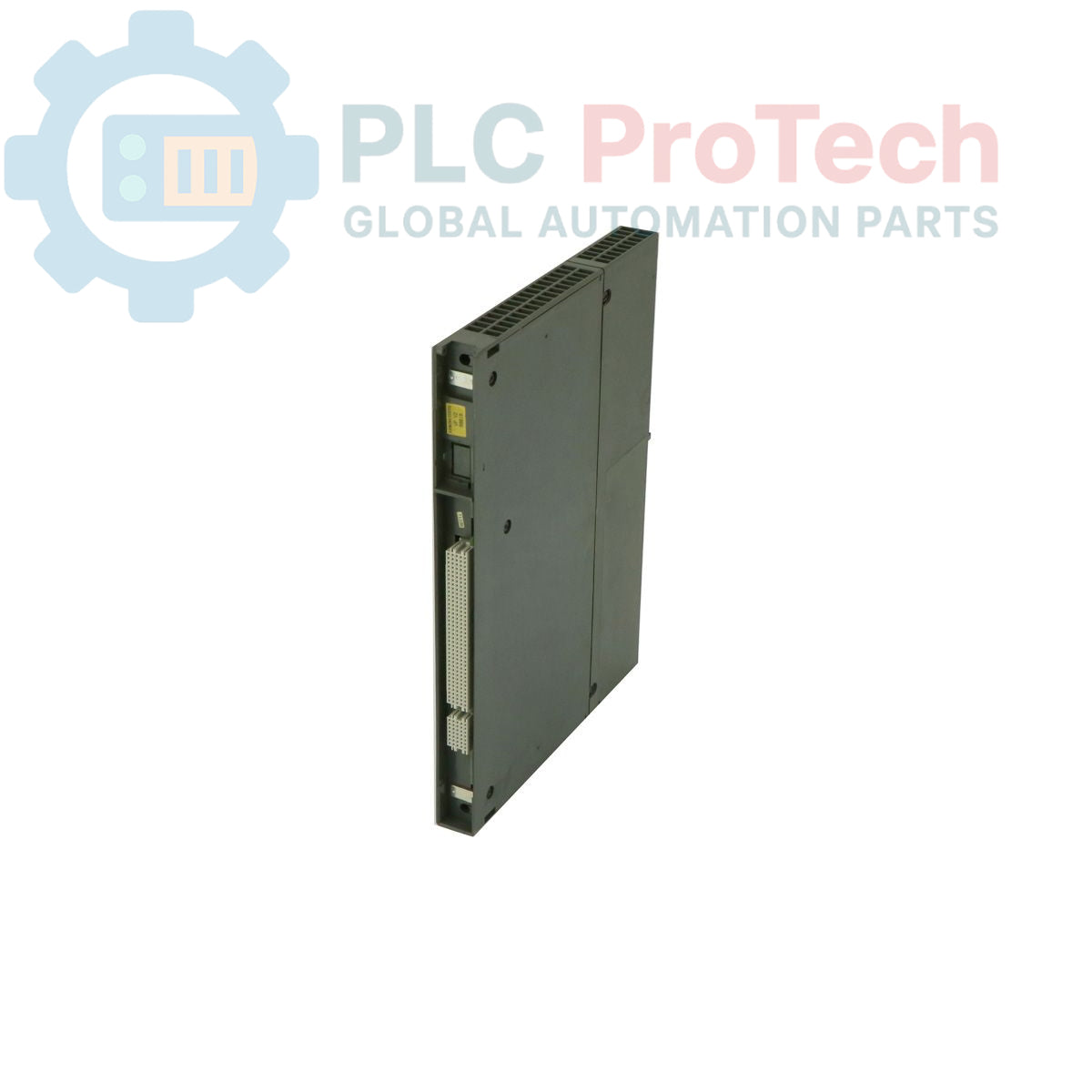

Siemens 6ES7416-2XK04-0AB0 | SIMATIC S7-400 | CPU 416-2

SKU 6ES7416-2XK04-0AB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7416-2XK04-0AB0
Origin Germany
Product Type: Standard CPUs
Barcode: 85389091
Payment: T/T, Western Union
Weight: 0.87 kg
Dimensions: 2.50cm x 29.00cm x 21.90cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6ES7416-2XK04-0AB0 is a high-performance SIMATIC S7-400 CPU 416-2, engineered for complex automation tasks in industrial applications. It features a total of 2.8 MB of work memory, configured as 1.4 MB for program code and 1.4 MB for data, providing the processing capacity required for demanding control logic. The unit is equipped with two integrated communication interfaces: a multi-protocol MPI/DP interface capable of speeds up to 12 Mbit/s, and a secondary dedicated PROFIBUS DP interface. This CPU module serves as the core processing unit in modular S7-400 rack-based architectures, facilitating efficient data exchange across distributed automation networks. Please note that this product is currently classified as obsolete.

Features

Memory Capacity: 2.8 MB total work memory (1.4 MB code / 1.4 MB data).
Communication Interfaces: 1x MPI/DP interface (up to 12 Mbit/s) and 1x dedicated PROFIBUS DP interface.
Architecture: Modular design compatible with S7-400 backplane racks.
Scalability: High-performance processing suitable for complex, large-scale industrial automation.
Connectivity: Support for multi-point interface (MPI) and distributed peripheral (DP) protocols.

Applications

Large-scale process control and manufacturing automation
Multi-axis machine control and coordination
Complex industrial networking via PROFIBUS DP
Power plant and utility automation
Centralized control for high-speed production lines

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Range	Simatic S7
Subrange	S7-400
Model	CPU 416-2
Work Memory	2.8 MB (1.4 MB Code / 1.4 MB Data)
Interfaces	1x MPI/DP, 1x PROFIBUS DP
MPI/DP Speed	Up to 12 Mbit/s
Weight	0.87kg
Dimensions	2.50cm x 29.00cm x 21.90cm
Product Phase	Obsolete
Successor	6ES7416-2XN05-0AB0
Predecessor	6ES7416-2XK02-0AB0
Commodity Code	85389091
Export Control (ECCN)	EAR99

Installation Guidelines

Rack Mounting: The CPU must be inserted into a central processing unit slot on an S7-400 modular rack. Ensure the backplane connector is fully engaged.
Power Requirements: Ensure the power supply module (PS) installed in the rack provides sufficient voltage and current to support the CPU's operational needs.
EMI Mitigation: Use shielded communication cables for PROFIBUS and MPI networks, keeping them routed away from high-voltage power lines to minimize signal interference.
Environment: Operate within a controlled industrial environment to avoid extreme humidity, conductive dust, and vibration that could affect the CPU's internal electronics.
Configuration: Use the appropriate version of the STEP 7 engineering software to configure the CPU, memory settings, and interface parameters.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the memory distribution for the 6ES7416-2XK04-0AB0?

The 2.8 MB work memory is divided into 1.4 MB for program code and 1.4 MB for data.

What communication interfaces are integrated into this CPU?

It includes one MPI/DP interface (up to 12 Mbit/s) and one dedicated PROFIBUS DP interface.

Is this CPU part of the current active product line?

No, the 6ES7416-2XK04-0AB0 is an obsolete product.

Which model is the official successor?

The recommended successor for this CPU is the 6ES7416-2XN05-0AB0.
