Description

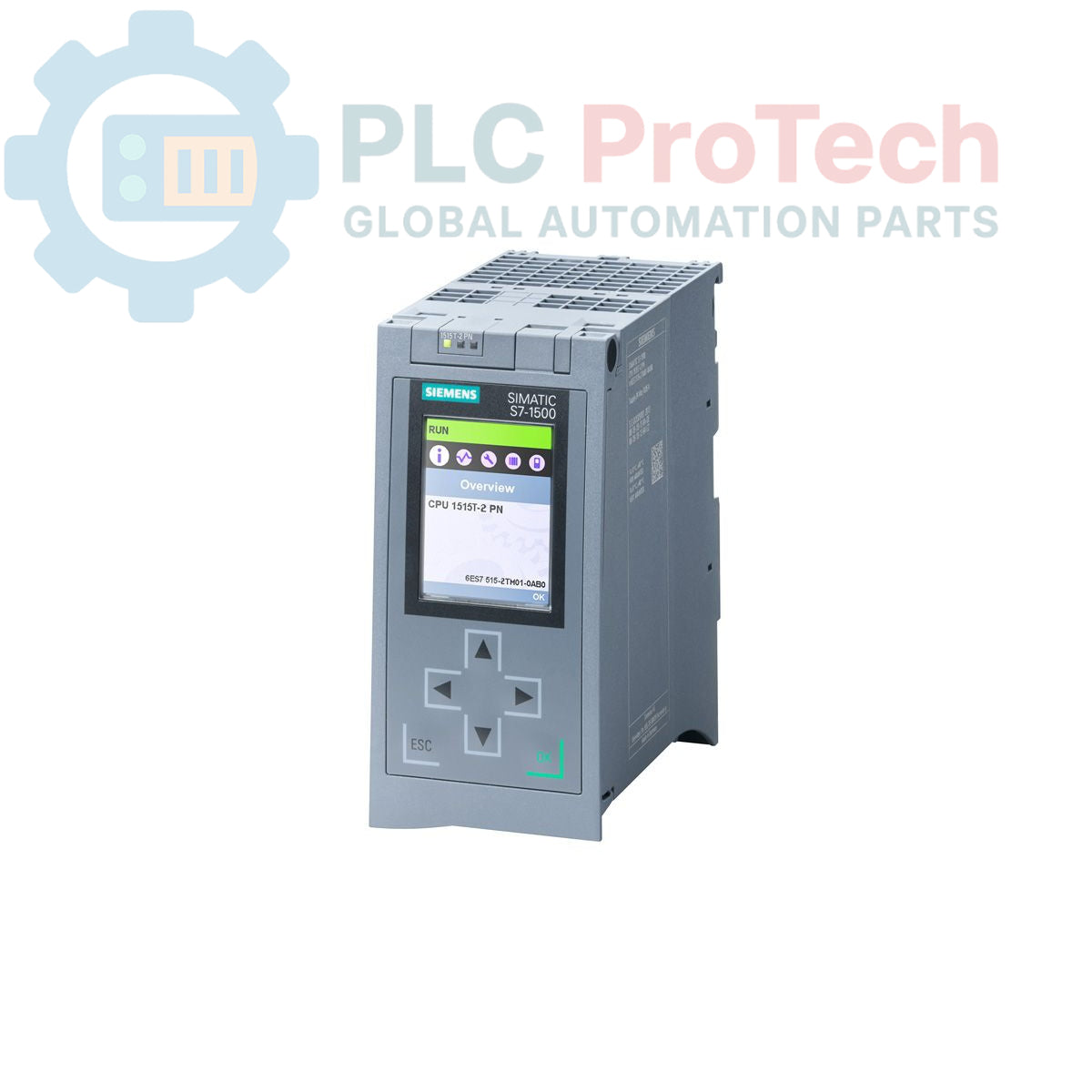

The Siemens 6ES7516-2GN00-0AB0 is a SIMATIC DP, CPU 1516PRO F-2 PN designed for the ET 200pro distributed I/O system. This central processing unit features a work memory of 1.5 MB for program and 5 MB for data, making it suitable for complex automation tasks. It integrates a PROFINET IRT interface with a 3-port switch for high-performance real-time communication and a second dedicated PROFINET RT interface. With a rapid 10 ns bit performance and a robust IP65/67 degree of protection, this fail-safe CPU is engineered for demanding industrial environments. Operation requires a SIMATIC Memory Card and a connection module.

Features

• Central Processing Unit (CPU) for ET 200pro systems
• Integrated fail-safe functionality
• 1.5 MB work memory for program
• 5 MB work memory for data
• First interface: PROFINET IRT with 3-port switch
• Second interface: PROFINET RT
• High-speed 10 ns bit performance
• IP65/67 degree of protection
• Requires SIMATIC Memory Card for operation
• Requires a connection module

Applications

• Distributed automation systems with ET 200pro
• Safety-critical applications requiring fail-safe control
• High-performance control tasks in harsh industrial environments
• Industrial processes requiring robust PROFINET communication
• Machine and plant automation where high protection ratings are necessary

Technical Specifications

Connections / Interfaces

The CPU is equipped with:

• PROFINET IRT interface with an integrated 3-port switch.
• Dedicated PROFINET RT interface.
• Requires a connection module for physical I/O and power connections.

Installation Guidelines

1. De-energize System: Ensure all power to the ET 200pro system and associated components is de-energized before beginning installation.
2. Mounting: Install the CPU into the designated slot within the ET 200pro station. Ensure it is securely seated and latched according to the system's mechanical design.
3. Memory Card Insertion: Insert the required SIMATIC Memory Card into the CPU's designated slot.
4. Connection Module: Attach the necessary connection module to the CPU, ensuring proper mechanical and electrical coupling.
5. PROFINET Cabling: Connect PROFINET cables to the integrated interfaces. Use appropriate industrial Ethernet cables and ensure secure connections.
6. Grounding: Verify that the ET 200pro station and connected components are properly grounded to minimize electrical noise and ensure safety.
7. Environmental Protection: Given the IP65/67 rating, ensure all covers, seals, and cable glands are correctly installed and tightened to maintain the specified degree of protection against dust and water ingress.
8. Power-Up: After all connections are secure and verified, re-energize the system and observe for proper initialization.
