Description

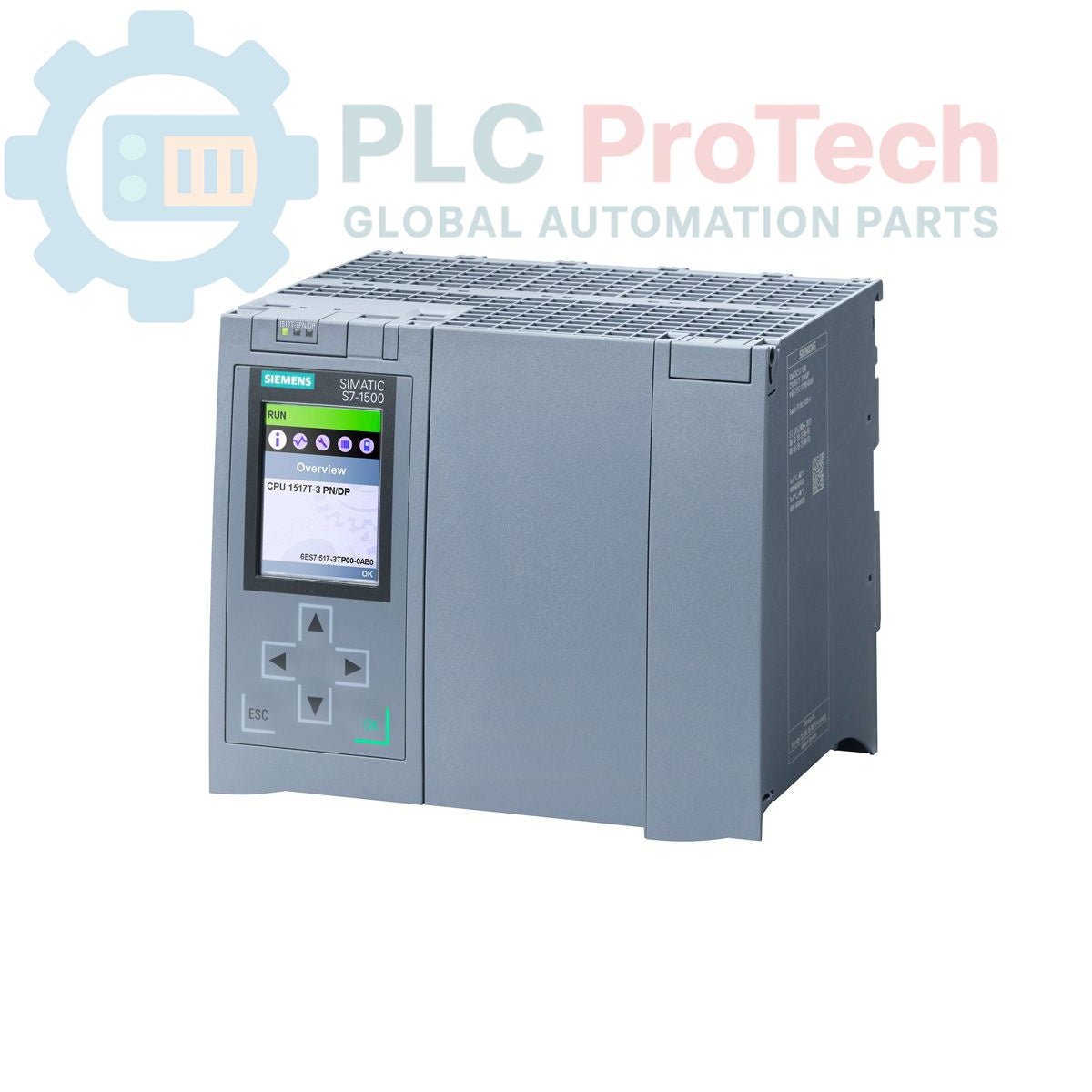

This is a SIMATIC S7-1500T series Technology CPU, model 6ES7517-3TP00-0AB0, from Siemens. It is a central processing unit engineered for demanding motion control and technology tasks, featuring a work memory of 3 MB for program and 8 MB for data. The module provides extensive connectivity with three distinct interfaces: a PROFINET IRT interface with an integrated 2-port switch, a secondary Ethernet port, and a PROFIBUS DP interface. With a bit processing performance of 2 ns, this CPU delivers the high-speed execution required for complex automation applications. A SIMATIC Memory Card is required for operation.

Features

• High-performance processing with 2 ns bit performance.
• Integrated PROFINET IRT interface with a 2-port switch for real-time communication.
• Additional dedicated Ethernet interface for general network communication.
• Legacy and field-level connectivity via an integrated PROFIBUS DP interface.
• Substantial memory capacity for complex programs and large data sets.
• Designed for advanced technology and motion control functions within the TIA Portal environment.
• Requires an external SIMATIC Memory Card for operation and data storage.

Applications

• High-speed packaging and labeling machinery
• Complex multi-axis motion control systems
• Robotics and handling applications
• Automated assembly and manufacturing lines
• Printing and converting equipment

Technical Specifications

Installation Guidelines

1. 1 Ensure the S7-1500 mounting rail is de-energized and verify a zero-voltage state using a calibrated multimeter before proceeding.
2. 2 Mount the CPU module onto the S7-1500 backplane, ensuring the bus connectors engage correctly and the module latches securely into place.
3. 3 Insert a compatible SIMATIC Memory Card into the designated slot on the front of the CPU. The CPU will not operate without it.
4. 4 Connect the 24 VDC power supply to the module's power terminals, strictly observing correct polarity (+/-) to prevent damage.
5. 5 Terminate PROFINET, Ethernet, and PROFIBUS communication cables to their respective ports. Use appropriate shielded cabling and ensure proper grounding practices are followed to maintain signal integrity.
6. 6 After verifying all physical connections, remove LOTO devices and re-energize the system. Proceed with device configuration and programming using the TIA Portal software.
