Description

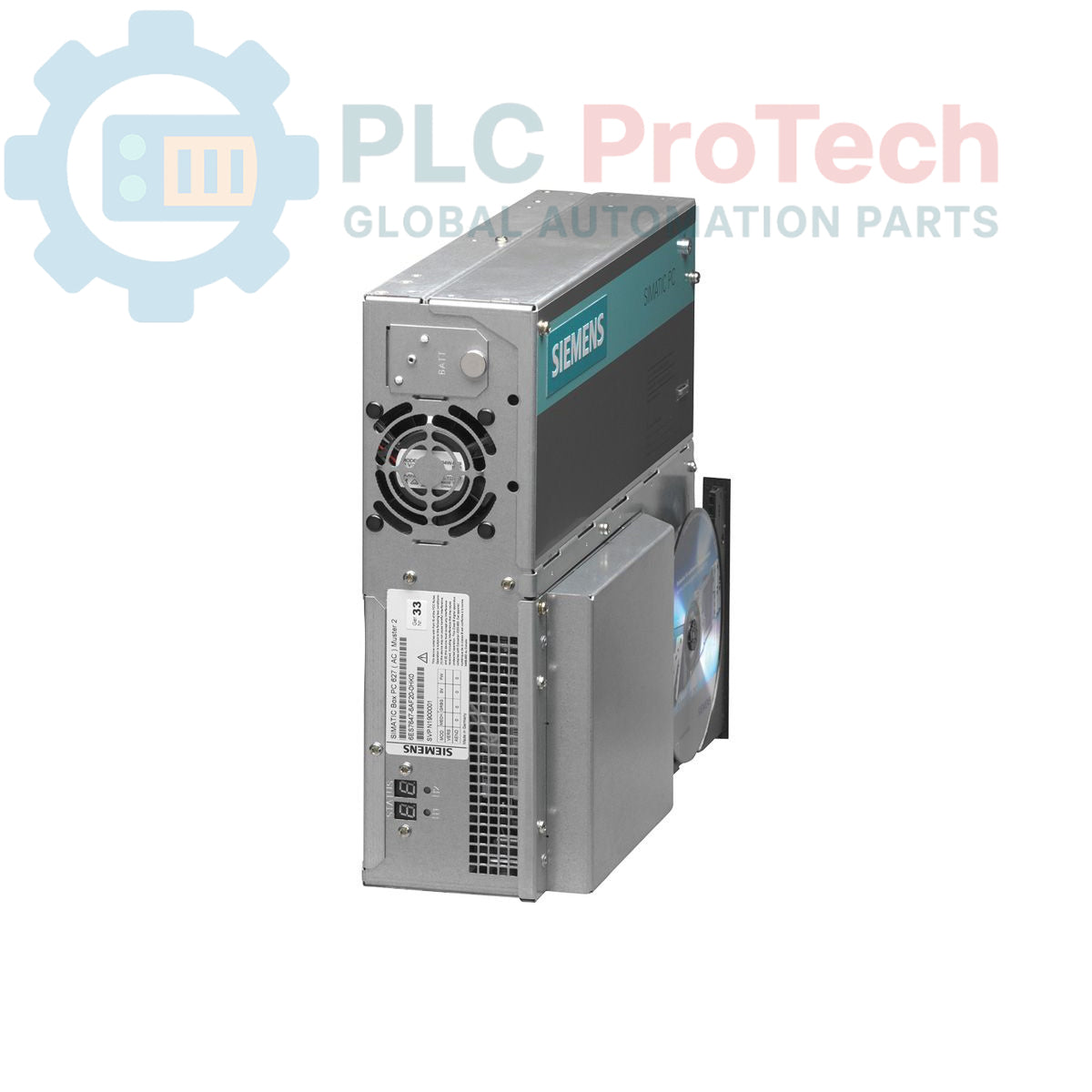

This product is a Siemens 6ES7647-6AB25-0CJ0, a SIMATIC BOX PC 627 designed for industrial applications. It is equipped with a Celeron M 370 1.5 GHz processor, 512 MB of DDR2 RAM, and an 80 GB SATA hard drive. Connectivity options include dual 10/100 Mbit/s Ethernet, four high-current USB 2.0 ports, a serial port, and an integrated PROFIBUS/MPI interface. The system features onboard AGP graphics, a RAID controller, and monitoring functions for temperature and fan status. This unit is powered by a 24V DC industrial power supply and comes pre-installed with Windows 2000 Professional.

Features

• Celeron M 370 processor operating at 1.5 GHz with a 400 MHz FSB.
• 512 MB DDR2 533 SODIMM system memory.
• Integrated AGP graphics with 8-128 MB of shared memory.
• 80 GB SATA Hard Disk Drive and a DVD+/-RW optical drive.
• Dual 10/100 Mbit/s Ethernet RJ45 ports for network connectivity.
• Built-in PROFIBUS/MPI interface for industrial communication.
• Onboard RAID controller for data redundancy.
• System monitoring including watchdog timer, temperature, and fan status.
• Two available PCI slots for expansion.

Applications

• Human-Machine Interface (HMI) and SCADA systems.
• Data acquisition and logging in manufacturing environments.
• PC-based control and automation tasks.
• Gateway for industrial network communications.
• Process visualization and monitoring stations.

Technical Specifications

Installation Guidelines

1. 1
   De-energize Equipment: Before installation, completely de-energize the control cabinet and verify the absence of voltage using a calibrated multimeter. Follow all site-specific LOTO safety procedures.
2. 2
   Mount the Chassis: Securely mount the BOX PC chassis to the designated panel or mounting surface. Ensure adequate clearance around the unit for proper ventilation and heat dissipation.
3. 3
   Connect System Ground: Connect a dedicated protective earth (PE) conductor to the chassis ground terminal. A low-impedance ground connection is critical for safety and noise immunity.
4. 4
   Connect Power Supply: Connect the 24V DC power source to the designated power input terminals. Verify correct polarity (+/-) before applying power to prevent damage to the unit.
5. 5
   Terminate I/O and Network Cables: Connect all required communication cables, such as Ethernet, PROFIBUS, USB, and serial devices. Ensure all connectors are fully seated and secured.
6. 6
   System Power-Up: After verifying all connections, remove the LOTO device and re-energize the cabinet. Power on the BOX PC and verify correct boot-up and system operation.
