Description

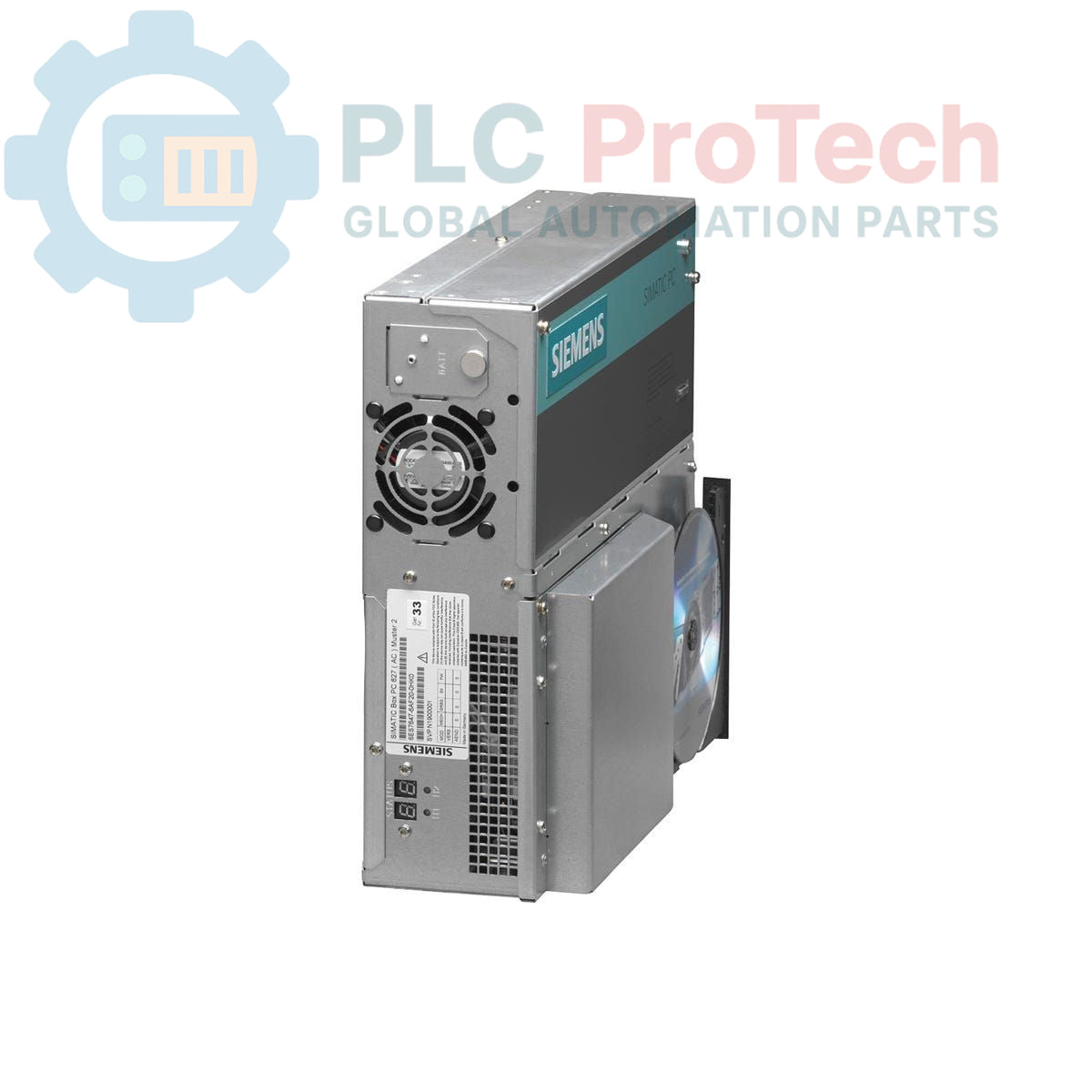

The Siemens 6ES7647-6AE35-0JK3 is a SIMATIC Box PC 627, designed for industrial applications requiring robust computing performance and connectivity. This unit features onboard AGP graphics with 8-128 MB shared memory, dual 10/100 Mbit/s Ethernet RJ45 ports, and four high-current USB V2.0 interfaces. It includes a serial (COM1) port and an onboard RAID controller. For storage, it provides a slot for a Compact Flash drive, a RAID1 configuration with two 60 GB SATA (2.5") drives, and a DVD+/-RW drive. The system is equipped with a Pentium M 760 2.0 GHz CPU, 1 GByte DDR2 533 SODIMM RAM, and operates on a DC 24V industrial power supply. Integrated monitoring functions include watchdog, temperature, and fan monitoring. The PC comes pre-installed with Windows XP Professional Multi-Language SP2 and includes SIMATIC PC DiagMonitor V3.1 and Image Creator Software V2.0.

Features

• Onboard AGP graphics with 8-128 MB shared memory
• 2 x 10/100 Mbit/s Ethernet RJ45 ports
• 4 x USB V2.0 (High Current) ports
• 1 x Serial (COM1) port
• Onboard RAID controller
• 1 x Slot for Compact Flash drive
• Watchdog, temperature, and fan monitoring
• 2 x Free PCI slots
• Pentium M 760 2.0 GHz CPU, 533 MHz FSB, 2 MB SLC
• 1 GByte DDR2 533 SODIMM RAM
• DC 24V Industrial Power Supply
• RAID1 configuration with 2 x 60 GB SATA (2.5") drives
• DVD+/-RW drive
• Pre-installed Windows XP Professional Multi-Language SP2 (EN, GE, FR, IT, SP)
• Includes SIMATIC PC DiagMonitor V3.1 & Image Creator Software V2.0

Applications

The SIMATIC Box PC 627 is suitable for a wide range of industrial automation tasks, including:

• Machine control and visualization
• Data acquisition and processing
• Human-Machine Interface (HMI) systems
• SCADA (Supervisory Control and Data Acquisition) applications
• Industrial communication gateways
• Process control and monitoring

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the DC 24V industrial power supply to the designated power input terminals. Verify correct polarity before applying power.
4. Grounding: Establish a robust protective earth (PE) connection to the chassis of the Box PC to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication. Use shielded cables in electrically noisy environments.
6. USB and Serial Connections: Connect USB devices and serial communication cables (e.g., for COM1) as required by the application.
7. Cable Routing: Route all cables to prevent strain, sharp bends, and interference with other components. Separate power and signal cables where possible.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for industrial PC equipment.
9. Power On: After all connections are verified, re-energize the system and observe for proper startup and operation.
