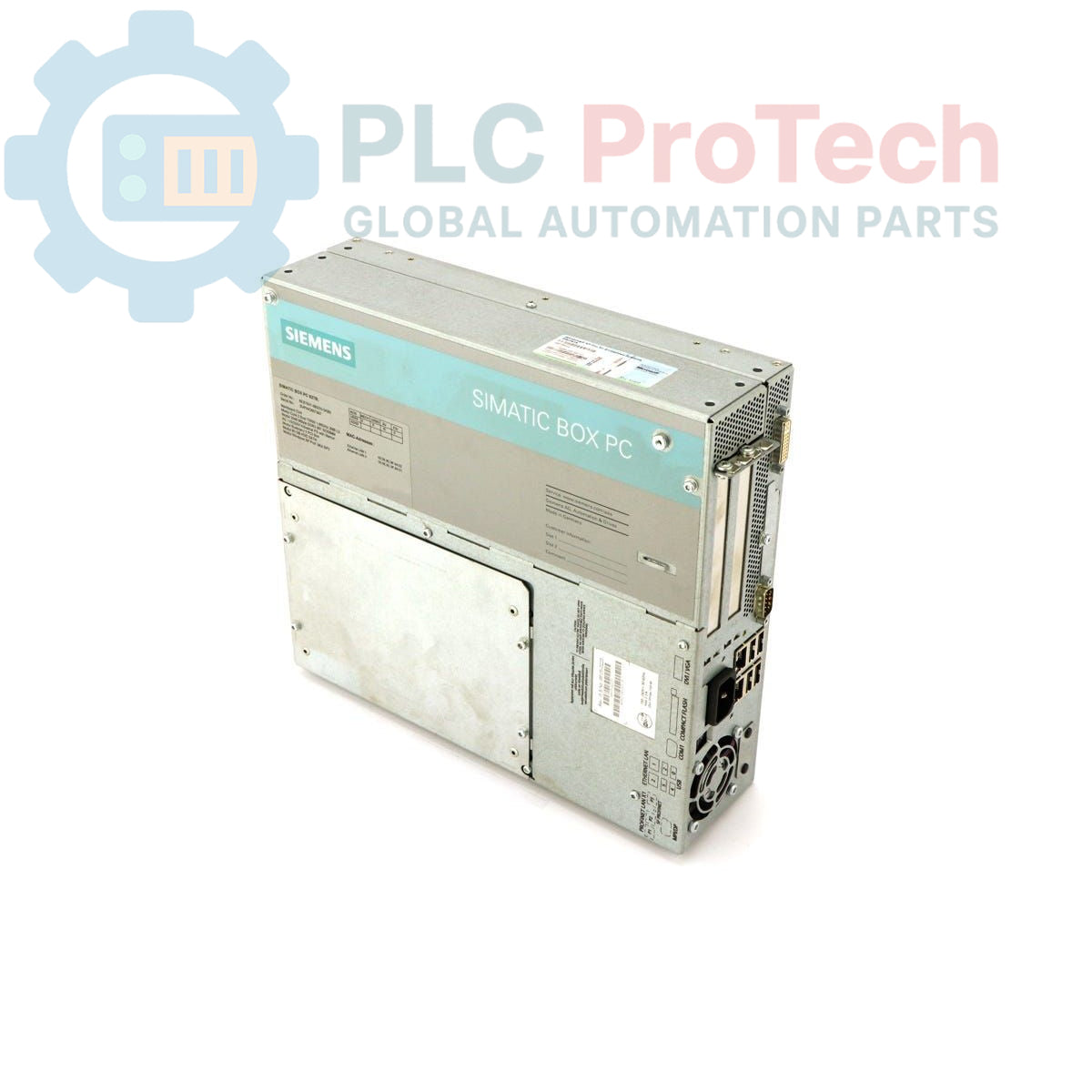

Siemens 6ES7647-6BA06-0AB0 SIMATIC Box PC 627B Industrial PC

SKU 6ES7647-6BA06-0AB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6BA06-0AB0
Origin Germany
Product Type: Industrial PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 0.007 kg
Dimensions: 120.50 x 50.50 x 10.00 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6ES7647-6BA06-0AB0 is a SIMATIC Box PC 627B designed for robust performance in industrial environments. This unit is equipped with an Intel Celeron M 440 processor, 256 MB of DDR2 RAM, and a 160 GB SATA hard drive. It features onboard graphics with 128 MB of shared memory and is powered by a 24 V DC industrial power supply. Connectivity options include dual Gigabit Ethernet ports, four high-current USB 2.0 ports, and a serial COM port. The system includes integrated monitoring for watchdog, temperature, and fan status, and comes pre-installed with Windows XP Professional SP2.

Features

Processor: Intel Celeron M 440 (1.86 GHz, 1 MB L2 Cache)
Memory: 256 MB DDR2 667 SODIMM
Storage: 160 GB SATA Hard Disk Drive (HDD)
Power Supply: 24 V DC Industrial Input
Ethernet: 2 x 10/100/1000 Mbit/s RJ45 ports
USB: 4 x USB 2.0 (high current)
Serial Port: 1 x COM1
Expansion: 2 x PCI slots available
Onboard RAID controller for data redundancy
Integrated watchdog, temperature, and fan monitoring
Front-side CompactFlash drive slot (CF card not included)

Applications

Human-Machine Interface (HMI) server
Data acquisition and logging systems
Process visualization and control
Industrial gateway for network communication
Machine-level automation tasks

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC Box PC 627B
Processor	Intel Celeron M 440 (1.86 GHz, 1 MB L2 Cache, 533 MHz FSB)
Memory	256 MB DDR2 667 SODIMM
Graphics	Onboard, 128 MB Shared Memory
Storage	160 GB HDD SATA
Ethernet Interface	2 x 10/100/1000 Mbit/s RJ45
USB Interface	4 x USB V2.0 (high current)
Serial Interface	1 x COM1
Expansion Slots	2 x PCI (free)
Storage Controller	Onboard RAID controller
Power Supply	24 V DC Industrial
Operating System	Windows XP Professional Multi-language SP2 (de, en, fr, sp, it)
Product Status	Obsolete
Shipping Weight	7.00 kg
Package Dimensions (Calculated)	120.50 x 50.50 x 10.00 cm
Country of Origin	Germany (estimated)

Installation Guidelines

CRITICAL WARNING: Electrical hazard. Disconnect and lock out all power sources before installation or maintenance. This device contains components sensitive to electrostatic discharge (ESD). Use proper ESD protection, including wrist straps and grounded mats, when handling internal components.

1
Mounting: Securely mount the Box PC inside a suitable industrial enclosure or control cabinet that provides protection from environmental factors. Ensure adequate ventilation and clearance around the unit for heat dissipation.
2
Power Connection: Connect a stable, filtered 24 V DC power source to the designated power input terminals. Verify correct polarity before energizing the unit. Use appropriately gauged wiring for the power connection.
3
Grounding: Connect the chassis ground terminal to the main protective earth (PE) bus bar of the control cabinet. A low-impedance ground connection is critical for safety and noise immunity.
4
I/O Connections: Connect peripheral devices and network cables. Use shielded cables for all data communication (Ethernet, Serial) and ensure shields are properly terminated to ground at one end to prevent ground loops.
5
Initial Power-Up: After all connections are verified, restore power to the cabinet. The PC should boot into the pre-installed Windows XP operating system. Proceed with application-specific software installation and configuration.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What processor is installed in the 6ES7647-6BA06-0AB0?

This SIMATIC Box PC is equipped with an Intel Celeron M 440 processor, which operates at 1.86 GHz and has a 1 MB L2 cache.

What are the power supply requirements for this industrial PC?

The unit requires a 24 V DC industrial power supply for operation.

Which operating system comes pre-installed on the device?

It comes with Windows XP Professional SP2 (Multi-language), including English, German, French, Spanish, and Italian.

How many Ethernet ports does this Box PC have?

It features two 10/100/1000 Mbit/s Ethernet RJ45 ports for network connectivity.

Is this product still in active production by Siemens?

No, the product status for this model is listed as Obsolete. It is available as a spare or replacement part.
