Description

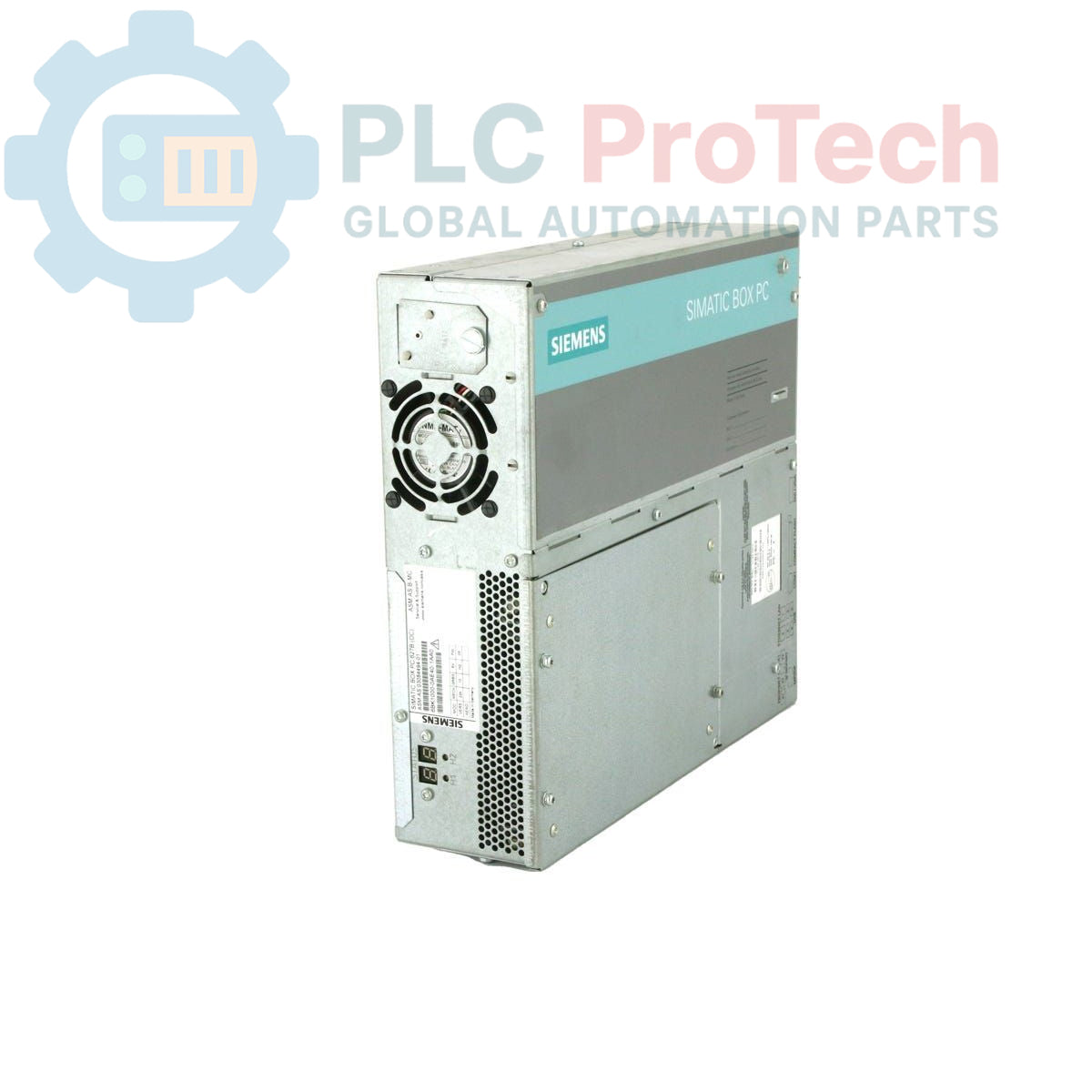

The Siemens 6ES7647-6BE10-0BB0 is a SIMATIC Box PC 627B, designed for industrial applications requiring a robust and reliable computing platform. This unit features onboard graphics with 128 MB of shared memory, providing essential display capabilities. Connectivity is managed through two 10/100/1000 Mbit/s Ethernet RJ45 ports, four high-current USB V2.0 ports, and one serial (COM1) interface. An onboard RAID controller enhances data integrity and performance.

Internally, the PC is equipped with a Core 2 Duo T5500 processor (1.66 GHz, 2 MB L2 cache, 667 MHz FSB), 512 MB DDR2 667 SODIMM RAM, and 2 MB of buffered RAM. It includes a 160 GB SATA HDD and a DVD +/-RW drive, alongside a front-side CompactFlash drive slot (CF card not included). System monitoring features include a watchdog timer and temperature/fan monitoring. The unit supports PROFIBUS/MPI communication and is powered by an AC 110/230V industrial power supply unit with NAMUR compatibility, supplied with a European power cable. It also provides two free PCI slots for further expansion and comes pre-installed with Windows XP Professional Multi-Language SP2.

Features

• Integrated Core 2 Duo T5500 Processor (1.66 GHz)
• 512 MB DDR2 667 SODIMM System Memory
• 128 MB Shared Graphics Memory
• Dual 10/100/1000 Mbit/s Ethernet RJ45 Interfaces
• Four USB V2.0 (High Current) Ports
• One Serial (COM1) Interface
• Onboard RAID Controller
• Front-side CompactFlash Drive Slot (without CF)
• Watchdog, Temperature, and Fan Monitoring
• PROFIBUS/MPI Communication Support
• AC 110/230V Industrial Power Supply Unit with NAMUR
• Two Free PCI Expansion Slots
• 160 GB SATA Hard Disk Drive
• DVD +/-RW Optical Drive
• Pre-installed Windows XP Professional Multi-Language SP2

Applications

The Siemens SIMATIC Box PC 627B is suitable for a wide range of industrial automation and control applications, including:

• Machine control and visualization
• Data acquisition and processing
• Supervisory control and monitoring
• Process automation systems
• Human-Machine Interface (HMI) stations
• Industrial data servers and gateways

Technical Specifications

Connections / Interfaces

• Ethernet: 2x 10/100/1000 Mbit/s RJ45 ports
• USB: 4x USB V2.0 (High Current) ports
• Serial: 1x COM1 port
• Fieldbus: PROFIBUS/MPI interface

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the SIMATIC Box PC 627B in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation for heat dissipation.
3. Power Connection: Connect the AC 110/230V industrial power supply unit to a stable power source using the provided European power supply cable. Verify correct voltage and polarity.
4. Grounding: Establish a proper protective earth (PE) connection to the unit's grounding terminal to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication. Use shielded cables in noisy environments.
6. USB and Serial Connections: Connect peripheral devices to the USB V2.0 ports and serial devices to the COM1 port as required by the application.
7. PROFIBUS/MPI Connection: If utilized, connect the PROFIBUS/MPI cable according to the network topology and termination requirements.
8. Expansion Cards: If installing PCI expansion cards, follow the manufacturer's instructions for proper seating and securing within the available slots.
9. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference.
10. Verification: After installation, re-energize the system and verify proper operation of the PC and all connected peripherals.
