6ES7647-6BH20-0CB0

Siemens

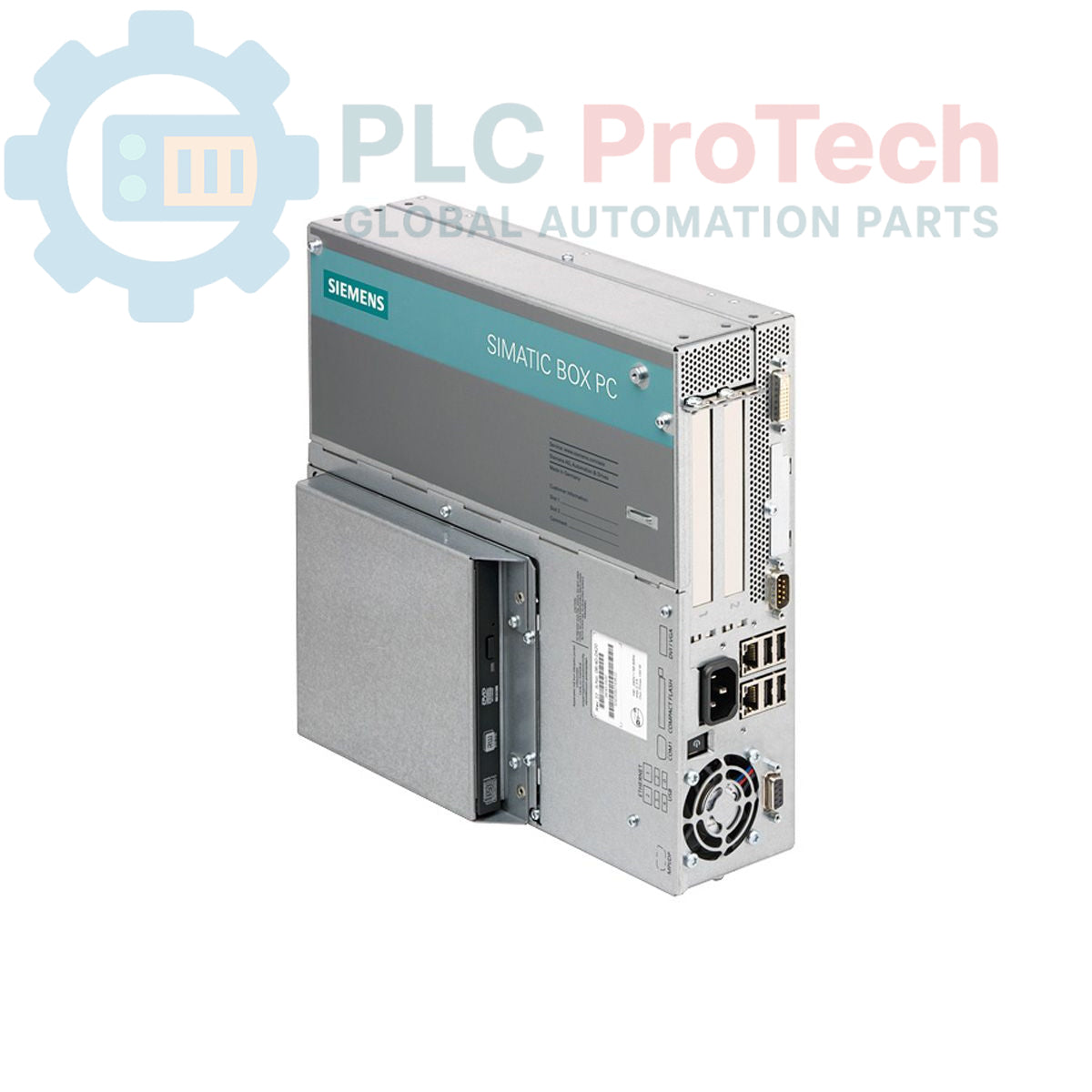

Siemens 6ES7647-6BH20-0CB0 SIMATIC Box PC 627B Industrial PC

SKU 6ES7647-6BH20-0CB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7647-6BH20-0CB0
  • Origin Germany
  • Product Type: Industrial PC
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.007 kg
  • Dimensions: 120.50 x 50.50 x 10.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Industrial PCs SIMATIC Box PC
Quantità
Call sales Contact

Product Description

Description

The Siemens 6ES7647-6BH20-0CB0 is a SIMATIC Box PC 627B, an industrial-grade computer designed for demanding automation, control, and visualization tasks. This specific configuration is equipped with an Intel Core 2 Duo T7400 processor, 1 GB of DDR2 RAM, and a 250 GB SATA hard drive. It features extensive connectivity options including dual Gigabit Ethernet, a native PROFIBUS/MPI interface, and multiple USB 2.0 ports. The unit is delivered with Windows XP Professional SP2 pre-installed and includes an integrated AC 110/230V industrial power supply, making it suitable for direct deployment in industrial environments.

Features

  • Processor: Intel Core 2 Duo T7400 (2.16 GHz, 4 MB SLC)
  • Memory: 1 GB DDR2 667 SODIMM and 2 MB buffered SRAM
  • Storage: 250 GB SATA Hard Disk Drive (HDD)
  • Industrial Communications: Integrated PROFIBUS/MPI port
  • Networking: Dual 10/100/1000 Mbit/s Ethernet RJ45 ports
  • Expansion: Two available PCI slots for additional cards
  • System Integrity: Onboard RAID controller and monitoring for watchdog, temperature, and fan status
  • Operating System: Pre-installed Windows XP Professional SP2 (Multi-language)
  • Power Supply: Integrated 110/230V AC industrial power supply with NAMUR compliance

Applications

  • Machine-level data processing and control
  • Human-Machine Interface (HMI) and SCADA applications
  • Process visualization and data logging
  • Industrial gateway for plant-floor networks
  • Quality assurance and inspection systems

Technical Specifications

Specification Value
Product Type SIMATIC Box PC 627B
Processor Intel Core 2 Duo T7400 (2.16 GHz, 4 MB SLC, 667 MHz FSB)
Main Memory (RAM) 1 GB DDR2 667 SODIMM
Buffered Memory 2 MB Buffered SRAM
Graphics Onboard, 128 MB Shared Memory
Storage 250 GB HDD SATA
Removable Media Front-side CompactFlash Drive (CF card not included)
Ethernet Ports 2 x 10/100/1000 Mbit/s Ethernet (RJ45)
USB Ports 4 x USB 2.0 (High Current)
Serial Port 1 x Serial (COM1)
Fieldbus Interface PROFIBUS/MPI
Expansion Slots 2 x PCI (free)
System Features RAID controller onboard, Watchdog, Temperature/Fan Monitoring
Power Supply AC 110/230V Industrial Power Supply with NAMUR
Included Cable European Power Cable
Operating System Windows XP Professional SP2 (Multi-language: en, de, fr, sp, it)
Product Lifecycle Status Obsolete
Manufacturer Siemens
Country of Origin Germany (Estimate)
Shipping Weight 7.00 kg
Package Dimensions (Calculated) 120.50 x 50.50 x 10.00 cm

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Installation must be performed by qualified personnel only. Failure to follow safety procedures can result in severe injury or death. Always de-energize and lock out/tag out (LOTO) all power sources before accessing the control cabinet.
  1. 1 Ensure the control cabinet is de-energized and verified to be in a zero-energy state before beginning installation.
  2. 2 Securely mount the Box PC inside the enclosure. Verify that minimum clearance requirements for ventilation are met to prevent overheating.
  3. 3 Connect the chassis to the main protective earth (PE) busbar of the cabinet using a low-impedance conductor. This connection must be made first.
  4. 4 Connect the AC 110/230V power supply cable to the designated input terminals on the PC. Ensure the source voltage matches the power supply rating.
  5. 5 Connect all required communication cables, such as Ethernet, PROFIBUS/MPI, and USB peripherals. Ensure proper shielding and grounding practices are followed for all data cables.
  6. 6 After verifying all connections are secure and correct, remove LOTO devices and re-energize the cabinet for system startup and commissioning.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What processor is installed in this Box PC?
It is equipped with an Intel Core 2 Duo T7400 processor running at 2.16 GHz with a 667 MHz FSB and 4 MB SLC.
What operating system is included?
This unit comes pre-installed with Windows XP Professional Service Pack 2 (Multi-language).
Does this PC have industrial communication ports?
Yes, it includes an integrated PROFIBUS/MPI interface and two Gigabit Ethernet ports for industrial networking.
What are the power supply requirements?
The PC has an integrated AC 110/230V industrial power supply with NAMUR specifications. A European power cable is included.
What expansion options are available on this model?
This configuration provides two free PCI slots for installing additional expansion cards.
