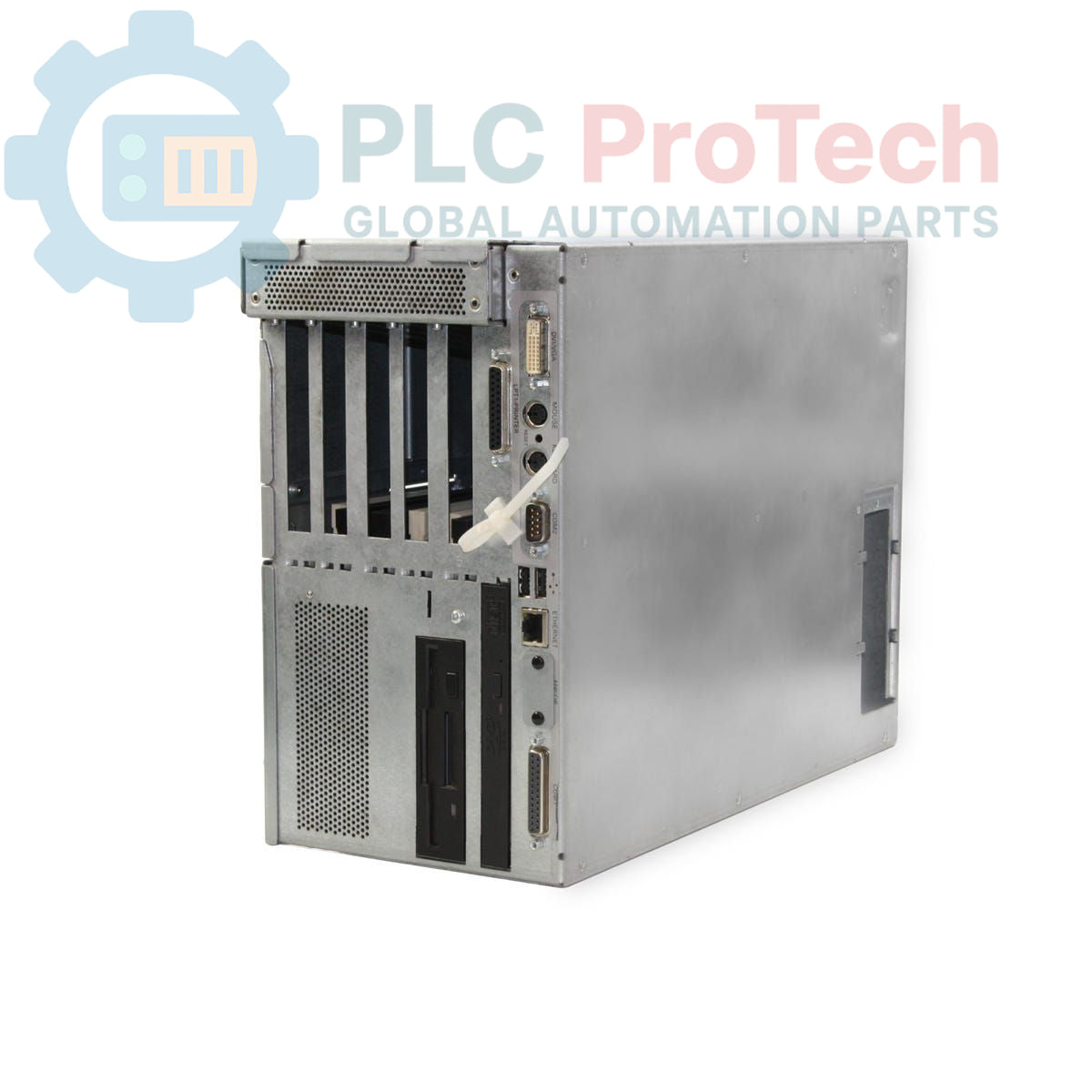

Siemens 6ES7647-6ME00-0XC0 SIMATIC Box PC 840 V2 Box PC

SKU 6ES7647-6ME00-0XC0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6ME00-0XC0
Origin Germany
Product Type: Industrial Box PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 11.5 kg
Dimensions: 0.10 x 0.10 x 0.10 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6ES7647-6ME00-0XC0 is a SIMATIC Box PC 840 V2, designed for industrial applications requiring a robust computing platform. This Box PC integrates an AGP graphics controller with onboard shared memory (configurable for 8, 16, or 32 MB), 10/100 Mbit/s Ethernet via an RJ45 interface, and two high-current USB ports. It features a Pentium 4 M 2.2GHz processor with a 400MHz Front Side Bus (FSB) and 512 KB Second Level Cache (SLC), complemented by 128 MByte DDR SDRAM. The unit includes a watchdog and temperature monitoring for enhanced reliability. Expansion capabilities are provided through 2 PCI slots, 2 ISA/PCI slots, and 1 free ISA slot. It is equipped with a 110/230V AC industrial power unit with NAMUR compatibility and comes with a Europe power cable. This configuration ships without a hard disk drive (HDD) but includes a DVD-ROM and a Floppy Disk Drive (FDD), pre-installed with Windows NT 4.0 Workstation EN SP 6A (without software expansions).

Features

Integrated AGP graphics with 8/16/32 MB shared memory
10/100 Mbit/s Ethernet interface (RJ45)
Two high-current USB ports
Pentium 4 M 2.2GHz CPU with 400MHz FSB and 512 KB SLC
128 MByte DDR SDRAM
Watchdog and temperature monitoring functions
Flexible expansion with 2 PCI, 2 ISA/PCI, and 1 ISA slot
110/230V AC industrial power unit with NAMUR support
Includes DVD-ROM and Floppy Disk Drive (FDD)
Pre-installed with Windows NT 4.0 Workstation EN SP 6A

Applications

The Siemens SIMATIC Box PC 840 V2 is suitable for a range of industrial automation and control applications, including:

Machine control and visualization
Data acquisition and processing
Operator interface systems (HMI)
Process control and monitoring
Industrial data servers and gateways
Legacy system upgrades or replacements where ISA/PCI slots are required

Technical Specifications

Attribute	Value
Brand	Siemens
Manufacturer	Siemens
Range	Simatic Box PC
Subrange	PC840 V2
Type of Product	PC box
PLM Product Phase	Obsolete
CPU	Pentium 4 M 2.2GHz
Front Side Bus (FSB)	400MHz
Second Level Cache (SLC)	512 KB
RAM	128 MByte DDR SDRAM
Graphics	AGP, Onboard, 8/16/32 MB Shared Memory
Ethernet	10/100 Mbit/s RJ45
USB Ports	2 x USB (High Current)
Expansion Slots	2 PCI, 2 ISA/PCI, 1 ISA Free
Power Supply	110/230V AC Industrial Power Unit with NAMUR
Power Cable	Europe
Hardware Expansion	Without
Hard Disk Drive (HDD)	Without
Optical Drive	DVD-ROM
Floppy Disk Drive (FDD)	Included
Operating System	WINNT 4.0 Workstation EN SP 6A (Without SW Expansions)
Country of Origin
Package Dimensions (Calculated)	0.10 x 0.10 x 0.10 cm
Shipping Weight	11.50 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Connections / Interfaces

Connector Type	Function
RJ45	10/100 Mbit/s Ethernet connection
USB	2 x High Current USB ports for peripheral devices
Power Input	110/230V AC industrial power unit

Installation Guidelines

De-energize System: Ensure all power to the installation site and associated equipment is completely de-energized and locked out before beginning installation.
Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing and maintenance.
Power Connection: Connect the 110/230V AC industrial power unit to a stable and protected power source. Verify correct voltage and grounding. The unit is compatible with NAMUR standards.
Grounding: Establish a robust protective earth (PE) connection for the Box PC chassis to minimize electrical noise and ensure safety.
Ethernet Connection: Connect the RJ45 Ethernet port to the industrial network using appropriate shielded twisted-pair cabling.
USB Peripherals: Connect USB devices such as keyboards, mice, or other peripherals to the high-current USB ports as required.
Expansion Cards: If installing PCI or ISA expansion cards, ensure they are correctly seated and secured in the available slots. Follow anti-static procedures during handling.
Cable Management: Route all cables to prevent strain, interference, and damage. Use cable ties and conduits where necessary.
Re-energize: After all connections are verified, re-energize the system and perform functional checks.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What operating system is pre-installed on the 6ES7647-6ME00-0XC0?

The unit comes with Windows NT 4.0 Workstation EN SP 6A pre-installed, without additional software expansions.

Does this Box PC include a hard disk drive?

No, the 6ES7647-6ME00-0XC0 is shipped without a hard disk drive (HDD).

What type of expansion slots are available?

It features 2 PCI slots, 2 ISA/PCI slots, and 1 dedicated ISA slot for expansion cards.

What is the power supply requirement for this unit?

The Box PC is equipped with a 110/230V AC industrial power unit that supports NAMUR compatibility.

What are the graphics capabilities of this Box PC?

It includes an onboard AGP graphics controller with configurable shared memory options of 8 MB, 16 MB, or 32 MB.
