Description

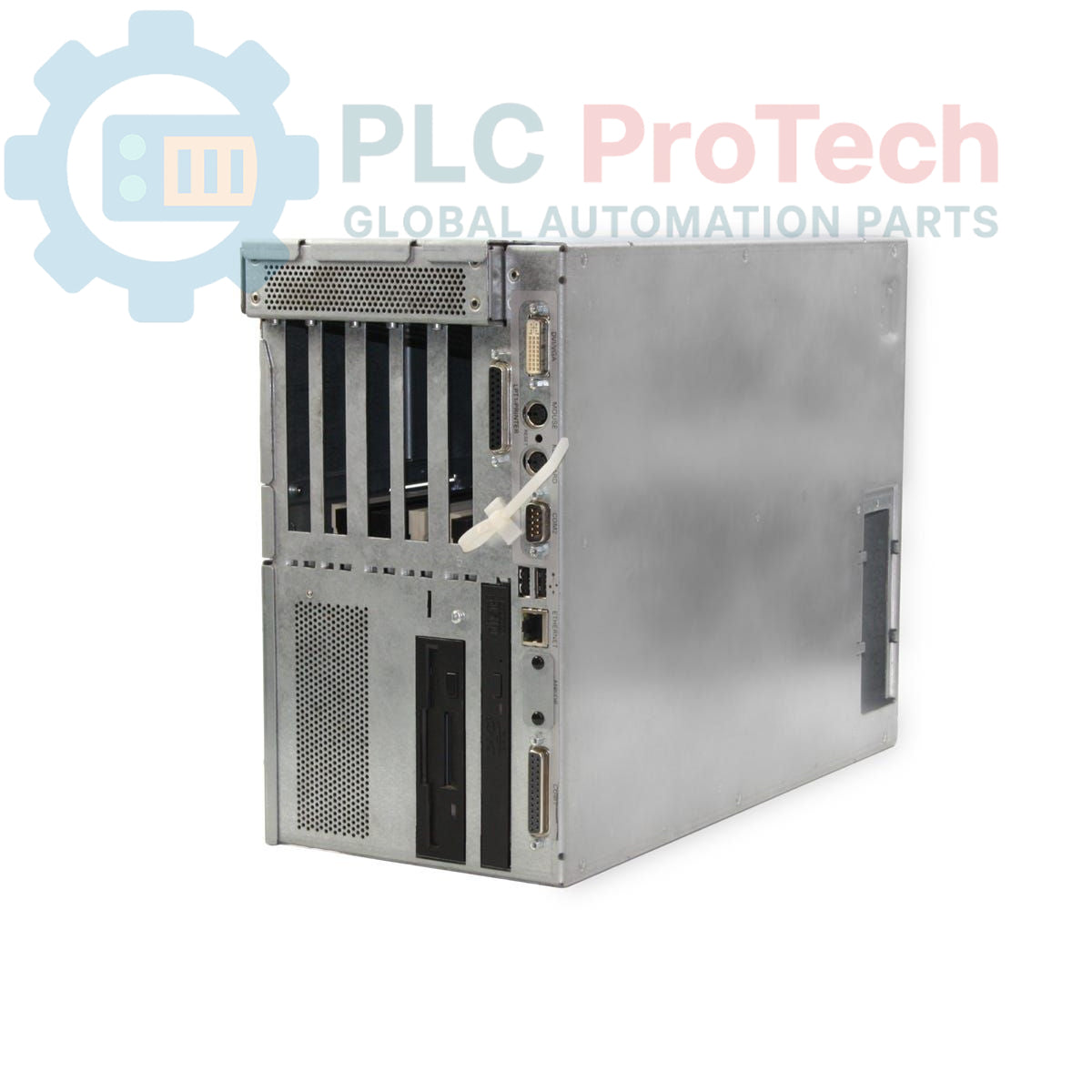

The Siemens 6ES7647-6ME15-0CC0 is a SIMATIC Box PC 840 V2, designed for industrial applications requiring a robust computing platform. This PC box features AGP graphics with onboard 8/16/32 MB shared memory, a 10/100 Mbit/s Ethernet interface via RJ45, and two high-current USB ports. It integrates a Pentium 4 M 2.2 GHz processor with a 400 MHz FSB and 512 KB SLC, complemented by 256 MByte DDR SDRAM. For data storage, it includes an 80 GB EIDE HDD, a FDD, and a DVD+/-RW drive. The unit operates on a 24V DC industrial power supply and comes pre-installed with Windows NT 4.0 Workstation EN SP 6A. It also incorporates watchdog and temperature monitoring functionalities, along with a flexible expansion architecture including 2 PCI, 2 ISA/PCI, and 1 ISA free slot.

Features

• AGP Graphics with 8/16/32 MB Shared Memory
• 10/100 Mbit/s Ethernet via RJ45
• 2 x High-Current USB Ports
• Integrated Watchdog and Temperature Monitoring
• Expansion Slots: 2 PCI, 2 ISA/PCI, 1 ISA Free
• Pentium 4 M 2.2 GHz Processor, 400 MHz FSB, 512 KB SLC
• 256 MByte DDR SDRAM
• 24V DC Industrial Power Supply
• 80 GB EIDE HDD, FDD, and DVD+/-RW
• Pre-installed Windows NT 4.0 Workstation EN SP 6A

Applications

The Siemens SIMATIC Box PC 840 V2 is suitable for various industrial automation tasks, including:

• Machine control and visualization
• Data acquisition and processing
• Supervisory control and monitoring systems
• Industrial HMI applications
• Embedded control systems in manufacturing environments

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work. Verify with appropriate lockout/tagout procedures.
2. Mounting: Securely mount the SIMATIC Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation to prevent overheating.
3. Power Connection: Connect the 24V DC industrial power supply to the designated power input terminals. Observe correct polarity to prevent damage.
4. Grounding: Establish a robust protective earth (PE) connection for the PC chassis to minimize electromagnetic interference and ensure operational safety.
5. Ethernet Connection: Connect the RJ45 Ethernet port to the industrial network using shielded Ethernet cables to maintain signal integrity.
6. USB Device Connection: Connect USB peripherals as required. The high-current USB ports support a wider range of devices.
7. Peripheral Connections: Connect any monitors, keyboards, or other peripherals to the appropriate ports (e.g., VGA/DVI for display, PS/2 or USB for input devices).
8. Expansion Cards: If utilizing the PCI or ISA slots, ensure cards are properly seated and secured, and drivers are installed as per the operating system requirements.
9. Environmental Considerations: Ensure the operating environment adheres to the specified temperature and humidity ranges for industrial PC equipment.
10. Power Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
