Description

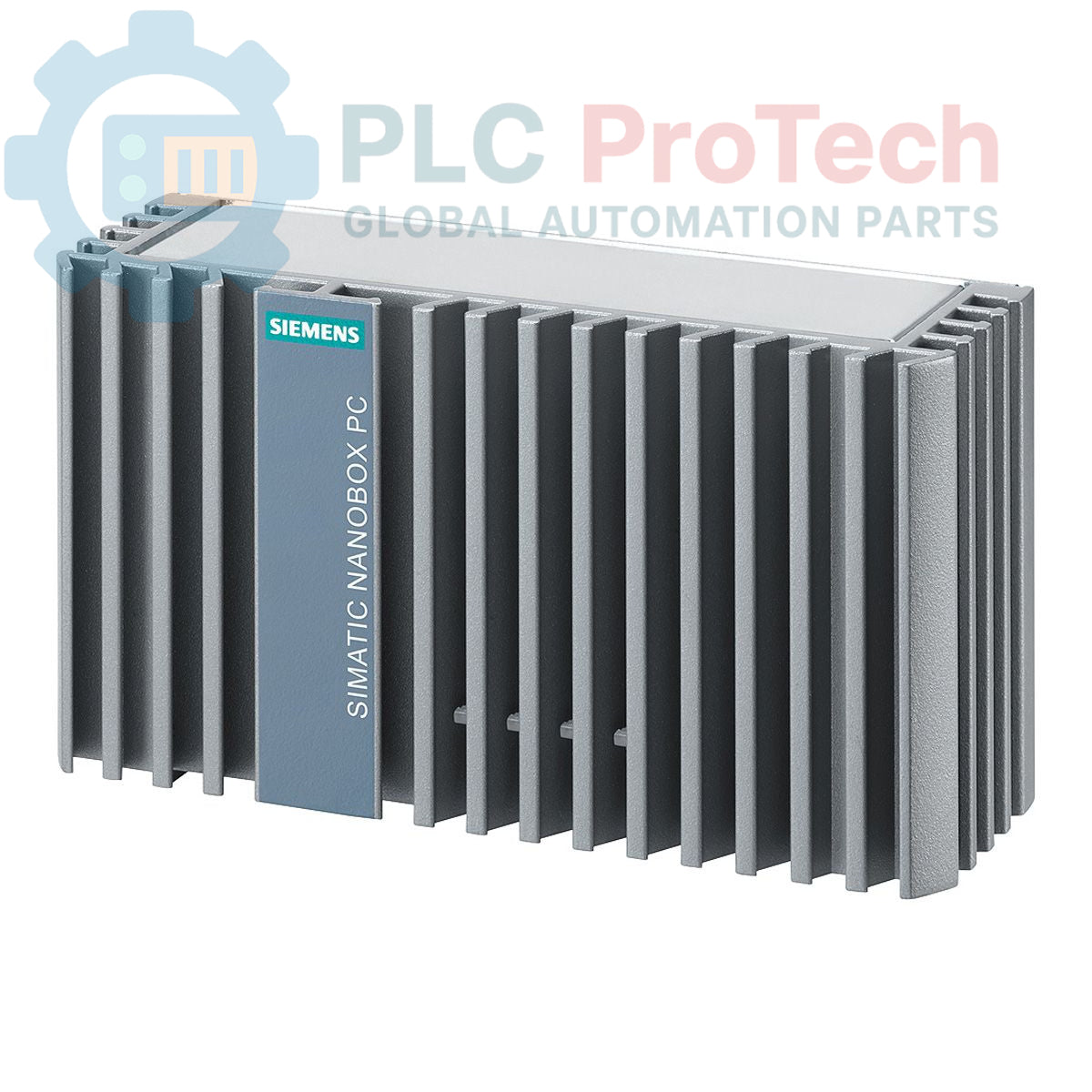

This product is a Siemens 6ES7647-8BB12-0LA2, a SIMATIC IPC227E Nanobox PC designed for compact and robust computing in industrial environments. This fanless unit is equipped with an Intel Celeron N2930 processor (4 cores, 4 threads), 2 GB of RAM, and an 8 GB CFAST card for storage. It provides essential connectivity with dual Gigabit Ethernet ports, multiple USB interfaces, and a DisplayPort for graphics output. The device operates on a 24 V DC industrial power supply and is configured for wall mounting. This specific model is supplied without a pre-installed operating system or SIMATIC software, offering a flexible platform for custom applications.

Features

• Processor: Intel Celeron N2930 (4 Cores / 4 Threads)
• Memory: 2 GB RAM
• Storage: 8 GB CFAST card included
• Graphics Output: 1x DisplayPort
• Networking: 2x 10/100/1000 Mbps Ethernet RJ45 ports
• USB Connectivity: 1x USB 3.0, 3x USB 2.0
• Serial Ports: COM 1/2 available
• Power Input: 24 V DC
• Mounting: Wall mount configuration
• Operating System: Not included

Applications

• Human-Machine Interface (HMI) visualization
• Data logging and acquisition
• Industrial gateway for protocol conversion
• Small-scale control and monitoring tasks
• Machine vision systems
• Automation and process control cabinets

Technical Specifications

Installation Guidelines

1. 1
   Site Preparation: Verify that the mounting location provides adequate clearance for ventilation and cable access. Ensure the mounting surface is flat, secure, and capable of supporting the unit's weight.
2. 2
   De-energize System: Before installation, completely disconnect power to the control cabinet or mounting panel. Verify the absence of voltage using a calibrated multimeter.
3. 3
   Mount the IPC: Securely fasten the Nanobox PC to the wall or panel using the integrated mounting points. Use appropriate hardware for the mounting surface material.
4. 4
   Grounding Connection: Connect the chassis grounding terminal to the main protective earth (PE) busbar of the cabinet using a low-impedance conductor. This is critical for electrical safety and noise immunity.
5. 5
   Connect Power: Connect the 24 V DC power supply to the IPC's power input terminals. Ensure correct polarity is observed. Use appropriately sized wiring for the current draw.
6. 6
   Connect Peripherals: Connect Ethernet, USB, DisplayPort, and any serial communication cables. Route cables neatly and secure them to prevent strain on the connectors.
7. 7
   Final Checks and Power-Up: Double-check all connections. Once confirmed, remove LOTO devices and re-energize the main panel. Power on the IPC and proceed with software installation and commissioning.
