Description

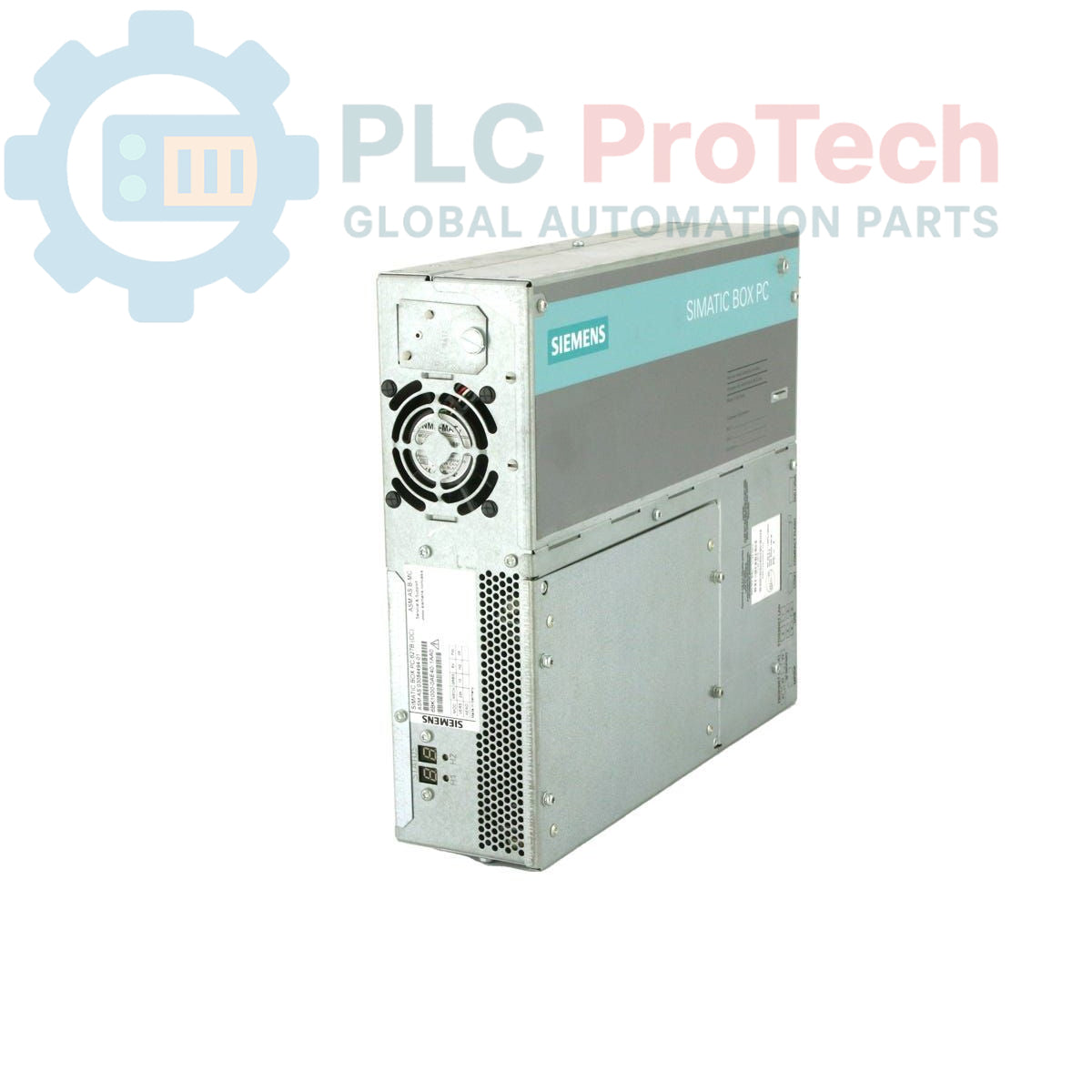

The Siemens 6ES7650-2PB07-0YX0 is a SIMATIC PCS7 BOX 416 RUNTIME system, designed for industrial automation applications. This unit is based on the Box PC 627B platform, featuring a 2.16 GHz processor, 2GB RAM (2x1GB), and a 160GB SATA hard drive. It includes a DVD +- RW optical drive and provides two Fast Ethernet RJ45 (onboard) interfaces for network connectivity. An integrated WINAC SLOT CPU 416-2DP V4.0 with a 2 MB Memory Card provides PLC functionality. The system comes with the software package 6ES7658-2AA07-0YA0 and a runtime license for AS (PO250) PCS7 V7.0 + SP3 preinstalled, making it ready for deployment in SIMATIC PCS7 environments.

Features

• Based on Siemens Box PC 627B platform
• 2.16 GHz processor
• 2GB RAM (2x1GB)
• 160GB SATA hard drive
• DVD +- RW optical drive
• Two onboard Fast Ethernet RJ45 ports
• Integrated WINAC SLOT CPU 416-2DP V4.0
• 2 MB Memory Card for CPU
• Preinstalled software package 6ES7658-2AA07-0YA0
• Preinstalled runtime license for AS (PO250) PCS7 V7.0 + SP3

Applications

• SIMATIC PCS7 runtime systems
• Industrial process control and automation
• Integrated PC and PLC solutions for manufacturing environments
• Data acquisition and supervisory control

Technical Specifications

Connections / Interfaces

• Ethernet: 2x RJ45 Fast Ethernet ports
• Optical Drive: DVD +- RW
• Internal Storage: SATA interface for 160GB HDD

Installation Guidelines

1. De-energization: Ensure all power to the installation area and the Box PC is disconnected before commencing any work.
2. Mounting: Securely mount the SIMATIC Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing.
3. Power Connection: Connect the appropriate industrial power supply to the Box PC, adhering to specified voltage and current ratings.
4. Network Connections: Connect the two onboard Fast Ethernet RJ45 ports to the industrial network infrastructure using shielded Ethernet cables if required by the environment.
5. Peripheral Connections: Connect any necessary peripherals such as display monitors, keyboards, or mice.
6. Grounding: Ensure proper grounding of the Box PC and its enclosure to minimize electrical noise and ensure safety.
7. System Startup: After all connections are verified, apply power and allow the preinstalled operating system and PCS7 runtime to initialize.
8. Configuration: Perform any necessary network or application-specific configurations as per the system design and PCS7 documentation.
