Description

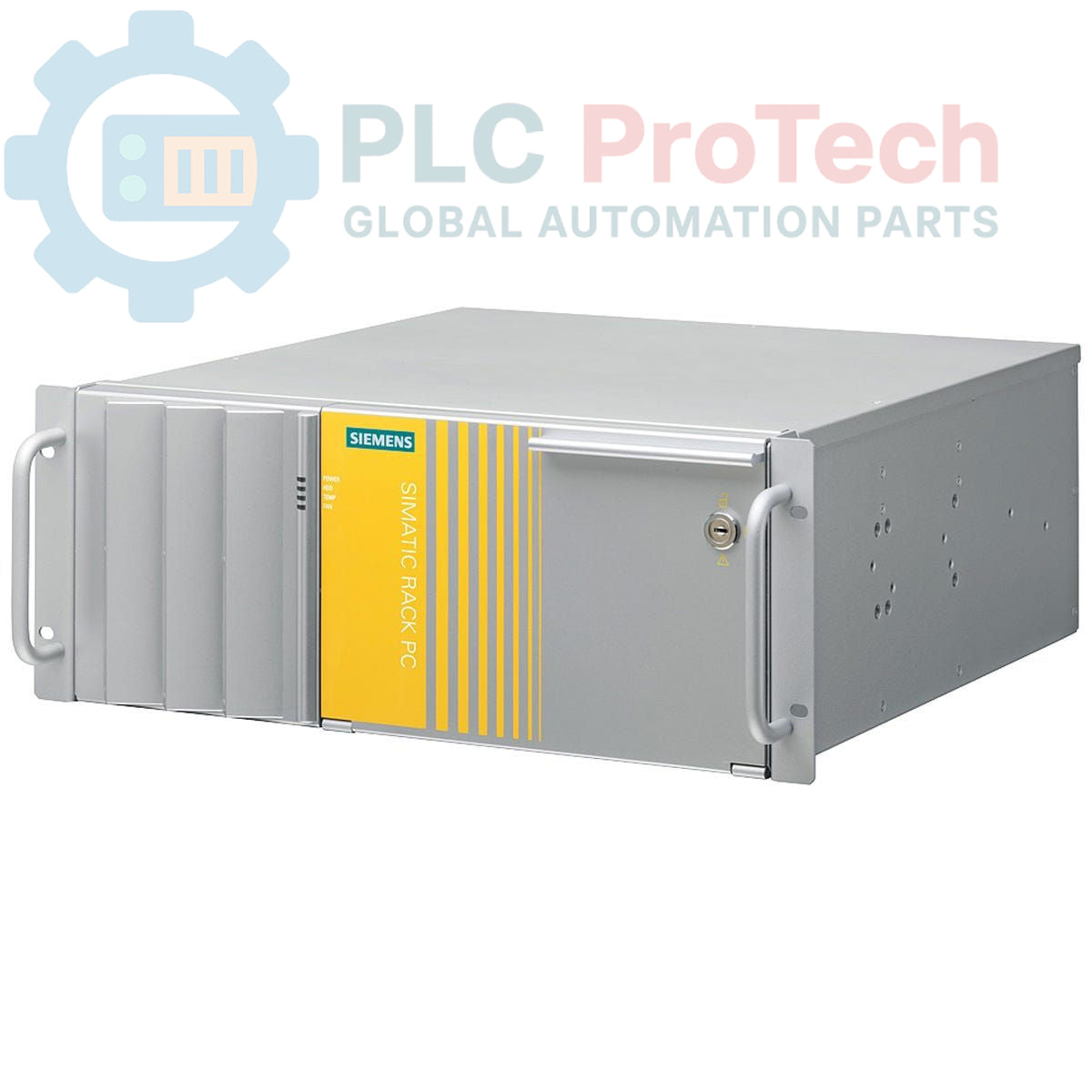

The Siemens 6ES7660-0DD33-0AA0 is a SIMATIC PCS7 INDUSTRIAL WORKSTATION IPC547C, designed for robust industrial environments. This rack-mounted industrial PC features an INTEL Core 2 Duo E8400 processor operating at 3.0 GHz with a 1333 MHz Front Side Bus and 6 MB L2 cache, supporting EM64-T and VT technologies. It is configured with an OS Server IE RAID1, comprising two 500 GB SATA hard disk drives mounted internally, and 4.0 GB of DDR2 SDRAM (2 x 2.0 GB). The workstation includes a DVD+/RW drive with an integrated FDD, and comes with PCS7 V6.1 + SP4 pre-installed, alongside Windows XP Professional with a Multi-User Interface (English, German, French, Italian, Spanish, Chinese). It is equipped with a 110/230 V industrial power supply unit and includes a power supply cable for Europe.

Features

• Intel Core 2 Duo E8400 Processor (3.0 GHz, 1333 MHz FSB, 6 MB L2 cache)
• 4.0 GB DDR2 SDRAM (2 x 2.0 GB)
• OS Server IE RAID1 with 2 x 500 GB SATA HDDs
• Integrated DVD+/RW Drive with FDD
• Pre-installed PCS7 V6.1 + SP4 Software
• Windows XP Professional MUI (en/de/fr/it/es/cn)
• 110/230 V Industrial Power Supply Unit

Applications

The Siemens SIMATIC PCS7 Industrial Workstation IPC547C is suitable for demanding industrial applications such as:

• Process control systems (PCS7 environments)
• Operator stations and human-machine interfaces (HMIs)
• Data acquisition and logging
• Supervisory control and data acquisition (SCADA) systems
• Industrial data processing and server functions

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the rack and associated equipment is de-energized before beginning installation.
2. Rack Mounting: Securely mount the industrial workstation into a standard industrial rack using appropriate mounting hardware. Ensure adequate ventilation space around the unit.
3. Power Connection: Connect the provided European power supply cable to the 110/230 V industrial power supply unit. Verify the power source matches the unit's requirements.
4. Grounding: Establish a proper earth ground connection for the workstation chassis to ensure electrical safety and minimize electromagnetic interference.
5. Peripheral Connections: Connect any required peripherals such as monitors, keyboards, mice, and network cables to the appropriate ports.
6. System Power-Up: After all connections are secure, re-energize the rack power. Monitor the system for proper boot-up and operation.
7. Software Configuration: Verify the pre-installed PCS7 V6.1 + SP4 and Windows XP Professional operating system are functioning correctly and perform any necessary network or application-specific configurations.
