Description

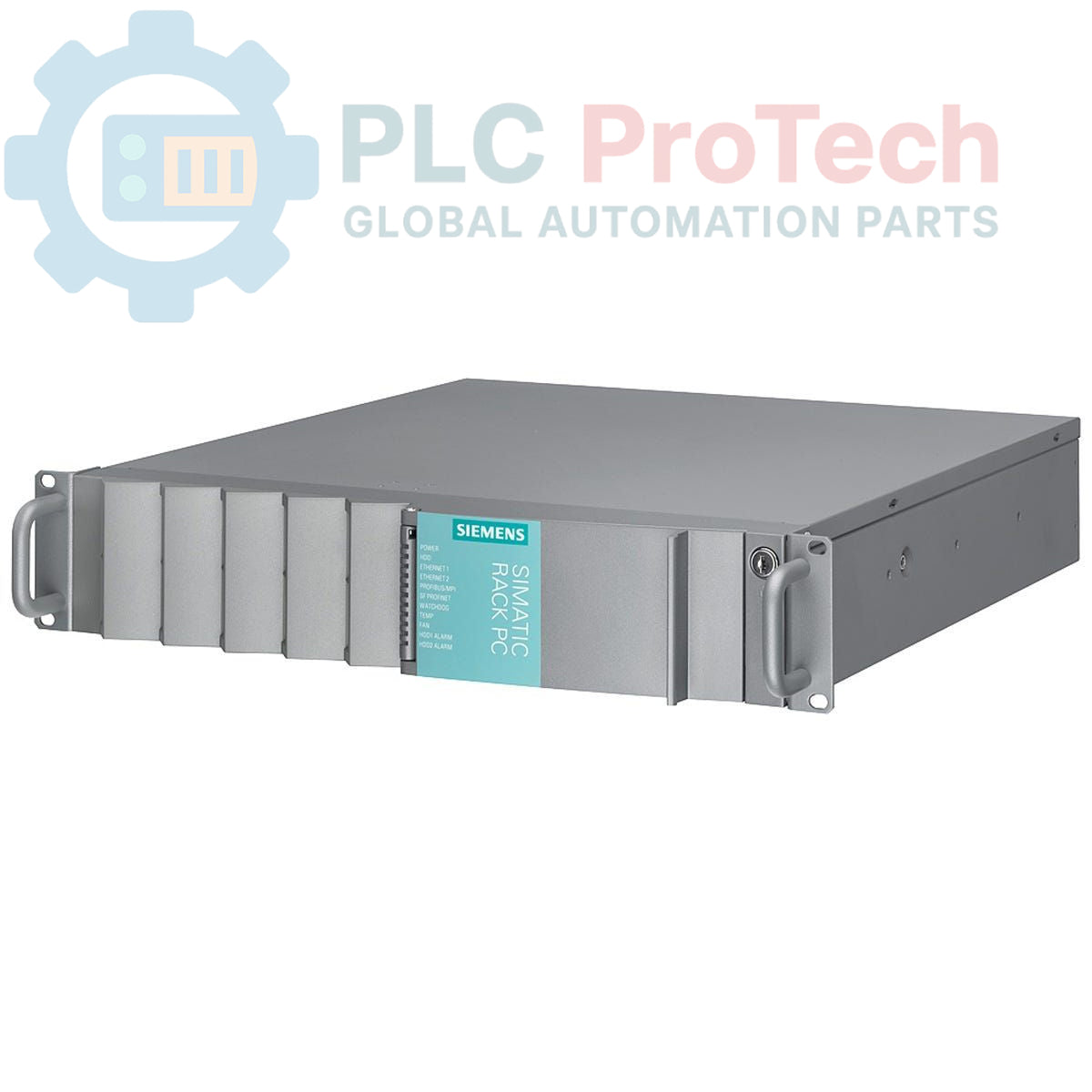

The Siemens 6ES7660-1AD30-1CA0 is a SIMATIC PCS 7 Industrial Workstation IPC647C, engineered for robust performance in demanding production environments. This industrial PC is equipped with an Intel Core i7-610E processor (2 cores/4 threads, 2.53 GHz, 4 MB cache), providing efficient processing for complex automation tasks. It features 8 GB DDR3 SDRAM in a dual-channel configuration, ensuring reliable multitasking capabilities. Data integrity and system uptime are enhanced by a RAID1 setup, comprising two 500 GB SATA hard drives housed in removable, hot-swappable frames. The workstation comes pre-installed with PCS 7 V8.0 SP1 and Windows 7 Ultimate MUI (64-bit), supporting multiple languages (en/de/fr/it/es/cn) for broad international applicability. Powering the unit is a 110/230 V industrial power supply, complemented by an included European power cable for flexible integration.

Features

• Intel Core i7-610E Processor: 2 cores/4 threads, 2.53 GHz, 4 MB cache, TB, VT-X, VT-D, EM64-T.
• Memory: 8 GB DDR3 SDRAM (2 x 4 GB) DIMM, Dual Channel.
• Storage: RAID1 configuration with 2 x 500 GB SATA HDDs in removable, hot-swappable frames.
• Pre-installed Software: PCS 7 V8.0 SP1.
• Operating System: Windows 7 Ultimate, MUI (en/de/fr/it/es/cn), 64 bit.
• Power Supply: 110/230 V industrial power supply unit.
• Connectivity: BCE (Bus Communication Ethernet).

Applications

The Siemens 6ES7660-1AD30-1CA0 Industrial Workstation is suitable for:

• SIMATIC PCS 7 control system integration as an ES/OS Single Station.
• Demanding industrial automation and process control environments.
• Applications requiring high data integrity and system uptime through RAID1 storage.
• International deployments due to multi-language Windows 7 Ultimate support.

Technical Specifications

Installation Guidelines

1. Power Connection: Connect the industrial workstation to a stable 110/230 V AC power source using the provided European power cable. Ensure proper grounding for safety and system stability.
2. Rack Mounting: As a Rack PC, ensure the workstation is securely mounted within a standard industrial rack, following best practices for airflow and vibration damping.
3. Storage Installation: The RAID1 SATA hard drives are housed in removable frames and support hot-swapping. When replacing drives, follow the system's specific hot-swap procedures to maintain data integrity.
4. Environmental Considerations: Install the workstation in an environment that meets industrial standards for temperature, humidity, and dust to ensure optimal performance and longevity.
5. Cable Management: Route all power and data cables neatly and securely to prevent accidental disconnections and to maintain proper airflow within the rack.
