6ES7660-1BD38-1DA2

Siemens

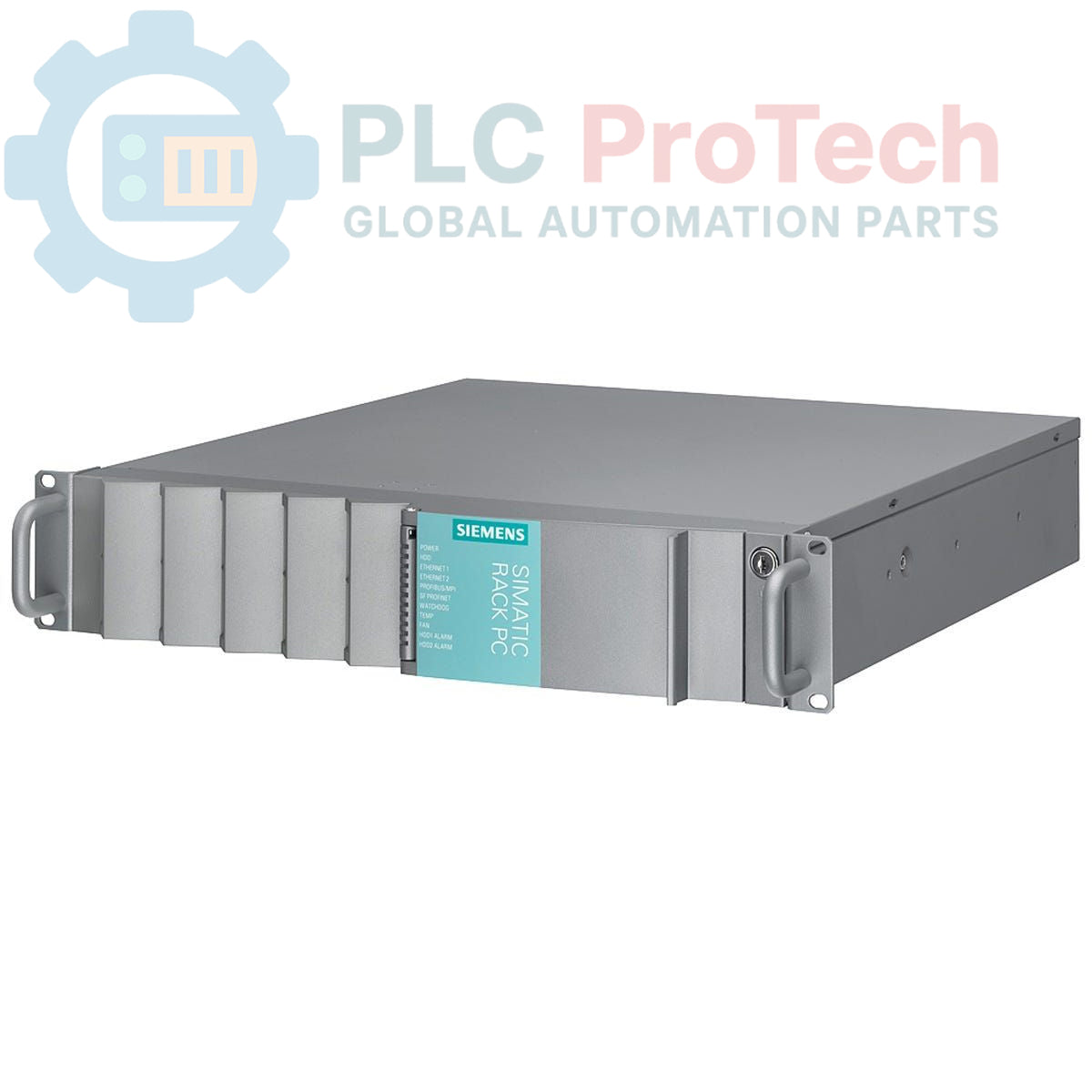

Siemens 6ES7660-1BD38-1DA2 SIMATIC Rack PC Industrial Workstation

SKU 6ES7660-1BD38-1DA2

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7660-1BD38-1DA2
  • Origin Germany
  • Product Type: Industrial Workstation
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.015 kg
  • Dimensions: 64.00 x 64.00 x 42.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Industrial Workstation SIMATIC Rack PC
Quantità
Call sales Contact

Product Description

Description

The Siemens 6ES7660-1BD38-1DA2 is a SIMATIC PCS 7 Industrial Workstation, specifically an IPC647C model. This rack-mounted industrial PC is configured as an ES/OS Single Station, featuring an Intel Core i7-610E processor (2C/4T, 2.53 GHz, 4MB Cache, with Turbo Boost, VT-x, VT-d, and EM64-T support). For data storage, it includes a RAID1 configuration with two 500 GB SATA hard disk drives, supporting a removable disk with hot-swap capability, mounted on the front side. The workstation is equipped with 8 GB DDR3 SDRAM, arranged as two 4 GB DIMM modules.

Features

  • Intel Core i7-610E processor (2C/4T, 2.53 GHz, 4MB Cache, TB, VT-x, VT-d, EM64-T)
  • RAID1 storage configuration with 2 x 500 GB SATA HDDs
  • Removable disk with hot-swap functionality, frontside mounted
  • 8 GB DDR3 SDRAM (2 x 4 GB)
  • Designed for SIMATIC PCS 7 ES/OS Single Station applications

Applications

  • SIMATIC PCS 7 Engineering Station (ES)
  • SIMATIC PCS 7 Operator Station (OS)
  • Industrial process control systems
  • Data acquisition and processing in industrial environments
  • Human-Machine Interface (HMI) applications requiring robust computing

Technical Specifications

Manufacturer Siemens
Range Simatic Rack PC
Subrange IPC
Type of Product Industrial Workstation (Racks)
PLM Product Phase Phase-Out
Processor Intel Core i7-610E (2C/4T, 2.53 GHz, 4MB Cache, TB, VT-x, VT-d, EM64-T)
Storage RAID1 (2 x 500 GB HDD SATA), Removable Disk, Hot Swap
Memory 8 GB DDR3 SDRAM (2 x 4 GB), DIMM
Package Dimensions (Calculated) 64.00 x 64.00 x 42.00 cm
Shipping Weight 15.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) N

Installation Guidelines

  1. De-energize System: Ensure all power to the rack and associated equipment is disconnected before installation.
  2. Mounting: Securely install the workstation into a standard industrial rack. Ensure all mounting screws are tightened to prevent vibration and movement. The unit is designed for frontside mounting.
  3. Power Connection: Connect the power supply cable(s) to the designated power input terminals. Verify correct voltage and polarity according to system requirements.
  4. Peripheral Connections: Connect necessary peripherals such as monitors, keyboards, mice, and network cables to the appropriate ports.
  5. Grounding: Establish a proper protective earth (PE) connection to the workstation chassis to ensure electrical safety and minimize electromagnetic interference.
  6. Cooling: Ensure adequate airflow around the workstation for proper cooling. Do not obstruct ventilation openings.
  7. System Startup: After all connections are verified, re-energize the system and follow the manufacturer's startup procedure for the SIMATIC PCS 7 workstation.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary application of the 6ES7660-1BD38-1DA2 workstation?
It is designed as a SIMATIC PCS 7 Industrial Workstation, specifically for ES (Engineering Station) and OS (Operator Station) single station applications.
What type of processor is included in this unit?
The workstation is equipped with an Intel Core i7-610E processor, featuring 2 cores/4 threads, 2.53 GHz clock speed, and 4MB cache.
What is the memory configuration of this SIMATIC Rack PC?
It comes with 8 GB of DDR3 SDRAM, configured as two 4 GB DIMM modules.
Does the workstation support hot-swappable drives?
Yes, it features a removable disk with hot-swap capability, mounted on the front side.
What is the product phase status of this model?
The 6ES7660-1BD38-1DA2 is currently in the Phase-Out product lifecycle management phase.
