Description

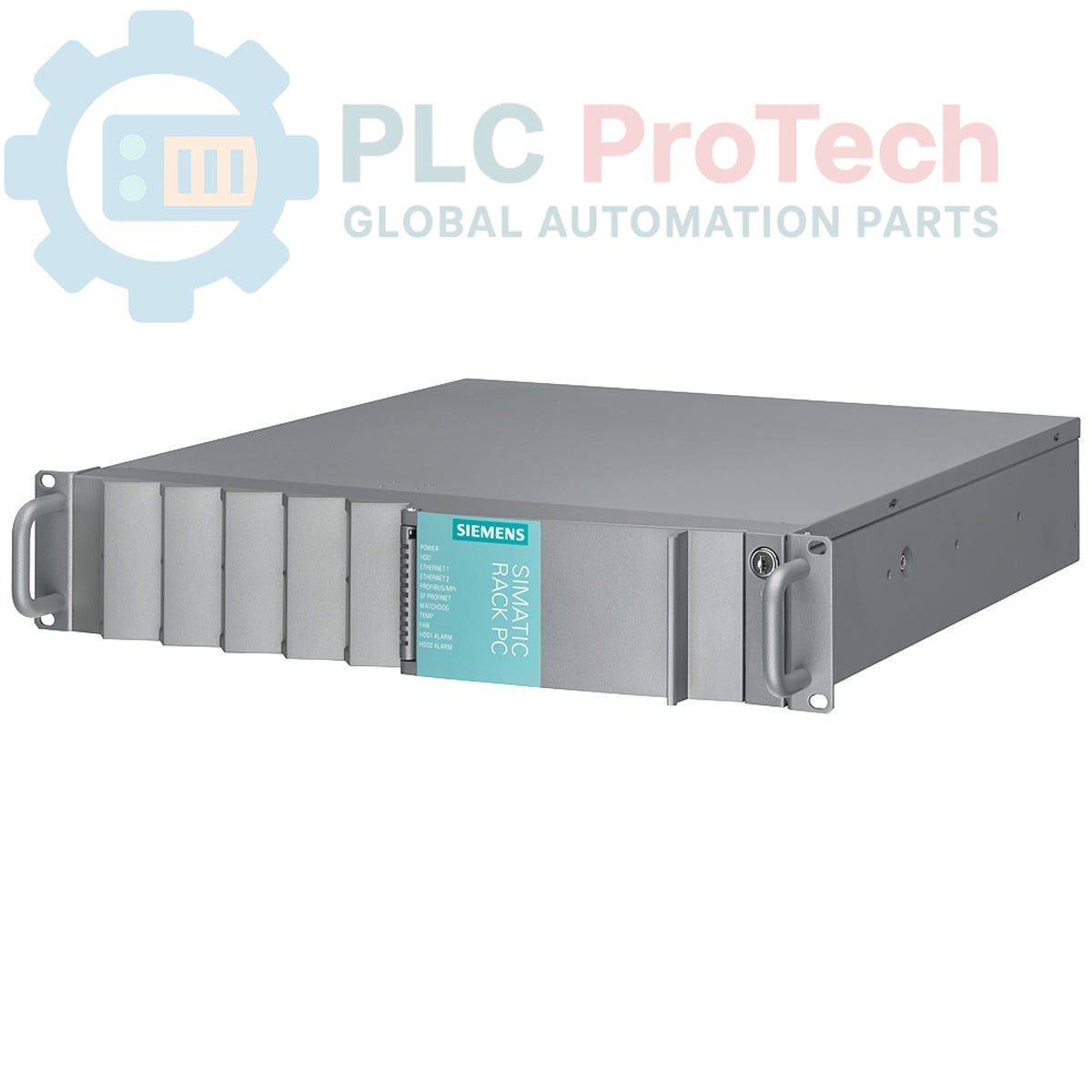

This is a Siemens 6ES7660-1YA18-8AC0 SIMATIC IPC647C, configured as an industrial workstation for SIMATIC PCS 7 OS Client applications. It is equipped with an Intel Core i7-610E processor, 4 GB of DDR3 SDRAM, and a 500 GB SATA hard drive. Designed for industrial environments, this unit is rated for 0.5 g vibration and 5 g shock. The system includes a multi-monitor graphics card and a dual-voltage industrial power supply, making it suitable for demanding process control and visualization tasks.

Features

• Processor: Intel Core i7-610E (2.53 GHz, 2 Cores/4 Threads, 4 MB Cache)
• Memory: 4 GB DDR3 SDRAM in a dual-channel configuration (2 x 2 GB)
• Storage: One 500 GB internal SATA Hard Disk Drive (HDD)
• Graphics: 4-fold multi-monitor card (PCS 7 option)
• Operating System License: Windows 7 Ultimate (64-bit) MUI, with downgrade rights to Windows XP Professional (32-bit) MUI
• Power Supply: 110/230 V AC industrial power supply unit
• Environmental Tolerance: Rated for 0.5 g vibration and 5 g shock
• Configuration: Supplied without additional system bus communication cards or PCS 7 Restore DVDs

Applications

• Process Control Operator Stations (OS Client)
• Human-Machine Interface (HMI) visualization
• Industrial data acquisition and logging
• Engineering and configuration workstations
• Supervisory Control and Data Acquisition (SCADA) systems

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Before installation, ensure the target industrial cabinet is completely de-energized and locked-out/tagged-out (LOTO) according to site safety procedures. Verify the absence of voltage.
2. 2 Mount the Chassis: Securely mount the IPC chassis into a standard 19-inch industrial rack using all provided mounting points. Ensure there is adequate clearance for airflow at the front and rear of the unit.
3. 3 Establish Ground Connection: Connect the chassis grounding point to the cabinet's main protective earth (PE) bus bar using a low-impedance conductor. This is critical for both safety and noise immunity.
4. 4 Connect Peripherals: Connect monitors, keyboard, mouse, and any other required peripherals to the appropriate ports on the rear of the IPC. Ensure all connectors are fully seated.
5. 5 Connect Power: Connect the provided power cable to the IPC's power supply inlet and to a suitable, conditioned industrial power source (110/230 V AC). Ensure the power source is stable and protected.
6. 6 Power-Up and Verification: After removing LOTO and re-energizing the cabinet, power on the IPC. Verify that the system boots correctly and that all connected peripherals are functioning as expected.
