Description

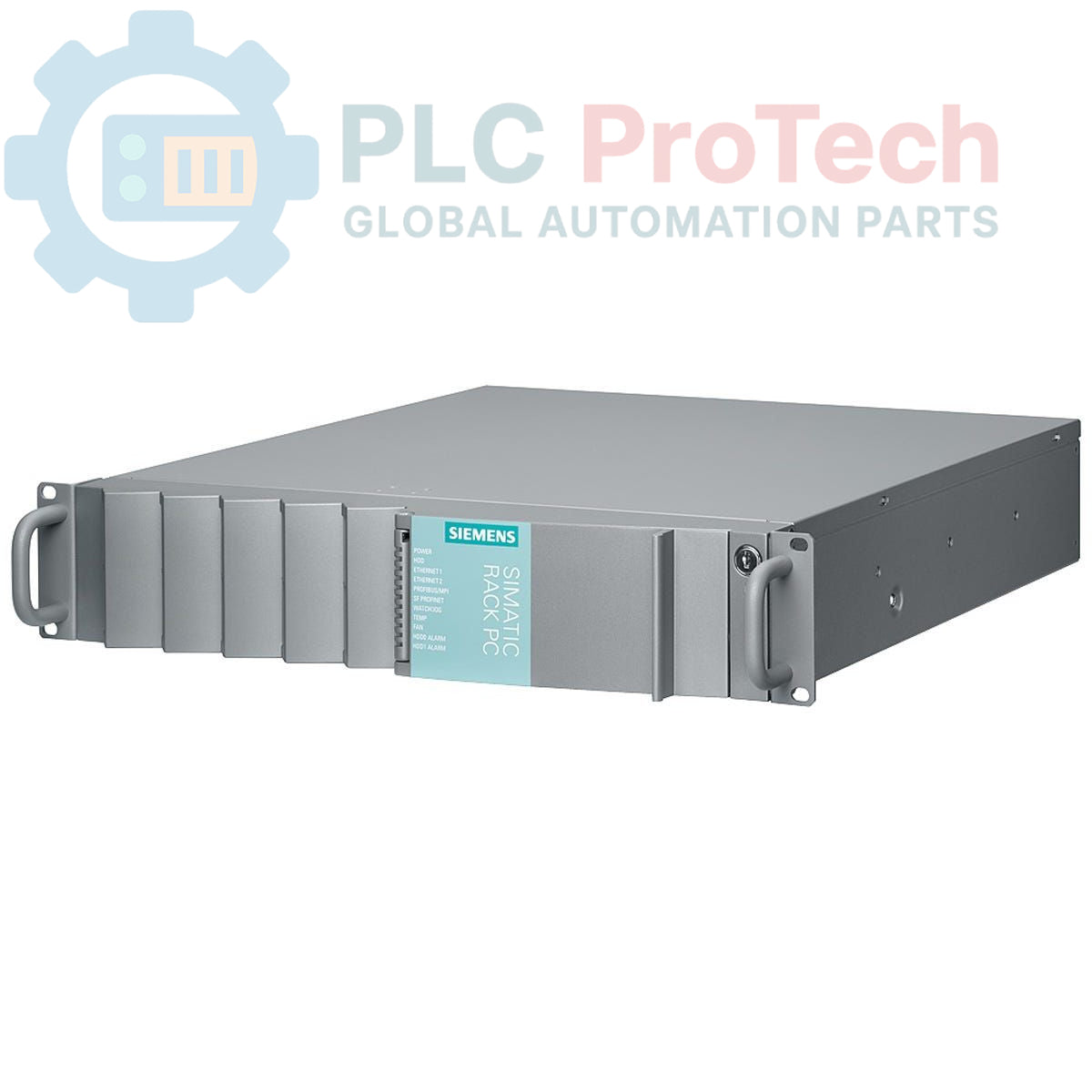

The Siemens 6ES7660-5FQ08-0AD0 is a SIMATIC PCS 7 Industrial Workstation IPC647D, designed as a 19-inch, 2HE rack PC. This robust industrial computer is engineered for demanding automation environments, featuring an Intel Core I5-4570TE processor, 8 GB DDR3 SDRAM, and a 1 TB SATA HDD. It comes with PCS 7 V8.0 SP2 and Windows 7 Ultimate (64 bit) pre-installed, making it ready for deployment in process control systems. The unit includes comprehensive interface options, integrated temperature and fan monitoring with a watchdog function, and a card retainer for enhanced operational reliability in conditions with up to 0.5 G vibration and 5 G shock.

Features

• SIMATIC PCS 7 Industrial Workstation IPC647D
• 19-inch, 2HE Rack PC form factor
• Intel Core I5-4570TE processor (2C/4T, 2.7 GHz, 4 MB cache, TB, VT-D, AMT)
• 8 GB DDR3 SDRAM (2 x 4 GB, Dual Channel)
• 1 TB SATA Hard Disk Drive (internal)
• Pre-installed PCS 7 V8.0 SP2 and Windows 7 Ultimate (64 bit, MUI)
• Integrated temperature and fan monitoring with Watchdog
• Card retainer for secure operation
• Bus module with 4 slots: 2x PCI, 2x PCIe x16 (8 lane)
• DVD +/-RW (slim) drive
• Multi-monitor support for 2 screens via onboard interfaces
• 100/240V industrial power supply unit with NAMUR support

Applications

The Siemens 6ES7660-5FQ08-0AD0 Industrial Workstation is suitable for a wide range of industrial applications, particularly within the SIMATIC PCS 7 process control system. Typical deployments include:

• Operator stations and human-machine interface (HMI) systems
• Engineering stations for configuration and programming
• Data acquisition and processing in industrial plants
• Supervisory control and data acquisition (SCADA) systems
• Process visualization and monitoring in harsh industrial environments

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Rack Mounting: Install the 19-inch, 2HE rack PC into a standard industrial equipment rack, ensuring proper ventilation space around the unit.
2. Power Connection: Connect the industrial power supply unit to a 100/240V AC source using the provided Europe power supply cable. Ensure the power source meets the system's requirements and is properly grounded.
3. Peripheral Connections: Connect necessary peripherals such as monitors (via DVI-I or Display Port, utilizing the adapter cable for DVI-D if needed), keyboard, mouse (PS/2 or USB), and audio devices to the respective ports.
4. Network Integration: Connect the Gigabit LAN interfaces (RJ45) to the industrial network for communication with other automation components and control systems.
5. Internal Card Installation: If additional PCI or PCIe cards are required, install them into the available bus slots (2x PCI, 2x PCIe x16 (8 lane)), ensuring the card retainer mechanism is properly engaged to secure the cards against vibration and shock.
6. Cable Management: Route all cables neatly to prevent strain, interference, and to maintain airflow within the rack.
7. Environmental Considerations: Ensure the operating environment is within specified temperature and humidity limits for industrial PCs to maintain optimal performance and longevity.
8. Initial Power-Up: After all connections are secure, power on the system. Verify system boot-up and the pre-installed PCS 7 V8.0 SP2 and Windows 7 Ultimate operating system.

Compliance and Certifications

• NAMUR: The industrial power supply unit supports NAMUR requirements, indicating suitability for specific process industry applications.
