Description

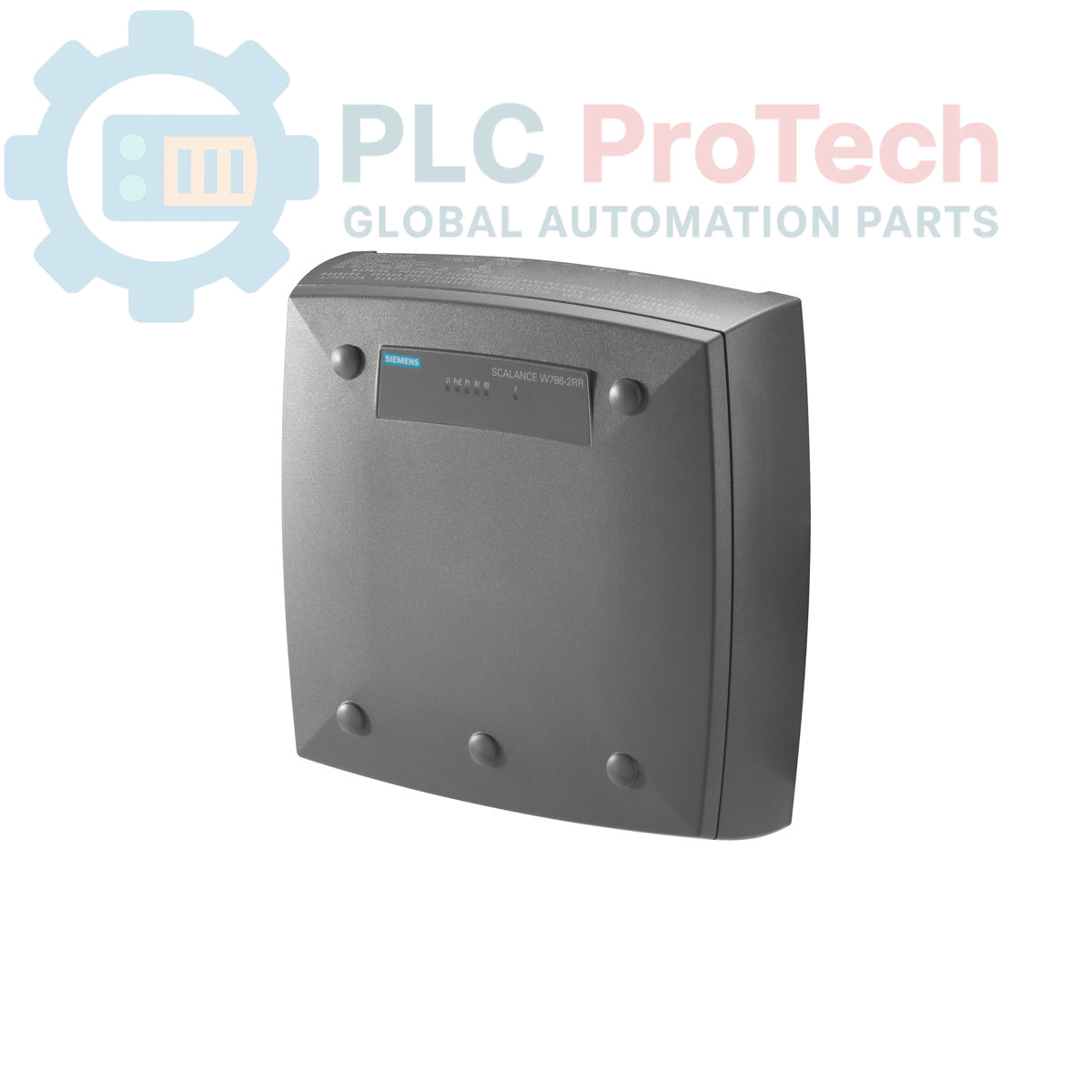

The Siemens 6GK5786-1FC00-0AB0 is a SCALANCE W786-1 RJ45 Industrial Wireless LAN (IWLAN) Access Point designed for reliable data communication in demanding industrial environments. This device features a single radio module supporting IEEE 802.11a/b/g/h/n standards and operates in both 2.4 GHz and 5 GHz frequency bands, delivering a gross data rate of up to 450 Mbit/s. Housed in a rugged IP65-rated enclosure, it is suitable for operation in a wide temperature range from -40 to +60 degC. Power can be supplied via Power over Ethernet (PoE) or a redundant 24 V DC input, providing flexible installation options. Advanced features, such as iFeatures, can be enabled using a KEY-PLUG (sold separately).

Features

• Single radio interface supporting IEEE 802.11a/b/g/h/n.
• Operates on 2.4 GHz and 5 GHz bands.
• Gross data transmission rate up to 450 Mbit/s.
• Three R-SMA connectors for external antenna connection.
• One Gigabit Ethernet RJ45 port (up to 1 Gbit/s).
• Supports Power over Ethernet (PoE) for simplified cabling.
• Flexible power input with redundant 24 V DC via terminal block.
• Robust IP65 protection for resistance to dust and water ingress.
• Wide operating temperature range of -40 to +60 degC.
• Supports WPA2/802.11i/e for secure wireless communication.
• iFeatures functionality enabled via optional KEY-PLUG.

Applications

• Machine-to-machine (M2M) communication in manufacturing plants.
• Connecting mobile operator panels (HMIs) and programming devices.
• Wireless networking for automated guided vehicles (AGVs).
• Data acquisition from remote sensors and actuators.
• Outdoor and harsh environment network installations.

Technical Specifications

Installation Guidelines

1. 1 Securely mount the access point to a stable surface, such as a wall, mast, or machine frame, ensuring sufficient clearance for cable connections and heat dissipation.
2. 2 Connect the unit to a low-impedance functional earth (FE) ground point using the designated grounding terminal to ensure proper shielding and transient protection.
3. 3 Install the appropriate external antennas (not included) onto the three R-SMA connectors. Ensure connectors are tightened to the specified torque and weatherproofed if installed outdoors.
4. 4 Connect the network cable to the RJ45 port. If using PoE, ensure the cable is connected to a compatible PoE injector or switch.
5. 5 If not using PoE, connect the 24 V DC power source to the provided terminal block, observing correct polarity. For redundant power, connect a second independent 24 V DC source.
6. 6 After all connections are secure, re-apply power to the unit and proceed with software configuration according to the product manual.
