Description

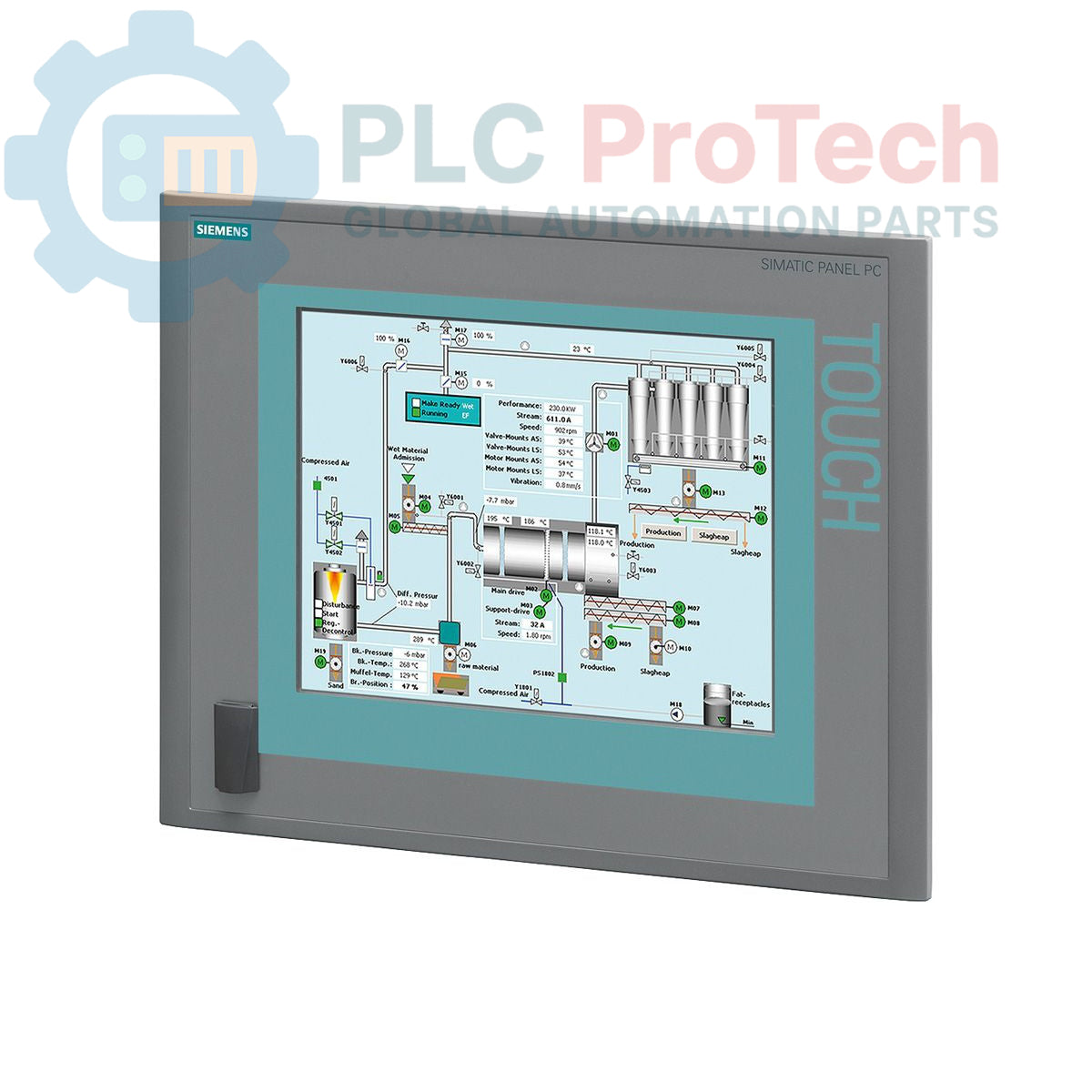

The Siemens 6ES7676-1BA00-0CF0 is a SIMATIC Panel PC 477B, an industrial panel personal computer designed for human-machine interface (HMI) and control applications. This unit features a 12-inch touch display with an 800x600 resolution and a standard front with a USB interface. It is equipped with an Intel Celeron M 1.0 GHz processor, 1 GB of DDR2 RAM, and includes a 2 GB Compact-Flash card within its two CF-slots. Communication capabilities include PROFIBUS DP 12, two 1 Gbit/s Ethernet ports, four USB 2.0 ports (each supplying 500mA), and one RS232 interface. The Panel PC operates on a DC 24V power supply and comes with preinstalled software, including Windows XP Embedded, WinCC Flexible RT 128PT (with archives and recipes), and WINAC RTX. Please note that this product is currently in an obsolete phase.

Features

• 12-inch Touch Display with 800x600 Resolution
• Intel Celeron M 1.0 GHz Processor
• 1 GB DDR2 RAM
• PROFIBUS DP 12 Interface
• 2x Ethernet 1 Gbit/s Ports
• 4x USB 2.0 Interfaces (500mA output per port)
• 1x RS232 Interface
• DC 24V Power Supply
• 2 CF-Slots, includes 1x 2 GB Compact-Flash
• Preinstalled Software: Windows XP Embedded, WinCC Flexible RT 128PT (including Archives & Recipes), WINAC RTX
• Standard front with USB interface

Applications

The Siemens SIMATIC Panel PC 477B is suitable for a range of industrial automation applications requiring robust HMI and control capabilities, such as:

• Machine operation and visualization
• Process control and monitoring
• Data acquisition and logging
• Production line management
• Building automation systems

Technical Specifications

Installation Guidelines

Installation of the Siemens SIMATIC Panel PC 477B should follow standard industrial practices for panel-mounted equipment:

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the Panel PC into a prepared panel cutout, ensuring proper sealing to maintain the enclosure's IP rating.
3. Power Connection: Connect the DC 24V power supply to the designated terminals, observing correct polarity. Use appropriately sized and shielded cables.
4. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure safety and minimize electromagnetic interference.
5. Interface Connections: Connect communication cables (Ethernet, PROFIBUS DP, RS232, USB) to their respective ports. Ensure proper cable routing to avoid strain and interference.
6. CF Card Installation: If not pre-installed, insert the Compact-Flash card into the designated slot, ensuring it is correctly seated.
7. Environmental Considerations: Verify that the operating environment meets the Panel PC's specified temperature, humidity, and vibration ratings. Ensure adequate ventilation around the unit.
8. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
