Description

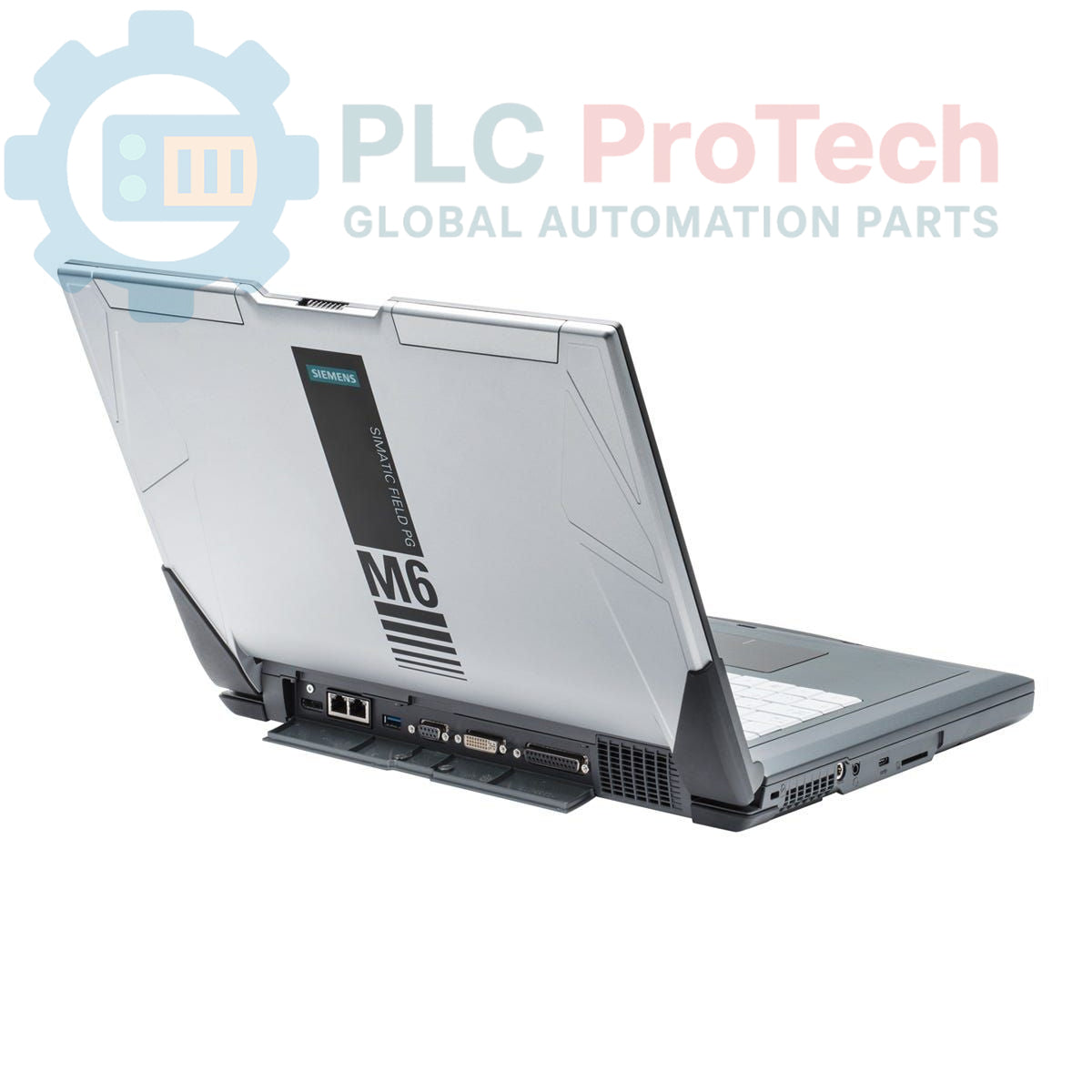

The Siemens 6ES7718-1CC10-0CC3 is a SIMATIC Field PG M6 Advanced, a ruggedized industrial programming device designed for commissioning, servicing, and maintaining automation systems. This unit is powered by an Intel Core i7-8850H 6-core processor and is equipped with 32 GB of DDR4 SDRAM and a 2 TB SATA SSD for high-performance operation. It features a 15.6-inch Full HD display and includes an integrated S5 online interface and S5-EPROMMER, providing essential support for legacy SIMATIC S5 systems. The device comes pre-loaded with Windows 11 IoT Enterprise and a comprehensive suite of TIA Portal V18 engineering software licenses, including STEP 7 Professional, WinCC Advanced, and Safety Advanced.

Features

• Processor: Intel Core i7-8850H (6 cores with hyper-threading)
• Memory: 32 GB DDR4 SDRAM SO-DIMM
• Storage: 2 TB SATA Solid-State Drive (SSD)
• Display: 15.6-inch Full HD screen
• Legacy Support: Integrated S5 online interface and S5-EPROMMER
• Connectivity: WLAN 802.11ac and Bluetooth V5.0
• Optical Drive: DVD +/-RW
• Included Licenses: STEP 7 Professional, WinCC Advanced, Safety Advanced (V18 Combo), and STEP 5
• Operating System: Windows 11 IoT Enterprise (Version 22H2)

Applications

• PLC and HMI programming and configuration
• Industrial automation system commissioning and startup
• On-site plant maintenance and diagnostics
• Servicing of both modern TIA Portal and legacy SIMATIC S5 systems
• Mobile engineering workstation for field service technicians

Technical Specifications

Installation Guidelines

1. 1 Upon receipt, inspect the Field PG and its accessories for any signs of shipping damage. Verify the contents against the packing list.
2. 2 Connect the provided power supply and fully charge the battery before initial use. Perform the first-time setup of the Windows operating system as prompted on screen.
3. 3 Launch the Automation License Manager software to verify and manage the pre-installed Siemens software licenses. Ensure all licenses are activated and valid.
4. 4 Configure network settings (WLAN or Ethernet) as required for your environment. Adhere to all plant-specific IT security policies for connecting devices to the automation network.
5. 5 When connecting to a controller (e.g., via the S5 interface or a standard MPI/Profibus/Profinet adapter), use the correct, high-quality communication cable. Ensure a secure physical connection before initiating online diagnostics or program downloads.
