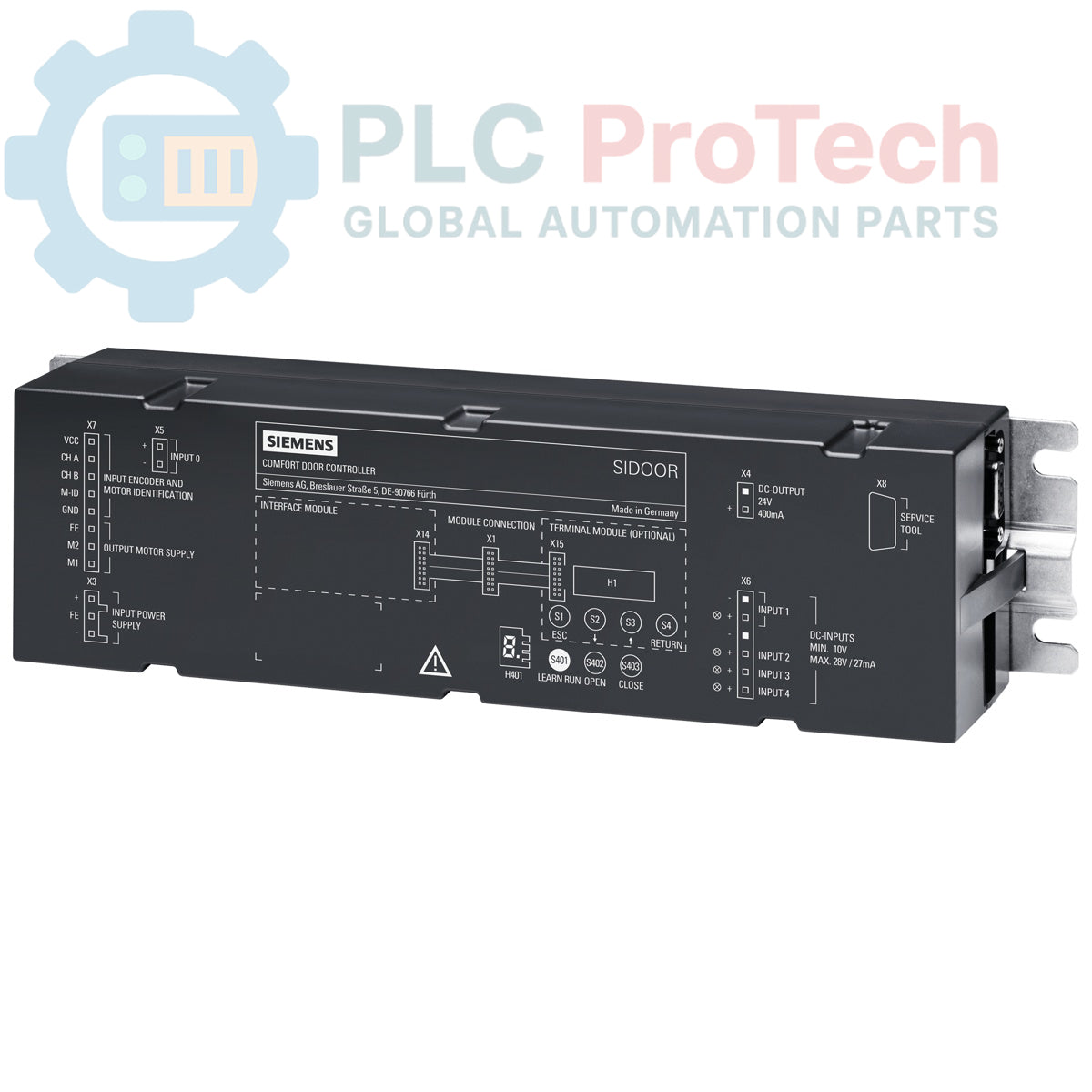

Siemens 6FB1141-2AT10-3WE2 SIDOOR ATD420W Control Device

SKU 6FB1141-2AT10-3WE2

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6FB1141-2AT10-3WE2
  • Origin Germany
  • Product Type: Control Devices
  • Barcode: 85371099
  • Payment: T/T, Western Union
  • Weight: 0.72 kg
  • Dimensions: 32.30cm x 10.00cm x 9.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Control Devices Sidoor
Quantità
Call sales Contact

Product Description

Description

The 6FB1141-2AT10-3WE2 is a SIDOOR ATD420W controller, a high-performance drive unit engineered for the precise automation of sliding doors, specifically suitable for applications like machine tool enclosures. This intelligent controller manages door movements with high reliability, supporting door weights of up to 600 kg. It operates on a 36 V DC supply and provides a comprehensive set of interfaces for seamless integration into automation networks, including PROFIBUS and RS485. With a safety-focused design, it meets EN 13849 Performance Level d standards, ensuring operational safety in industrial environments.

Features

  • High Load Capacity: Capable of managing doors weighing up to 600 kg.
  • Network Versatility: Integrated PROFIBUS and RS485 communication interfaces for advanced diagnostics and control.
  • Input/Output Array: Features 4 digital inputs and 2 relay outputs for flexible field device integration.
  • Safety Certified: Compliant with EN 13849 Performance Level d and EN 953 standards for machine safety.
  • Robust Thermal Range: Designed for reliable operation in temperatures ranging from -20 °C to +50 °C.

Applications

  • Machine tool enclosure door automation
  • Large-scale industrial sliding door systems
  • High-safety automated access points
  • Integrated production line safety barriers

Technical Specifications

Feature Specification
Manufacturer Siemens
Brand SIDOOR
Model 6FB1141-2AT10-3WE2
Product Phase Active
Supply Voltage 36 V DC
Max. Door Weight 600 kg
Communication 1x PROFIBUS, 1x RS485
I/O 4x Digital Inputs, 2x Relay Outputs
Power Output 1x 24 V DC Out
Operating Temp -20 °C to +50 °C
Weight 0.72 kg
Dimensions 32.30 x 10.00 x 9.00 cm
Commodity Code 85371099
Export Control (ECCN) 3A991

Installation Guidelines

  • Mounting: Ensure the controller is mounted in a location that allows for adequate heat dissipation, keeping clear of direct heat sources.
  • Wiring: Use properly shielded cables for PROFIBUS and RS485 communication to minimize electrical noise interference from nearby machine tool motors.
  • Safety Integration: Always wire the safety relay outputs in accordance with the EN 13849 safety circuit requirements to ensure the Performance Level d rating is maintained.
  • Configuration: Utilize the SIDOOR software tools to calibrate door travel curves and force limits based on the specific mechanical characteristics of your door system.
  • Power Supply: Ensure the 36 V DC power source is stable and correctly rated to handle the peak currents during door acceleration.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the maximum door weight this controller can handle?
The SIDOOR ATD420W is designed to manage door weights of up to 600 kg.
Does this controller support PROFIBUS communication?
Yes, it includes an integrated PROFIBUS interface for industrial communication.
Is this an active product?
Yes, the product phase is currently listed as Active.
What safety standards does this device meet?
It complies with EN 13849 Performance Level d and EN 953 standards.
