6SE7016-1EA31-Z

Siemens

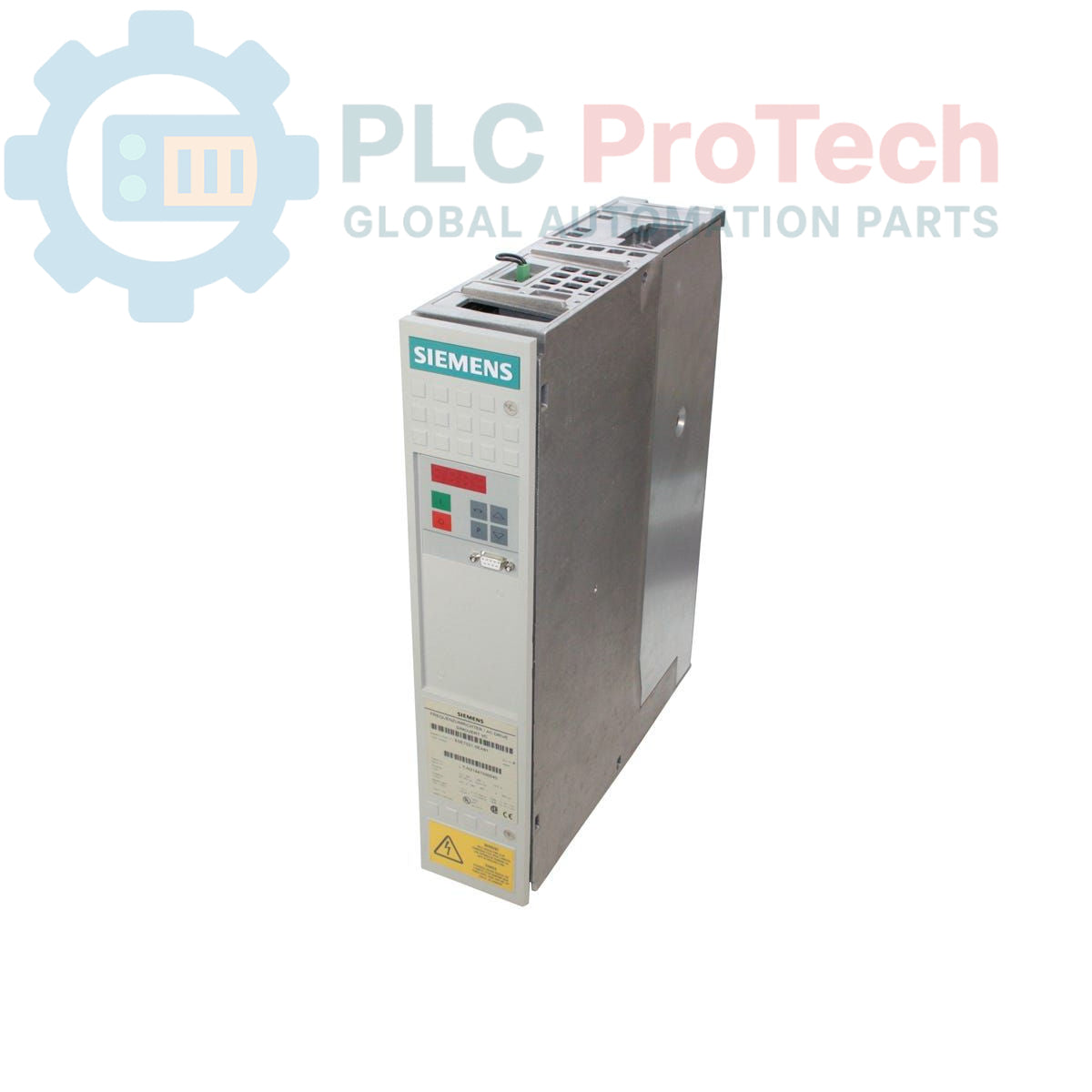

Siemens 6SE7016-1EA31-Z SIMOVERT MASTERDRIVES Converter Compact Unit

SKU 6SE7016-1EA31-Z

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6SE7016-1EA31-Z
  • Origin Germany
  • Product Type: AC Drives
  • Barcode: 85044095
  • Payment: T/T, Western Union
  • Weight: 0.013 kg
  • Dimensions: 40.50cm x 22.00cm x 26.40cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

AC Drives
Quantità
Call sales Contact

Product Description

Description

The 6SE7016-1EA31-Z is a SIMOVERT MASTERDRIVES SC converter compact unit, engineered to provide precise motor control in demanding industrial automation applications. As a base drive unit, it operates on a 3-phase AC supply ranging from 380 to 460 V at 50/60 Hz, delivering a nominal current of 10.2 A and a power rating of 4 kW. Encased in an IP20-rated housing, the 6SE7016-1EA31-Z is designed for efficient integration into control cabinets. This unit serves as a core drive component within the SIMOVERT MASTERDRIVES series, offering reliable performance for production line machinery requiring stable and configurable drive solutions.

Features

  • Compact design for space-saving cabinet installation
  • Compatible with 3AC 380-460 V, 50/60 Hz power supply
  • Nominal output current of 10.2 A
  • Power rating of 4 kW
  • IP20 protection rating
  • Base drive configuration allows for application-specific options

Applications

  • Industrial motor control systems
  • Conveyor technology and material handling
  • Production line automation
  • Pump and fan control applications
  • General machinery and drive engineering

Technical Specifications

Feature Specification
Manufacturer Siemens
Brand SIMOVERT
Subrange MASTERDRIVES
Product Type Converter Compact Unit
Nominal Power 4 kW
Nominal Current 10.2 A
Input Voltage 3AC 380-460 V
Frequency 50/60 Hz
Protection Rating IP20
Product Phase Obsolete
Dimensions 40.50 cm x 22.00 cm x 26.40 cm
Weight 13.00 kg
Commodity Code 85044095
ECCN N

Installation Guidelines

  • Mounting: Install the 6SE7016-1EA31-Z in an upright position within a clean, dry, and ventilated cabinet environment to comply with IP20 requirements.
  • Cooling: Ensure sufficient clearance around the heat sink to allow for proper airflow and heat dissipation, preventing thermal tripping.
  • Grounding: Connect the protective earth (PE) terminal to the cabinet grounding rail using a low-impedance cable to ensure electromagnetic compatibility (EMC) and operator safety.
  • Wiring: Use shielded motor cables and ensure that signal cables are routed separately from power cables to minimize electromagnetic interference (EMI).
  • Options: As this is a base drive (Z-option), confirm compatibility with any additional control boards or expansion modules prior to system integration.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the 6SE7016-1EA31-Z?
The 6SE7016-1EA31-Z is a compact converter unit used for precise variable speed control of three-phase AC motors in industrial automation systems.
What does the -Z suffix indicate in this model number?
The -Z suffix indicates that this is a base drive unit that may include additional options or specific factory configurations; verify the complete order code for specific feature sets.
Can this drive be used in high-moisture environments?
No, this unit has an IP20 rating, meaning it is protected against solid objects larger than 12mm but is not protected against liquids. It must be installed in a controlled, dry cabinet environment.
What is the current status of this product series?
The SIMOVERT MASTERDRIVES series is currently classified as obsolete by the manufacturer, though it remains in use for maintenance and support of legacy systems.
