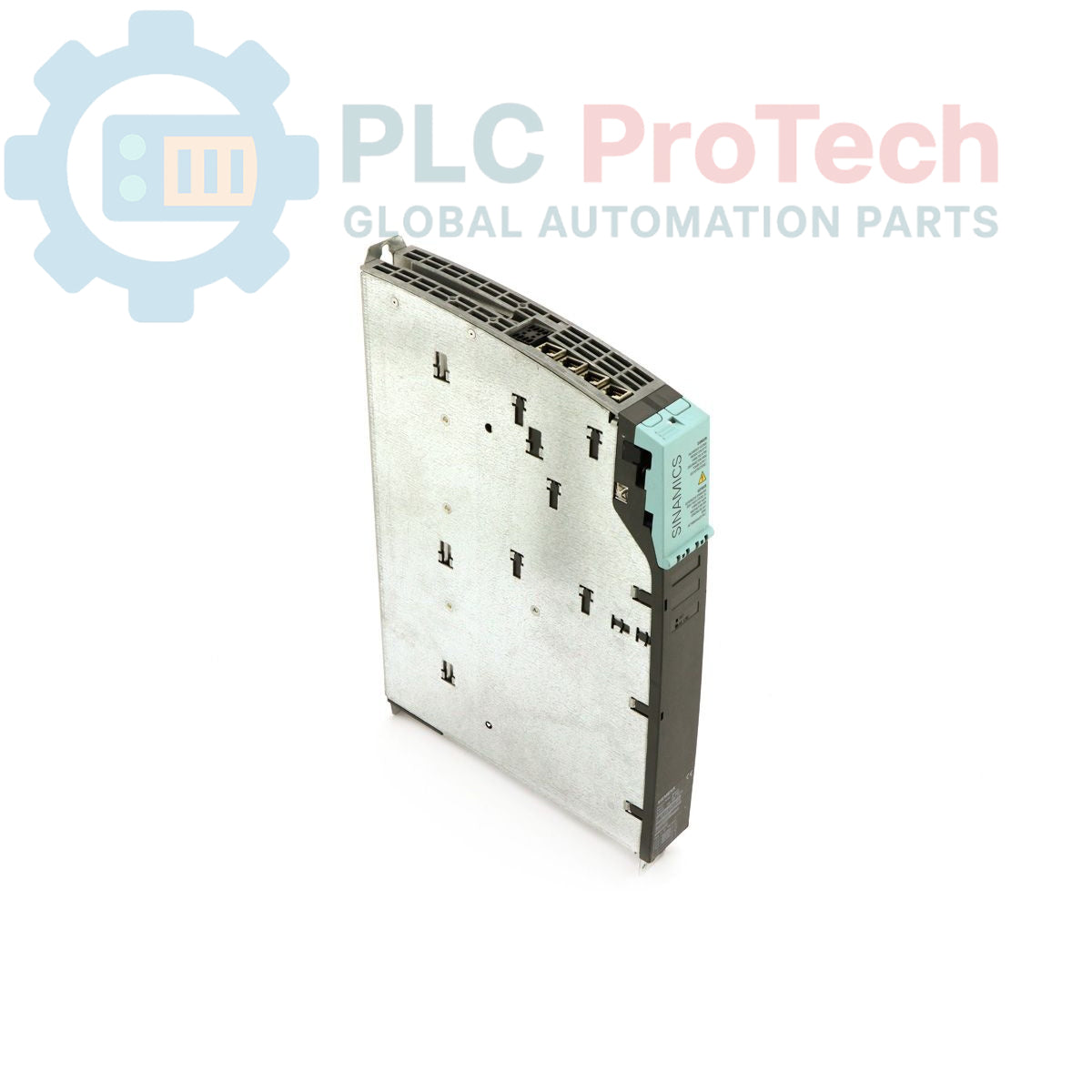

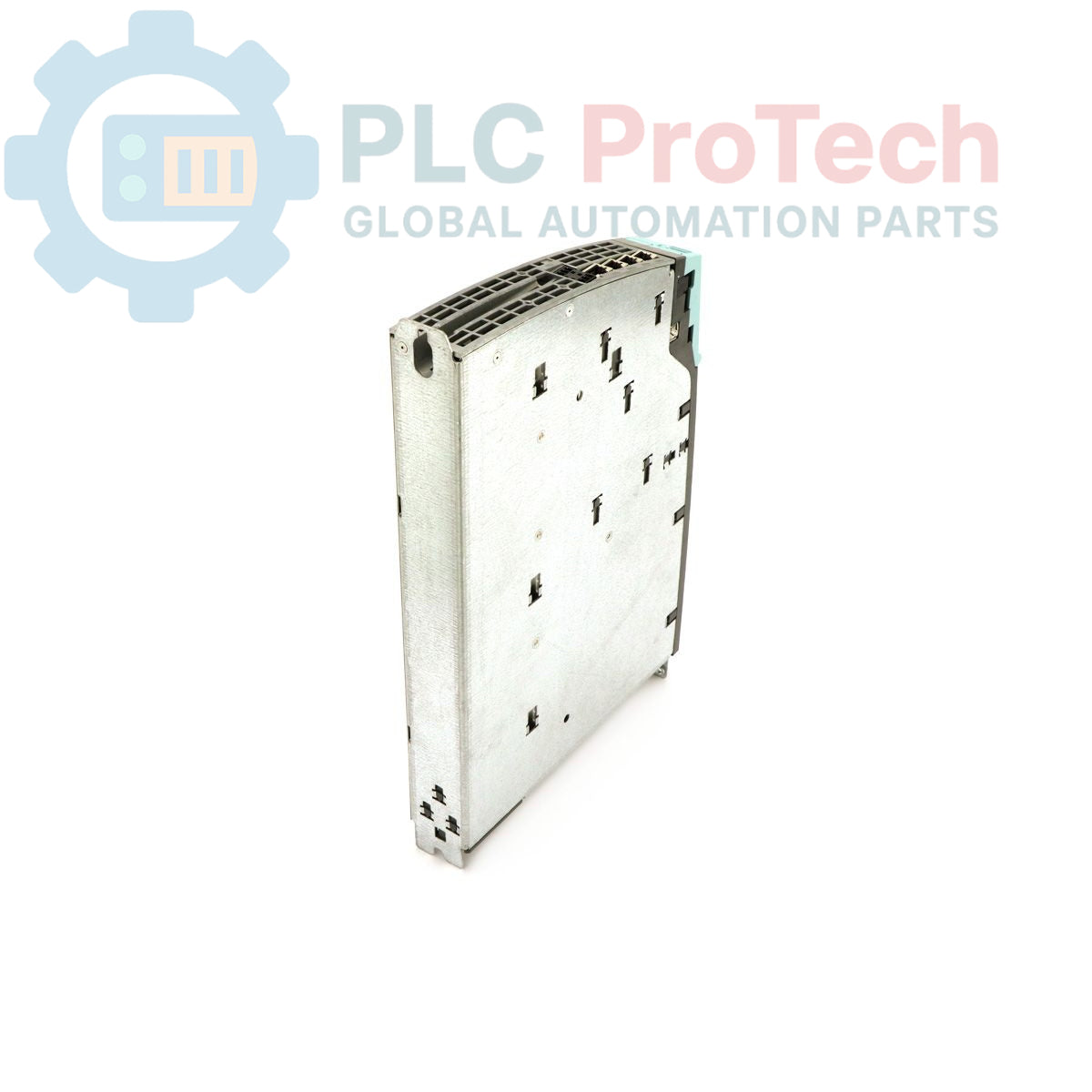

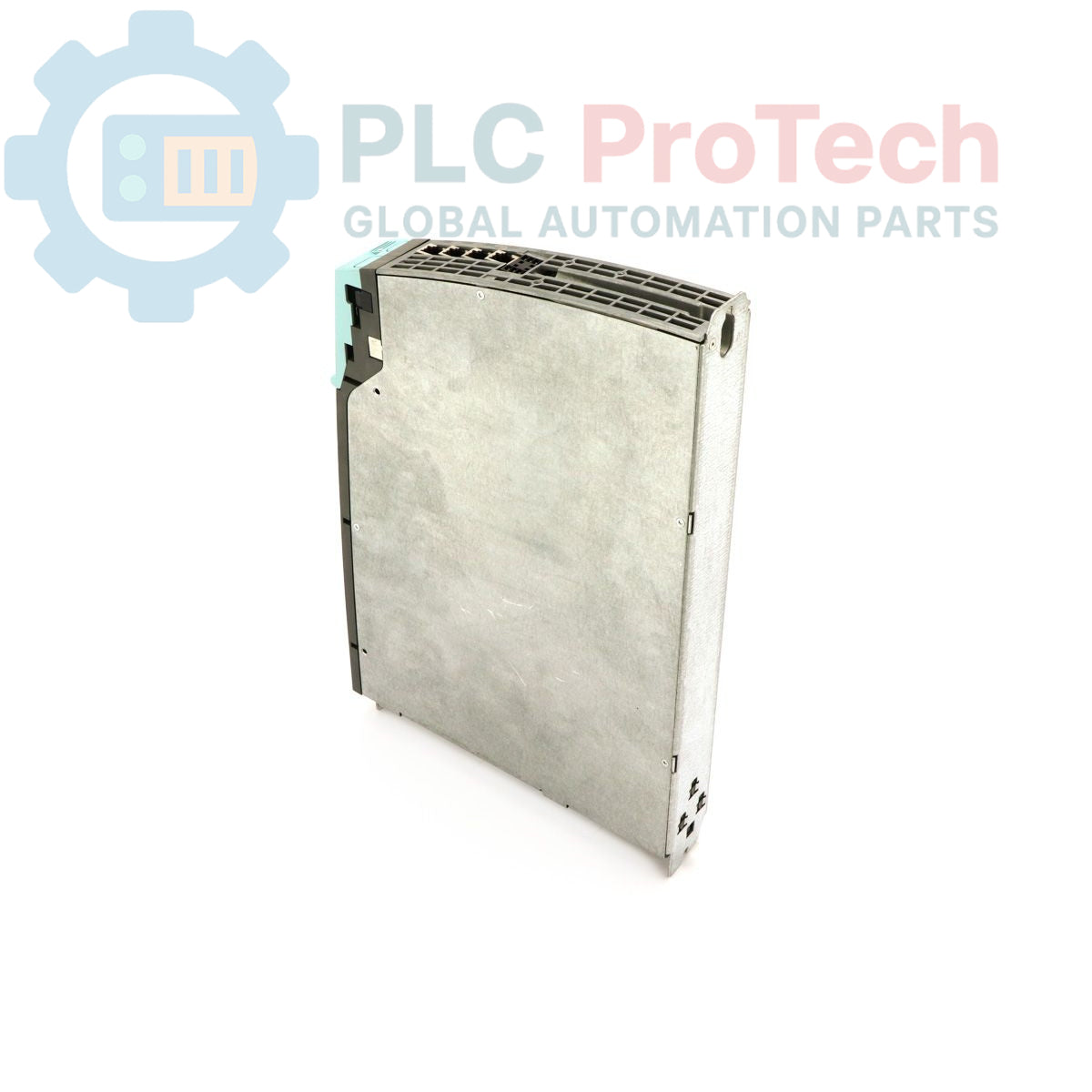

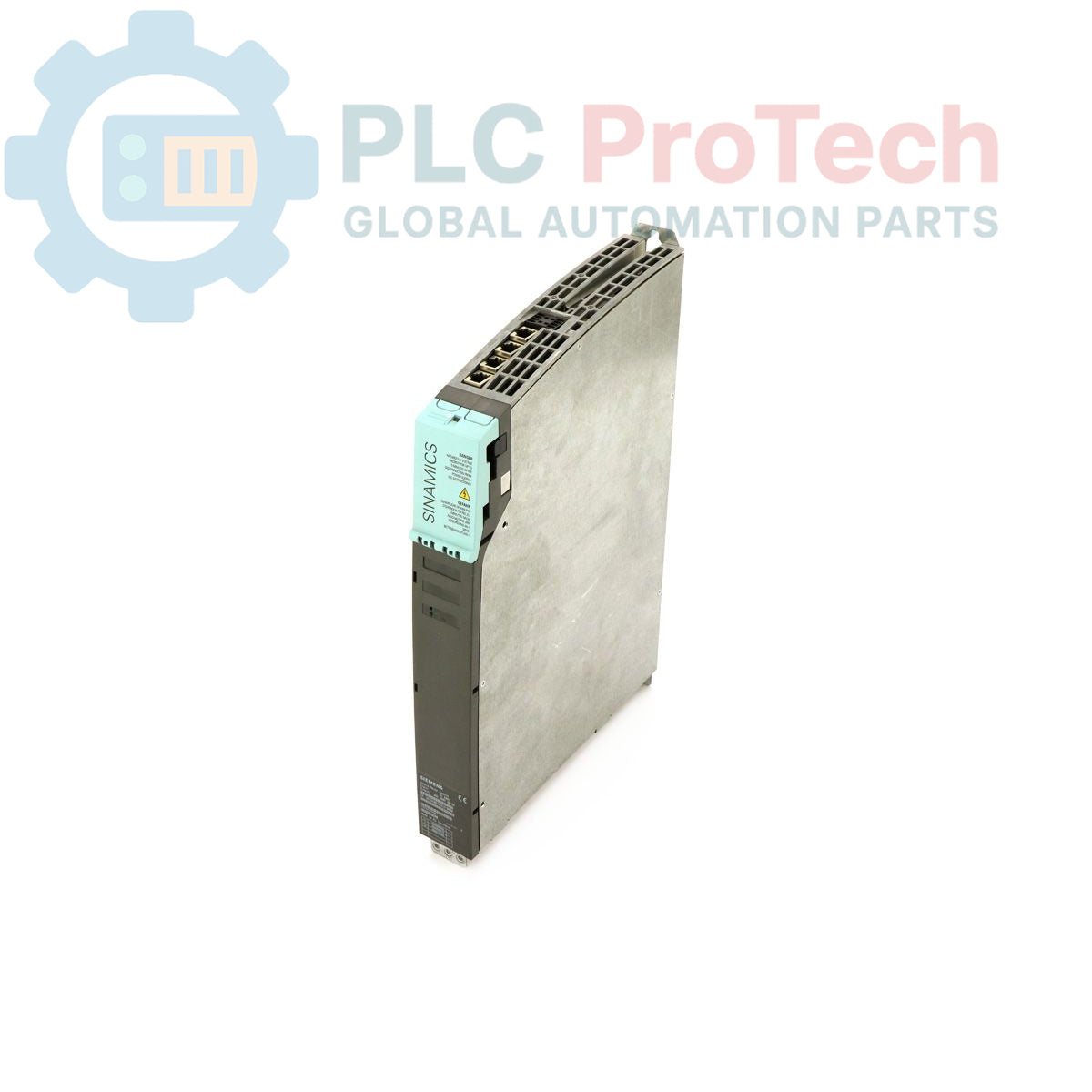

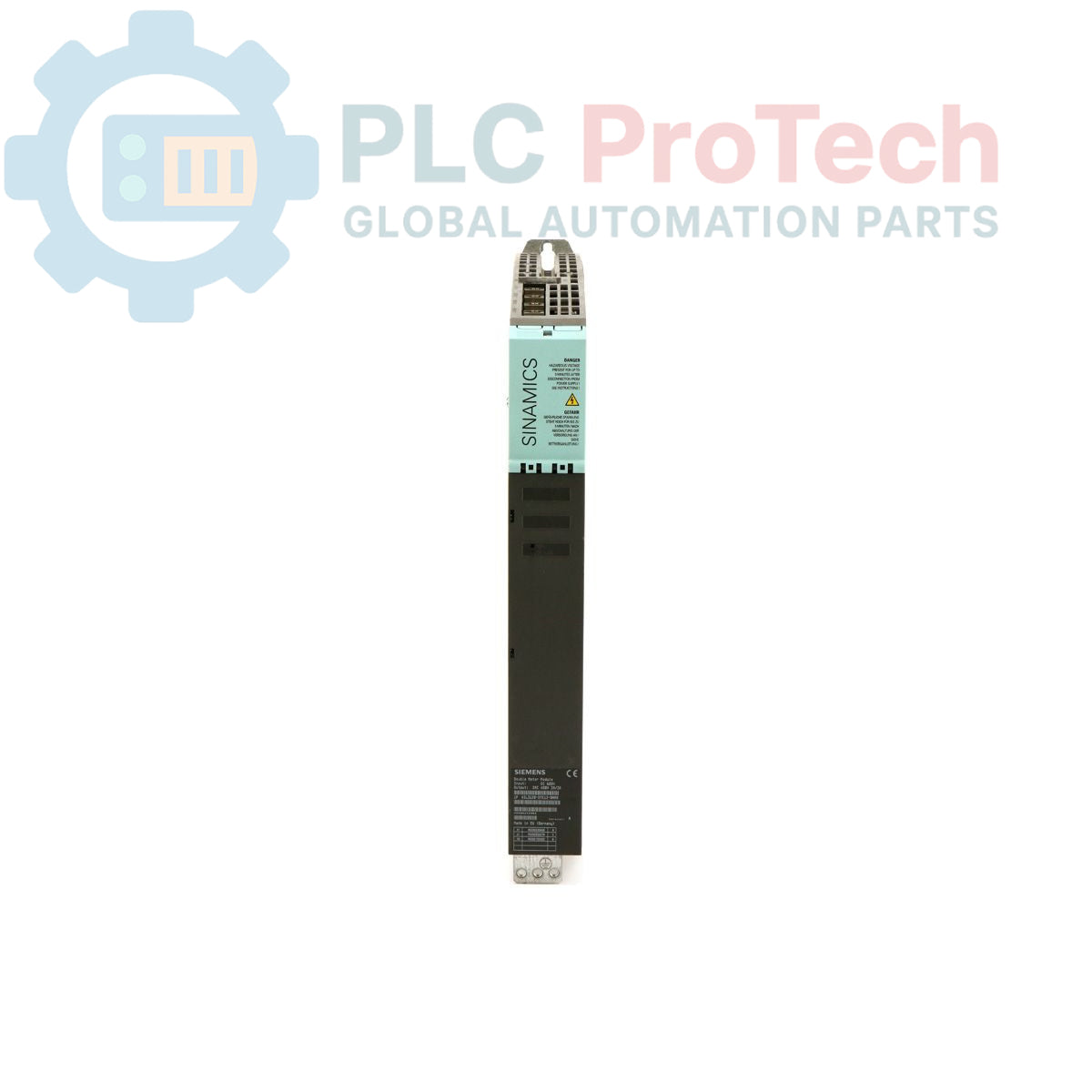

Siemens 6SL3120-2TE13-0AA0 SINAMICS S120 Double Motor Module

SKU 6SL3120-2TE13-0AA0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3120-2TE13-0AA0
Origin Germany
Product Type: Double Motor Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 5.75 kg
Dimensions: 38.00cm x 28.00cm x 5.00cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6SL3120-2TE13-0AA0 is a high-performance SINAMICS S120 Double Motor Module designed to control two independent motors within a single compact unit. It operates with a DC link input of 600 V DC (supporting a supply range of 510–720 V DC) and provides a 400 V 3-phase AC output with a rated current of 3 A per channel. Featuring integrated internal air cooling, the module maintains thermal stability under demanding operational conditions. The unit is equipped with a DRIVE-CLiQ cable for high-speed, reliable communication with the Control Unit and other drive system components. This double motor module is a critical component for high-density motion control systems, such as multi-axis synchronized machines.

Features

Dual-Axis Control: Independent control for two motors in a single, space-saving module.
Integrated Communication: Includes DRIVE-CLiQ interface for fast, interference-free connection to SINAMICS components.
Thermal Efficiency: Features internal air cooling to facilitate continuous operation.
Compact Design: Optimized for Booksize modular drive racks.
Scalable Compatibility: Designed for integration within S120 modular drive systems; acts as a predecessor to the 6SL3120-2TE13-0AA3.

Applications

Multi-axis machine tools and coordinate measuring machines
Synchronized robotic arms and handling systems
High-speed packaging and filling machines
Precision motion control in textile or printing machinery
Modular production lines requiring centralized DC bus power

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Brand	SINAMICS
Range	S120
Model	6SL3120-2TE13-0AA0
Product Type	Double Motor Module
Product Phase	Phase-Out
Successor	6SL3120-2TE13-0AA3

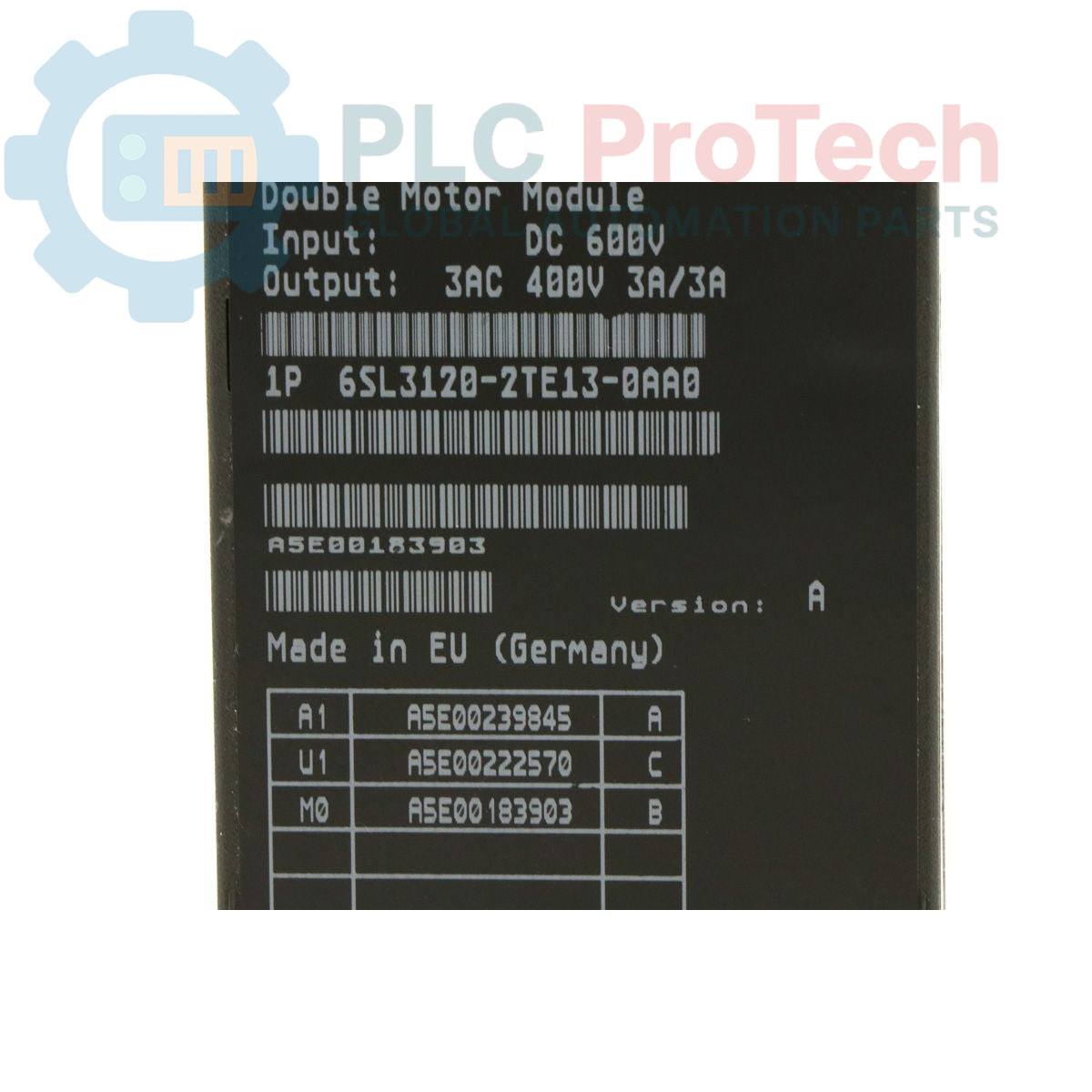

Input Supply	510-720 V DC
Nominal Output	400 V 3 AC
Output Current	3 A / 3 A
Max. Output Frequency	600 Hz
Weight	5.75 kg
Dimensions	38.00 x 28.00 x 5.00 cm
Commodity Code	85044095
Export Control (ECCN)	EAR99

Installation Guidelines

Cooling: Ensure sufficient clearance above and below the module to allow for the internal air cooling system to function effectively.
Mounting: Install within a Booksize drive rack. Ensure proper mechanical seating to the backplane to establish the DC bus and 24 V auxiliary power connection.
DRIVE-CLiQ Wiring: Use the provided DRIVE-CLiQ cable for connectivity. Keep communication cables separate from high-power motor cables to prevent EMI.
Safety: Always de-energize the DC bus and wait for the discharge time (typically 5 minutes) before performing any physical maintenance or cable disconnection.
Grounding: Secure a solid ground connection to the drive rack to ensure EMC compatibility.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary benefit of the double motor module design?

The double motor module allows for the independent control of two motors in a single Booksize unit, significantly reducing the required installation space in the control cabinet.

Does this module include the DRIVE-CLiQ cable?

Yes, this unit is supplied with the DRIVE-CLiQ cable for integration into the SINAMICS S120 network.

What is the successor model for this double motor module?

The official successor model is the 6SL3120-2TE13-0AA3.

Is external cooling required for this module?

No, the module features an integrated internal air cooling system.
