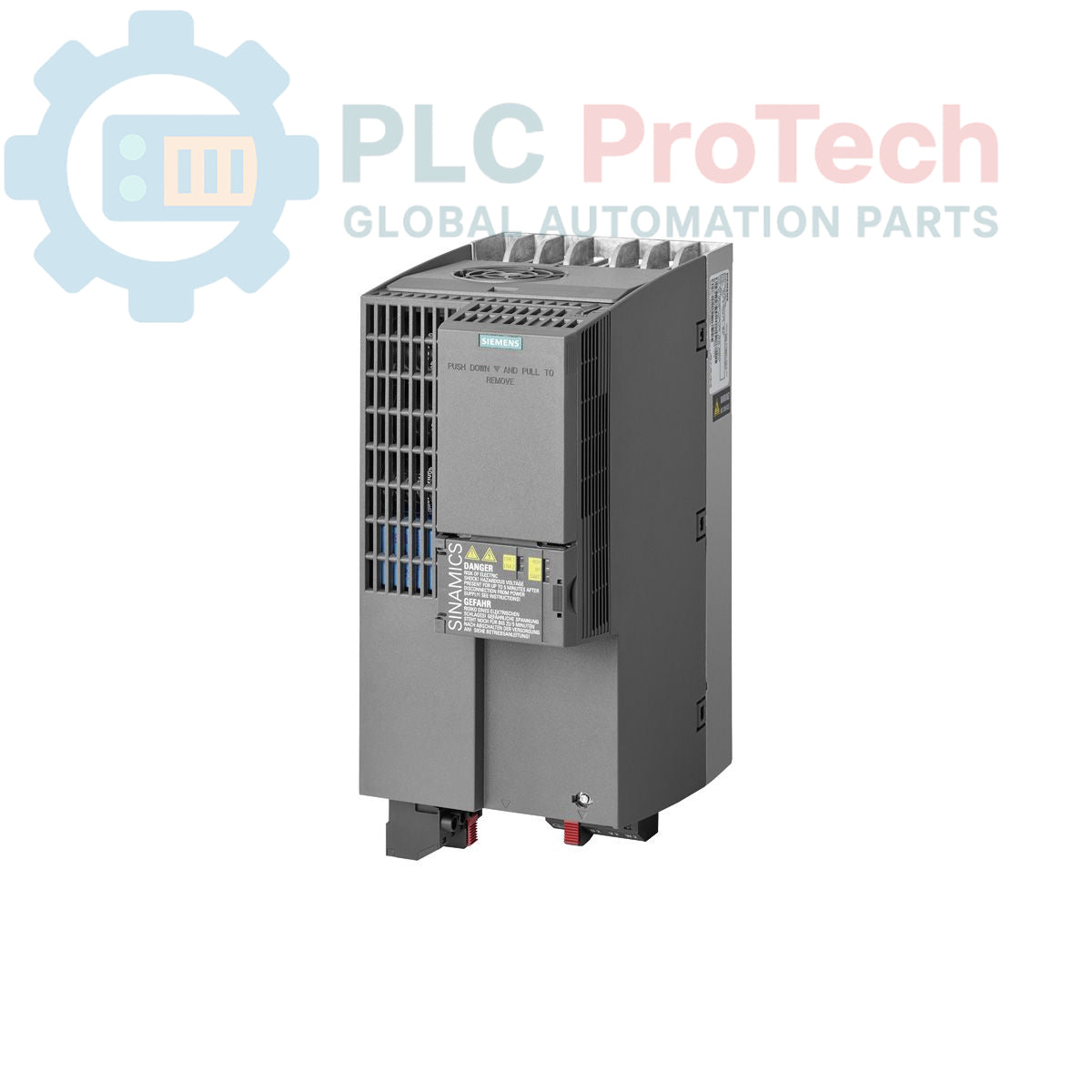

The 6SL3210-1KE23-2AF1 is a SINAMICS G120C frequency inverter engineered for precise motor speed control in industrial automation environments. This variable frequency drive provides a rated power output of 15.0 kW with support for a 150% overload for 3 sec, making it suitable for demanding production lines requiring reliable performance peaks. Operating on an input voltage range of 3AC 380–480V at 47–63 Hz, the unit features an integrated filter class A for electromagnetic compatibility and supports Safe Torque Off (STO) for operational safety. Integrated PROFINET-PN fieldbus communication enables seamless network connectivity. Typical industrial applications include conveyor systems, pumps, fans, compressors, and general machine building. It is fully compatible with Siemens Totally Integrated Automation (TIA) portal and standard industrial automation networks.
| Technical Parameter | Specification |
|---|---|
| Brand | Siemens |
| Manufacturer | Siemens |
| Range | Sinamics |
| Subrange | G120C |
| Type of product | Variable frequency drives |
| Product phase | Active |
| Rated Power | 15.0 kW |
| Overload Capability | 150% for 3 sec |
| Main Voltage | 3AC 380-480V (+10/-20%) |
| Main Frequency | 47-63 Hz |
| Nominal Output Current | 32 A |
| Max Output Frequency | 550 Hz |
| Max Output Voltage | 550 V |
| Filter | Integrated Filter Class A |
| Safety Function | Safe Torque Off (STO) Integrated |
| Fieldbus Interface | PROFINET-PN |
| I/O Interface | 6DI, 2DO, 1AI, 1AO |
| External Power Supply | 24V |
| Degree of Protection | IP20 / UL Open Type |
| Frame Size | FSC |
| Dimensions | 14.00 x 22.50 x 29.50 cm |
| Weight | 5.40 kg |
| Commodity Code | 85044086 |
| Export Control Regulations (ECCN) | N |
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6SL3210-1KE23-2AF1
Country of origin:Germany
Product Type: Variable frequency drives
Barcode: 85044086
Payment: T/T, Western Union
Weight: 5400g
Dimensions: 14.00cm x 22.50cm x 29.50cm
Shipping port: Xiamen
Warranty: 12 months
