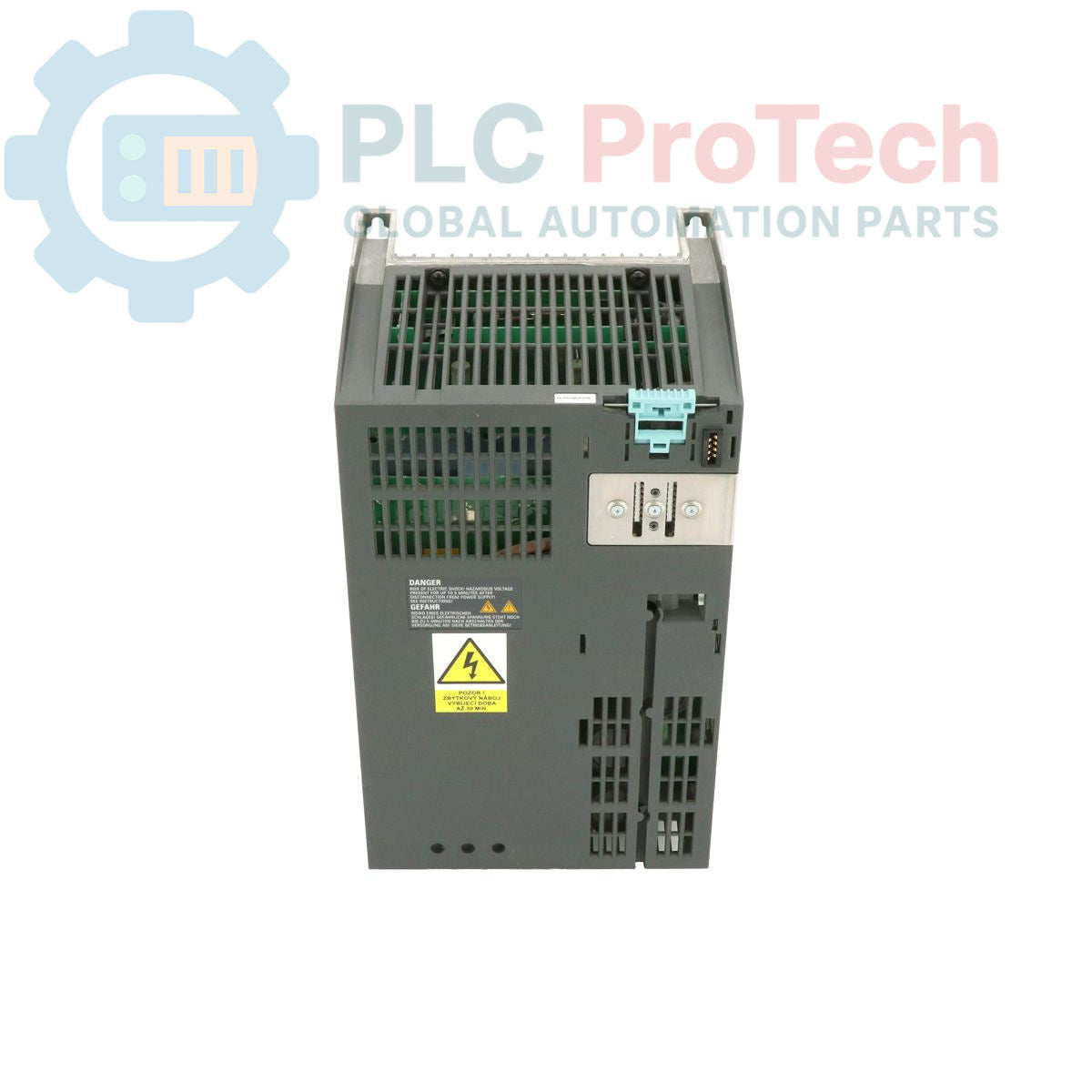

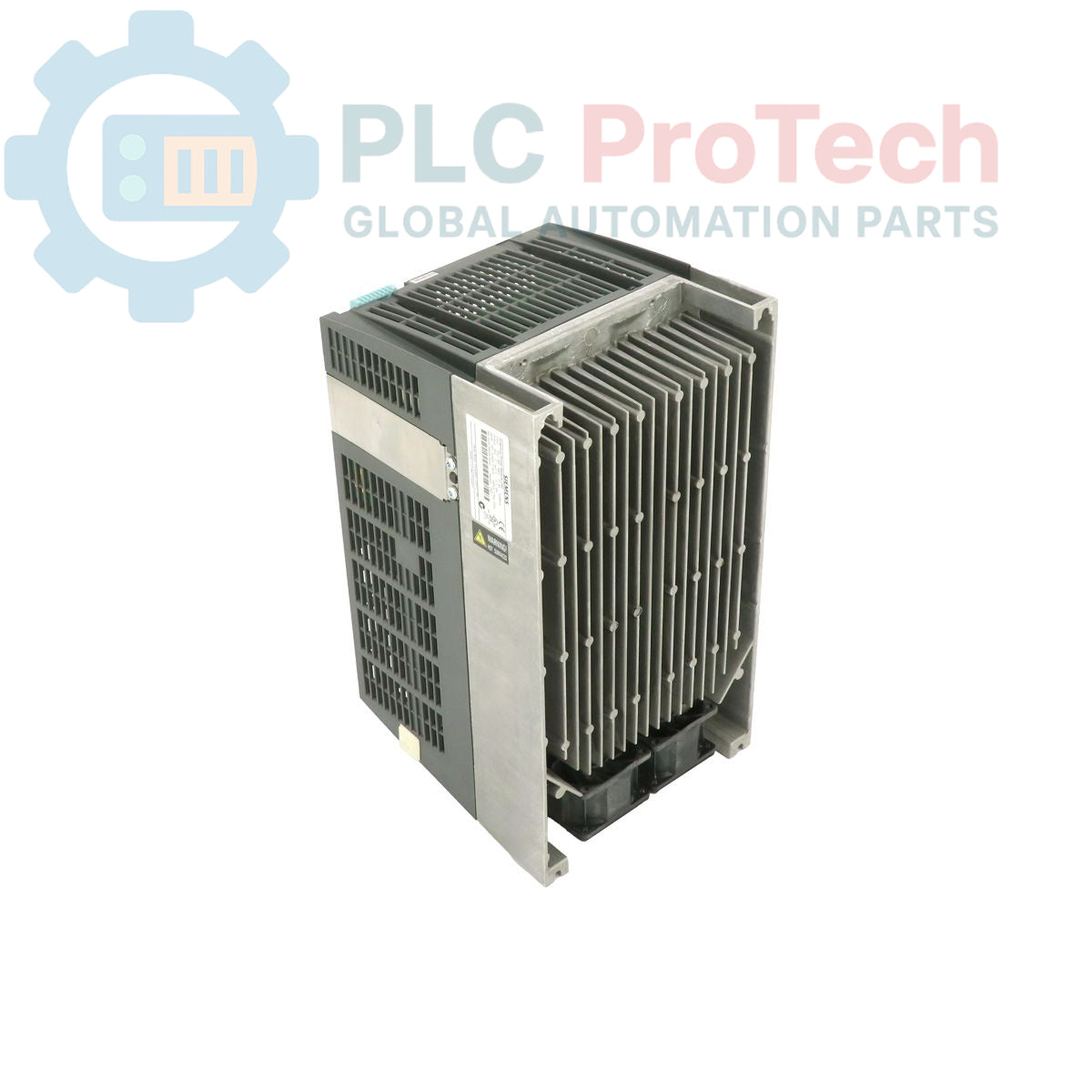

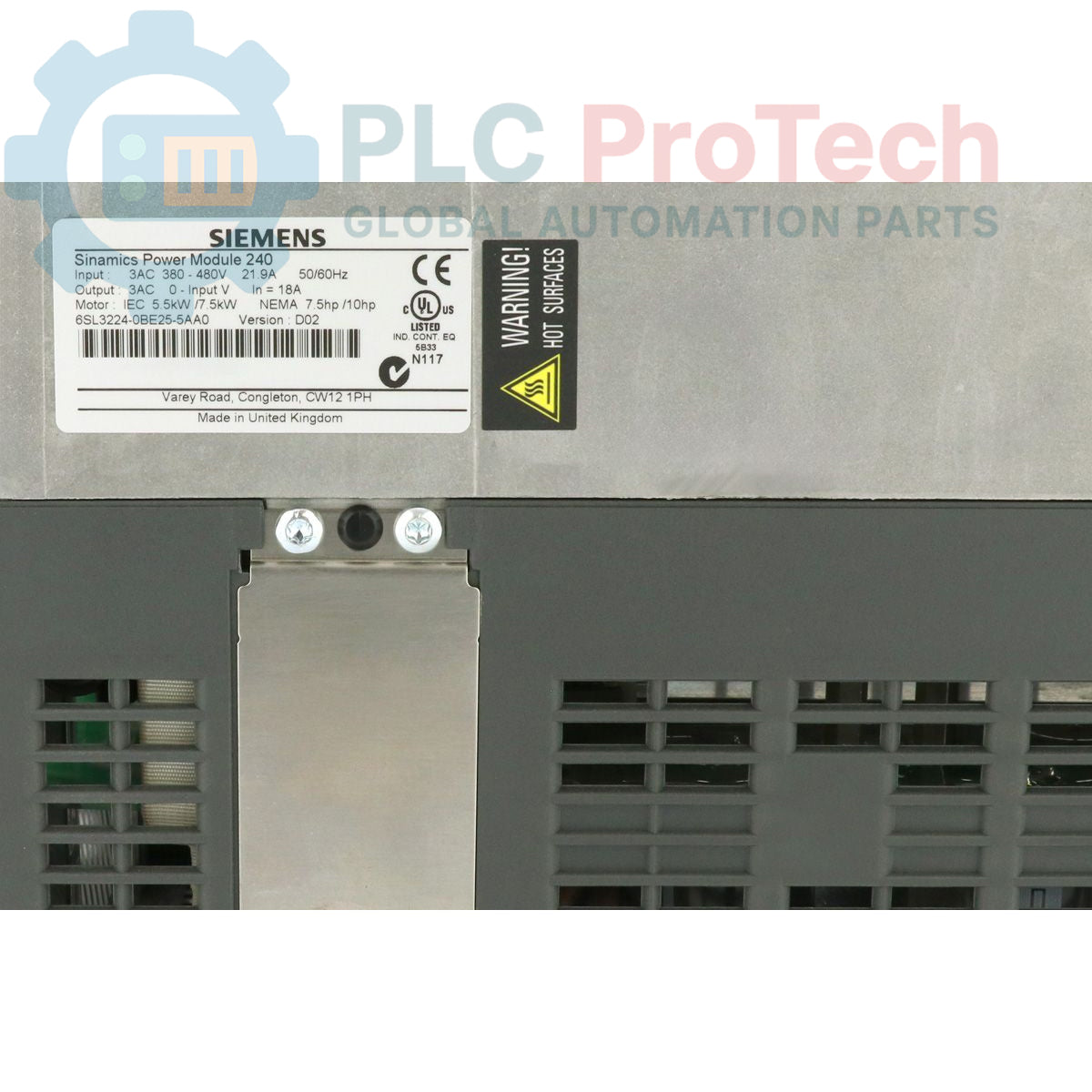

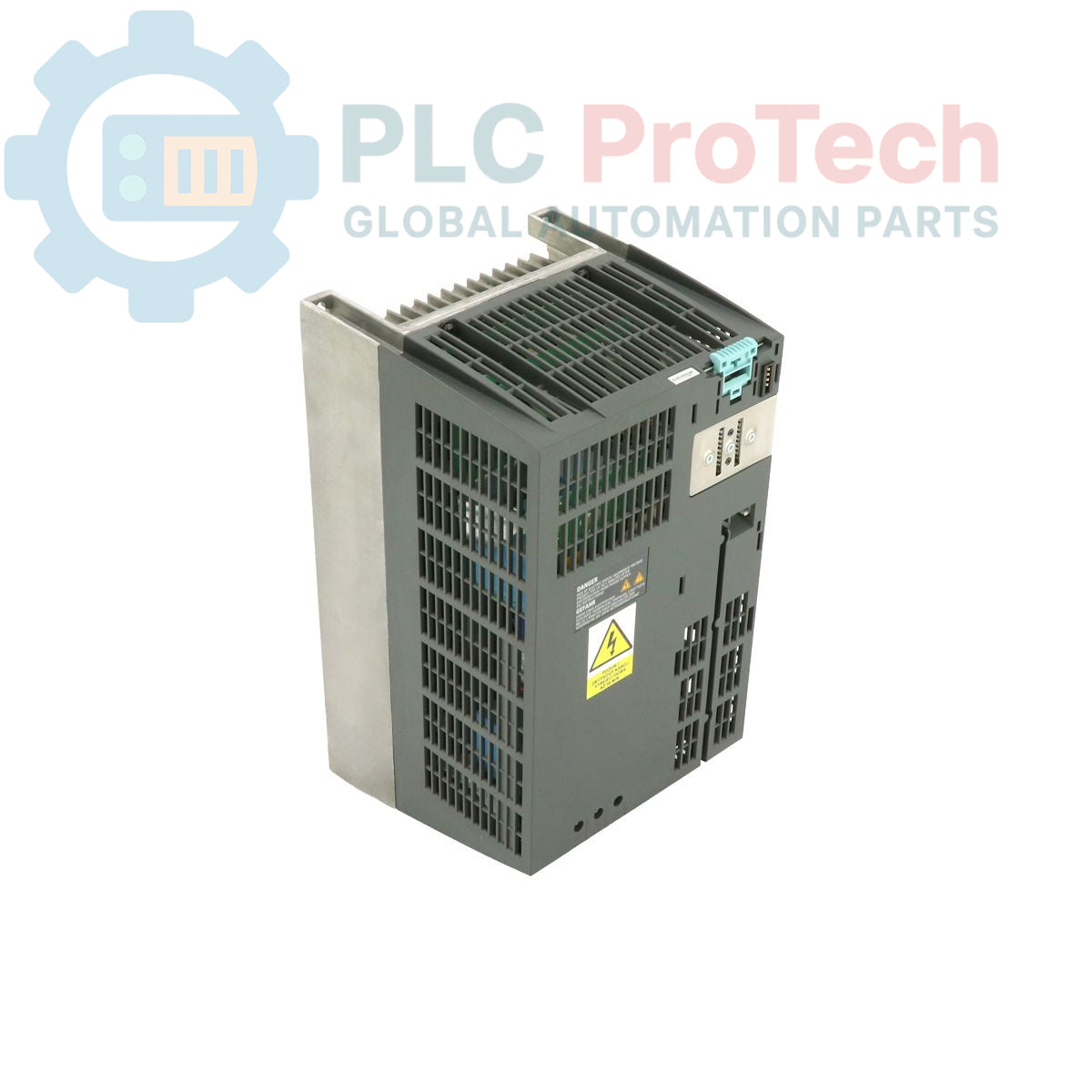

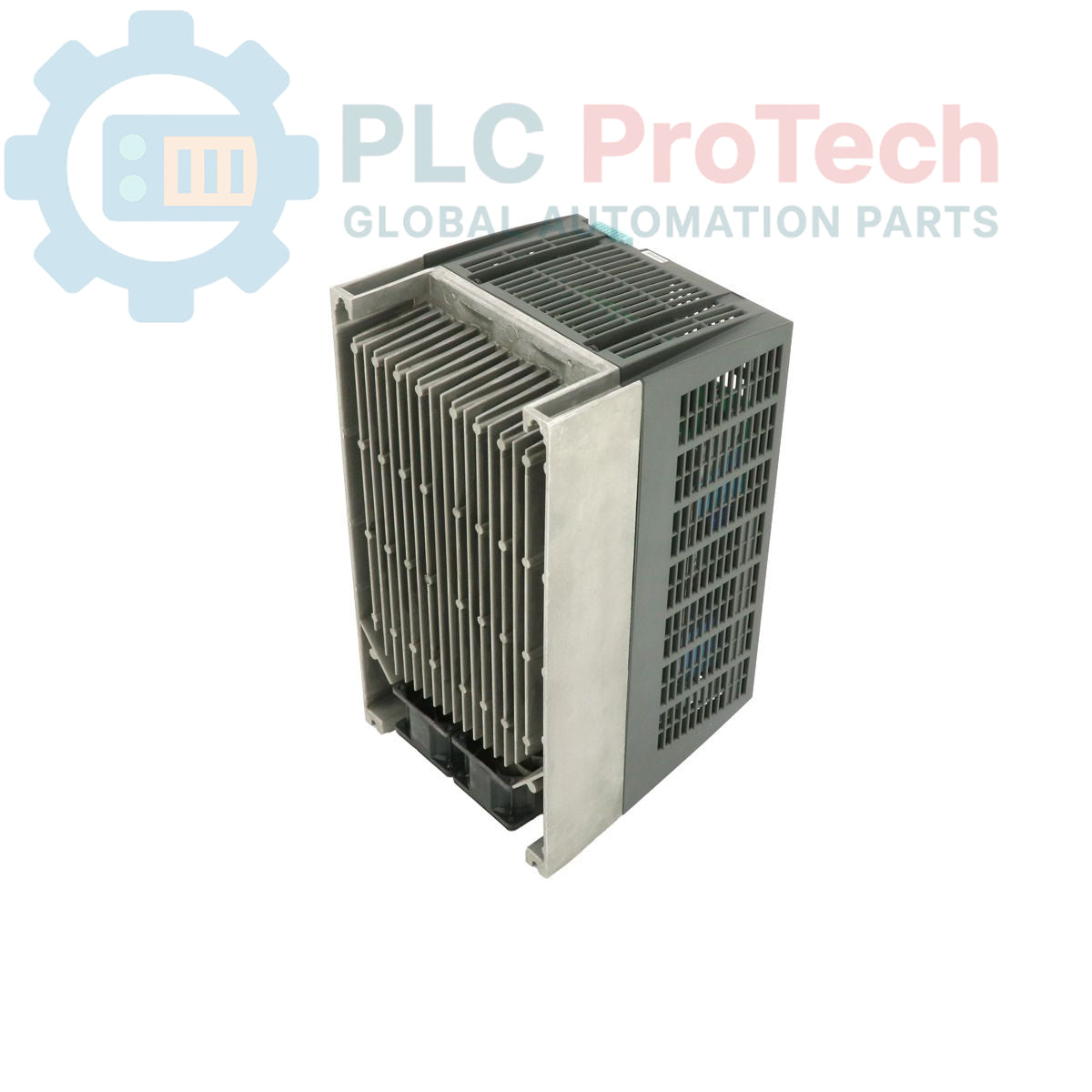

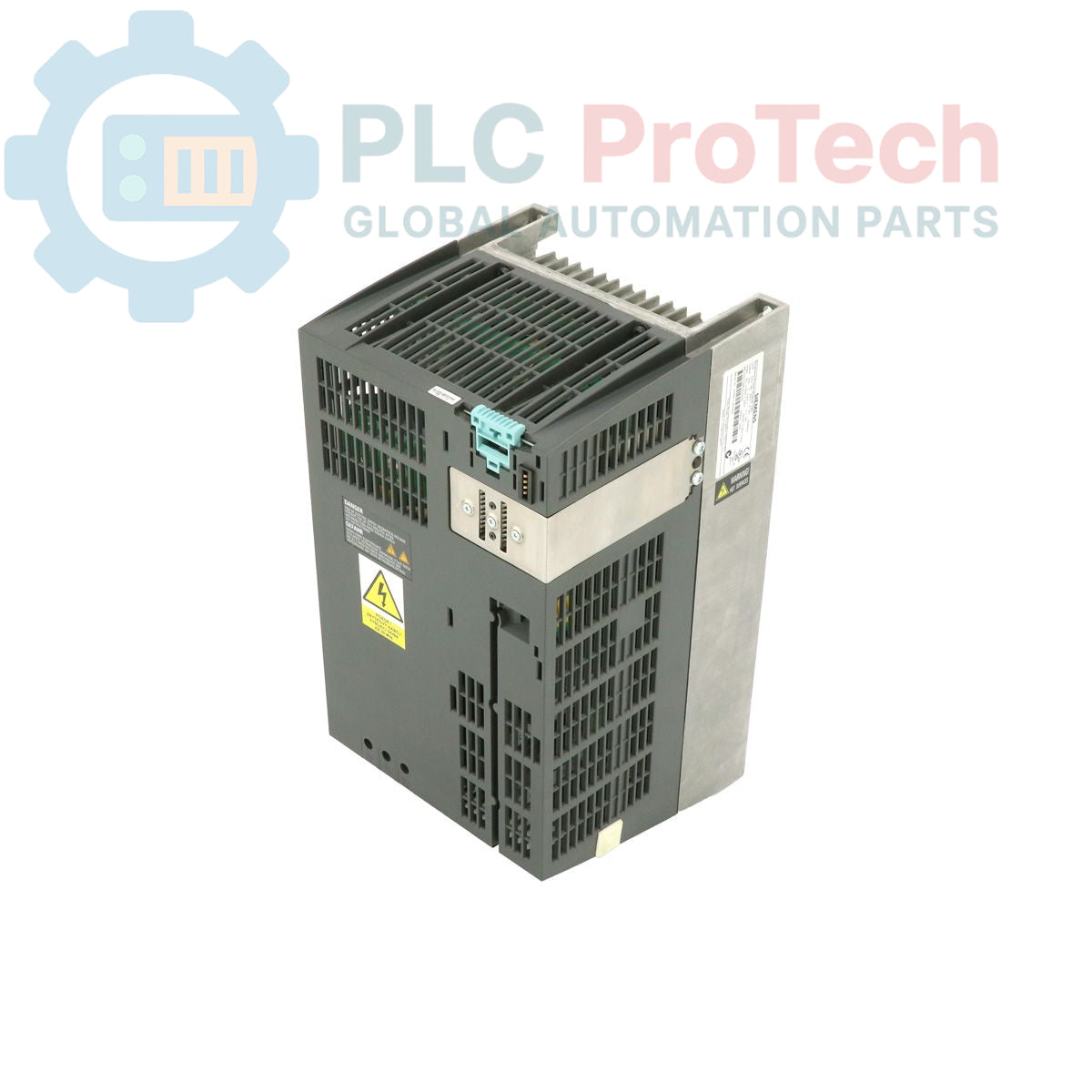

Siemens 6SL3224-0BE25-5AA0 SINAMICS G120 Power Module

SKU 6SL3224-0BE25-5AA0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3224-0BE25-5AA0
Origin Germany
Product Type: Power Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 6.8 kg
Dimensions: 18.90cm x 18.50cm x 33.40cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6SL3224-0BE25-5AA0 is a SINAMICS G120 PM240 Power Module designed for high-performance motion control and industrial variable frequency drive applications. This module features an integrated Class A line filter for electromagnetic compatibility and a built-in braking chopper to handle regenerative energy during deceleration phases. Engineered for flexibility, the 6SL3224-0BE25-5AA0 supports both high-overload (5.5 kW) and low-overload (7.5 kW) modes, allowing for versatile application in various load-dependent industrial processes. It is designed for rack-mounting within control cabinets with an IP20 degree of protection. As a modular component, the unit is supplied without a Control Unit or Basic Operator Panel (BOP), allowing users to select the optimal control interface for their specific system architecture.

Features

Integrated Class A filter and braking chopper for space-efficient installation
Dual overload capability: 5.5 kW (High Overload) or 7.5 kW (Low Overload)
Compact frame size FSC (334 x 189 x 185 mm)
Wide operating temperature range (-10 to +50 Celsius for high overload)
Flexible configuration: Compatible with modular G120 Control Units
IP20 degree of protection for cabinet-based environments

Applications

Conveyor belt drives and material handling
Industrial pump and fan systems
Machine tool spindle and axis control
Packaging and processing line automation
Applications requiring frequent braking or deceleration

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Brand	Siemens
Range	Sinamics
Subrange	G120
Product Type	Power Module (PM240)
Input Voltage	380-480 V 3 AC (+10/-10%)
Input Frequency	47-63 Hz
Nom. Output Current	18 A
High Overload Rating	5.5 kW
Low Overload Rating	7.5 kW
Degree of Protection	IP20
Dimensions	18.90 x 18.50 x 33.40 cm
Weight	6.80 kg
Product Phase	Phase-Out
Commodity Code	85044095

Installation Guidelines

Mounting: Mount the module vertically on a flat surface within an enclosure, ensuring the heatsink fins have sufficient airflow.
Clearance: Adhere to manufacturer-recommended clearances above and below the module to allow for efficient internal heat dissipation.
Control Unit Pairing: This module requires a separate G120 Control Unit to function; ensure the chosen Control Unit is compatible with the PM240 architecture.
Braking Resistor: For applications utilizing the integrated braking chopper, ensure an appropriately sized external braking resistor is connected to the specified terminals.
Wiring: Use screened motor cables and ensure proper common-mode grounding to reduce interference in compliance with local industrial standards.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Does this module include a control unit?

No, the 6SL3224-0BE25-5AA0 is a standalone Power Module (PM240) and does not include a Control Unit or Basic Operator Panel (BOP).

What is the primary difference between high and low overload modes for this unit?

In high overload (5.5 kW), the module is optimized for demanding cycles with higher current peaks. In low overload (7.5 kW), it is optimized for applications with steady or lighter duty cycles.

Does this power module handle regenerative braking?

Yes, it features an integrated braking chopper, which allows the module to dissipate energy through an external braking resistor during deceleration.

What is the successor to this product?

This module is in the Phase-Out stage; please check with the current Siemens catalog for the recommended direct successor for your specific system configuration.
