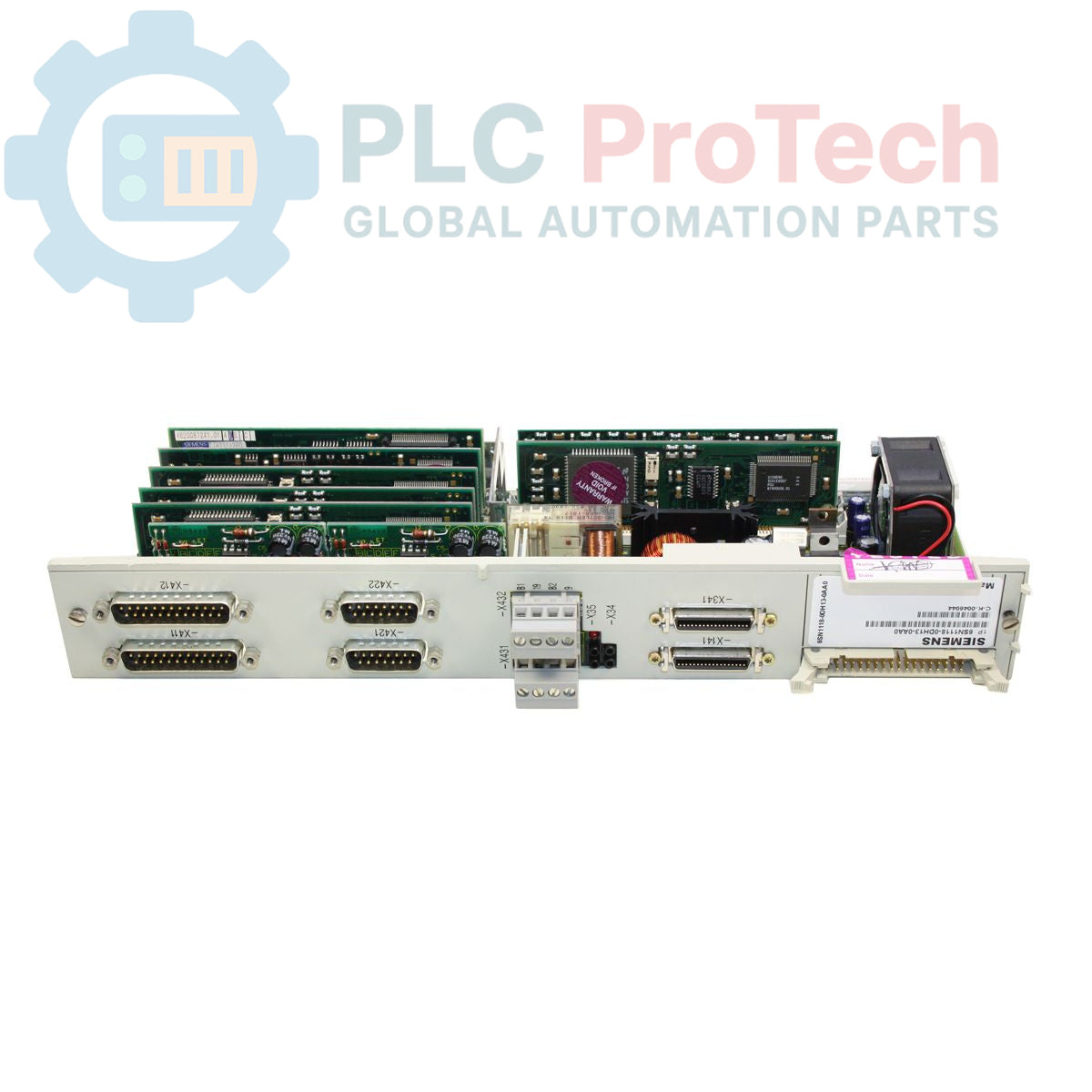

The 6SN1118-0DH13-0AA0 is a SIMODRIVE 611-D closed-loop plug-in control unit specifically engineered for the high-precision control of two axes within digital drive systems. This module is optimized for applications requiring direct measuring system feedback and utilizes voltage signal inputs for enhanced motion accuracy. Its robust, compact plug-in design ensures seamless integration into the SIMODRIVE 611-D drive architecture, facilitating efficient installation and providing reliable, consistent performance in demanding industrial manufacturing environments.

Features

• Dual-axis control capability for complex digital drive configurations.
• Closed-loop control functionality for precision motion management.
• Supports direct measuring systems for high-accuracy position and speed feedback.
• Voltage signal input compatibility.
• Robust plug-in module construction for industrial durability.

Applications

• Multi-axis CNC machine tools and precision processing equipment.
• Automated high-speed production and assembly lines.
• Synchronized motion control in robotic and handling systems.
• Retrofitting and maintenance of multi-axis SIMODRIVE 611-D drive architectures.

Technical Specifications

Installation Guidelines

• Safety: Always power down the drive rack before inserting or removing the control unit to prevent electrical hazards and hardware damage.
• Alignment: Ensure the 2-axis unit is aligned correctly with the SIMODRIVE 611-D drive rack guide rails to prevent damage to the backplane pins.
• Feedback Wiring: Use high-quality shielded cables for the direct measuring system voltage signals to minimize signal noise and ensure precise loop closure.
• System Commissioning: After physical installation, verify parameter settings for both axes via the system software to ensure proper synchronization and motion scaling.
• Thermal Management: Ensure that the control cabinet's cooling system is operational, as high-performance drive units generate heat during continuous operation.
