Siemens

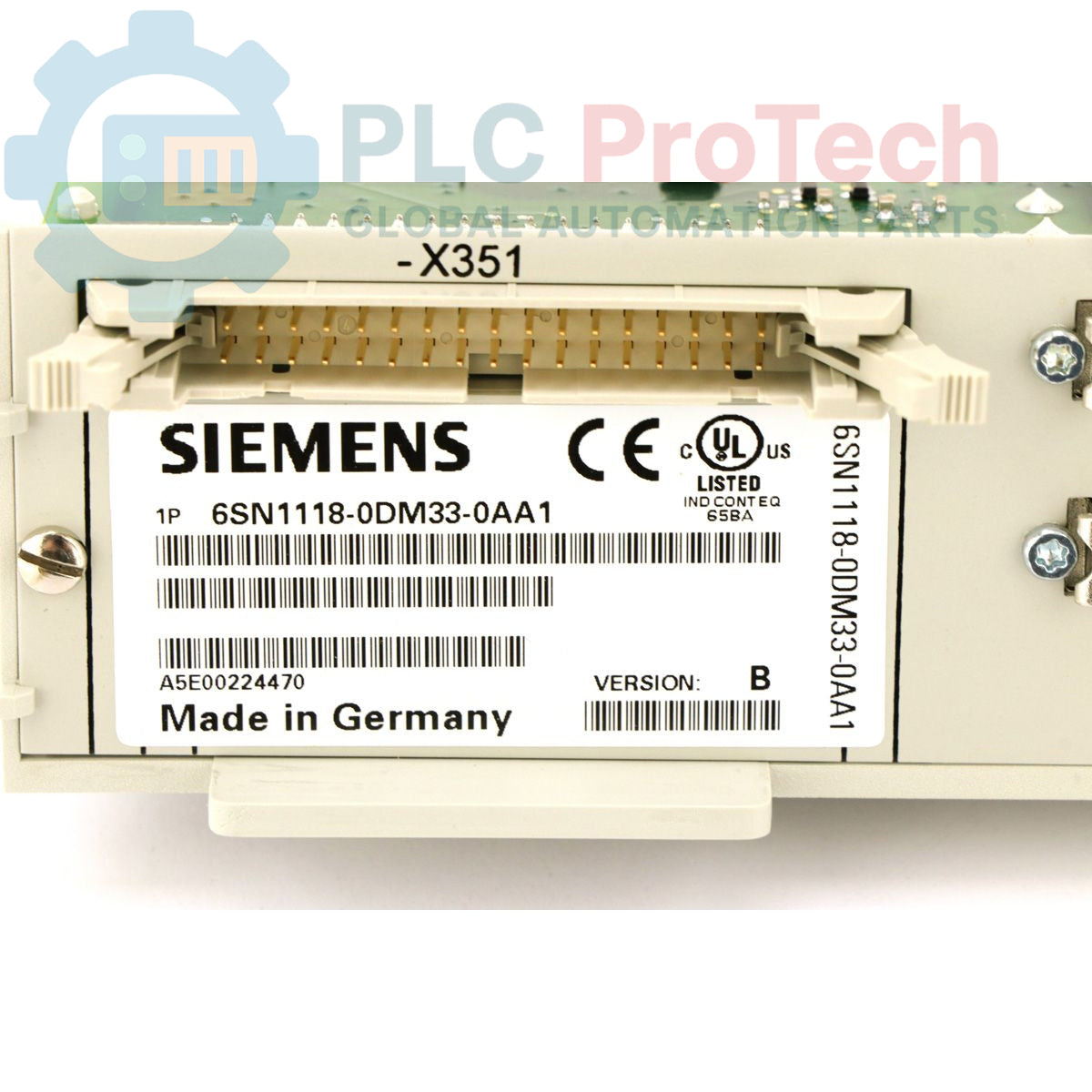

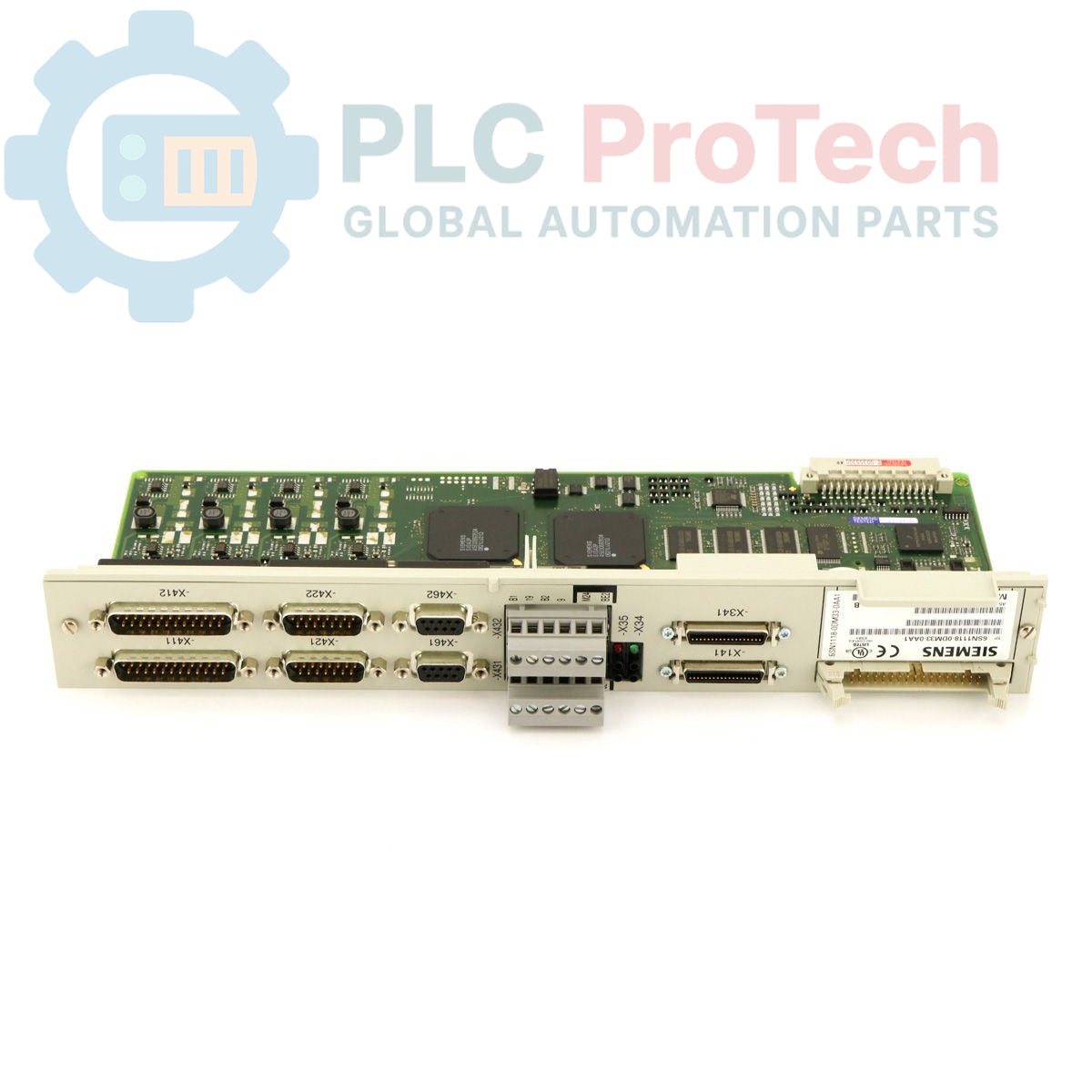

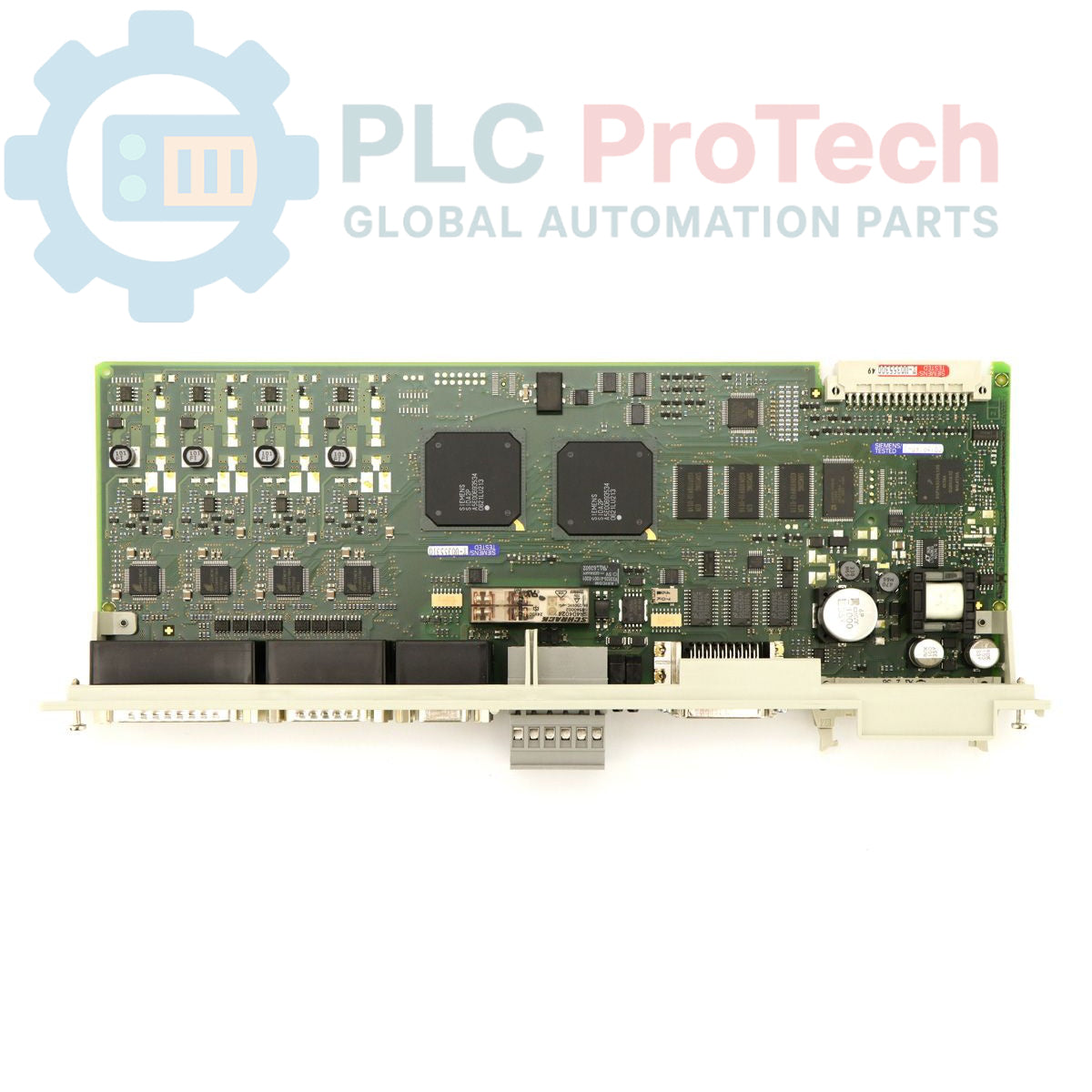

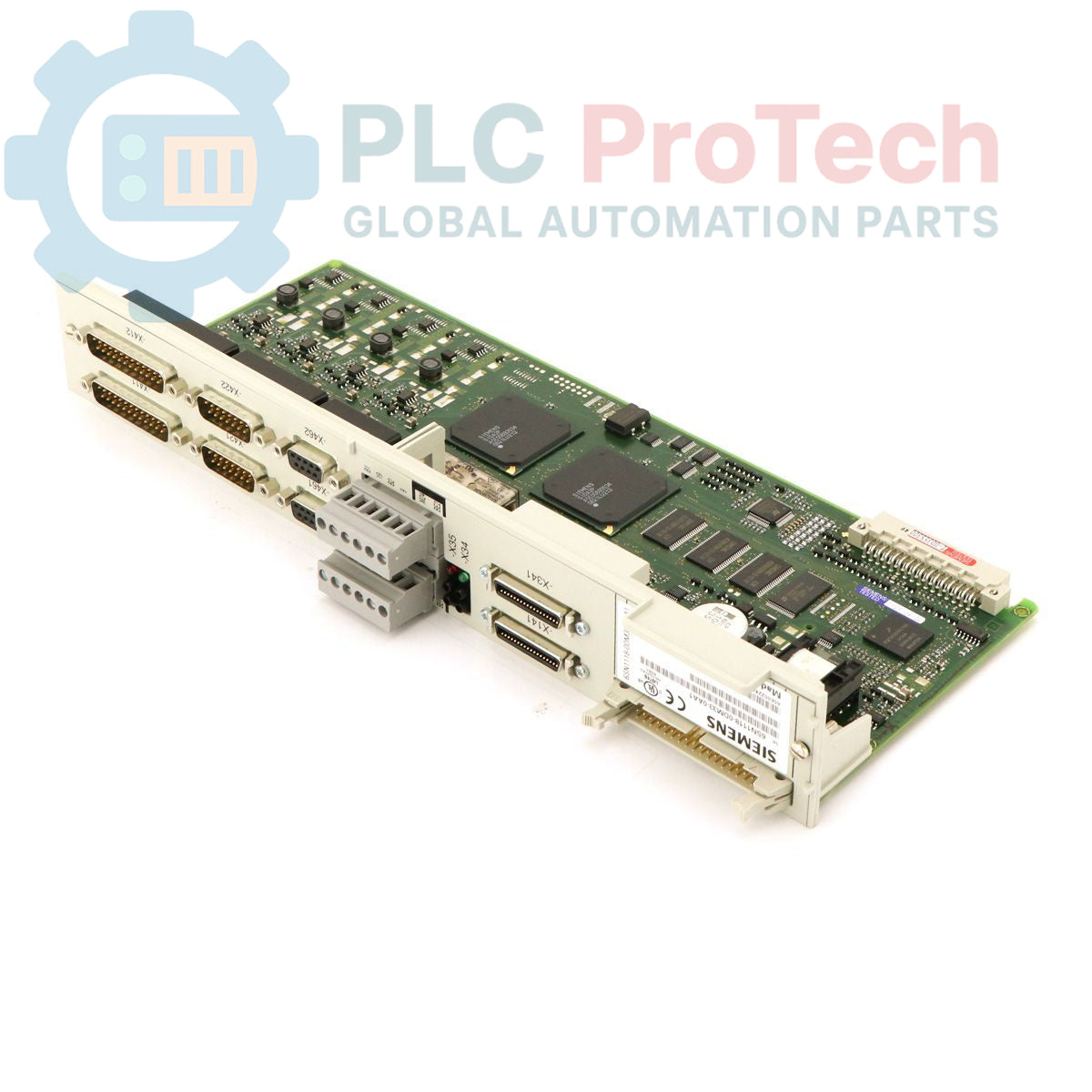

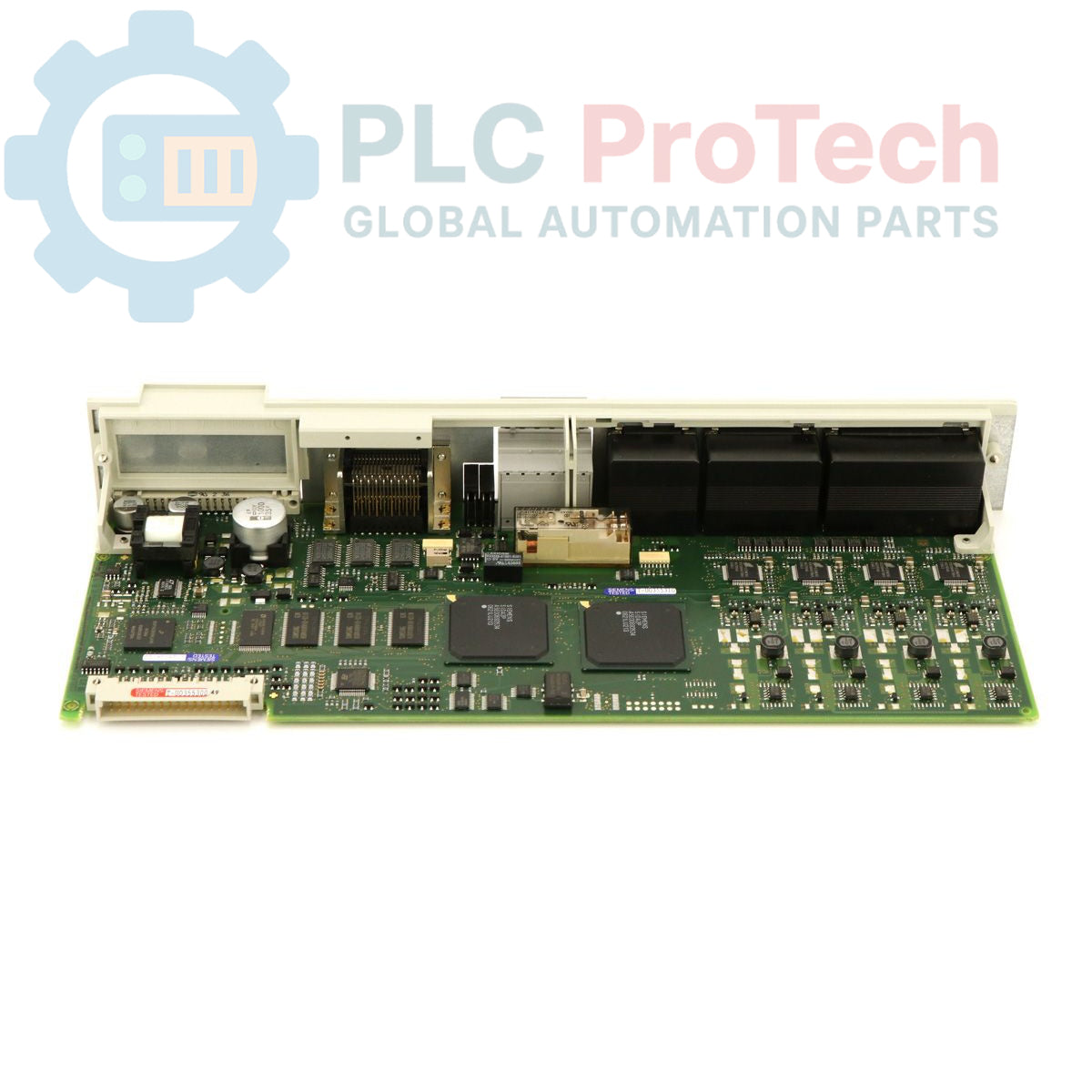

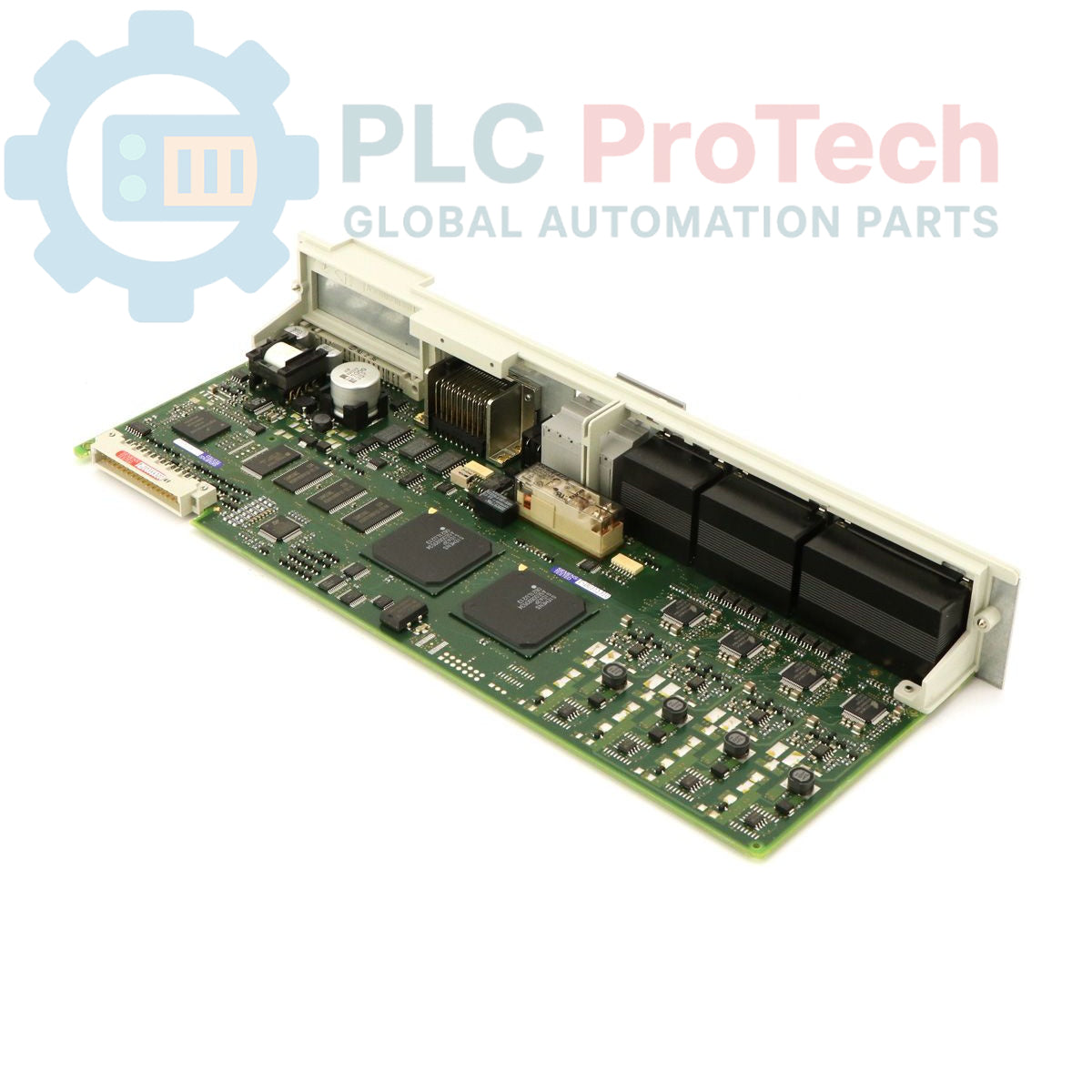

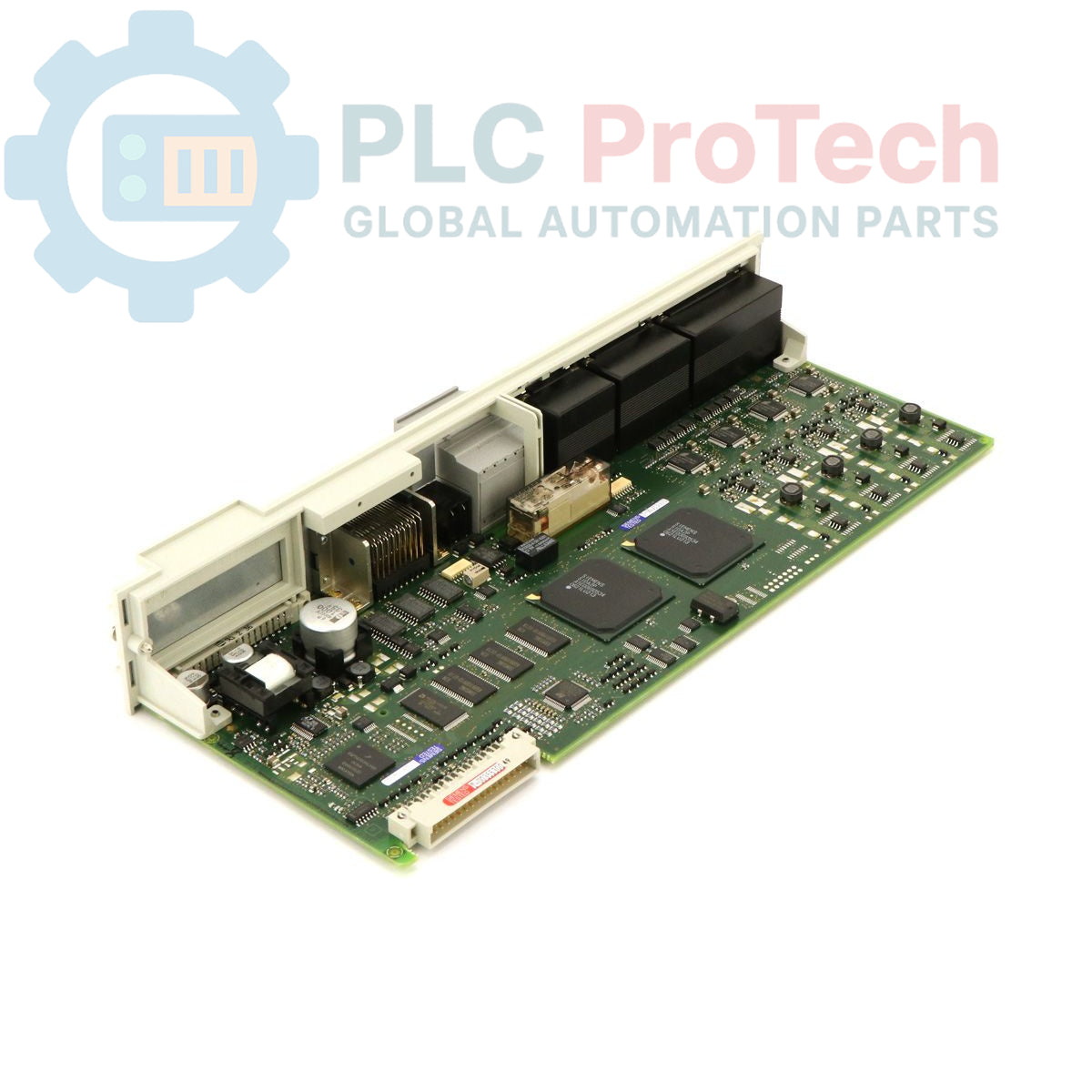

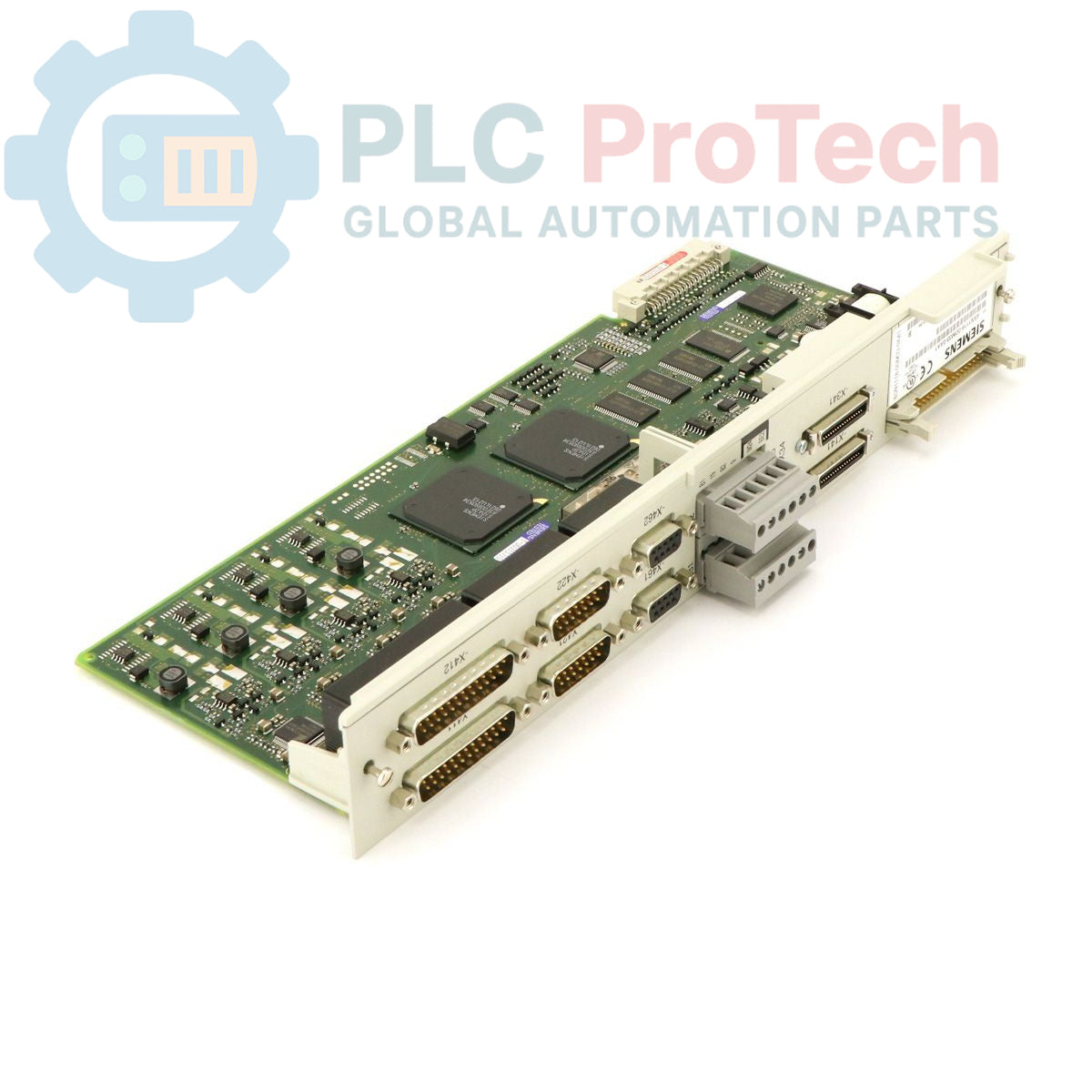

Siemens 6SN1118-0DM33-0AA1 SIMODRIVE 611 Control Unit

SKU 6SN1118-0DM33-0AA1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6SN1118-0DM33-0AA1
  • Origin Germany
  • Product Type: Control Units
  • Barcode: 85049090
  • Payment: T/T, Western Union
  • Weight: 0.5 kg
  • Dimensions: 5.10cm x 12.70cm x 33.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Control Units Simodrive 611
Quantità
Call sales Contact

Product Description

The 6SN1118-0DM33-0AA1 is a high-performance SIMODRIVE 611 digital control loop block designed for multi-axis motion control applications. This "High Standard" module is specifically engineered to manage two axes and features compatibility with SIN/COS 1 Vpp direct measuring systems, allowing for high-precision feedback in complex machining and automation tasks. It serves as a critical component in SIMODRIVE 611 drive racks, requiring specific NC software versions (from 06.04.09 onwards) to ensure correct drive regulation and axis synchronization.

Features

  • Series: SIMODRIVE 611 (Digital Control)
  • Performance Class: High Standard
  • Axis Management: 2-Axis control capability
  • Feedback Compatibility: SIN/COS 1 Vpp direct measuring systems
  • Software Requirements: Requires NC software version 06.04.09 or later
  • Status: Phase-Out (Successor: 6SN1118-0DM33-0AA2)

Applications

  • High-precision CNC milling and turning machines
  • Multi-axis robotic assembly systems
  • High-speed industrial positioning tasks
  • Synchronized motion control for manufacturing lines
  • Retrofitting and maintenance of legacy SIMODRIVE 611 architectures

Technical Specifications

Parameter Specification
Brand Siemens
Model 6SN1118-0DM33-0AA1
Range Simodrive
Subrange 611
Product Type Control units
Axes 2
Feedback SIN/COS 1 Vpp
Weight 0.50 kg
Dimensions 5.10 x 12.70 x 33.00 cm
Commodity Code 85049090
Export Control (ECCN) N
Product Phase Phase-Out

Installation Guidelines

  • Module Insertion: Always power down the SIMODRIVE 611 rack before installing or removing control loop blocks. Ensure the module is properly seated in the drive rack slots to maintain pin alignment.
  • Feedback Connection: When connecting SIN/COS 1 Vpp measuring systems, use shielded feedback cables to maintain signal integrity and prevent encoder errors or "drift" during high-speed motion.
  • Software Version: Verify that the system NC software version is at least 06.04.09. Attempting to run this module on older software versions may lead to communication faults or inability to initialize the control loop.
  • Parameterization: After physical installation, perform a drive optimization and parameter alignment in the NC software to configure the specific axis dynamics.
  • Environmental Control: The module relies on rack airflow. Ensure the cabinet ventilation fans are functional to prevent localized heating of the control blocks.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Does this control unit support more than two axes?
No, the 6SN1118-0DM33-0AA1 is explicitly designed as a 2-axis control loop block for the SIMODRIVE 611 system.
What happens if my NC software version is older than 06.04.09?
The module will likely fail to initialize or report communication errors, as the control loop logic requires the specific software features introduced in version 06.04.09.
Can I replace this unit with the successor model 6SN1118-0DM33-0AA2?
The 6SN1118-0DM33-0AA2 is the designated successor. In most cases, it is a drop-in replacement, but we recommend verifying the specific hardware revision and firmware compatibility with your existing drive rack configuration.
What is the function of the SIN/COS 1 Vpp interface?
This interface accepts analog sine/cosine signals from high-resolution encoders, allowing the drive to perform extremely precise position interpolation beyond the basic pulse count.
