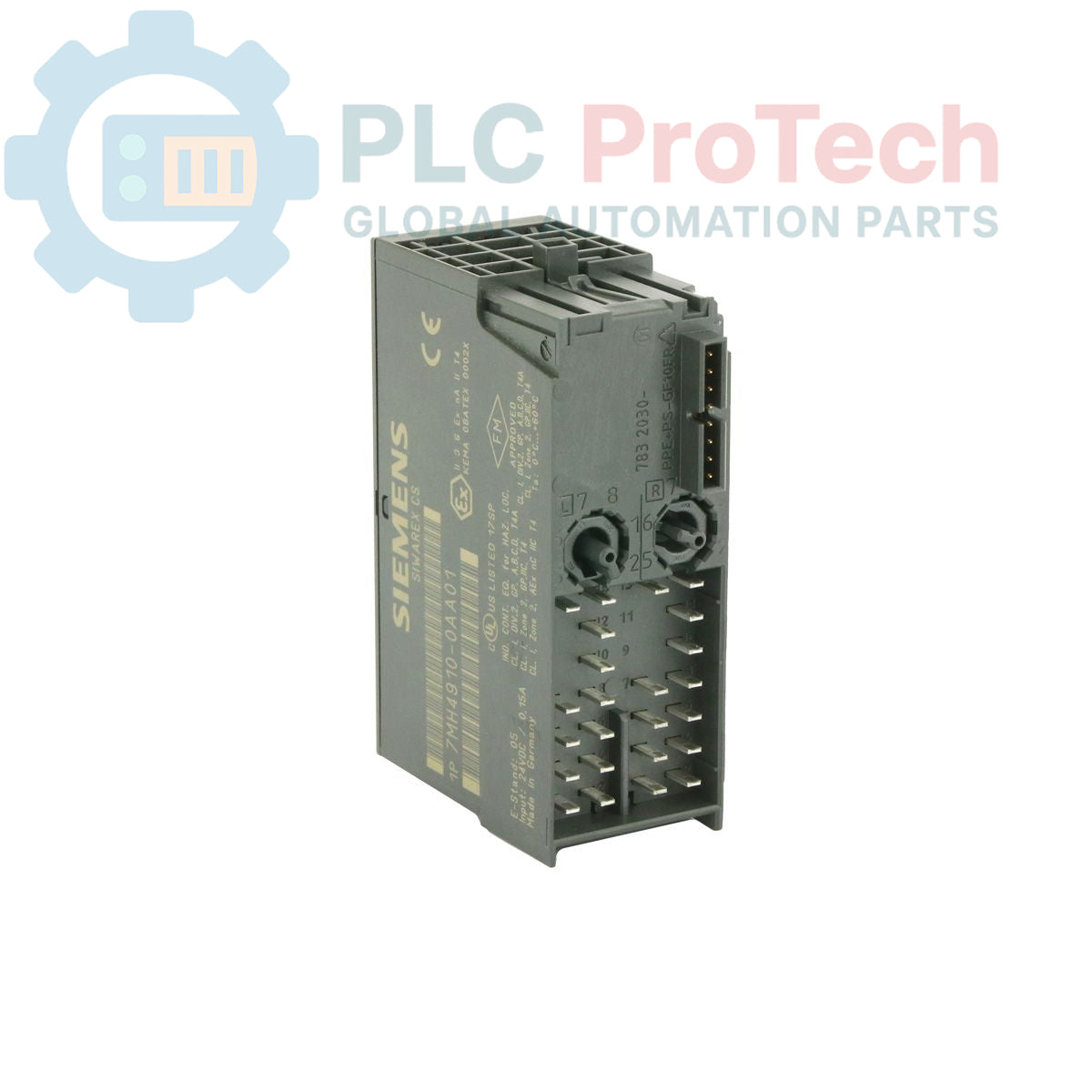

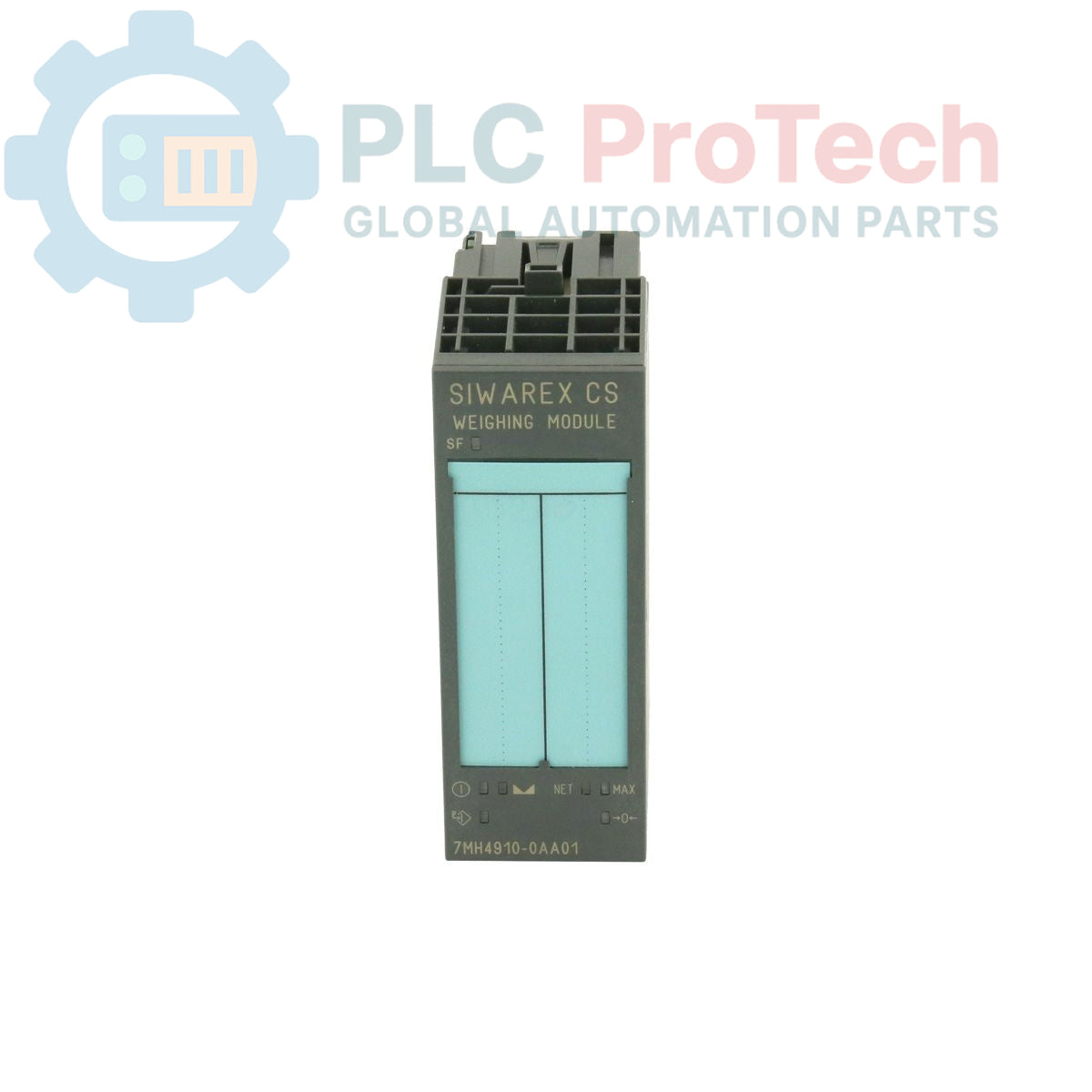

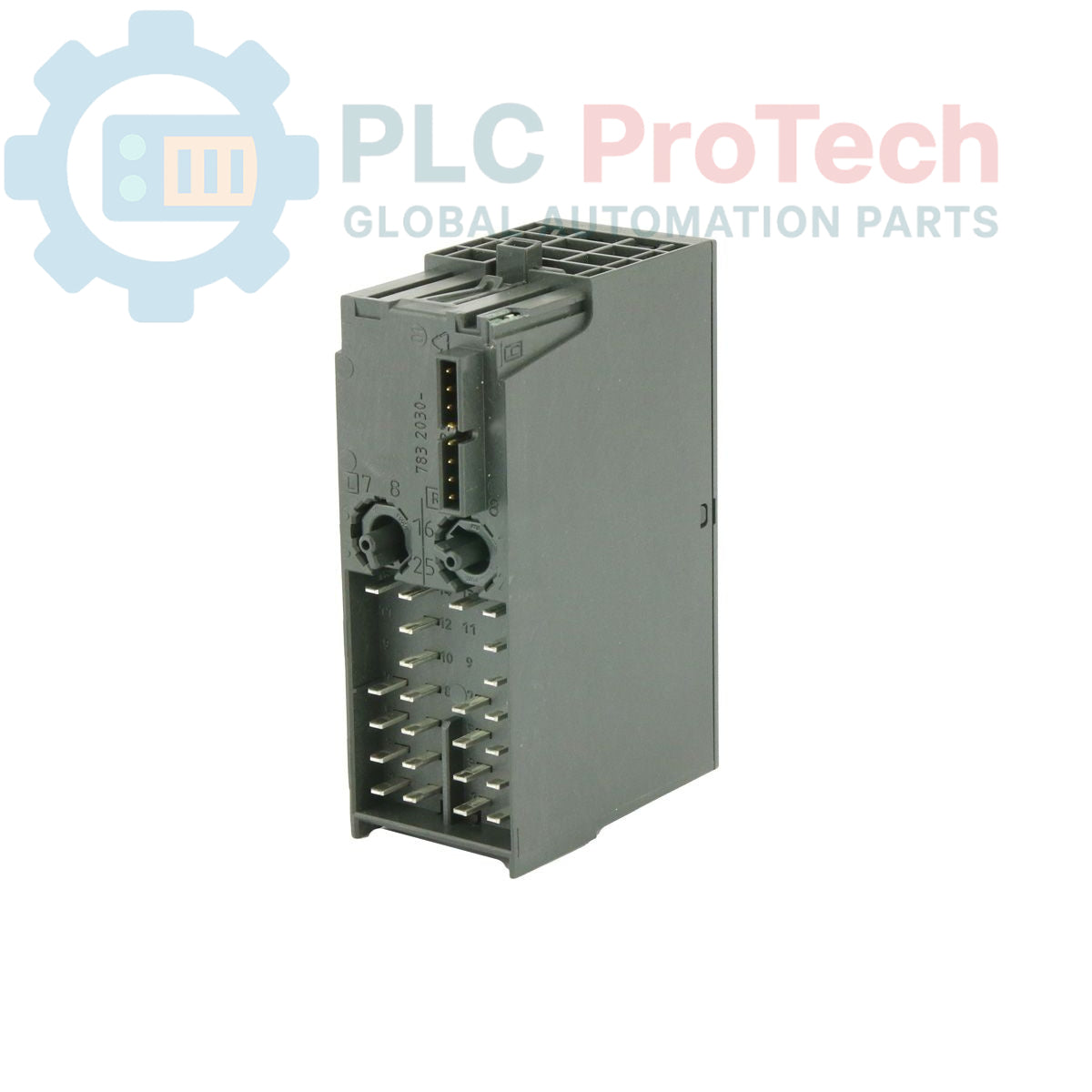

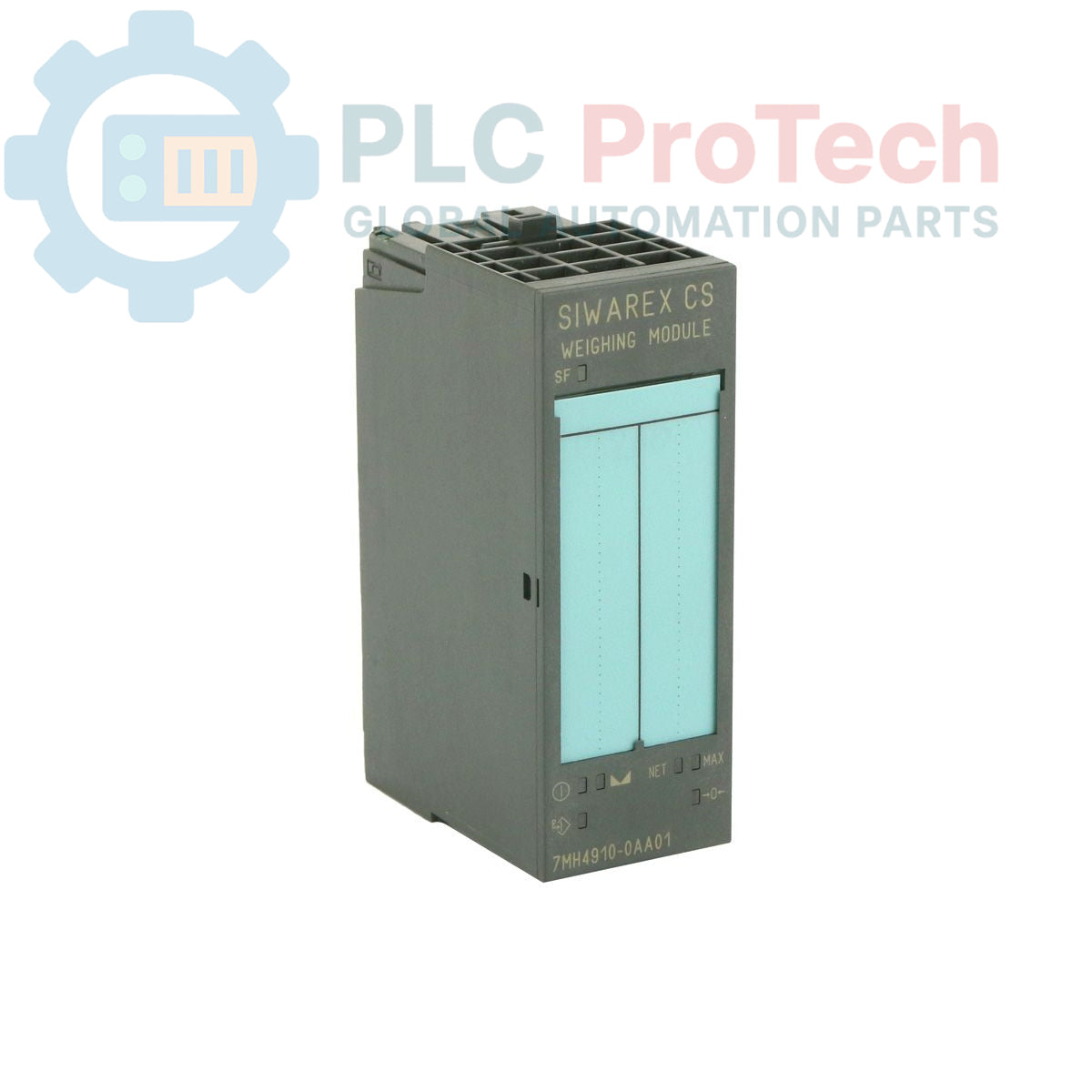

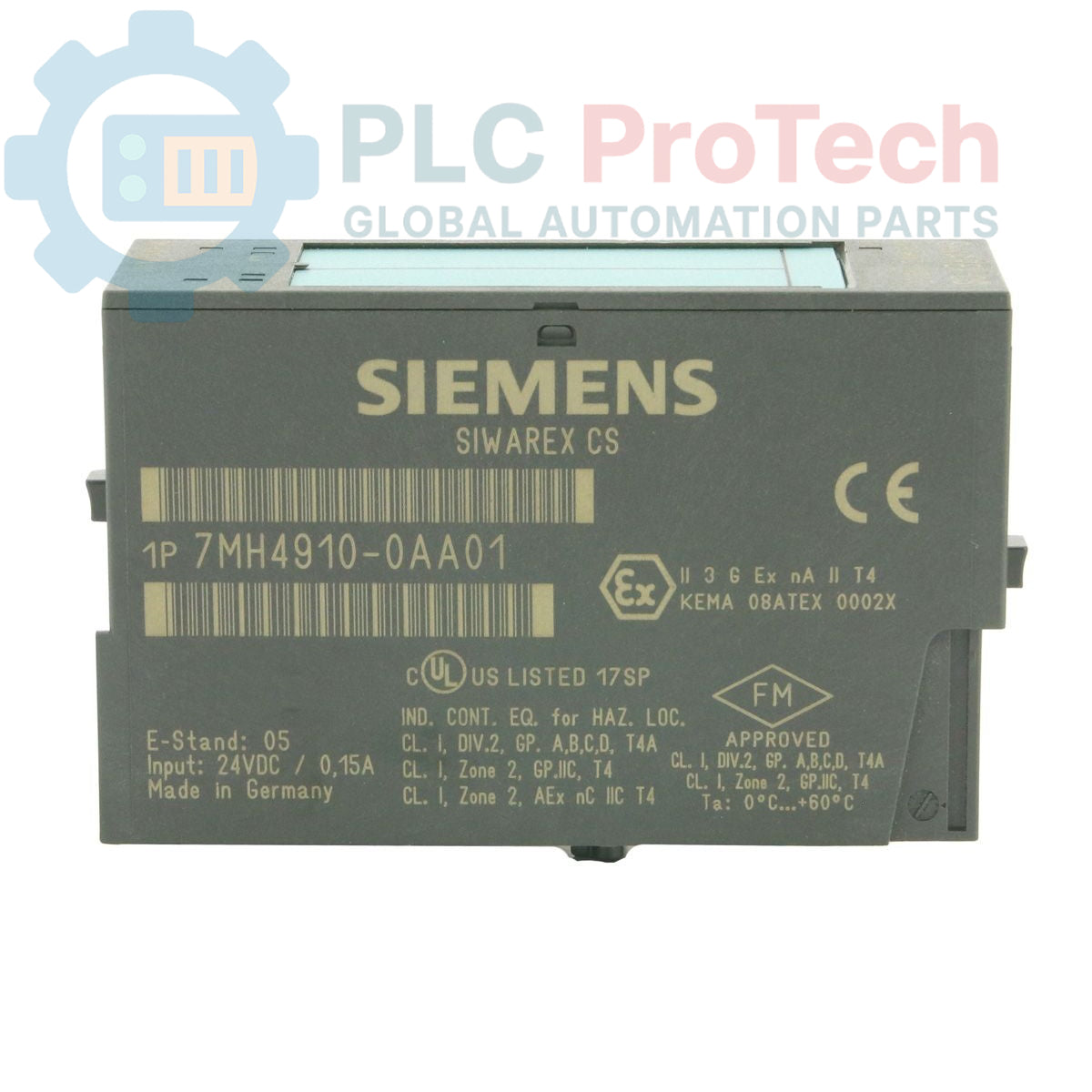

The 7MH4910-0AA01 is a SIWAREX CS weighing electronic module engineered for the precise integration of a single scale into the SIMATIC ET200S distributed I/O system. This compact module acts as a bridge between strain gauge sensors and the automation controller, providing high-resolution weight data processing. It is specifically compatible with the IM151-1 (Basic, Standard, High Feature) and IM151-7 CPU head stations. Designed for operational versatility, the 7MH4910-0AA01 includes an integrated RS232 interface for direct PC communication and a TTY interface for connection to remote displays, facilitating efficient monitoring and system calibration in industrial weighing applications.

Features

• Compatibility: Designed specifically for the SIMATIC ET200S distributed I/O family.
• Scale Interface: Supports connection for one scale, ideal for platform or hopper scales.
• Communication: Features a dedicated RS232 port for PC connectivity and a TTY interface for remote display units.
• Integration: Seamlessly functions with IM151-1 and IM151-7 head stations.
• Compact Design: Lightweight, space-saving form factor for dense control cabinet layouts.

Applications

• Industrial platform scales and hopper weighing.
• Distributed weighing control in production lines.
• Automated dosing and filling systems.
• Force measurement and level monitoring in industrial tanks.

Technical Specifications

Installation Guidelines

• Module Insertion: Ensure the ET200S terminal module is properly installed on the DIN rail before inserting the Siwarex CS module.
• Shielding: To ensure measurement accuracy, use shielded cables for the load cell connection and ground the shield at the module’s designated terminal point to prevent EMI.
• Calibration: Perform the initial weighing calibration via the SIWATOOL software or through the PLC-integrated function blocks.
• Environmental: Ensure the cabinet environment is free from excessive vibration or extreme thermal variations to maintain scale linearity and accuracy.
