6AV7861-2AB00-1AA0

Siemens

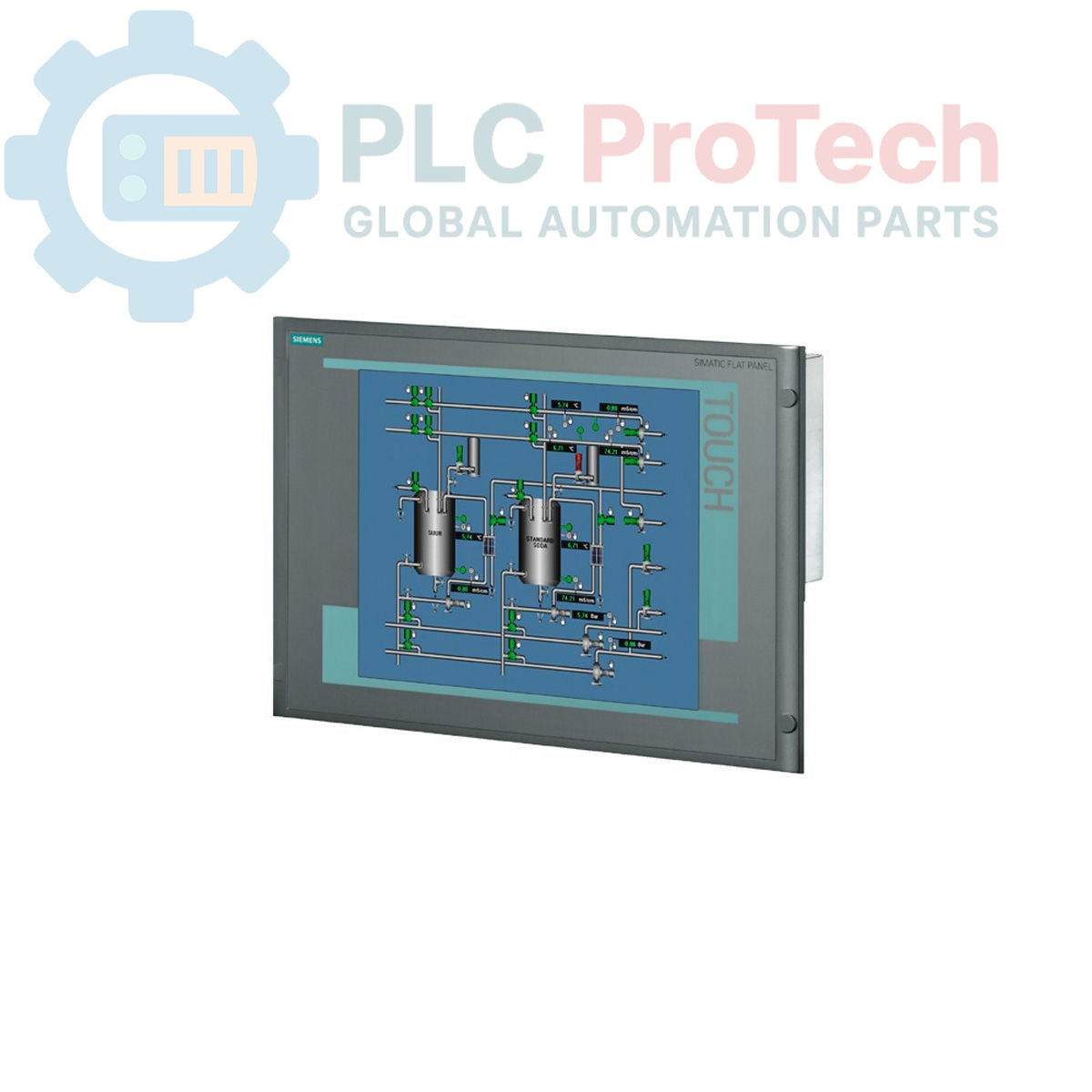

Siemens SIMATIC FP 6AV7861-2AB00-1AA0 Flat Panels

SKU 6AV7861-2AB00-1AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7861-2AB00-1AA0
  • Origin Germany
  • Product Type: Flat Panels
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.003 kg
  • Dimensions: 39.50cm x 30.00cm x 17.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flat Panels
Quantità
Call sales Contact

Product Description

Description

The Siemens SIMATIC FP 6AV7861-2AB00-1AA0 is a SIMATIC FLAT PANEL 15 15 INCH TFT- DISPLAY WITH 1024X768 PIXEL RESOLUTION FOR 24V DC AND 120/240V AC VGA, DVI-D INTERFACE WITH VGA-CABLE 1,8M engineered by Siemens for industrial operator visualization environments. Part of the SIMATIC FP (Flat Panel) range, this industrial monitor features a 15-inch TFT display with a resolution of 1024x768 pixels. It supports flexible power supply compatibility for both 24 V DC and 120/240 V AC operation, and provides VGA and DVI-D display interface options, complete with an included 1.8-meter VGA cable. With dimensions of 39.50 x 30.00 x 17.00 cm and a weight of 3.00 kg, this obsolete lifecycle unit is essential for maintaining legacy control consoles.

Features

  • SIMATIC FLAT PANEL 15 15 INCH TFT- DISPLAY WITH 1024X768 PIXEL RESOLUTION FOR 24V DC AND 120/240V AC VGA, DVI-D INTERFACE WITH VGA-CABLE 1,8M design for industrial operator interfaces
  • 15-inch TFT display with 1024x768 pixel resolution
  • Dual power input compatibility for 24 V DC and 120/240 V AC systems
  • VGA and DVI-D interface connections with an included 1.8 m VGA cable
  • Dimensions of 39.50 x 30.00 x 17.00 cm and 3.00 kg weight
  • Obsolete product lifecycle status for legacy system support

Applications

  • Industrial automation operator control stations
  • CNC machine tool display monitoring
  • Legacy SIMATIC flat panel visualization console replacements

Technical Specifications

Technical Parameter Specification
Manufacturer Siemens
Brands Siemens
Range SIMATIC
Subrange FP
Type of Product Flat Panels
Product Model 6AV7861-2AB00-1AA0
Product Phase Obsolete
Display Size 15 Inch TFT
Resolution 1024 x 768 Pixels
Supply Voltage 24 V DC, 120/240 V AC
Interfaces VGA, DVI-D
Included Accessories 1.8 m VGA Cable
Dimensions 39.50 x 30.00 x 17.00 cm
Weight 3.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) EAR99

Installation Guidelines

  • Mount the flat panel securely into the cutout of the operator console or enclosure panel using appropriate mounting brackets.
  • Verify incoming power supply requirements (24 V DC or 120/240 V AC) and ensure correct protective grounding prior to energization.
  • Connect the VGA or DVI-D video signal cables securely, ensuring thumbscrews or locking mechanisms are engaged.
  • Route display signal cables away from high-voltage power lines and motor drives to prevent image distortion and electromagnetic interference.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the screen size and resolution of the 6AV7861-2AB00-1AA0 display?
It features a 15-inch TFT display with a resolution of 1024x768 pixels.
What power supply options does this industrial flat panel support?
It supports both 24 V DC and 120/240 V AC power supplies.
What video interfaces are available on this unit?
It provides both VGA and DVI-D interface connections.
What is the current lifecycle phase of this product?
This product is in an obsolete phase.
