6AV2144-8GC20-0AA0

Siemens

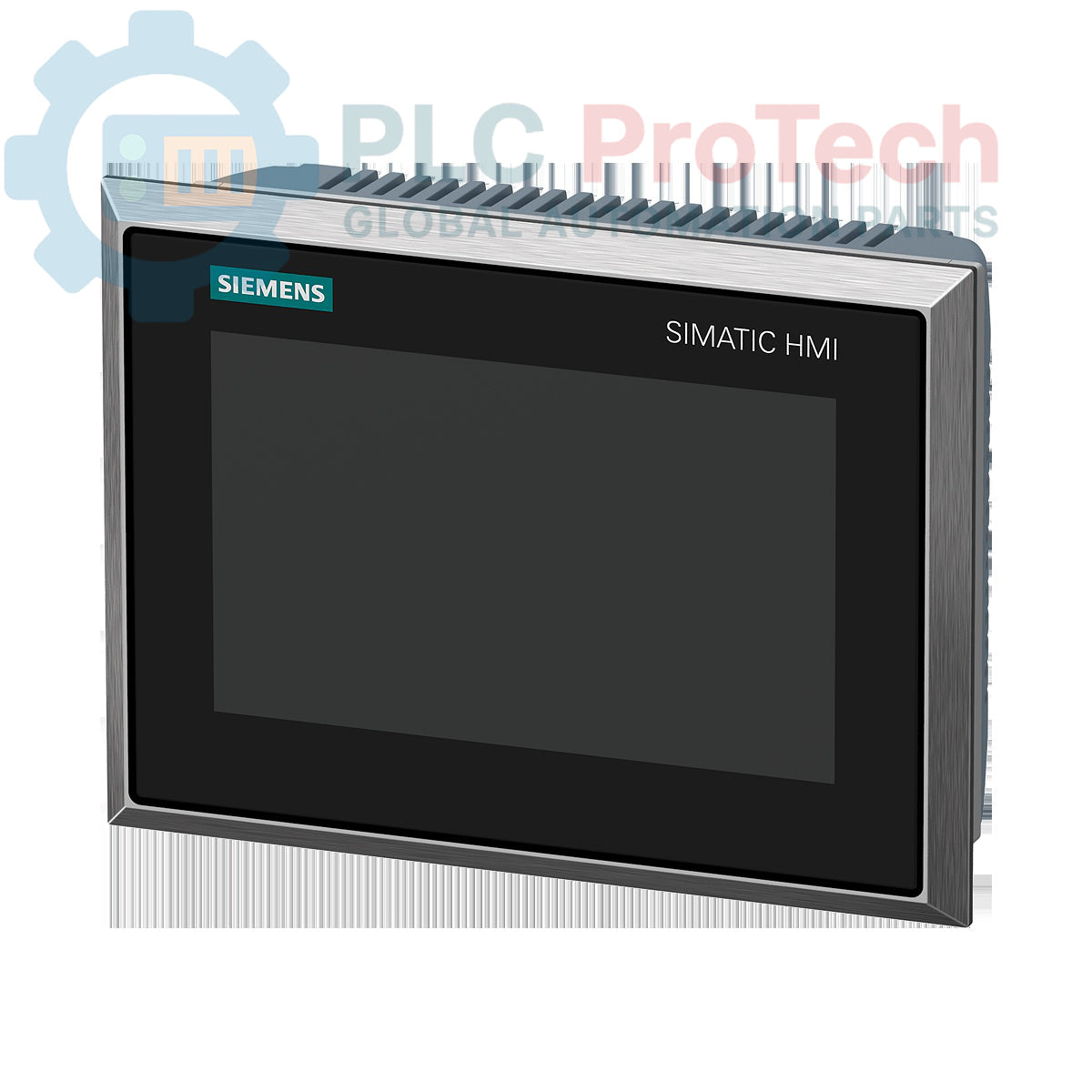

Siemens SIMATIC HMI 6AV2144-8GC20-0AA0 Comfort Panels

SKU 6AV2144-8GC20-0AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV2144-8GC20-0AA0
  • Origin Germany
  • Product Type: CoMfort Panels
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.002 kg
  • Dimensions: 25.20cm x 19.00cm x 11.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

CoMfort Panels HMI
Quantità
Call sales Contact

Product Description

Description

The Siemens SIMATIC HMI 6AV2144-8GC20-0AA0 is a SIMATIC HMI TP700 COMFORT INOX STAINLESS STEEL FRONT, GLASS PANE, CAPACITIVE TOUCH, DEGREE OF PROTECTION FRONT IP69K, 7" WIDESCREEN TFT DISPLAY, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 12 MB CONFIGURATION MEMORY, WINDOWS CE 6.0, WINCC COMFORT V15.1 engineered by Siemens for demanding operator control and monitoring environments. Featuring a rugged stainless steel INOX front, a glass pane with capacitive touch functionality, and an IP69K front protection rating, this 7-inch widescreen TFT display is designed to withstand harsh washdown conditions in food, beverage, and pharmaceutical industries. Powered by Windows CE 6.0 with 12 MB of configuration memory, the 6AV2144-8GC20-0AA0 supports PROFINET and MPI/PROFIBUS DP communication interfaces for flexible system integration using WinCC Comfort V15.1. With dimensions of 25.20 x 19.00 x 11.00 cm and a weight of 2.00 kg, this active lifecycle unit delivers reliable visualization performance.





Features

  • SIMATIC HMI TP700 COMFORT INOX STAINLESS STEEL FRONT, GLASS PANE, CAPACITIVE TOUCH, DEGREE OF PROTECTION FRONT IP69K, 7" WIDESCREEN TFT DISPLAY, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 12 MB CONFIGURATION MEMORY, WINDOWS CE 6.0, WINCC COMFORT V15.1 design for hygienic industrial applications





  • Stainless steel INOX front with glass pane and capacitive touch interface
  • IP69K front protection rating for high-pressure and high-temperature washdown resistance
  • 7-inch widescreen TFT display for clear visualization
  • PROFINET and MPI/PROFIBUS DP communication ports
  • 12 MB configuration memory running on Windows CE 6.0
  • Active product lifecycle status for current deployment
  • Dimensions of 25.20 x 19.00 x 11.00 cm and 2.00 kg weight

Applications

  • Food and beverage processing plant operator stations
  • Pharmaceutical manufacturing cleanroom HMI visualization
  • Harsh industrial environments requiring frequent high-pressure cleaning
  • Machine tool and automation process control monitoring

Technical Specifications

Technical Parameter Specification
Manufacturer Siemens
Brands Siemens
Range SIMATIC HMI
Type of Product Comfort Panels
Product Model 6AV2144-8GC20-0AA0
Product Phase Active
Display Size 7 Inch Widescreen TFT
Front Design INOX Stainless Steel, Glass Pane
Touch Technology Capacitive Touch
Front Protection Rating IP69K
Operating System Windows CE 6.0
Configuration Memory 12 MB
Communication Interfaces PROFINET, MPI/PROFIBUS DP
Engineering Software WinCC Comfort V15.1
Dimensions 25.20 x 19.00 x 11.00 cm
Weight 2.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) 5A992

Installation Guidelines

  • Cut the control panel mounting opening accurately according to the specified dimensions, ensuring a secure fit for the INOX front frame.
  • Tighten the mounting clamps evenly around the perimeter to compress the sealing gasket and maintain the IP69K protection rating against liquid ingress.
  • Connect the power supply and ensure proper protective earth grounding of the stainless steel enclosure.
  • Connect PROFINET or MPI/PROFIBUS DP communication cables securely, ensuring proper shielding and routing away from high-voltage power lines.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What display size and type does the 6AV2144-8GC20-0AA0 HMI feature?
It features a 7-inch widescreen TFT display.
What degree of protection does the front panel offer?
The front panel offers an IP69K degree of protection for washdown environments.
What communication interfaces are integrated into this panel?
It includes PROFINET and MPI/PROFIBUS DP interfaces.
What operating system and memory capacity are provided?
It operates on Windows CE 6.0 with 12 MB of configuration memory.
