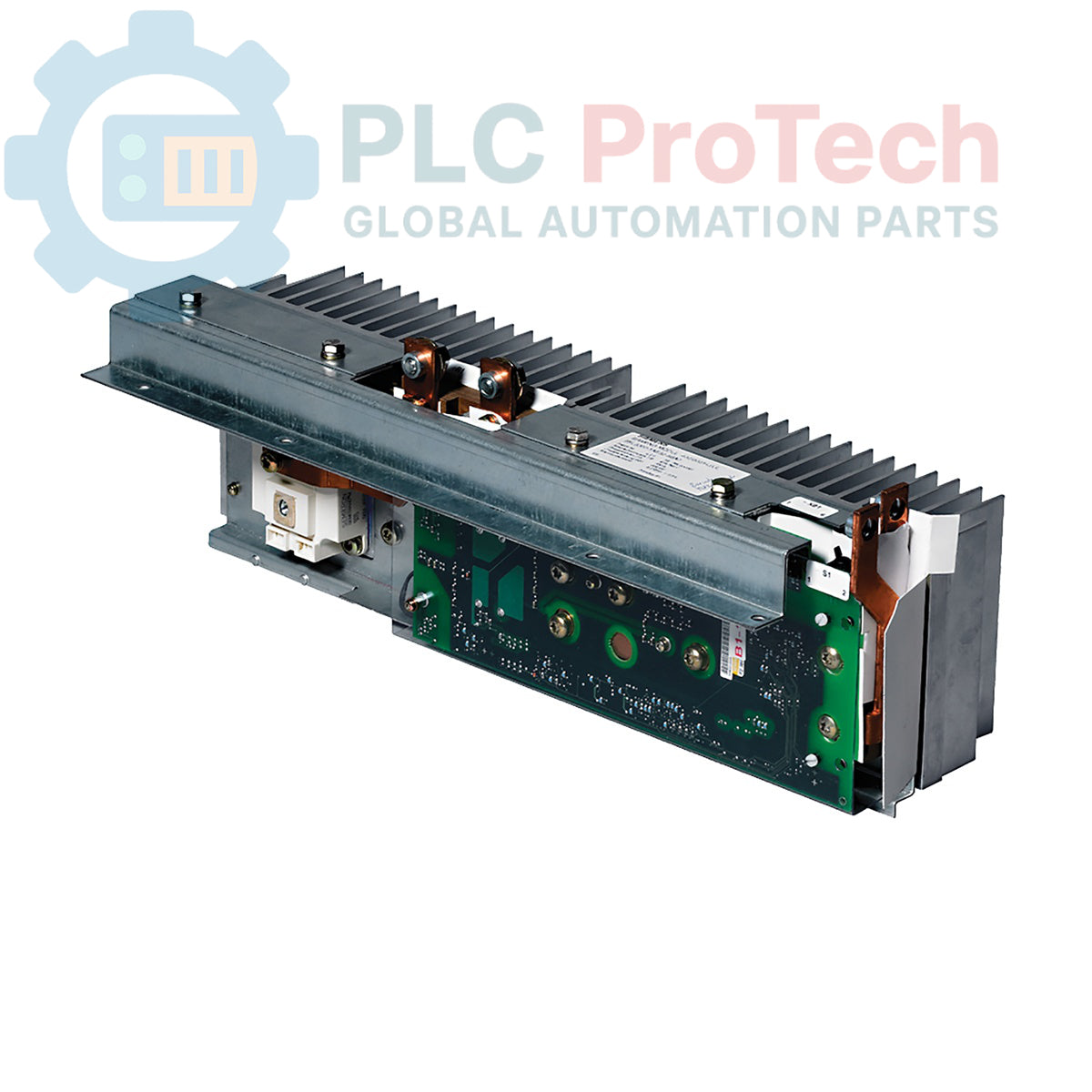

The 6SL3300-1AE31-3AA0 is a SINAMICS Braking Module designed to manage regenerative energy in high-power industrial drive systems. This module is engineered for integration with chassis-style drive units, facilitating the safe dissipation of excess energy generated during braking processes. It operates with a DC input of 600 V and provides a braking power rating of 125 kW for a 15-second duration, ensuring stability and protection for the drive infrastructure during rapid deceleration or dynamic load changes.

Features

• Energy Management: Efficiently manages regenerative energy to prevent DC bus overvoltage.
• System Compatibility: Designed specifically for use with SINAMICS chassis units.
• Performance: Provides 125 kW of braking power for a 15-second cycle.
• Operating Voltage: Supports 600 V DC input.
• Reliability: Robust build for demanding industrial motion control applications.

Applications

• High-inertia load deceleration in industrial machines.
• Dynamic braking for large-scale conveyor systems.
• Integration with SINAMICS chassis-based inverter configurations.
• Applications involving frequent stop-start cycles requiring efficient energy dissipation.

Technical Specifications

Installation Guidelines

• Mounting: Install the module within the designated cabinet space for chassis-style components. Ensure sufficient clearance for heat dissipation, as braking modules generate thermal energy during operation.
• DC Bus Connection: Verify that the DC input wiring is correctly sized for the voltage and current requirements. Ensure all connections to the DC bus are torqued according to Siemens technical specifications.
• Safety: Ensure the braking resistor (if required) is compatible with the module's power rating and properly insulated.
• Thermal Protection: Monitor the module temperature and ensure the control system is programmed to handle fault signals from the Braking Module to prevent overheating.
