Description

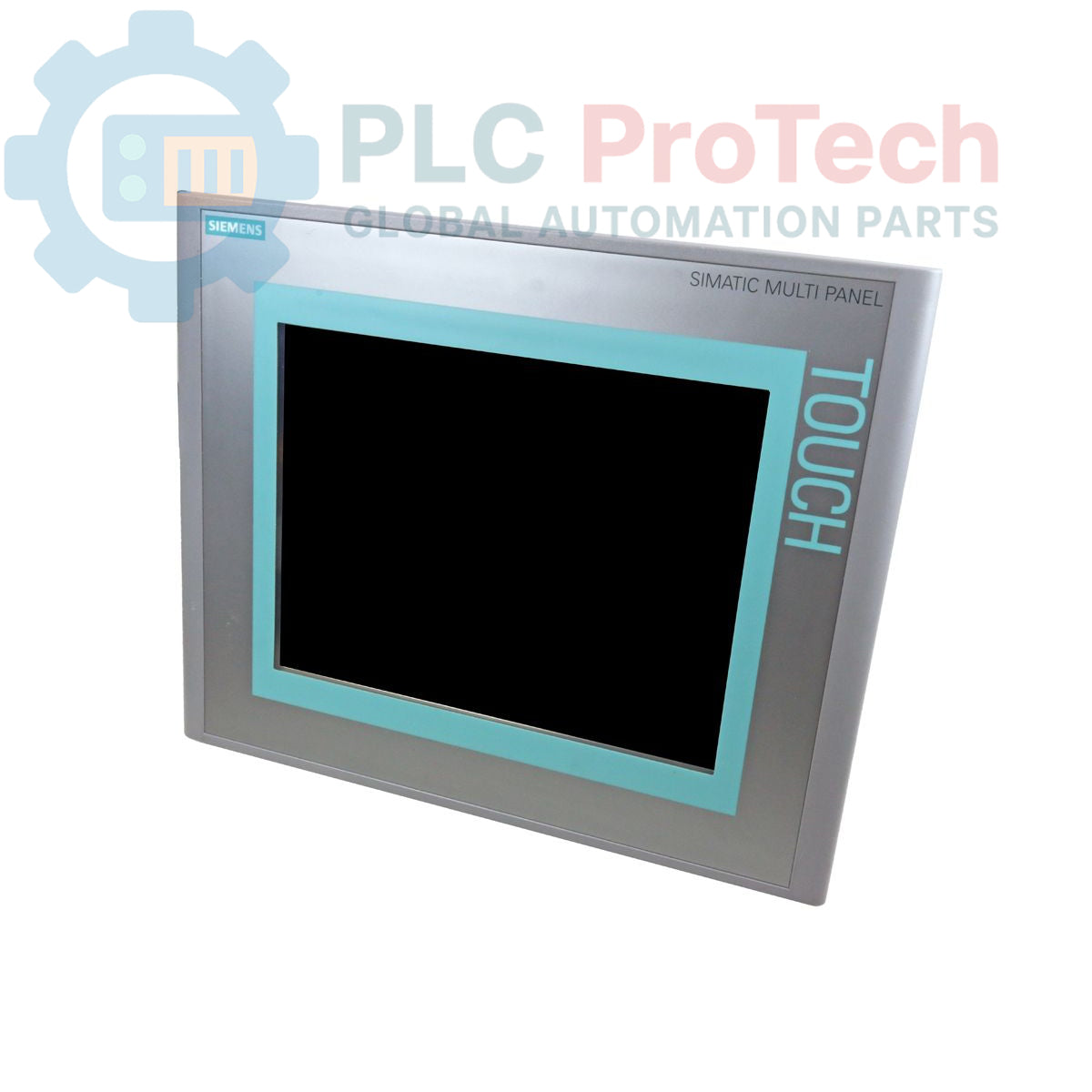

The Siemens 6AV6643-0CD01-1AX5 is a SIMATIC MP 277 touch-operated multi panel designed for machine-level visualization and control tasks. This unit features a 10.4-inch TFT color display with a resolution of 640 x 480 pixels for clear process representation. It is equipped with 6 MB of user memory for HMI projects and is configured using the WinCC flexible 2005 Standard SP1 software platform. The panel operates on a standard 24V DC power supply, making it suitable for integration into typical industrial control cabinets.

Features

• 10.4-inch TFT color display
• 65,536 displayable colors
• Resistive analog touchscreen for operator input
• 6 MB of integrated user memory
• Configuration via WinCC flexible 2005 Standard SP1
• Operates on a 24V DC supply voltage

Applications

• Machine control and process visualization
• Packaging and material handling systems
• Food and beverage processing lines
• Automated assembly and manufacturing
• Building automation and environmental control

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is fully de-energized and locked out. Verify zero voltage state with a calibrated multimeter.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the HMI into the cutout and secure it evenly using all provided mounting clamps. Do not overtighten the clamps, as this can warp the bezel and damage the display.
4. 4 Connect the 24V DC power supply to the designated terminals, observing correct polarity (+/-). Use appropriately sized conductors and ensure connections are secure.
5. 5 Connect the functional earth (FE) terminal to the cabinet's equipotential bonding system. A low-impedance ground connection is critical for noise immunity and operator safety.
6. 6 Connect communication cables (e.g., PROFIBUS, Ethernet) to the appropriate ports. Ensure cable shields are properly terminated as per system grounding requirements.
