6AV7820-0AA00-1AB0

Siemens

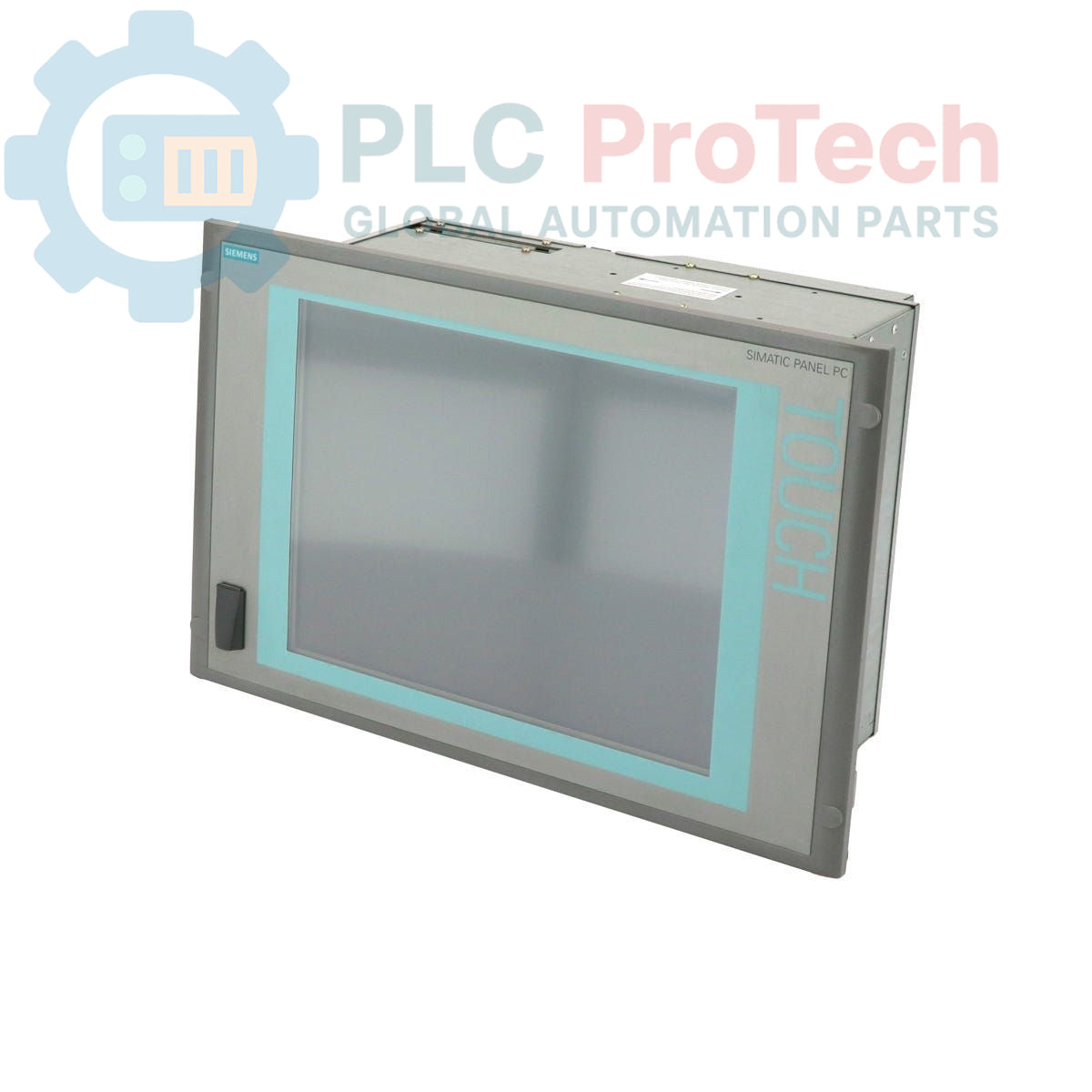

Siemens SIMATIC Panel PC 577 6AV7820-0AA00-1AB0

SKU 6AV7820-0AA00-1AB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7820-0AA00-1AB0
  • Origin Germany
  • Product Type: Panel PC
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.015 kg
  • Dimensions: 64.00 x 64.00 x 42.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Panel PCs SIMATIC Panel PC 577
Quantità
Call sales Contact

Product Description

Description

This Siemens SIMATIC Panel PC 577, model 6AV7820-0AA00-1AB0, is an industrial human-machine interface (HMI) with an integrated computing unit designed for machine-level control and visualization tasks. It features a 12-inch touch display, a Celeron 2.0 GHz processor, and 256 MB of DDR400 SDRAM. The unit is equipped with a DVD-ROM drive and comes pre-installed with the Windows 2000 SP4 Professional Multi-language User Interface (MUI) operating system.

Features

  • 12-inch color touch display for operator interaction.
  • Integrated Celeron processor operating at 2.0 GHz.
  • 256 MB of DDR400 SDRAM for application processing.
  • Built-in DVD-ROM optical drive.
  • Pre-loaded with Windows 2000 SP4 Professional MUI.

Applications

  • Machine control and process visualization.
  • Supervisory Control and Data Acquisition (SCADA) clients.
  • Data logging and reporting stations.
  • Factory floor information terminals.

Technical Specifications

Specification Value
Manufacturer Siemens
Product Series SIMATIC Panel PC 577
Part Number 6AV7820-0AA00-1AB0
Product Type Panel PC
Display 12 inch Touch Display
Processor Celeron 2.0 GHz
Memory (RAM) 256 MB DDR400 SDRAM
Optical Drive DVD-ROM
Operating System Windows 2000 SP4 Professional MUI
Product Lifecycle Status Obsolete
Shipping Weight 15.00 kg
Package Dimensions (Calculated) 64.00 x 64.00 x 42.00 cm
Commodity Code 85371091
ECCN N
Country of Origin Germany (Estimated)

Installation Guidelines

CRITICAL WARNING: Electrical Hazard

Disconnect all power sources before installation or maintenance. Failure to de-energize equipment can result in severe injury or death. All procedures must be performed by qualified personnel in accordance with local electrical codes.

  1. 1 Verify that the panel cutout dimensions match the PC 577's mounting requirements. Ensure the mounting surface is flat, clean, and can support the unit's weight.
  2. 2 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to ensure a proper seal against the panel gasket.
  3. 3 Connect a low-impedance protective earth (PE) ground wire to the designated grounding terminal on the Panel PC chassis. This is critical for safety and noise immunity.
  4. 4 Connect the main power supply to the unit's power input terminal, ensuring the voltage matches the rating specified on the device label.
  5. 5 Connect all required communication and peripheral cables (e.g., Ethernet, USB, serial). Ensure proper cable strain relief and routing to prevent accidental disconnection.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the processor in this Siemens Panel PC?
This unit is equipped with a Celeron processor operating at 2.0 GHz.
What operating system is installed on the 6AV7820-0AA00-1AB0?
It comes pre-installed with Windows 2000 SP4 Professional Multi-language User Interface (MUI), supporting English, German, French, Italian, Spanish, Japanese, Chinese, and Korean.
Is this Panel PC a current product?
No, the product lifecycle status for this model is Obsolete. It is available as a spare part or for legacy system support.
What is the display size and type?
The device features a 12-inch display with integrated touch functionality for operator input.
How much memory does this Panel PC have?
The unit includes 256 MB of DDR400 SDRAM.
