Product Overview

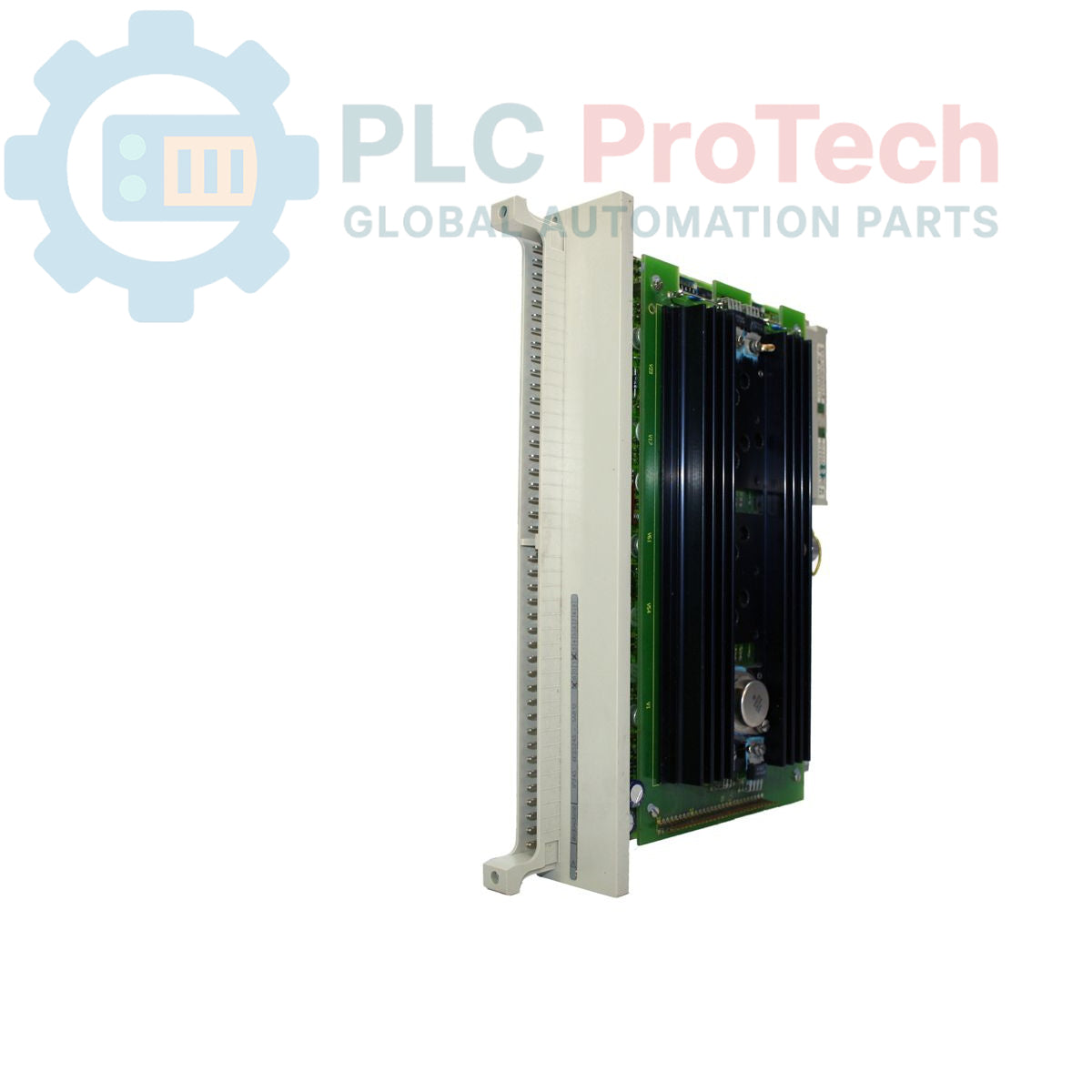

The Siemens 6ES5245-1AB12 (6ES52451AB12) is a high-performance functional control module designed for the Siemens Simatic S5-115U, 135U, and 155U series programmable logic controllers. Engineered to offload complex, time-critical tasks from the central processor (CPU), this module specializes in high-speed counting, positioning, or closed-loop control tasks depending on the firmware loaded. In the heavy industrial sector—specifically within automotive stamping, chemical processing, and legacy steel mills—the 6ES5245-1AB12 is a cornerstone for maintaining precise mechanical synchronization. By processing high-frequency signals locally on the module, it ensures deterministic response times that are unaffected by the main PLC scan cycle, effectively eliminating jitter in high-speed operations.

Technical Configuration

The 6ES5245-1AB12 architecture is designed for seamless integration into the S5 backplane (S-Bus), acting as an intelligent peripheral.

• Autonomous Processing: Equipped with its own onboard microprocessor, the module executes control algorithms independently of the main CPU, providing high-speed signal evaluation.

• Interface Flexibility: The module features front-facing connectors for direct interface with encoders, limit switches, or actuators, minimizing signal latency.

• System Integration: It communicates with the S5 CPU via the dual-port RAM interface, allowing for rapid exchange of setpoints, actual values, and diagnostic status bits.

• Robust Hardware: Housed in the classic Simatic S5 robust metal-and-plastic casing, it is built to withstand the high vibration and electrical noise common in mid-to-large scale industrial environments.

• Configuration: Parameters are typically defined via STEP 5 software using COM 245 or equivalent configuration packages, allowing for precise tuning of gain, offsets, and filter constants.

Technical Specifications

Technical FAQs

Can the 6ES5245-1AB12 be replaced while the PLC is powered on?

No. The Simatic S5 system does not support "Hot Swapping" for functional modules. Power to the rack must be switched off before removing or inserting the module to prevent backplane damage and data corruption.

How do I verify if the module is communicating with the CPU?

Check the status LEDs on the front panel. A solid "RUN" LED indicates the module is executing its internal firmware, while a "STAY" or "FAULT" LED usually points to a parameterization error in the STEP 5 configuration or a hardware mismatch in the DB (Data Block).

Is this module compatible with S7-400 systems?

Not directly. The 6ES5245-1AB12 is a native S5 module. To use this logic in an S7 environment, you would require an IM 463-2 interface adapter or, more commonly, a full migration to an FM 450/451 equivalent module.

Engineering & Installation Guide

• Shielding Protocol: For high-speed counting or analog control functions, the signal cables must be shielded. The shield should be grounded using the Siemens shield connecting element directly at the module entry point to prevent high-frequency interference from affecting the internal high-speed counters.

• Heat Dissipation: Ensure the S5 rack fan sub-assembly is operational. Intelligent modules like the 6ES5245-1AB12 generate more heat than standard digital I/O. Maintain a minimum vertical clearance of 100 mm between the rack and any cable ducts to allow for natural convection.

• Backplane Addressing: Ensure the module is firmly seated in the rack and the locking screws are tightened. In the S5 system, addressing is determined by the slot position; ensure that your STEP 5 software configuration (addressing of P and Q areas) matches the physical slot occupied by the 6ES5245-1AB12.
