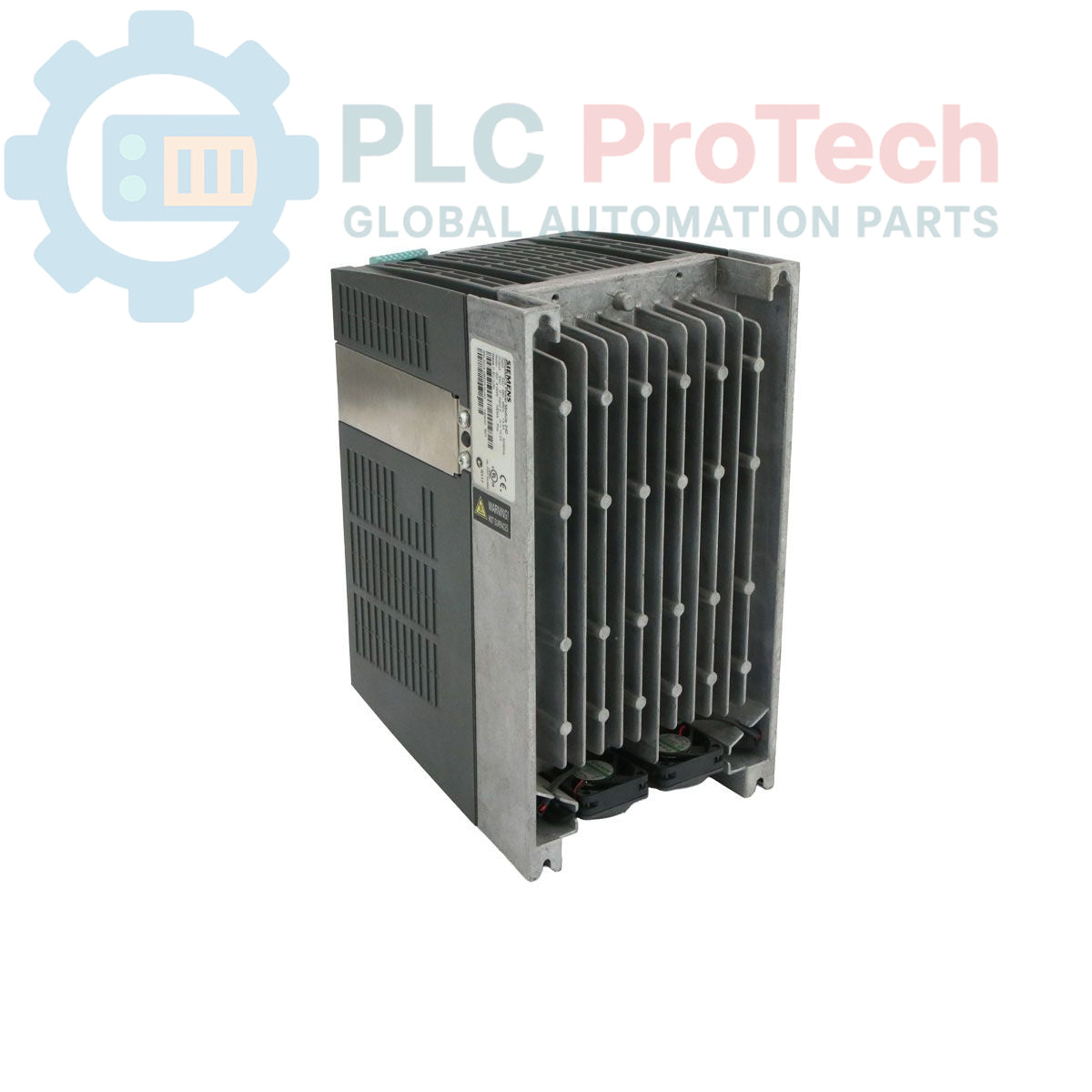

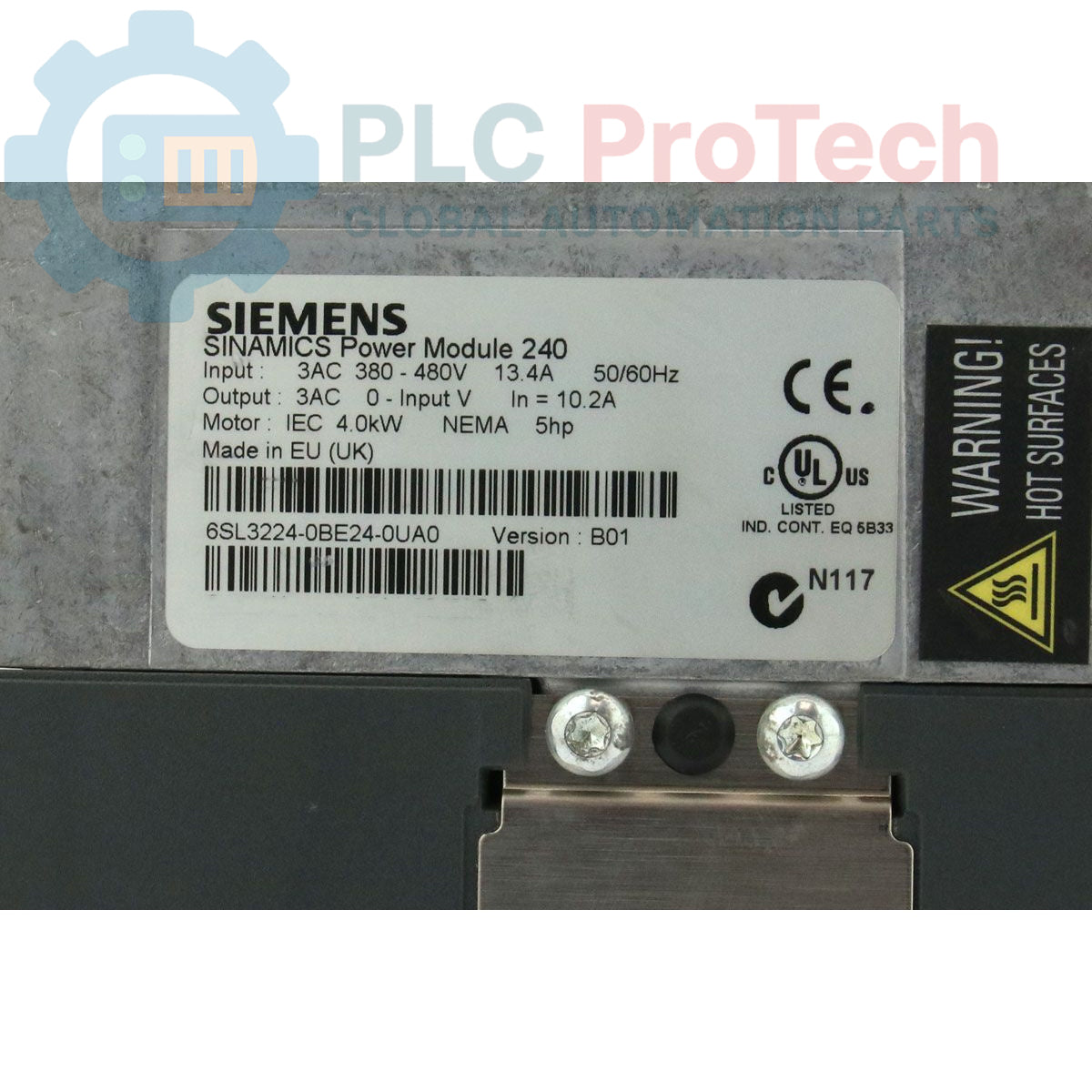

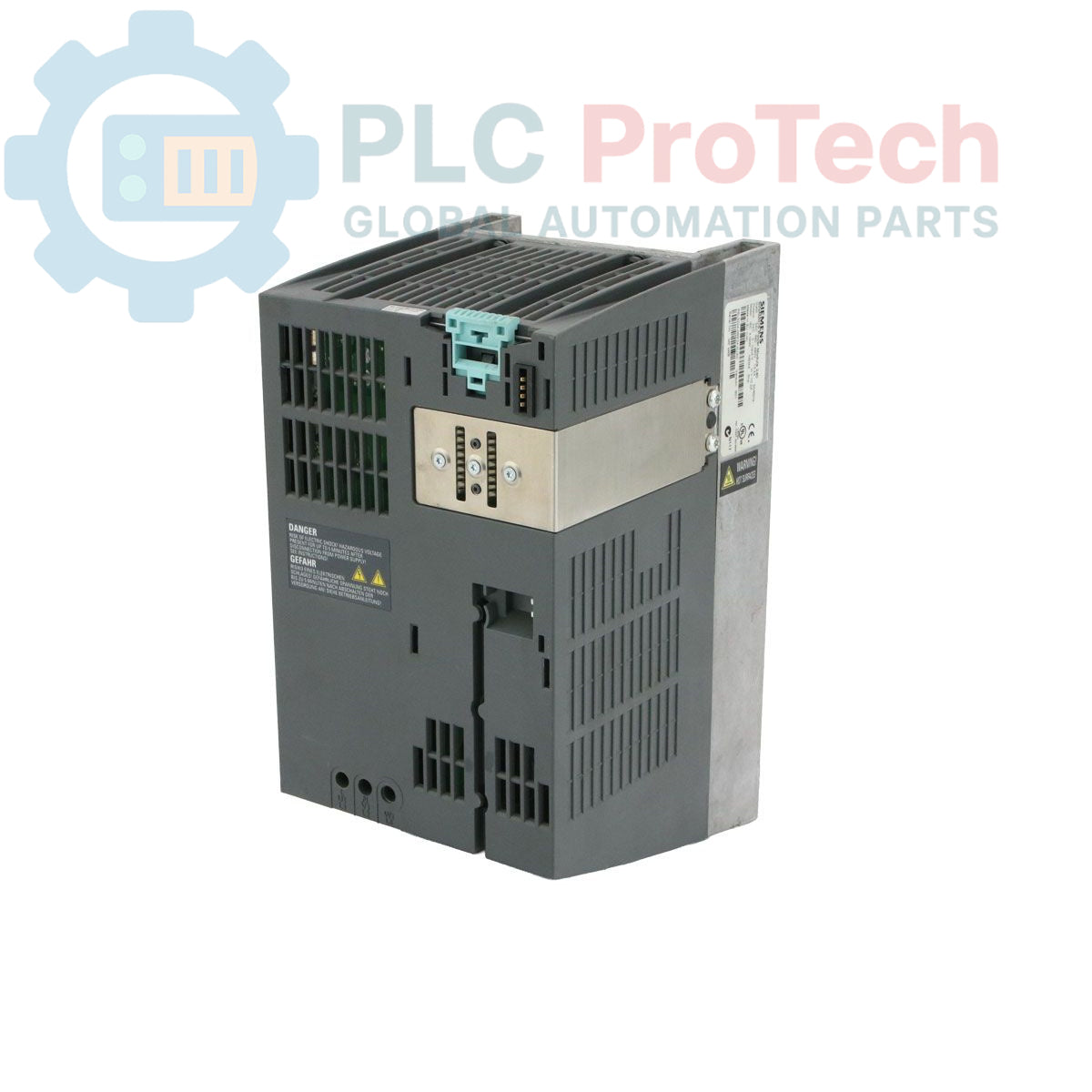

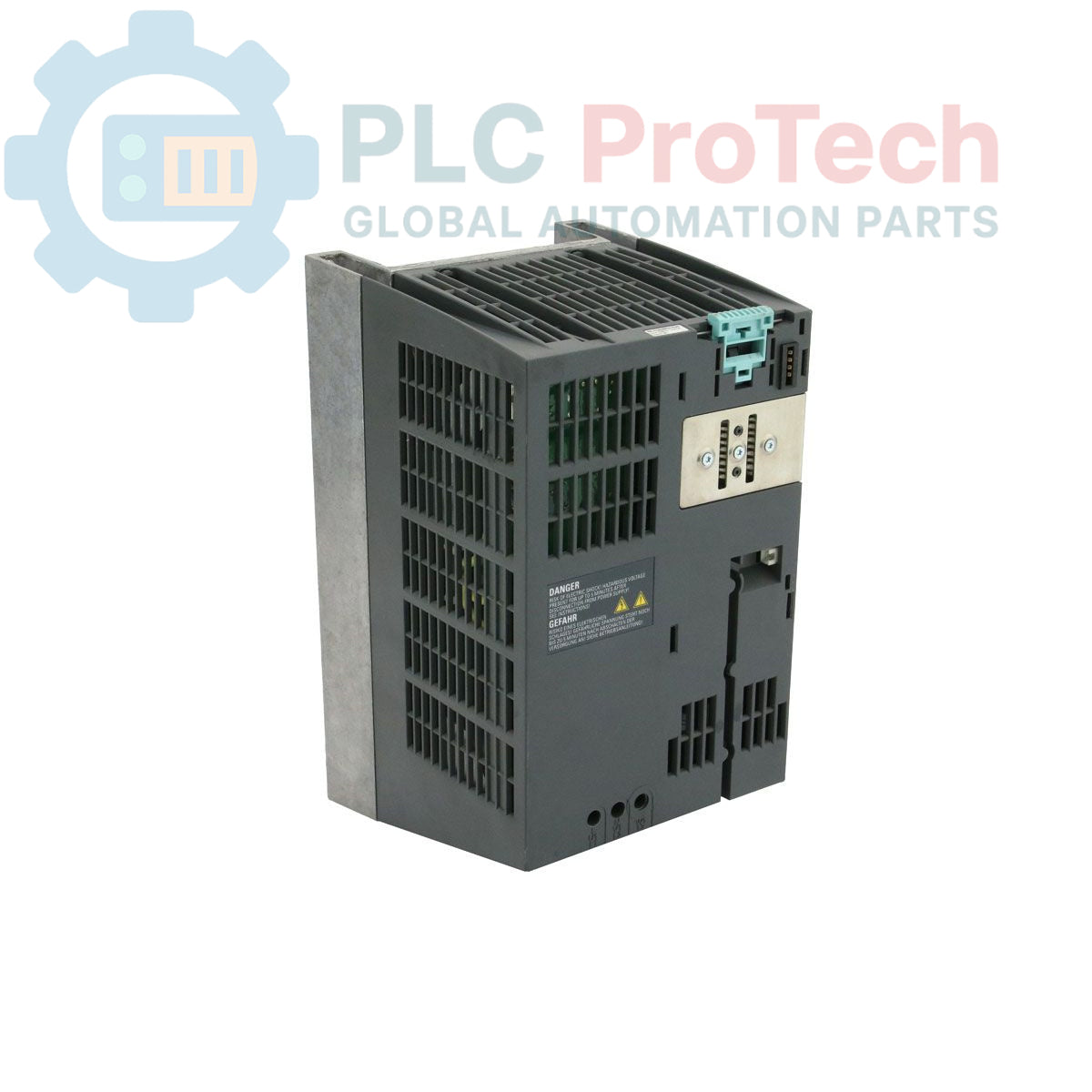

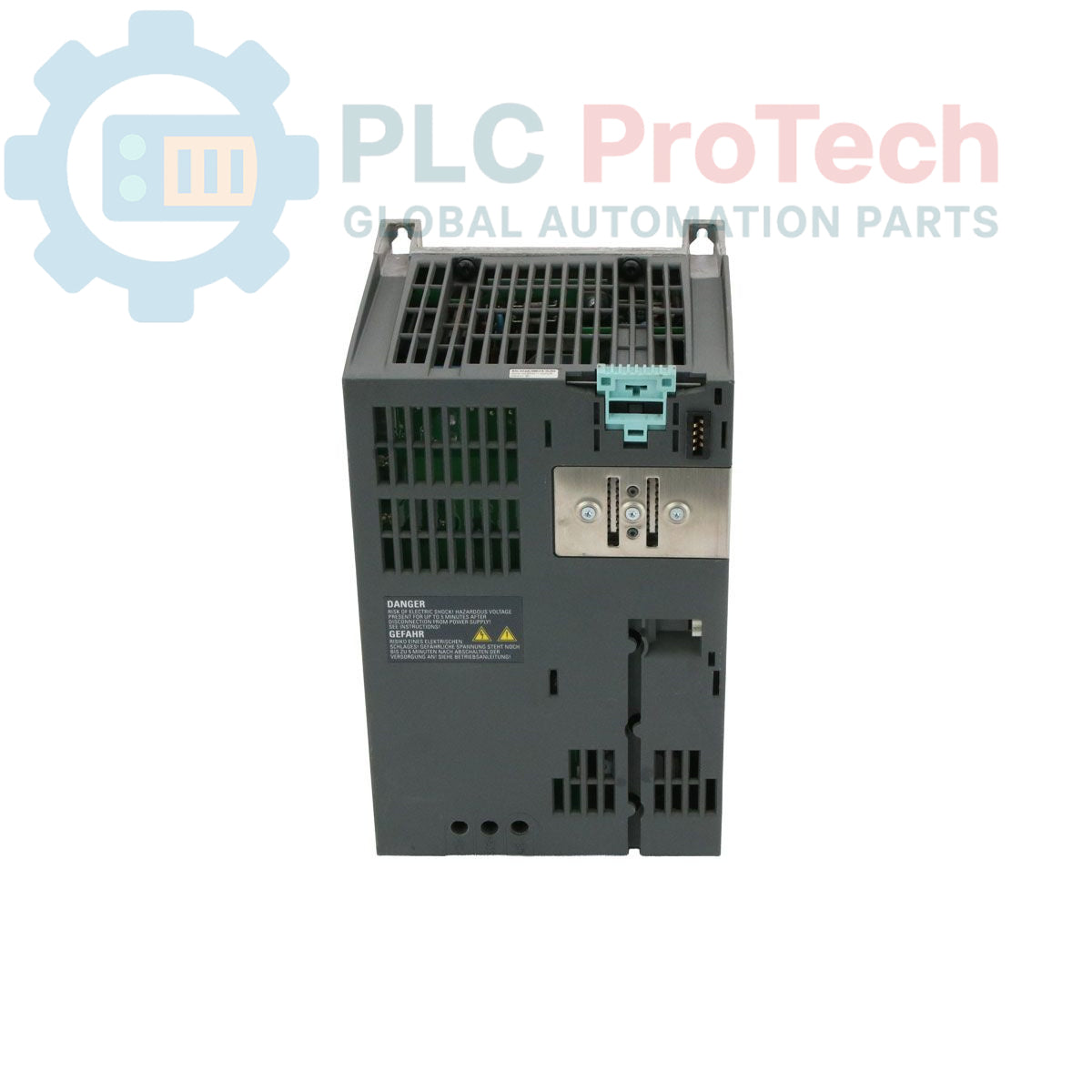

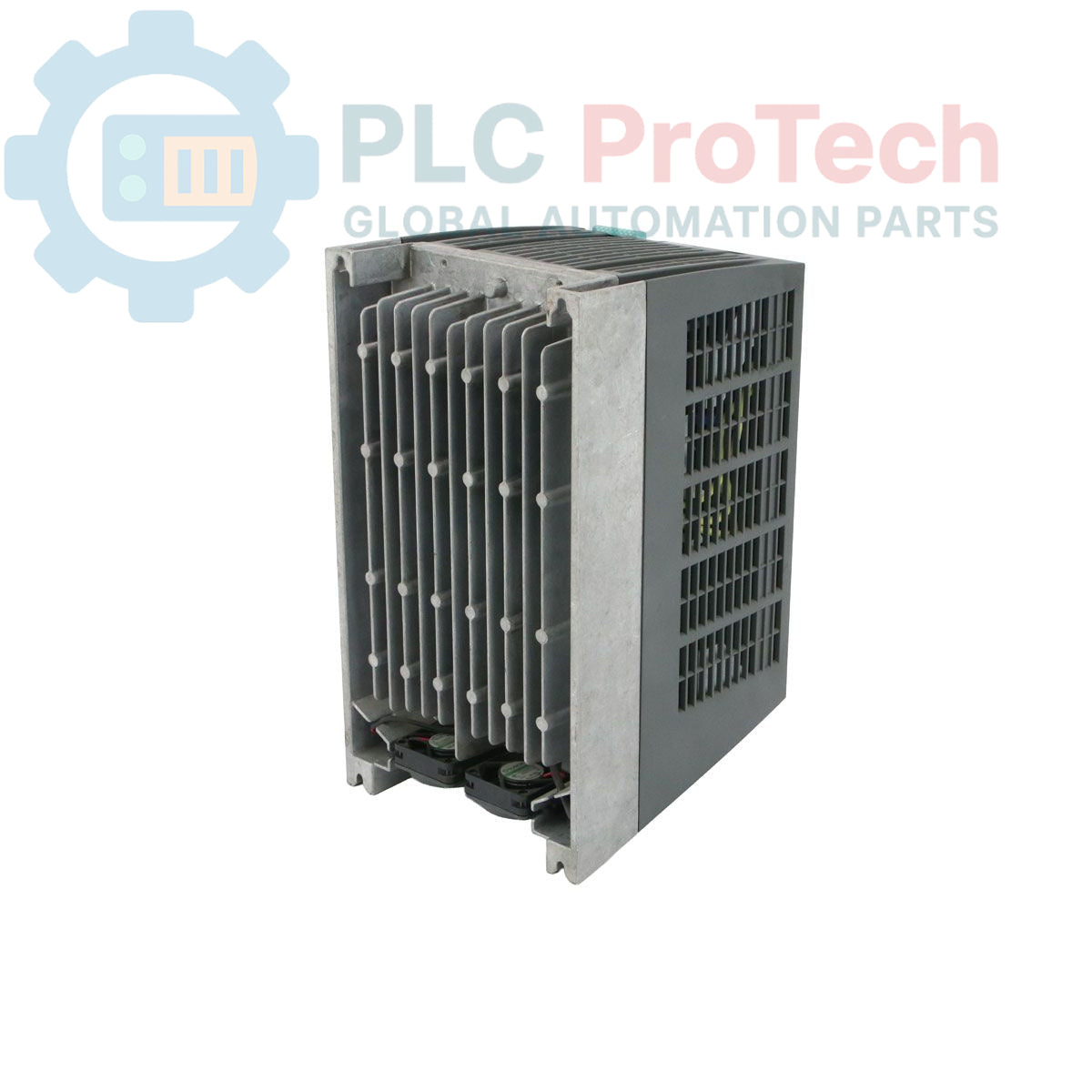

The 6SL3224-0BE24-0UA0 is a PM240 power module featuring an unfiltered design and an integrated braking chopper for SINAMICS G120 variable speed drive systems. Manufactured by Siemens, this unit is engineered to regulate three-phase motor speeds in industrial automation environments, supporting a supply voltage range of 380-480 V AC across 47-63 Hz.
The 6SL3224-0BE24-0UA0 delivers a high overload power rating of 4.0 kW (with a nominal power rating of 4 kW and a nominal output current of 10.2 A) and handles ambient operating temperatures from -10 degC to +50 degC under high overload conditions. The module measures 15.30 x 16.50 x 27.00 cm (HxWxD) and weighs 4.10 kg with an IP20 degree of protection. Supplied without a Control Unit or Basic Operator Panel (BOP), it serves as a phase-out lifecycle component with a designated predecessor model (6SE6420-2UD24-0BA1), supporting legacy system maintenance, replacement, and operational continuity.
| Technical Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Brand | Siemens |
| Range | Sinamics |
| Subrange | G120 |
| Type of product | Power modules |
| Product Phase | Phase-Out |
| Predecessor | 6SE6420-2UD24-0BA1 |
| Main Voltage | 380-480 V AC |
| Number of phases input | 3 |
| Max. output frequency | 550 Hz |
| Max. output voltage | 550 V |
| Nom. Output Current | 10.2 A |
| Nom. Power Rating | 4 kW |
| Degree of Protection | IP20 |
| Dimensions | 15.30 x 16.50 x 27.00 cm |
| Weight | 4.10 kg |
| Commodity Code | 85049090 |
| Export Control Regulations (ECCN) | N |
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6SL3224-0BE24-0UA0
Country of origin:Germany
Product Type: Power Modules
Barcode: 85049090
Payment: T/T, Western Union
Weight: 4100g
Dimensions: 15.30cm x 16.50cm x 27.00cm
Shipping port: Xiamen
Warranty: 12 months
The 6SL3224-0BE24-0UA0 is a PM240 power module featuring an unfiltered design and an integrated braking chopper for SINAMICS G120 variable speed drive systems. Manufactured by Siemens, this unit is engineered to regulate three-phase motor speeds in industrial automation environments, supporting a supply voltage range of 380-480 V AC across 47-63 Hz.
The 6SL3224-0BE24-0UA0 delivers a high overload power rating of 4.0 kW (with a nominal power rating of 4 kW and a nominal output current of 10.2 A) and handles ambient operating temperatures from -10 degC to +50 degC under high overload conditions. The module measures 15.30 x 16.50 x 27.00 cm (HxWxD) and weighs 4.10 kg with an IP20 degree of protection. Supplied without a Control Unit or Basic Operator Panel (BOP), it serves as a phase-out lifecycle component with a designated predecessor model (6SE6420-2UD24-0BA1), supporting legacy system maintenance, replacement, and operational continuity.
| Technical Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Brand | Siemens |
| Range | Sinamics |
| Subrange | G120 |
| Type of product | Power modules |
| Product Phase | Phase-Out |
| Predecessor | 6SE6420-2UD24-0BA1 |
| Main Voltage | 380-480 V AC |
| Number of phases input | 3 |
| Max. output frequency | 550 Hz |
| Max. output voltage | 550 V |
| Nom. Output Current | 10.2 A |
| Nom. Power Rating | 4 kW |
| Degree of Protection | IP20 |
| Dimensions | 15.30 x 16.50 x 27.00 cm |
| Weight | 4.10 kg |
| Commodity Code | 85049090 |
| Export Control Regulations (ECCN) | N |
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
| Color pattern |
Greyish White
|
| Country of origin |
Germany
|
