Product Overview

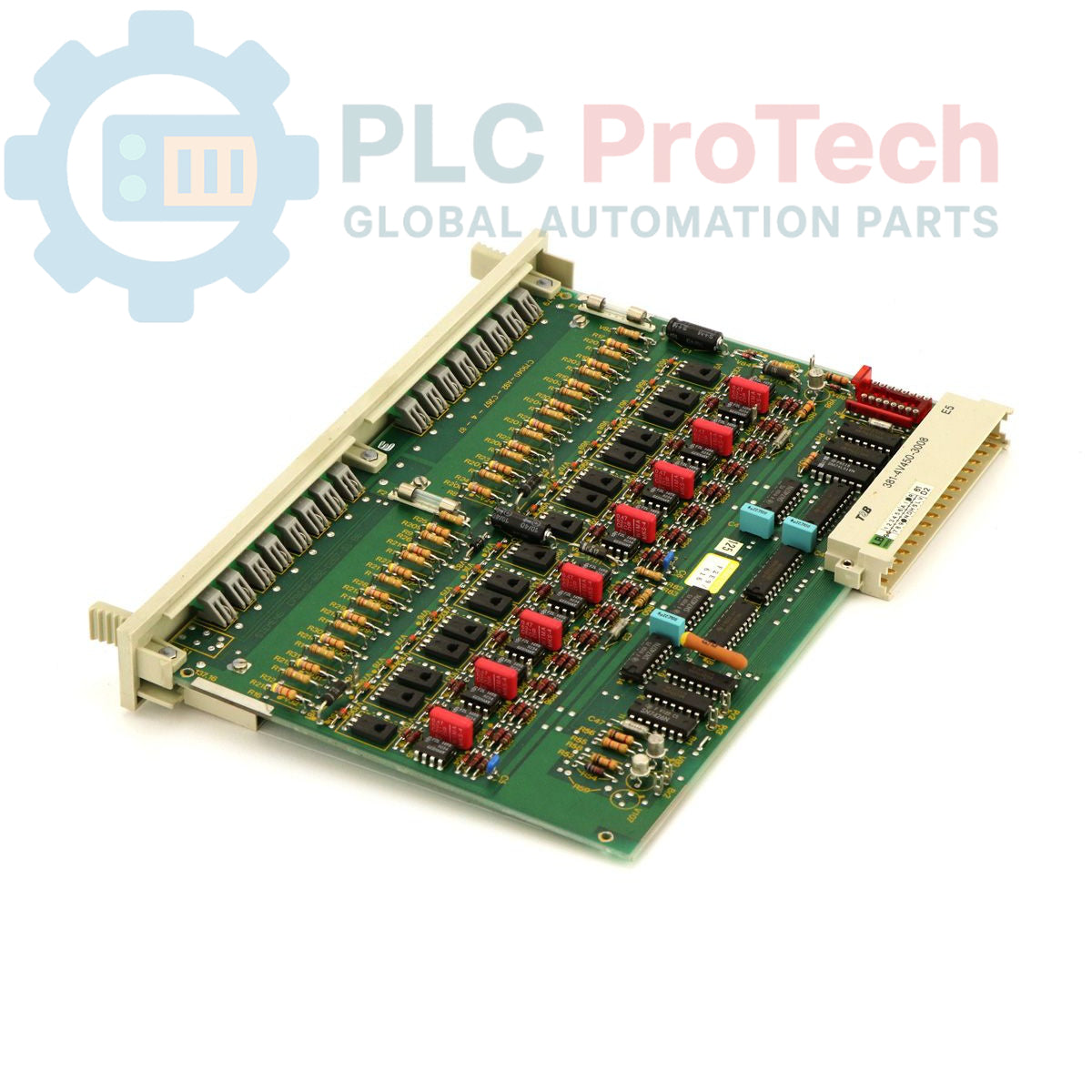

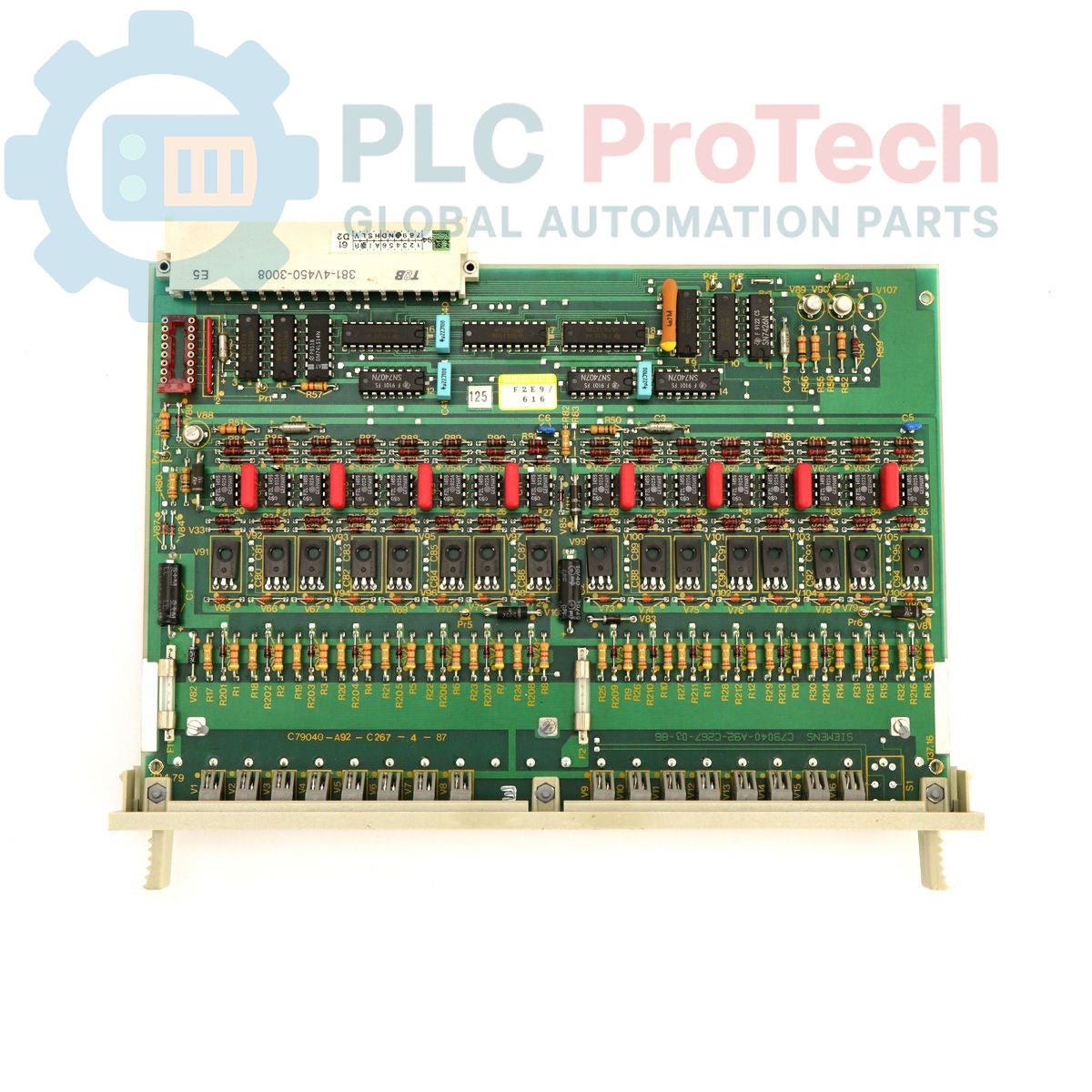

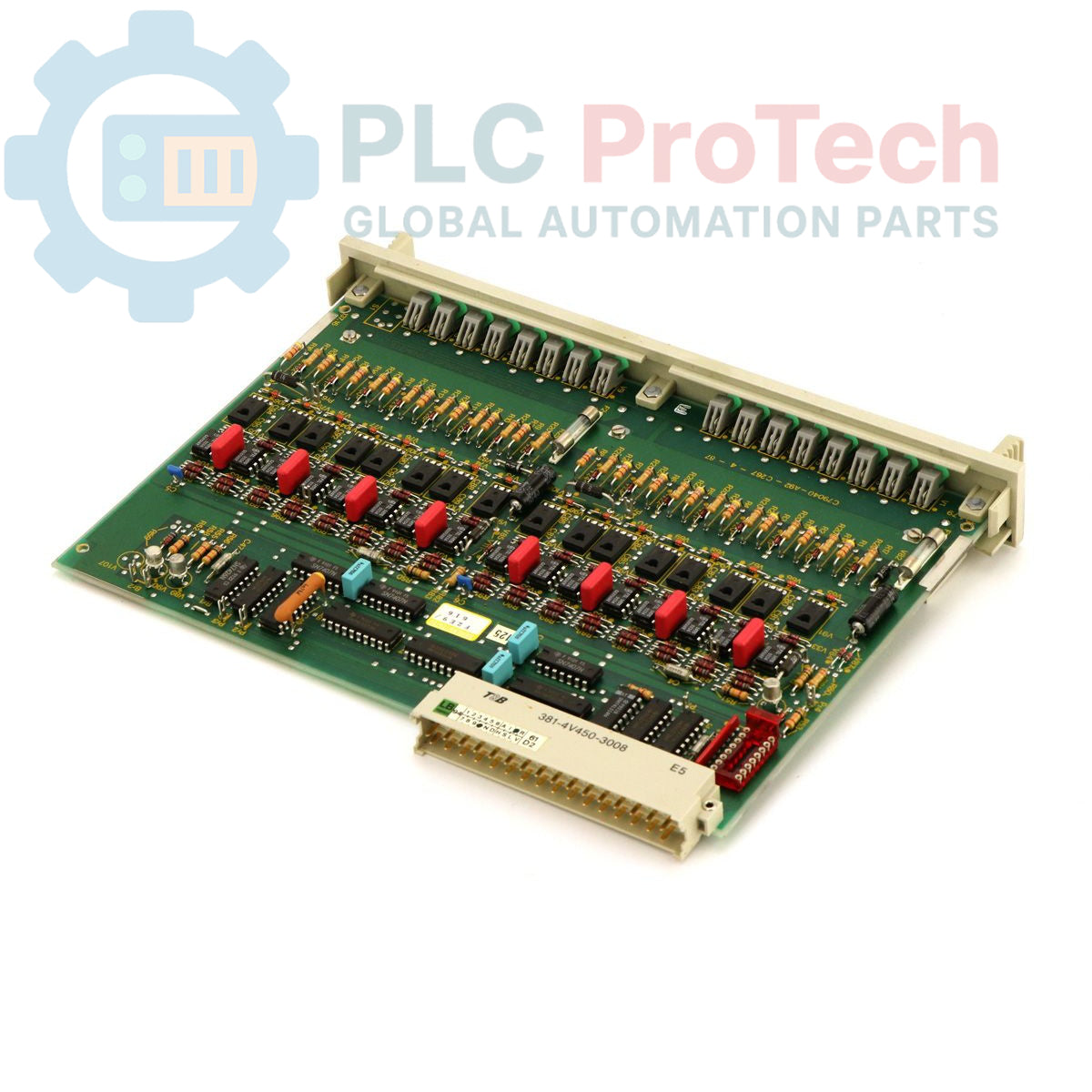

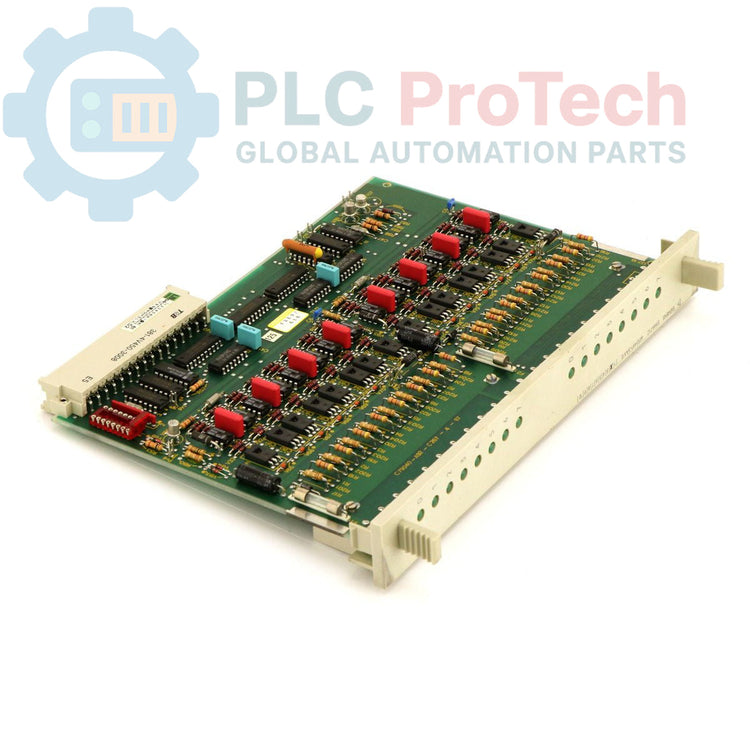

The Siemens 6ES5441-5AA12 (6ES54415AA12) is a professional-grade digital output module engineered for the SIMATIC S5-130W and S5-150U series programmable logic controllers. This ruggedized version is specifically designed to provide 16 high-density outputs, each delivering 24V DC at 0.5A. Built for the most demanding manufacturing environments—such as steel mills, automotive assembly, and heavy chemical processing—the 6ES5441-5AA12 offers a non-isolated hardware architecture that prioritizes high-speed switching and space-efficient circuit density. Its "rugged" designation ensures superior resistance to mechanical vibration and thermal stress, making it a reliable solution for maintaining legacy S5 systems where operational continuity is mission-critical.

Technical Configuration

The 6ES5441-5AA12 utilizes a robust electronic design optimized for the parallel backplane of the S5-130/150 racks.

• Output Configuration: Features 16 discrete outputs grouped for efficient wiring to solenoids, relays, and small DC motors.




• Ruggedized Hardware: Enhanced internal component mounting and solder-joint reinforcement to withstand the physical rigors of heavy industrial cabinets.

• Non-Isolated Architecture: Provides a direct, common-potential ground reference for all 16 circuits, allowing for simplified wiring in systems where individual channel isolation is not a requirement.

• Protection Logic: Includes integrated electronic protection against short circuits and temporary overloads, preventing damage to the internal output transistors.

• Seamless S-Bus Integration: Communicates directly with the central controller via the S5 backplane, supporting rapid data updates within a single PLC scan cycle.

Technical Specifications

Technical FAQs

What is the significance of the "Rugged Version" for this module?

The rugged version (indicated by the 5AA12 suffix) utilizes industrial-grade components with higher tolerances for vibration and temperature fluctuations compared to standard commercial variants, specifically designed for placement in harsh shop-floor environments.

How do I check for a blown output on the 6ES5441-5AA12?

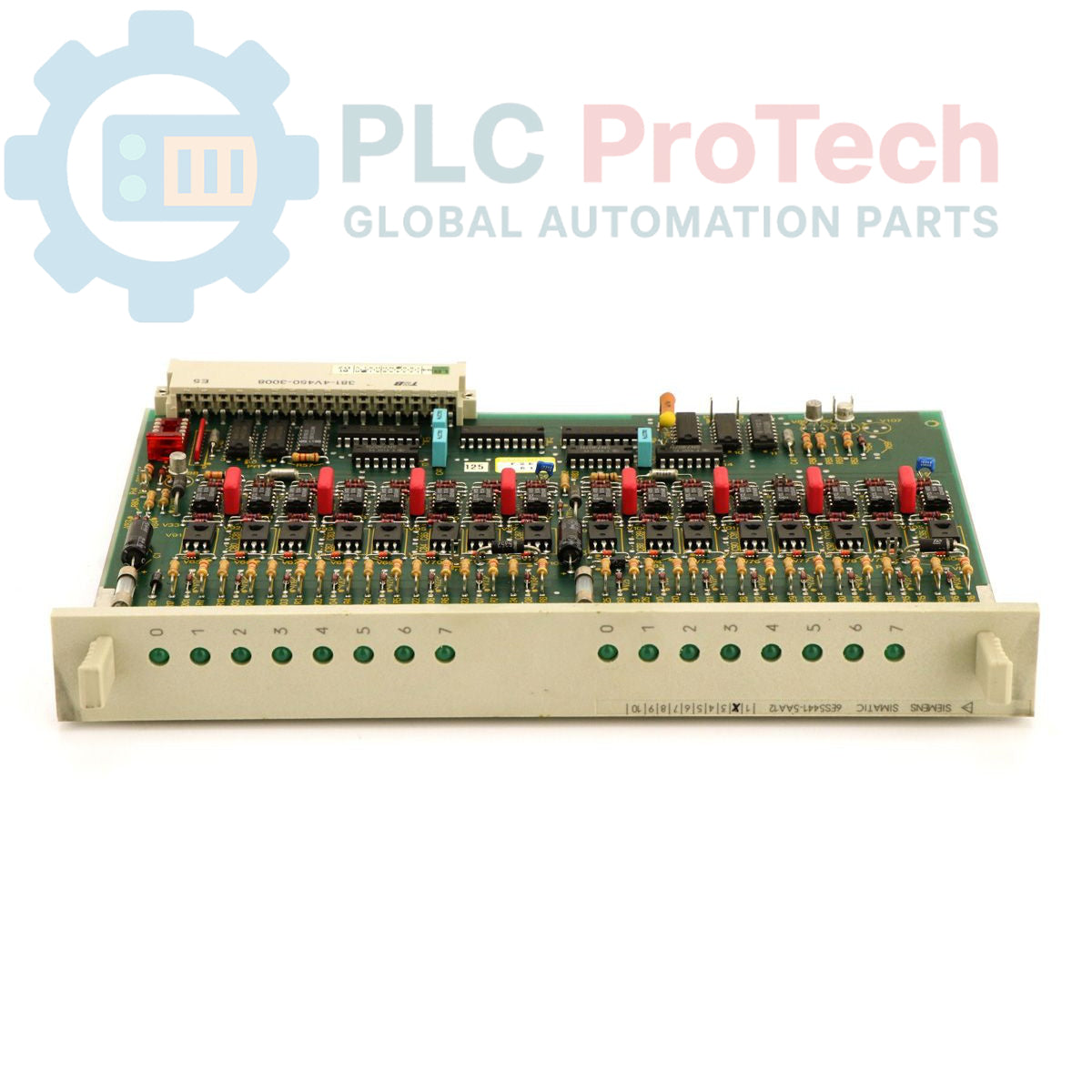

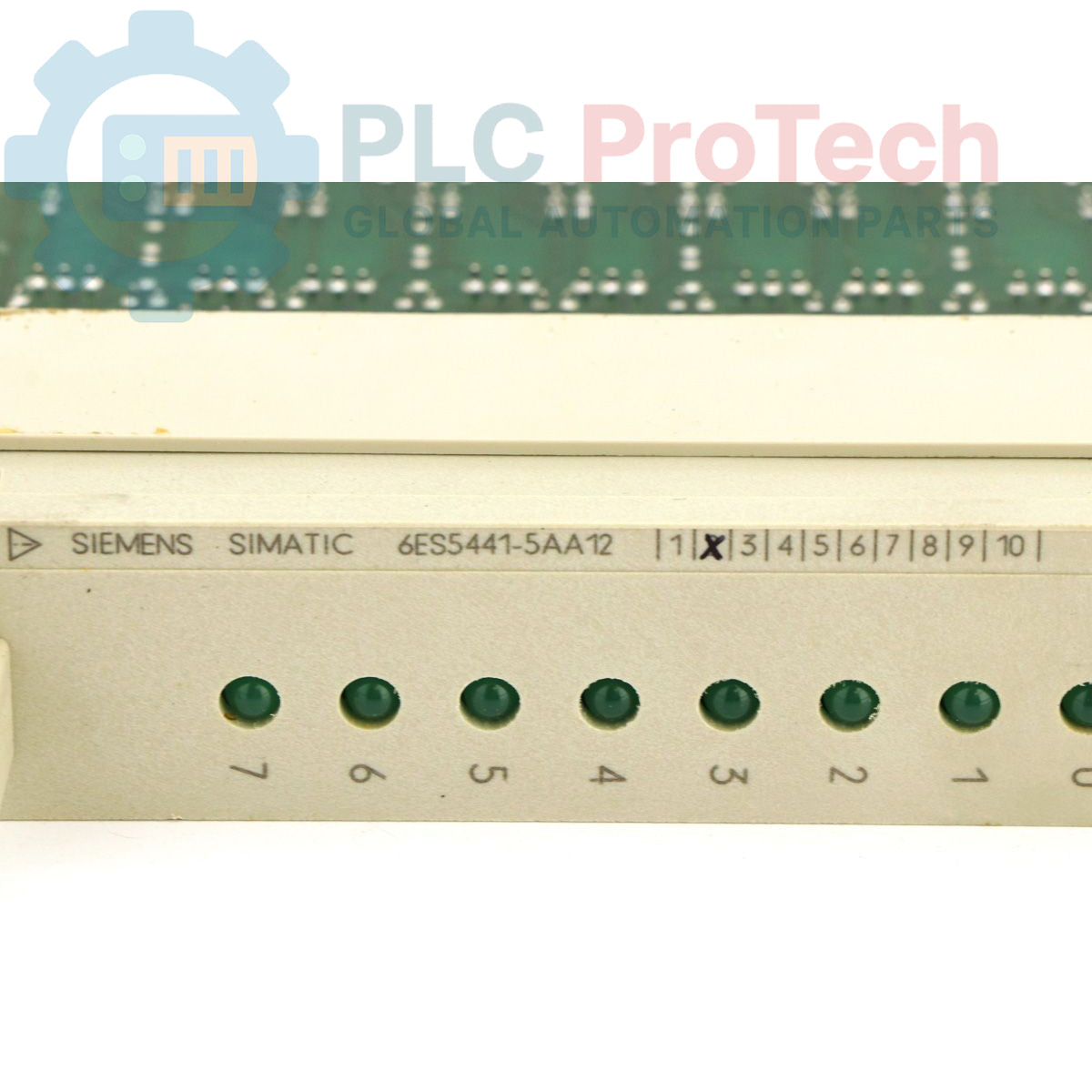

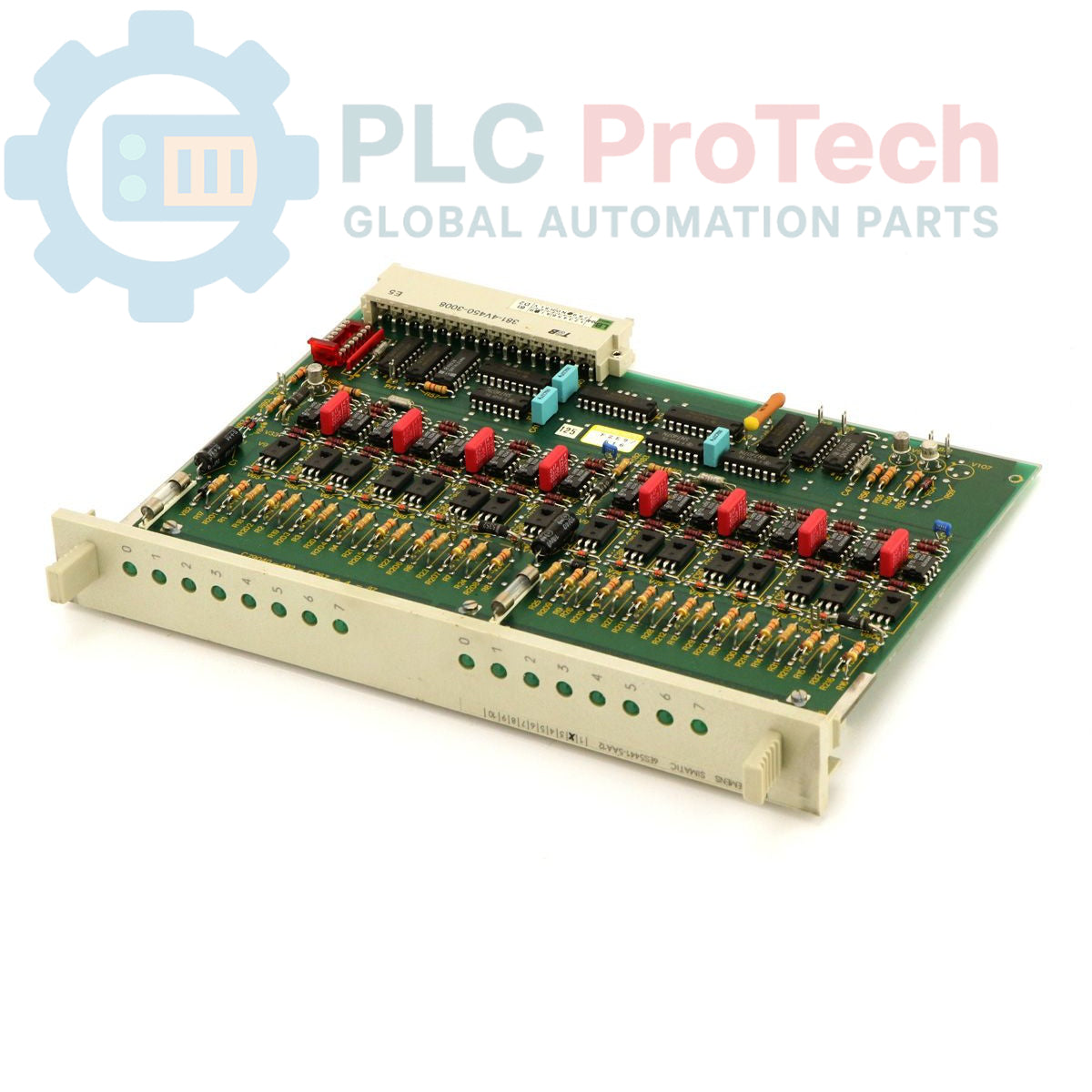

The front panel features status LEDs for each of the 16 channels. If the LED is illuminated but no voltage is present at the terminal, the internal output transistor may be damaged. If the LED is off when it should be active, check the 24V DC supply to the module.

Can this module be used in an S5-115U rack?

No. The 6ES5441-5AA12 is physically and electrically designed for the S5-130/150 series. For S5-115U systems, you would require the 6ES5441-7 series modules.

Engineering & Installation Guide

• Load Current Management: While each output can handle 0.5A, it is essential to calculate the total current for the entire module. Ensure the external 24V DC power supply can handle the simultaneous activation of all 16 channels (up to 8A total load) to prevent voltage drops that could cause PLC resets.

• Wiring Non-Isolated Outputs: Since this is a non-isolated module, all outputs share a common ground. Ensure that your field devices are referenced to the same DC negative as the PLC rack to avoid ground loop interference or unintended circuit paths.

• Interposing Relays: When driving highly inductive loads, such as large contactors or solenoids, the use of external interposing relays or flyback diodes is recommended. This protects the module’s output transistors from high-voltage inductive "kicks" during de-energization, significantly extending the module’s service life.
