6SL3420-2TE15-0AA1

Siemens

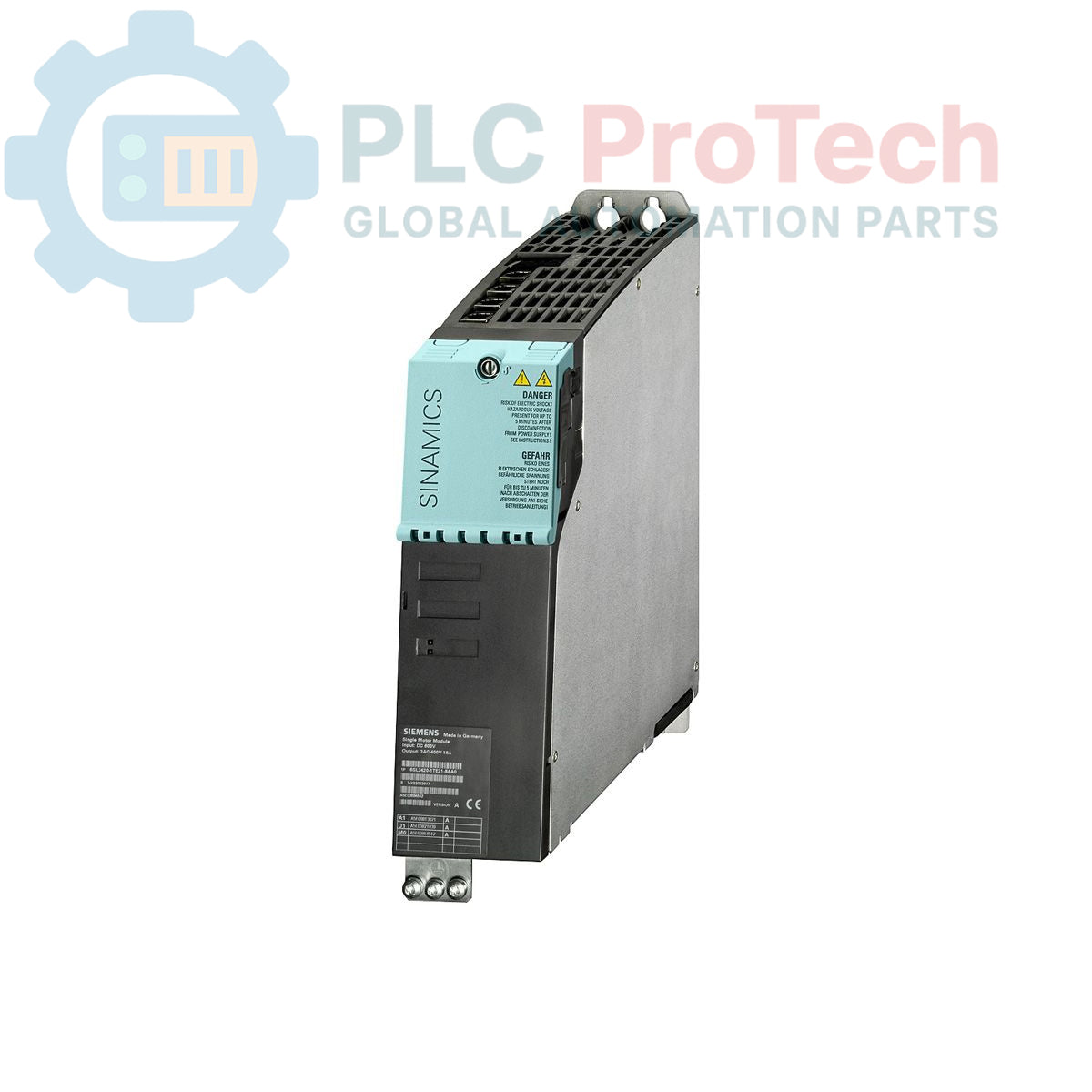

Siemens Sinamics S120 6SL3420-2TE15-0AA1 Double Motor Module

SKU 6SL3420-2TE15-0AA1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6SL3420-2TE15-0AA1
  • Origin Germany
  • Product Type: Double Motor Modules
  • Barcode: 85044095
  • Payment: T/T, Western Union
  • Weight: 3.2 kg
  • Dimensions: 7.50cm x 22.60cm x 27.00cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Double Motor Modules
Quantità
Call sales Contact

Product Description

Description

The Siemens 6SL3420-2TE15-0AA1 is a SINAMICS S120 Double Motor Module designed for multi-axis industrial motion control applications. Operating with a DC input voltage of 600 V, this dual-axis inverter delivers an output of 3-phase AC 400 V with a rated current of 5 A / 5 A. Built with a space-saving Booksize Compact frame size and internal air cooling, it incorporates optimized pulse patterns and supports advanced safety functions. Measuring 7.50 x 22.60 x 27.00 cm and weighing 3.20 kg, the module includes a DRIVE-CLiQ cable for seamless digital connectivity within the SINAMICS S120 drive system. It maintains an active product lifecycle status, ensuring reliable performance for modern automation architectures.

Features

  • SINAMICS S120 double motor module for dual-axis motor control
  • Operates on a DC 600 V input and provides a 3-phase AC 400 V output at 5 A / 5 A
  • Booksize Compact frame design with internal air cooling for space-optimized cabinet installation
  • Supports optimized pulse patterns and higher-order integrated safety functions
  • Includes a DRIVE-CLiQ cable for fast and secure system communication
  • Active product lifecycle status within the Siemens Sinamics S120 range

Applications

  • Multi-axis machine tools and machining centers
  • High-performance packaging and textile machinery
  • Automated assembly lines and robotic workcells
  • Precision industrial motion control and conveyor systems

Technical Specifications

Specification Detail
Brands Siemens
Manufacturer Siemens
Range Sinamics
Subrange S120
Type of Product Double motor modules
Product Phase Active
Input Voltage DC 600 V
Output Voltage 3-phase AC 400 V
Output Current 5 A / 5 A
Dimensions 7.50 x 22.60 x 27.00 cm
Weight 3.20 kg
Commodity Code 85044095
Export Control Regulations (ECCN) EAR99

Connections/Interfaces

Port / Interface Type
DC Link / Power Input DC 600V Bus Connection
Motor Outputs Dual 3-Phase AC Terminals (5A/5A)
System Communication DRIVE-CLiQ Interface

Installation Guidelines

  • Ensure all DC bus and control power sources are completely switched off and discharged prior to installation or servicing.
  • Mount the double motor module vertically onto a coldplate or mounting surface inside an appropriate control cabinet, allowing proper clearance for airflow.
  • Connect the DC link busbars and motor power cables securely to the respective terminals following standard torque guidelines.
  • Plug the included DRIVE-CLiQ cable into the designated ports to establish high-speed communication with the Control Unit.
  • Verify wiring integrity, grounding, and safety function configurations before energizing the drive system.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What are the input and output electrical ratings for the 6SL3420-2TE15-0AA1 module?
It features a DC 600V input and delivers a 3-phase AC 400V output with a current rating of 5A / 5A.
What frame size and cooling method does this double motor module utilize?
It utilizes a Booksize Compact frame size with internal air cooling.
What physical dimensions and weight does the module have?
The dimensions are 7.50 x 22.60 x 27.00 cm and the weight is 3.20 kg.
