Product Overview

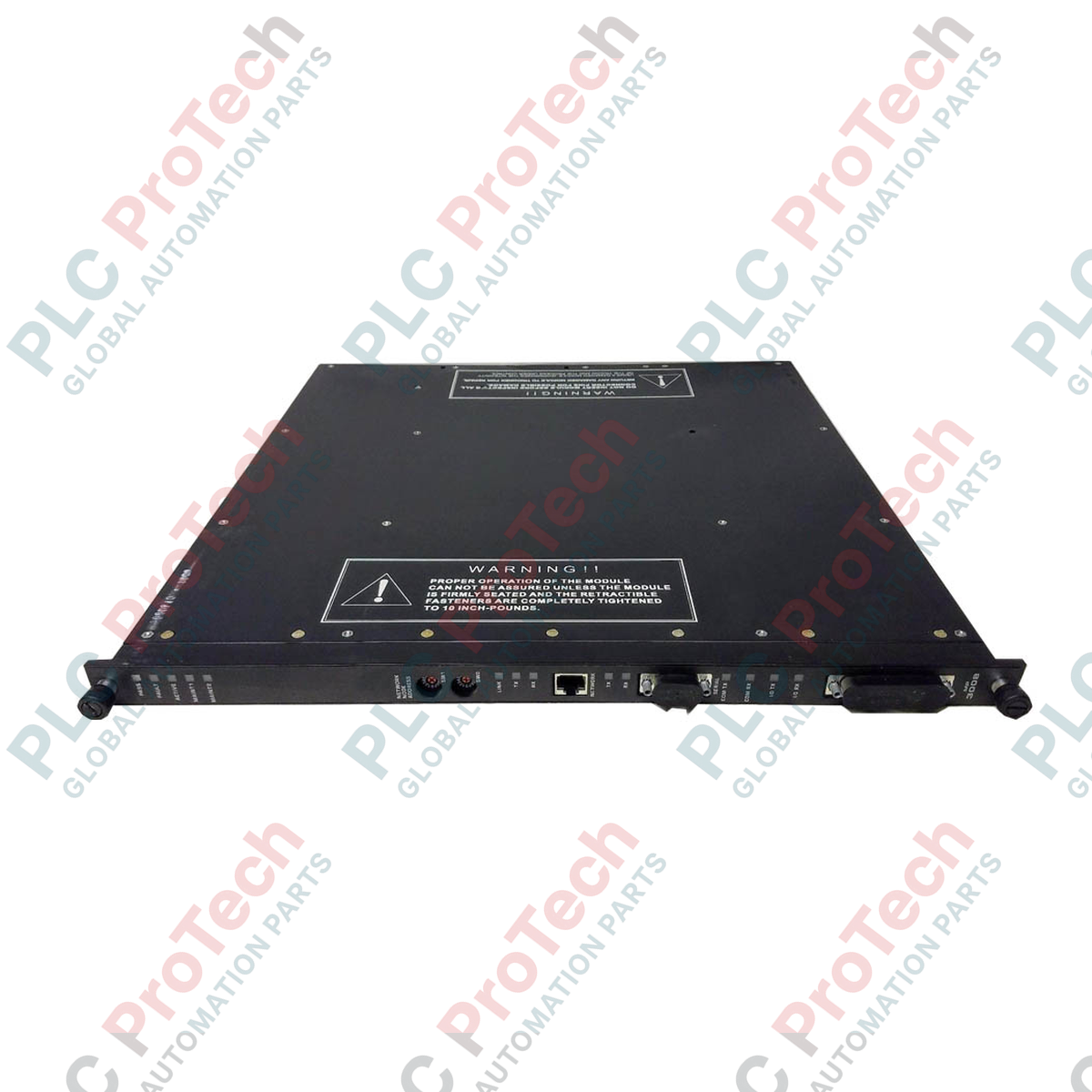

The 3008 (3008) is a high-performance Main Processor module designed specifically for the Triconex Triple Modular Redundant (TMR) controller. Acting as the "brain" of the safety system, the Triconex 3008 utilizes a sophisticated hardware-implemented fault-tolerant architecture to execute complex control logic for Safety Instrumented Systems (SIS). This module is widely deployed in high-risk industrial environments such as offshore oil platforms, chemical refineries, and nuclear power stations. By employing three independent processors that operate in parallel and vote on data via the proprietary TriBus, the 3008 ensures that no single hardware failure will cause a system shutdown or a failure to trip, effectively eliminating unscheduled downtime in critical processes.

Technical Configuration (Deep Dive)

The 3008 Main Processor is built on a robust dual-processor architecture within each module to manage both control execution and high-speed communication.

• Processing Power: Each module features a Motorola MPC860 32-bit RISC processor running at 50 MHz for primary logic execution, supplemented by a second MPC860 dedicated to communication tasks.

• Memory Management: The module is equipped with 16 MB DRAM for active logic execution and 6 MB of Flash PROM for permanent program storage. A specialized 32 KB SRAM with battery back-up ensures critical retentive variables are preserved during power cycles.

• TriBus Communication: The proprietary TriBus interface operates at 25 megabits/second. It utilizes 32-bit DMA for high-speed data transfer and is secured by a 32-bit CRC (Cyclic Redundancy Check) to ensure data integrity across the three Main Processors.

• Time Synchronization: The onboard TriClock provides high-precision time-stamping for Sequence of Events (SOE) recording, with a typical drift of only plus or minus 2 seconds per day.

Technical Specifications

Technical FAQs

How do I handle a "Battery Low" alarm on the Triconex 3008?

The 3008 uses a lithium battery to back up the SRAM and TriClock. When the battery voltage drops below the safety threshold, a system alarm is triggered. The battery should be replaced while the system is powered to avoid losing the 32 KB SRAM data and time settings.

What is the function of the "diagread" serial port?

The RS-232 serial port is specifically designed for diagread diagnostic analysis. It is optically isolated to 500 VDC, protecting the processor from field-side electrical surges during troubleshooting or firmware verification.

Can the 3008 Main Processor be used in a Tricon v9 or v10 system?

The 3008 is compatible with specific versions of the Tricon controller. It is essential to verify that the firmware version and the TriStation 1131 software version are compatible with the 3008 hardware revision to ensure TMR synchronization.

Engineering & Installation Guide

• Battery Maintenance: Always replace the SRAM/Clock battery every 2-3 years as part of a preventive maintenance schedule. Failure to do so may result in the loss of retentive variables and incorrect time-stamping for Sequence of Events (SOE) logs following a power outage.

• Module Seating: When inserting the 3008 into the Main Chassis, ensure the top and bottom ejector levers are fully engaged. A partial connection can cause TriBus synchronization errors or "Leg Faults" due to intermittent contact on the 32-bit DMA lines.

• Thermal Management: The 3008 generates significant heat due to its dual MPC860 processors. Ensure the chassis fan tray is functional and that air filters are clean to maintain an ambient temperature below 60 deg C within the cabinet.

Engineering Advantages

• Fault Isolation: The 3008 features 500 VDC optical isolation on its communication ports, preventing electrical faults from propagating into the core logic of the processor.

• Deterministic Execution: By offloading communication tasks to a dedicated processor, the 3008 ensures that logic scan times remain consistent (deterministic), even during periods of heavy network traffic.

• High Data Integrity: With 32-bit CRC protection on all TriBus transfers, the 3008 guarantees that the data being voted upon is free from corruption, maintaining the highest possible Safety Integrity Level (SIL).
