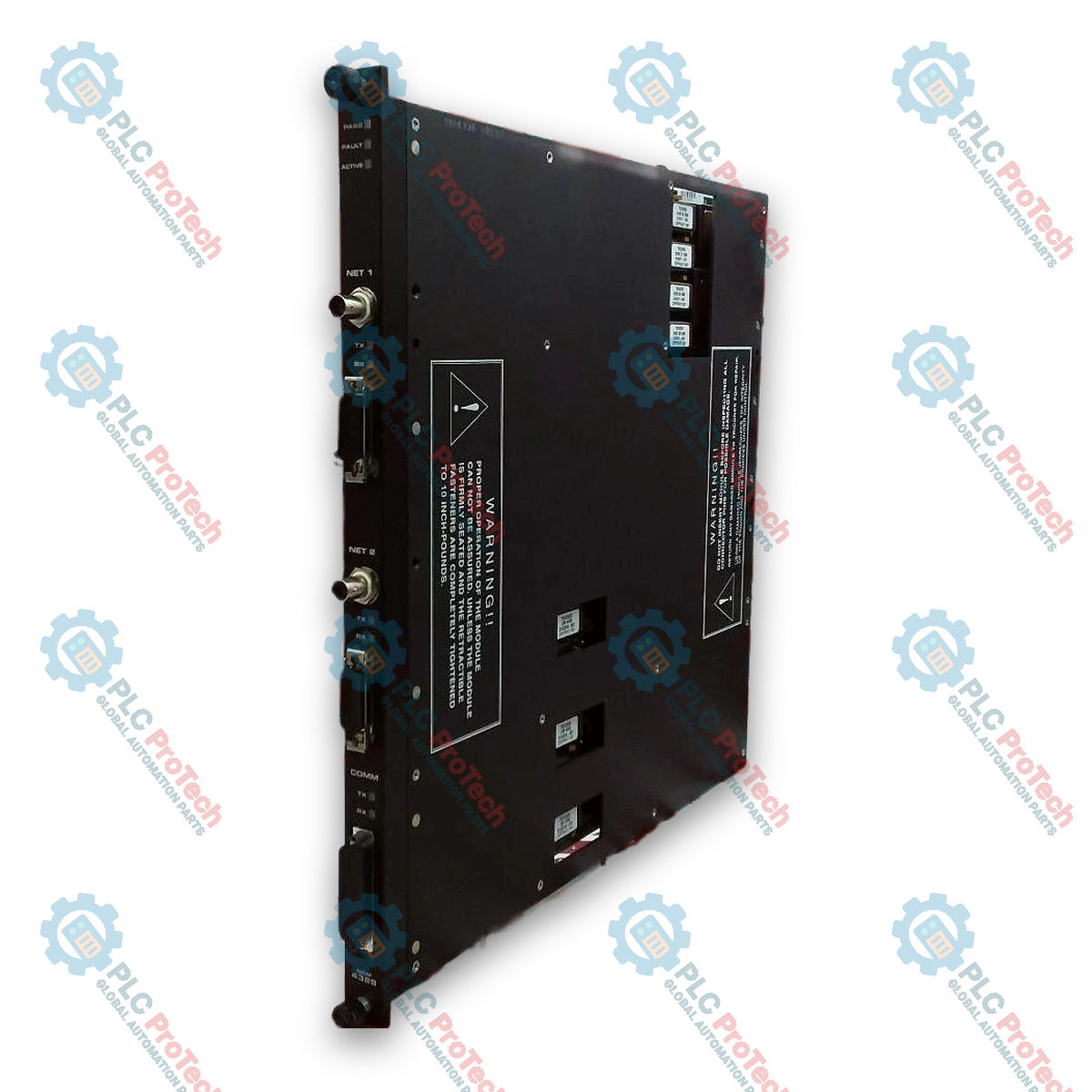

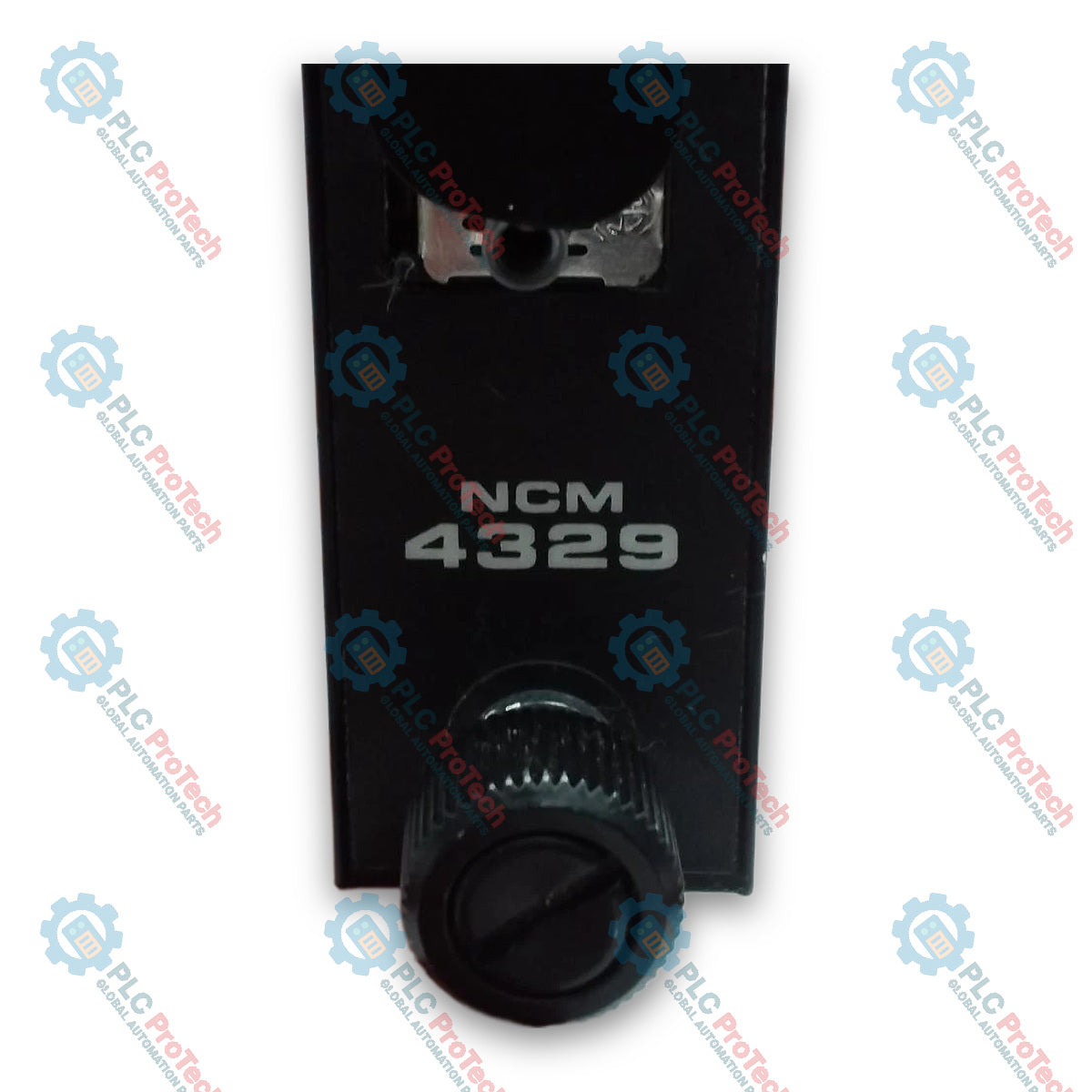

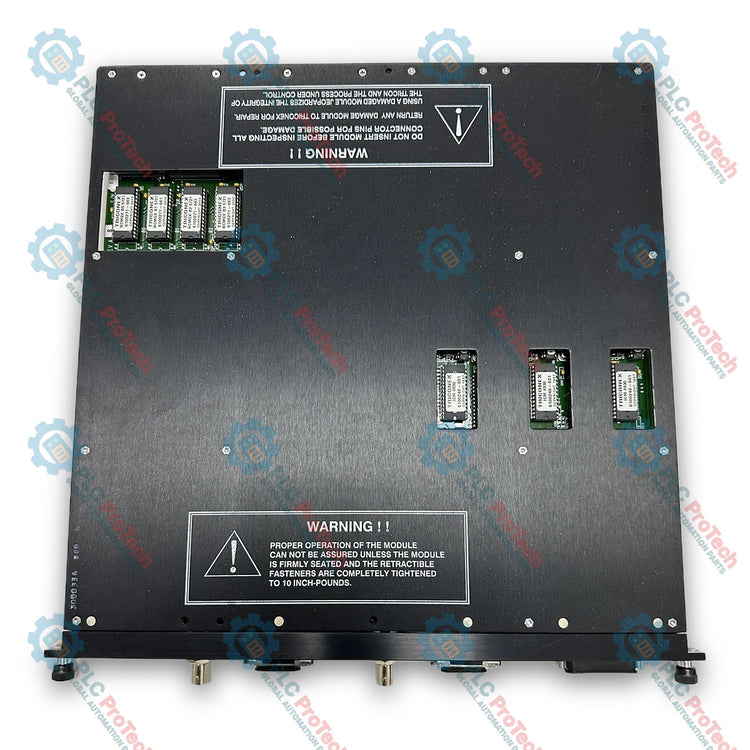

The Triconex 4329 is a Network Communication Module (NCM) designed to enable communication between a Tricon controller, other Tricon systems, and external host systems over Ethernet (802.3) networks. The module processes data refreshed by the Main Processors once per scan, providing interface capability across safety and external network domains.
The module features two BNC connectors for network connectivity. Port NET 1 supports Peer-to-Peer and Time Synchronization protocols for safety networks consisting exclusively of Tricon controllers. Port NET 2 supports open networking to external host systems running applications such as TriStation 1131, SOE, OPC Server, DDE Server, or user-written software, including those utilizing the TSAA protocol. The Triconex NCM 4329 operates at 10 megabits per second over thin coaxial cable (RG58). Two 4329 modules can reside in one logical slot of a Tricon chassis to operate independently.
| Description | Model No. |
|---|---|
|
Network Communication Module (NCM), Ethernet (802.3) ports |
4329, 4329G |
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex |
| Model Number | 4329 / NCM 4329 / NCM4329 |
| Module Type | Network Communication Module (NCM) |
| Ethernet (802.3) Ports | 2, BNC connectors, RG58 50-ohm thin cable |
| External Transceiver Ports | 2, 15-pin D-connectors |
| Serial Port | 1, RS-232 compatible |
| Port Isolation | 500 VDC |
| Protocol | TSAA (TCP(UDP)/IP/802.3) |
| Functions Supported | TRICON_DATA (Frame Type 1), TRICON_DATA_REQ (Frame Type 2), WRITE_TRICON_DATA (Frame Type 3), WRITE_TRICON_DATA_RSP (Frame Type 4), READ_TRICON_CLOCK (Frame Type 5), READ_TRICON_CLOCK_RSP (Frame Type 6), SET_TRICON_CLOCK (Frame Type 7), SET_TRICON_CLOCK_RSP (Frame Type 8), READ_TRICON_DATA (Frame Type 11), READ_TRICON_RSP (Frame Type 12) |
| Communication Speed | 10 megabits per second (for Ethernet ports) |
| Status Indicators | PASS, FAULT, ACTIVE, TX (1 per port), RX (1 per port) |
| Operating Temperature | 0 to 60 degC (32 to 140 degF) |
| Storage Temperature | -40 to 75 degC (-40 to 167 degF) |
| Relative Humidity | 5% to 95%, non-condensing |
