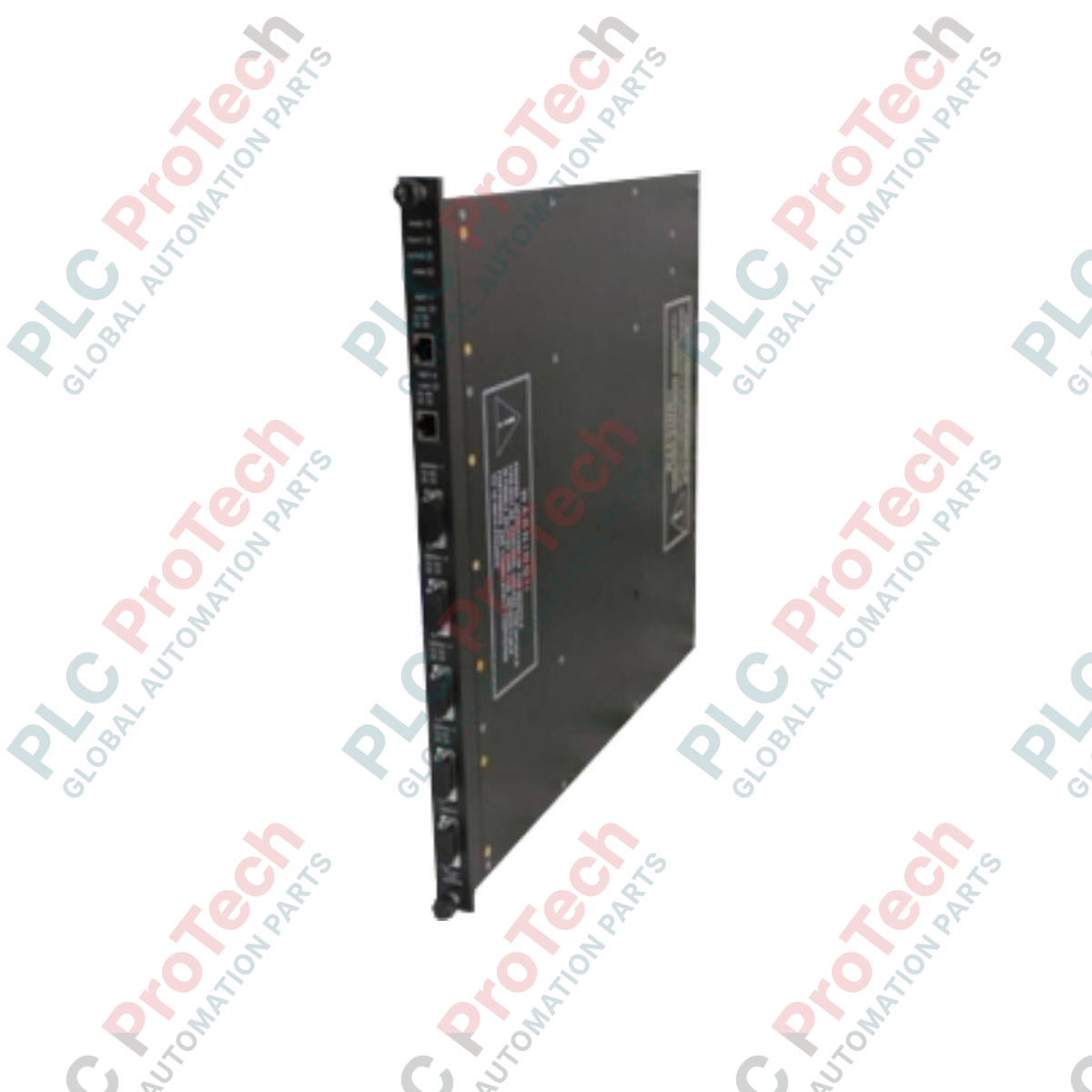

Designed for seamless integration into Triple Modular Redundant (TMR) architectures, the Triconex 3706A provides highly reliable thermocouple temperature sensing for critical Safety Instrumented Systems (SIS). This 32-channel differential thermocouple analog input module executes continuous 2-out-of-3 (2oo3) voting across three isolated internal channels to ensure fault-tolerant operation in emergency shutdown (ESD), burner management systems (BMS), and fire and gas safety applications. Each input channel is fully isolated and monitored by dedicated microprocessors, allowing the system to identify sensor failures, open-circuit conditions, and calibration drift without interrupting industrial process control.
| Specification Parameter | Value / Detail |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 3706A |
| Module Type | Thermocouple Analog Input Module |
| Number of Channels | 32 Differential, Isolated Channels |
| Architecture | Triple Modular Redundant (TMR) with 2oo3 Voting |
| Thermocouple Types | Type J, K, T, E (Software Configurable) |
| Common Mode Rejection | > 90 dB at 50/60 Hz |
| Safety Integrity Level | SIL 3 Capable (TUV Certified) |
| Operating Temperature | 0 to 60 degC |
| System Compatibility | Tricon v9, v10, and v11 Platforms |
| Shipping Weight (Calculated) | 4.5 kg (9.9 lbs) |
| Package Dimensions (Calculated) | 45.0 x 32.0 x 9.0 cm |
This module connects to the external thermocouple wire runs through dedicated field termination blocks. Accurate cold-junction compensation is handled at the terminal panel interface.
| Interface / Connector | Functional Assignment / Wiring Protocol |
|---|---|
| Rear Backplane Interface | Dual redundant logic power connectors and triplicated communication buses. |
| External Termination (ETP) | Requires Triconex ETP with integrated high-precision RTD for Cold-Junction Compensation (CJC). |
| Field Signal Shielding | Thermocouple shields must be terminated at the designated ground rail on the ETP frame. |
The "A" suffix variant (3706A) introduces significantly improved low-frequency noise filtering and enhanced common-mode rejection compared to the legacy non-A 3706 module. When replacing an older 3706 with a 3706A in a Tricon v9 platform, ensure the system’s TriStation 1131 software configuration is updated to verify hardware definition match, preventing unexpected module configuration mismatch fault codes.
To prevent thermal gradient drift across the Cold-Junction Compensation (CJC) sensors, avoid mounting external termination panels directly above heat-producing equipment or inline with high-velocity HVAC ducts inside the control cabinet. Steady, stagnant ambient conditions around the termination panel guarantee the highest measurement accuracy.
During initial commissioning, verify that the thermocouple extension wire match matches the thermocouple type specified in the TriStation configuration. Running copper wire from a Type K sensor to the ETP terminal will bypass the cold junction compensation, causing severe temperature reading errors proportional to cabinet heat changes.
Check the module's keying pins to confirm they match the slot configuration designated for the analog input on the backplane.
Firmly push the module into its chassis slot until the top and bottom ejector levers snap shut and lock completely.
Secure the module retention screws at the top and bottom of the front plate to prevent vibration-induced movement.
Verify that the front panel PASS status indicator illuminates green, indicating the active self-test has completed successfully.
Global Express Shipping
Returns & Warranty
Manufacturer: Triconex
Product No.: 3706A
Country of origin:United States
Product Type: Thermocouple Analog Input Modules
Payment: T/T, Western Union
Weight: 10000g
Dimensions: 45.0 x 32.0 x 9.0 cm
Shipping port: Xiamen
Warranty: 12 months
