Description

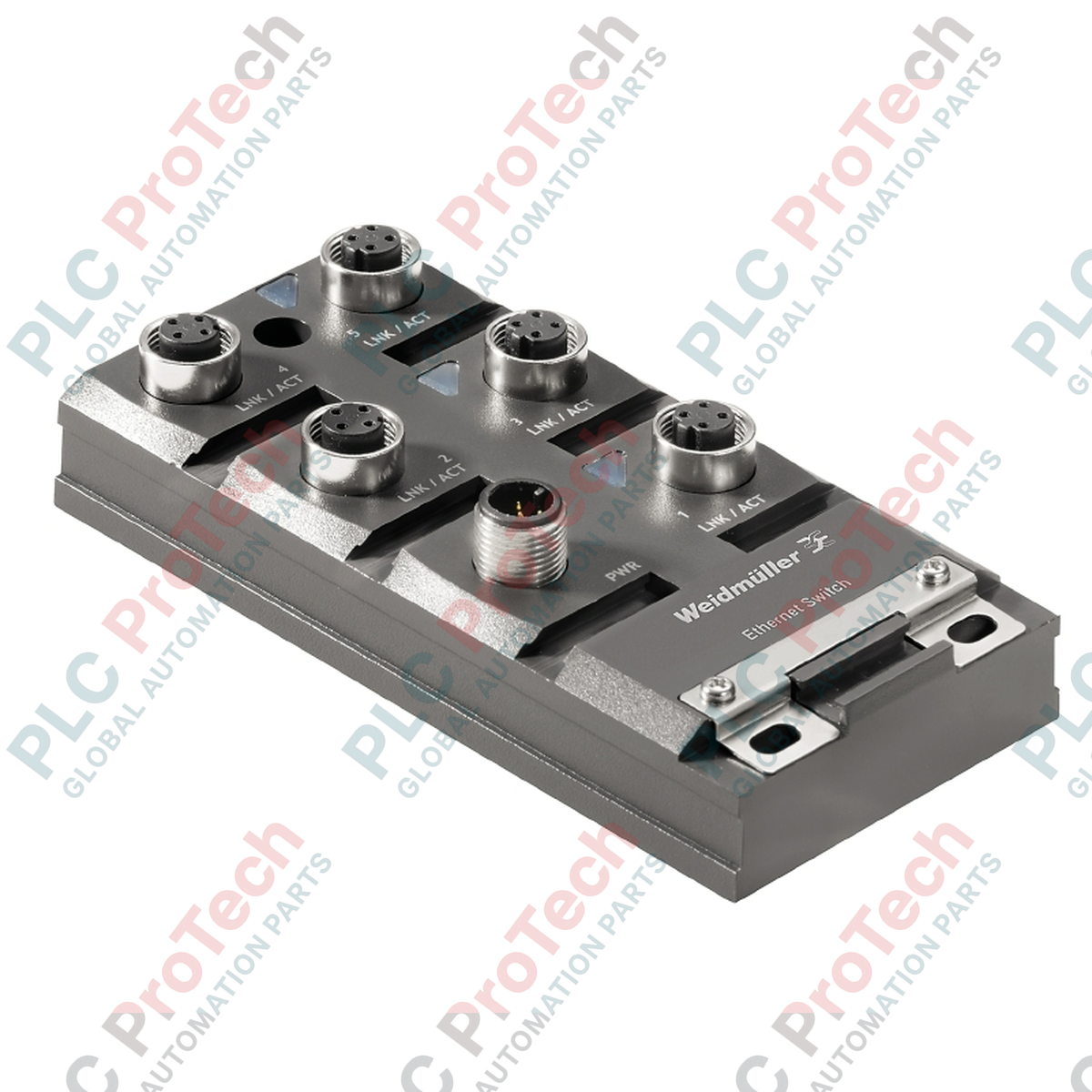

Decentralized network distribution in harsh industrial environments is simplified with the **Weidmuller IE-SW-IP67-5M12** (article number **1504410000**). This unmanaged Fast Ethernet switch features robust IP67 encapsulation, allowing direct field installation without the need for an additional protective control cabinet. Engineered to withstand demanding physical conditions, the device utilizes secure M12 connection technology to ensure reliable data transmission and vibration-resistant connections.

Operating as a store-and-forward unmanaged switch, this unit automatically manages data packet forwarding and filtering. Its integrated electrical protections, including reverse polarity protection and overload current protection, safeguard connected field devices against electrical faults. The compact plastic housing is optimized for direct wall mounting, providing a space-saving and highly durable networking solution for modern industrial automation architectures.

Features

• IP67 encapsulated housing provides complete protection against dust and temporary water immersion.
• Supports Fast Ethernet transmission speeds for efficient field-level communication.
• Store and Forward switching mechanism optimizes data traffic and minimizes packet errors.
• Integrated overload current protection rated at 1.1 A.
• Reverse polarity protection ensures safe electrical installation and startup.
• Flexible power input options supporting both AC and DC voltage ranges.
• Vibration-resistant M12 connection interfaces designed for heavy-duty industrial environments.

Applications

• Decentralized field-level networking in automotive manufacturing and assembly lines.
• Food and beverage processing facilities requiring washdown-compatible IP67 equipment.
• Material handling, conveyor systems, and packaging machinery.
• Water and wastewater treatment plants requiring localized, moisture-resistant network nodes.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Secure the device directly to a flat, rigid surface using the integrated wall-mounting screw holes. Ensure the mounting surface can support the weight of the switch and connected cabling.
• Cabling: Use industrial-grade, shielded M12 cables to maintain the IP67 environmental seal and ensure electromagnetic compatibility (EMC). Hand-tighten all M12 connectors to the specified torque to prevent moisture ingress.
• Power Connection: Connect the 24/36 V DC or 24 V AC power source to the designated A-coded M12 power socket. Verify that the supply voltage matches the specified limits before energizing the system.
• Environmental Considerations: Ensure the ambient operating temperature remains within the range of -25 degC to 60 degC. Avoid mounting the switch in locations with direct, continuous exposure to high-pressure steam jets.
